Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

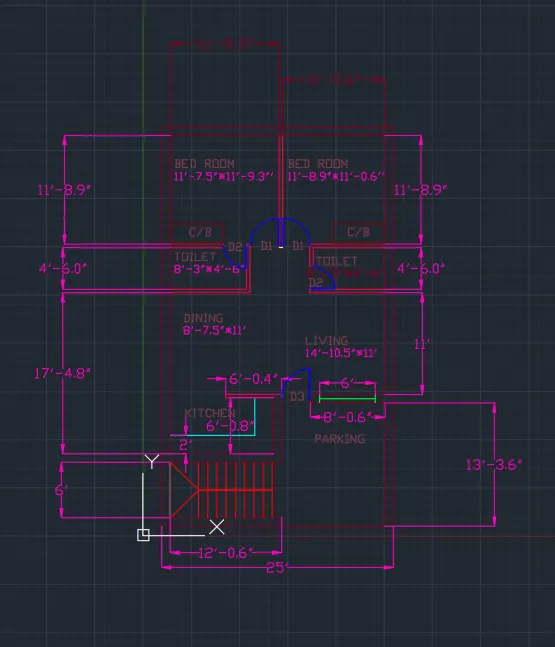

Q.1 : Ans

• Change the unit to engineering by un command.
• Then draw the plan as per the given dimentions if somewhere the dimentions are not mention then we must asume it
• After drafting the plan also draw the doors as given in the index beside i.e 2'-6" for D2.
• Also take the riser and tread as given in the index.
• After that so the dimentions of each room thickness of walls i.e for external wall 9"-4.5" for internal.
• After that give the layer for each thing like e.wall, i.wall,furniture etc with different colours.

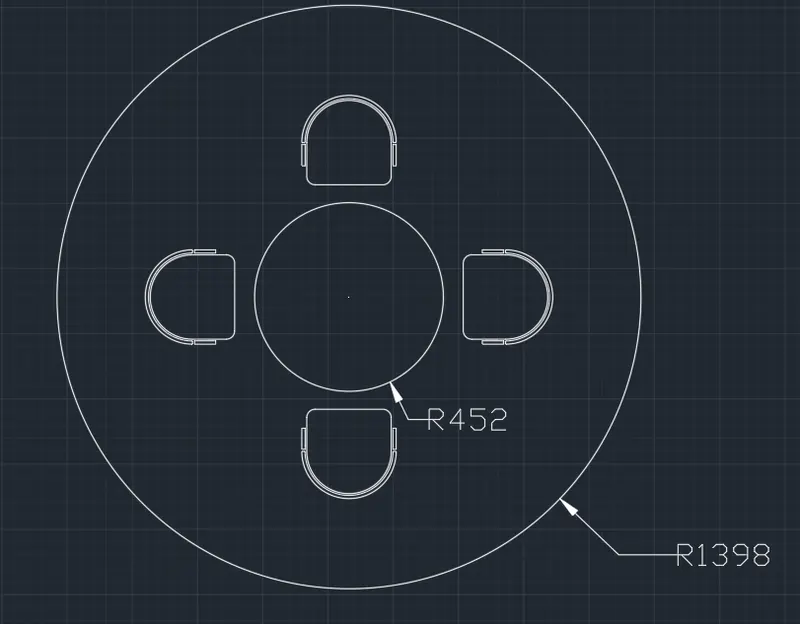

Q.2 Ans

• First change the unit to decimal which is in meters and mm.
• Then give an radius of 1398 mm for outer circle and 452 mm for inner.
• Then draw the chairs i.e draw 1 and then do copy paste n mirror.
• After that give the dim.

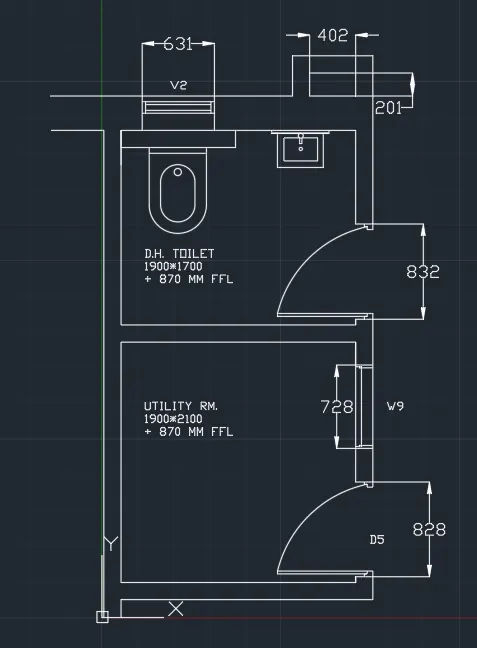

Q3 Ans :

• Units decimel in mm.
• Give the wall thickness of 300mm for external n 150mm for internal wall.
• And have drawn everything with the help of line tool, offset etc.
• And give text in single line text.
