Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad

CHALLENGE WEEK - 4

AutoCADD Essential

Question no.1:

• AIM:

• To sketch the layout of a residence.
• To consider all dimensions as reference to sketch the unit plan.

• Procedure:

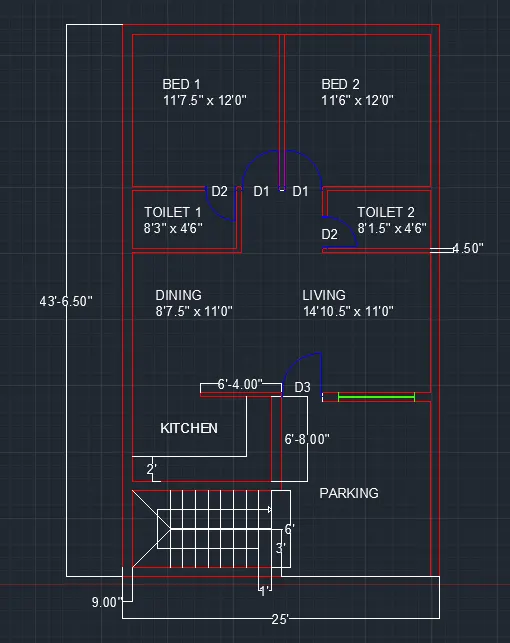

• First create the outter walls with the dimensions of 25' x 43'6.5" in Line.
• Then offset the line to 9" inner side.
• then off set the left edge line to 11'75" to create the partion wall line for bedroom 1.
• Then offset the line to 4.5" as the partitioning walls are 4.5".
• The bedroom 1 is of 11'7.5" x 12' and the bedroom 2 is of 11'6" x 12'.
• Then toilets adjacet to the bedroo'ms.
• The toilets with the dimensions of 8'3" x 4'6" and 8'1.5" x 4'6".
• The dining room with the value of 8'7.5"x11' and
• The living room combined with dining room with size of 14'10.5"x11'.
• Then kictchen adjacent to the dining area.
• Stair outside the house is placed with a riser of 6" and tread of 1'.
• Draw doors and widows as per the specs given in as the reference.
• Thus our residense sketch is obtained.

• RESULT:

• The drawing was drawn using engineering units.
• The drawing contains the dimension values.

Question no.2:

• AIM:

• Sketch the seating plan for an outdoor canopy.
• To consider the dimensions in mm.
  .

• Procedure:

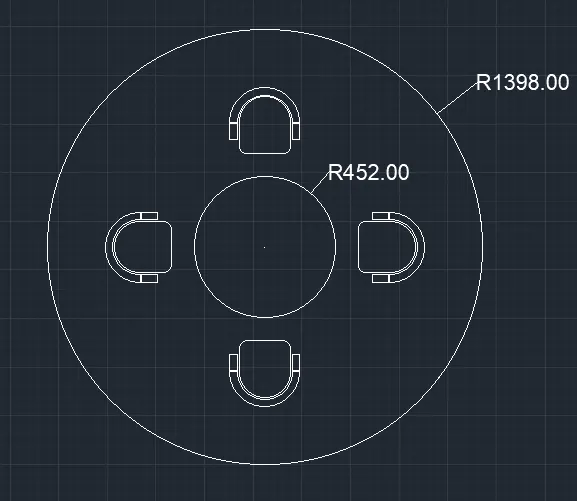

• First create the outter circle of radius 1398mm
• Then another inner circle of radius 452mm.
• Then a line of 200mm whose centre is aligned to the centre of the circles at any one quadrant of the circle.
• the a draw a line at one end of the first drawn line for 150mm. and copy the line to the other end of the first drawn line.
• Create a circle using the two end of the newly created lines as diameter.
• Then crop the circle at inner half. offset the half circle to 50mm. and off set again to 20mm.
• Then draw a handle line structure at desired shape.
• A chair shape is obtaind.
• Now array the chair shape in polar array setting no. of objects as 4.
• Then the drawing of outdoor seating with canopy is done.

• RESULT:

• The outdoor seating with canopy was sketched succcessfully.
• The drawing was drawn using decimal units.
• The drawing contains the dimension values.

Question no.3:

• AIM:

• To Sketch the part plan for the toilers and utilities room.
• Consider the outer wall thickness as 300mm and inner wall thickness as 150mm.
• To consider all dimensions as reference to sketch the unit plan.

• Procedure:

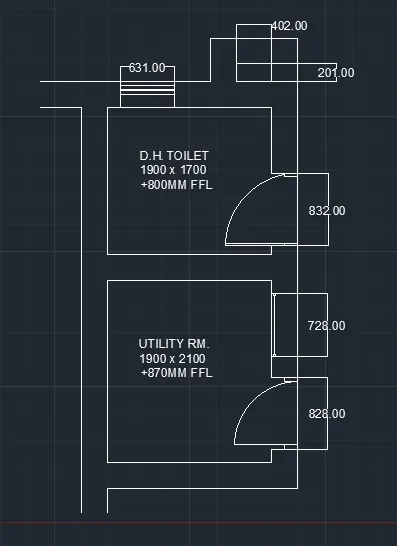

• First create two rooms with dimensions 1900 x 1700mm and 1900 x 2100mm top and bottom respectively.
• The two rooms are splitted by a wall of 300mm wall.
• The top toilet has a window size of 631mm and a door size of 832mm.
• The bottom toilet has a window size of 728mm and a door size of 828mm.
• There is a shaft opening of 402mm width and 201mm depth surrounded by wall of top bedroom adn three sides walls of 300mm.
• Thus our part plan of toilets and utilities are obtained

• RESULT:

• Thus our part plan of toilets and utilities are obtained.
• The drawing was drawn using decimal units.
• The drawing contains the dimension values.
