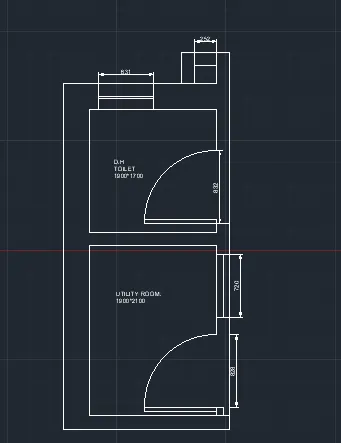

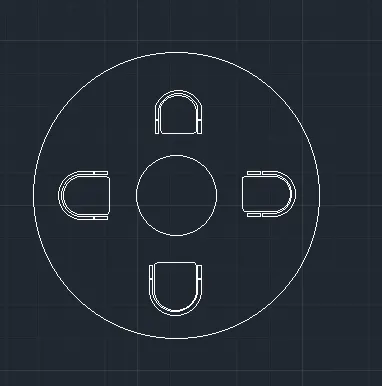

Creating a Residence Layout, Seating plan, Toilet and Utility room plan using AutoCad
YOUR ANSWERS:

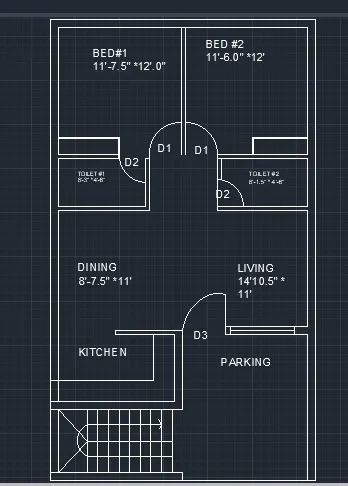

1)AIM: To sketch the layout of a resisdence building plan by using autocad.
PROCEDURE:
- First open the auto cad and set the units and limits as per the requirements of the drawing.
- To draw the layout of a building first of all create different layers for different objects like walls,doors,windows,steps,text,dimensions,etc.
- After creating the layers then start sketching the layout of residence building plan.
- In the above drawing all the lines are drawn by using line commandd.
- And all the text are written by using the text command.
- Offset command is used to create new object with the same dimensions of another object.
- All the dimensions are given by using dime command.
- Trim ciommand is used to removed the unwanted objects.
- Also arc command is used fpr draw the doors.
- hatch cammand is used is used for walls and other objects.
- Move command is used to move object from place to another place.
- Also use to rotate command to rotate the object.
COMMAND USED:
1.line command
2.text command
3.hatch command
4.dime command
5.offset command
6. rec command
7.arc command
