Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim :-

Create the Plan and Sections as shown in the Figures by using auto CAD.

Procedure :-

* Open the AutoCAD software.

* Startup(start from scratch) with default setting as imperial.

* We can use the proper drafting tools to sketch the plan.

* Dimensions set as milli meter(mm).

* We can use proper dimension techniques to dimensioning as per the figure.

* We can assume D is 1000mm, D1 is 900mm, D2 is 750, W is 600, W1 is 800, W2 is 900, W4 is 1200 and also column size as 250x300, 250x350, 250x400 as per the figure requirement.

* We can insert text wherever required.

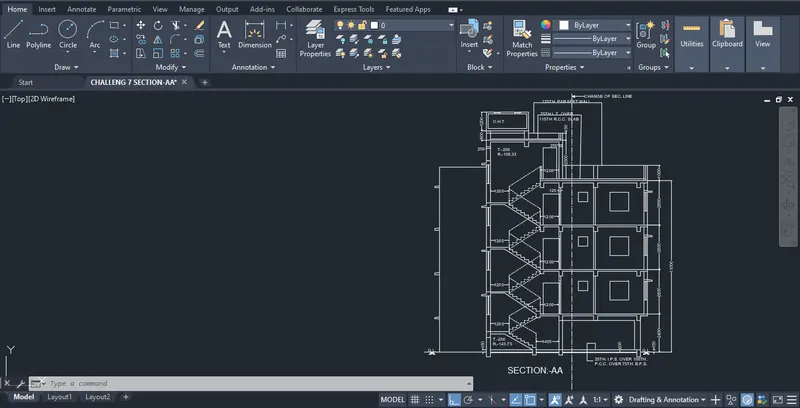

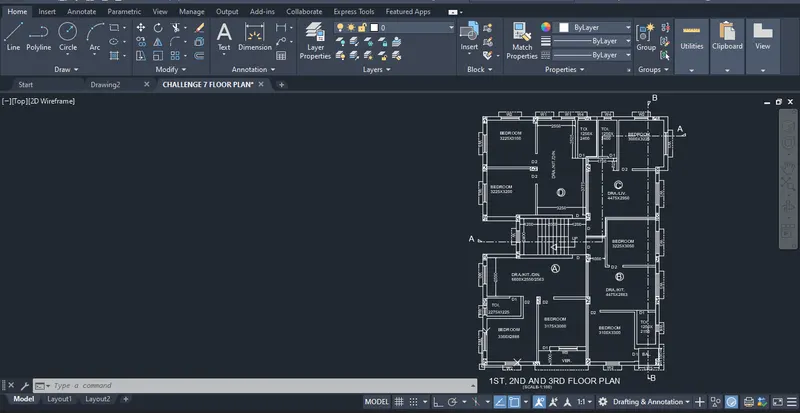

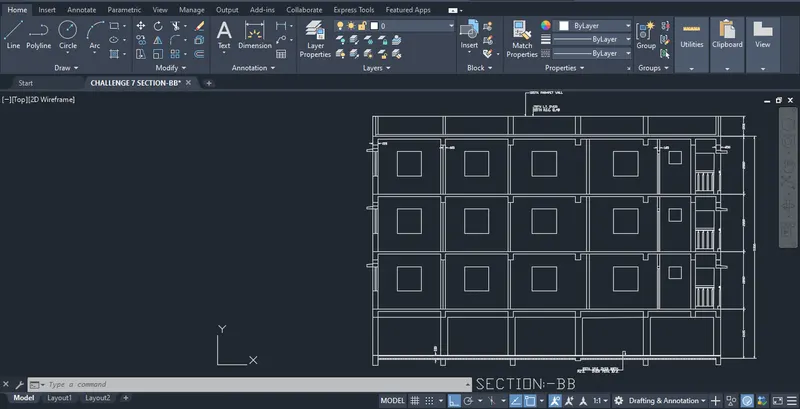

* Finally, create the floor plan, section-AA, section-BB drawing as given specifications.

Result :-

Successfully create the Plan and Sections as shown in the Figures by using auto CAD.
