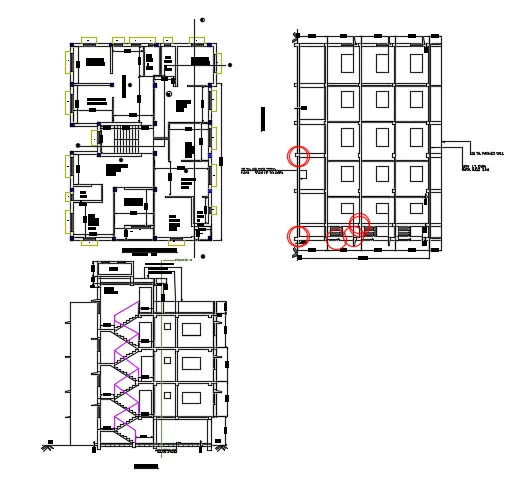

Creating a Layout, Section and Elevation with dimensions using AutoCad

1. To Create the Plan and Sections of given Floor.

:- First of all set units in Decimal with precision 0 and insertion scale milimeter.

:- Now take "dimstyle" and set " Text Style, Dimension style Font, and text size and set current.

:- Now take "Xline" command and draw vertical and Horizontal lines intersecting each other for 1st,2nd and 3rd floor Plan. and trim the extra line.

:- Now with " Offset" command take offset as per room and toilet sizes and draw lines.

:- Now trim the extra lines and make rooms.

:- Simillarly take " offset" from vertical lines and Horizontal line to make all the rooms, Toilet, Halls etc.

:- Now creat Window Blocks of sizes, 1500, 1000, 800, and 500 mm. and Creat Doors of sizes 1000mm, 875 mm and 800 mm.

:- Now, again take line command and draw Balcony and Veranda with "Offset" comamnd.

:- with the help of " Line' Command draw chajja for all Windows.

:- Again witht he " Line' command and "Offset" command draw Staircase for the plan.

:- Take " Mt/DT" command write all the details of the rooms, Halls, and Toilets, etc.

:- Now with " dimlinear" Command show the dimensions of all the rooms.

:- Now Niminate the Flate Names as A, B,C,D, etc.

:- Again with the help of "line" command show the section lines and give their Nominations.

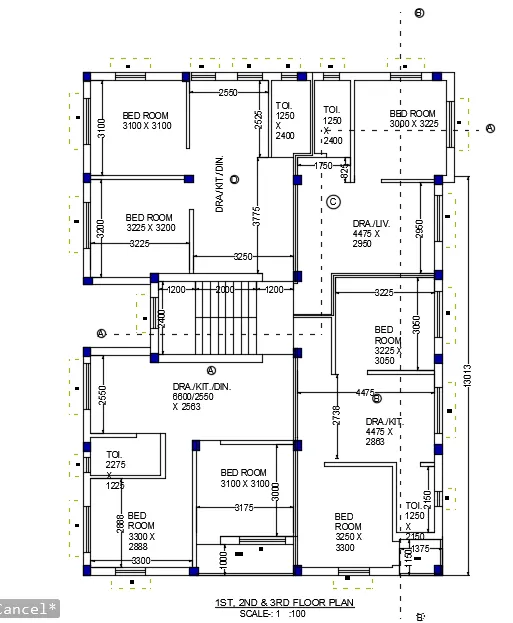

: Hence the Floor plan is Ready here finally as shown below.

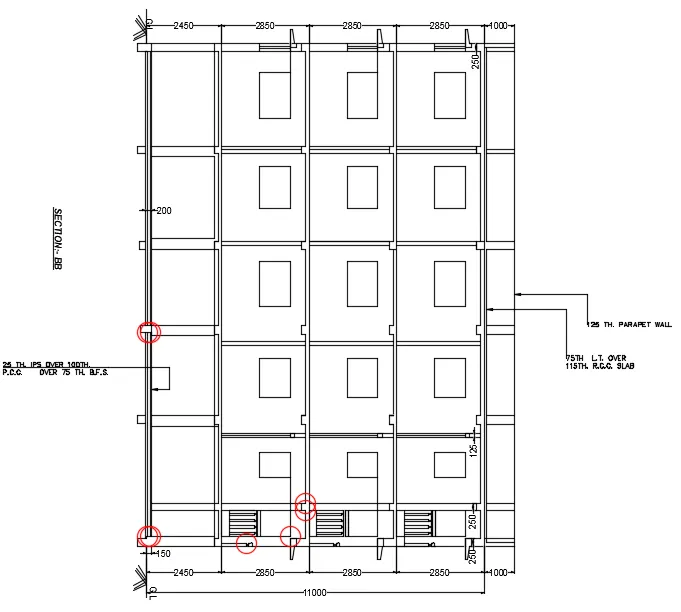

 2.0 Creating Side Elevation of a 3 storey Building.

:  Same as above as we have same unit and dimension style.

:- with the help of "Xline" vertical and Horizontal, draw line at wall and columns with reference to floor plan.

:- now trm the extra lines and make rooms as per the floor plan.

:- Again draw lines fro windows and make oepnings in the room as well as insert windows blocks as per their sizes.

:- Now with the help of "Line" , Fillet, Offset, and Trim commands draw OHT and parapet walls over the roof of Building.

:- with the help of Line and trim command draw the Chajjas above windows.

:- Again with "Polyline" command draw stair case and hand rails and put handrails into break lines for hidden sections.

:- Now make the door openings before landing at each floor.

:- Now show the dimensions for both side landings, floors, OHT, parapet walls, and external and internal walls.

:- Again with " Multi leader" command write the Section details, Stair case detail and parapet, and slab details, etc.

:- Show the bootm PCC and "Hatching" for B.F.S.

:- Show the Ground Level and thicknes of BFS, IPS, PCC.

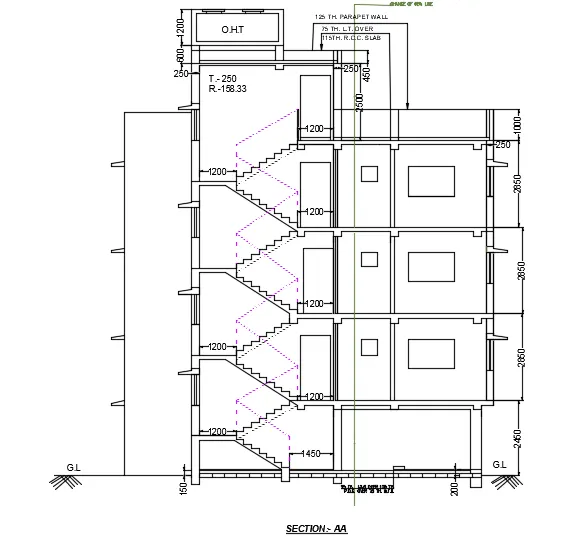

: Hence the Side Elevation is ready now as shown below.

3.0 Creating Front Elevation of a 3 storey building.

: The Unit and Dimension are set earlier as it is as all are of same Building.

:- Now with "Xline" command draw horizontal Lines from walls, columns of the floor plan to draw the Front elevation of the building.

:- Now with reference to the sizes of the Rooms and walls, Columns, Slabs, draw Vertical lines with " Xline command and take offset for each parts.

:- Now trim the extra line and make rooms and columns and walls.

:- agisn take offset command and line command and draw window openings for each room and trim extra lines.

:- Now insert the windows blocks for windows and draw chajjas above each windows.

:- with the help of line command make block for Balconyt "Handrail" and insert it.

:- Draw the BFS and PCC details at Ground floor level, and columns for footing.

:- Now Show the dimensions of Floor, Walls, Columns, and PCC, and parapet walls with the hepl of "Dimlinear" Tool.

:- With the help of Multi leader tool put the text for detals of the parapet and Ground floor.

:- Hence the Front elevation is ready as shown Below.
