Challenge

Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim -To Create the Plan and Sections.

Procedure-

select line command specify the first point as (0,0).
To draw bedroom 3 in number with attached bathroom and balcony at the bottom provide specific distance to get desired size of room.
repeat line command to draw outer wall of the plan.
select offset command and provide offset distance of 250,200 and 150 as required in the plan.
select line command to draw border line for door and windows opening.

once the drawing of elements has been completed lets use text command to provide detailed information of the plan.
use trim command to trim all the undesired elements in the drawing.

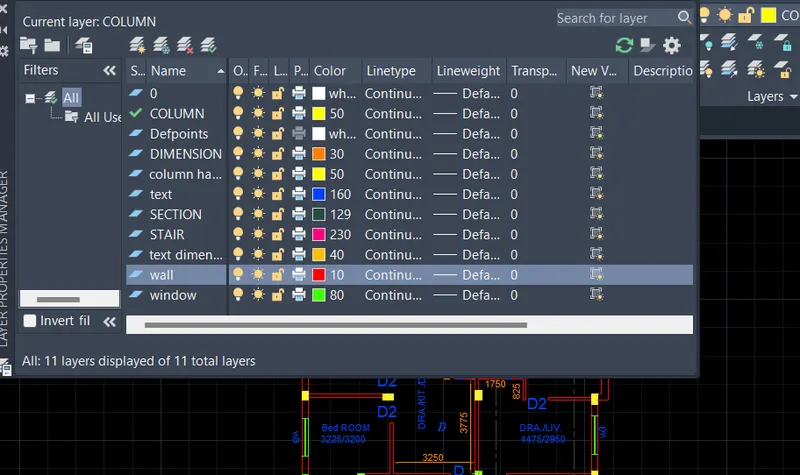

after completion of drawing arrange different elements in different layer as shown in the layer below.

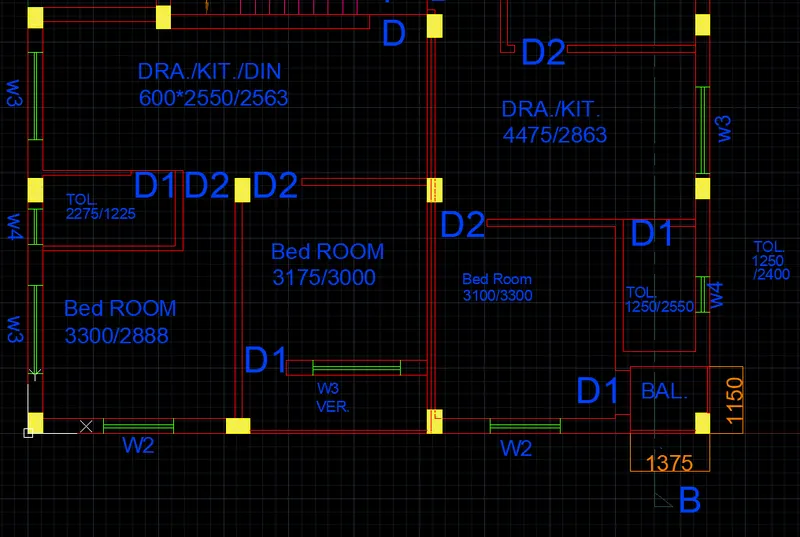

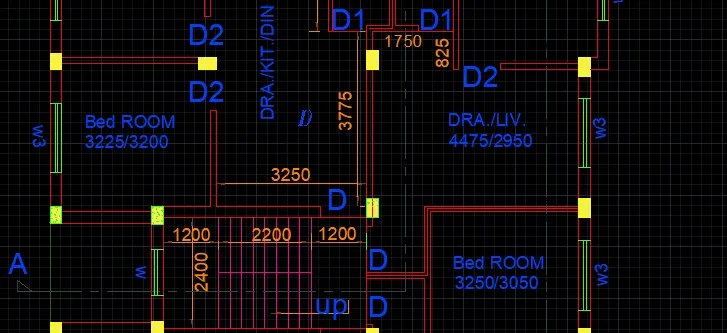

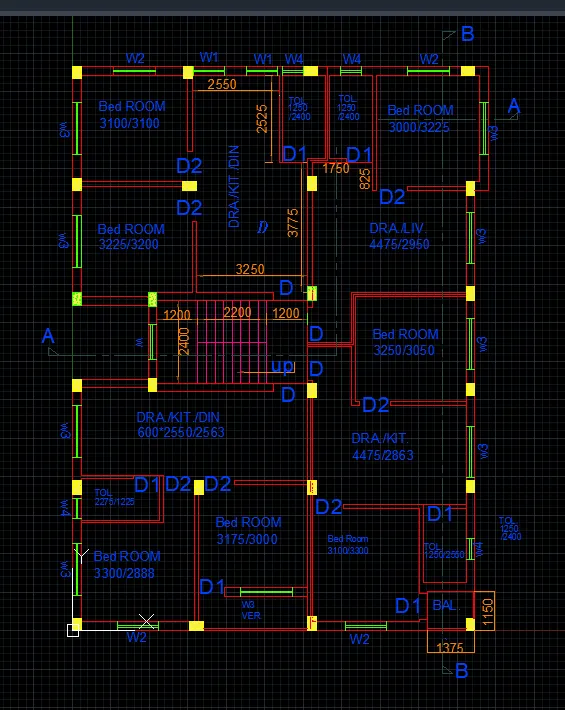

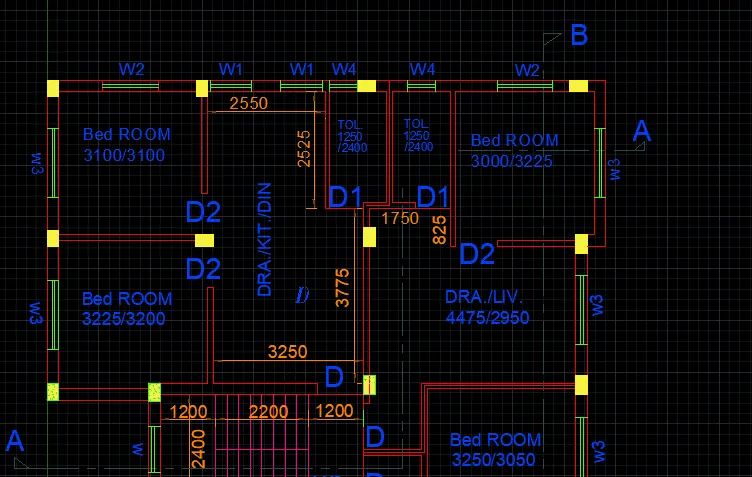

Result- First,second and third floor plan has been drawn.

Aim- To draw section of the floor plan.

Procedure-

Select line command and specify the first point say (0,0).
Draw the outer wall of the building using line command.
Select offset command and specify the offset distance as 250,200 and 150 where ever required.
Using trim command trim all the unwanted lines .
Using text command provide the text for detailing of the section drawing.

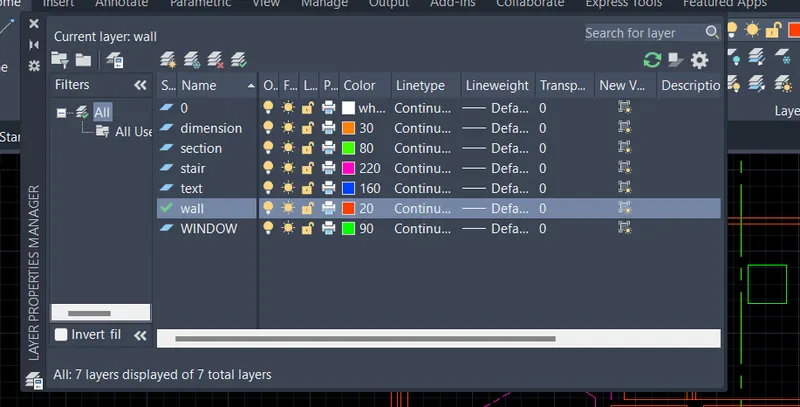

Once the drawing is completed put the objects of the drawing in respective layer by typing LA in the command prompt.

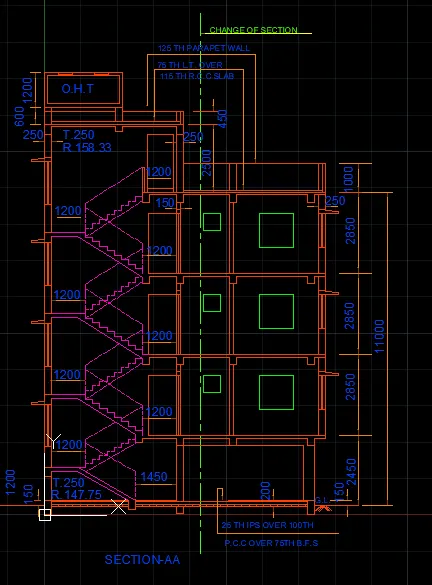

Result- The section of the floor plan is drawn.

Aim- To draw section of the floor plan.

Procedure-

Select line command and specify the first point.
Draw line of required distance in ortho mode on for outer wall.
Select offset command to draw inner walls
Using trim command trim all the unwanted objects from the drawing.
Using text command text the drawing.
Once the drawing is completed put the elements of the drawing in respective layer by typing LA command in command prompt.

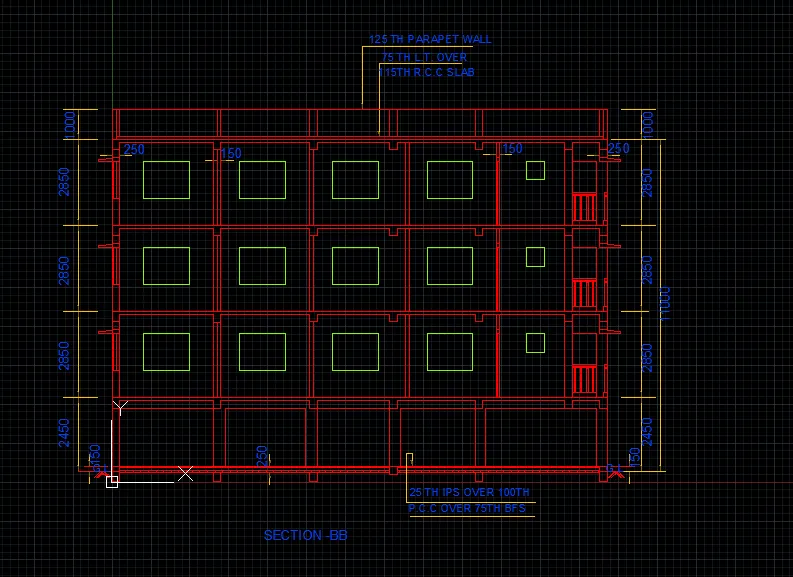

Result- The section of the plan has been drawn.
