Creating a Layout, Section and Elevation with dimensions using AutoCad

QUE 1 ]

AIM ] To drow the floor plans and section using the proper dimension techniques and dimension styles to document the project

INTRODUCTION

• plan and section are different types of drawing used by architects to graphically represent a building design and construction
• a plan drawing is a drawing on a horizontal plane showing a view from above
• an elevation drawing is drawing on a vertical plane showing a vertical depiction
• a section drawing is also a vertical depiction but one that cuts through space showing what lies within

COMMANDS USED

• limits command
• line command
• offset command
• hatch command
• dim linear command
• units command
• extend command
• fillet command
• trim command
• join command
• line weight command
• line type command
• object snap command

PROCEDURE

STEP 1

• In the command prompt type units .mm
• In the command prompt type climax.100.100
• In the command prompt type limits .0 .0
• In the command prompt type zoom .0

STEP 2]

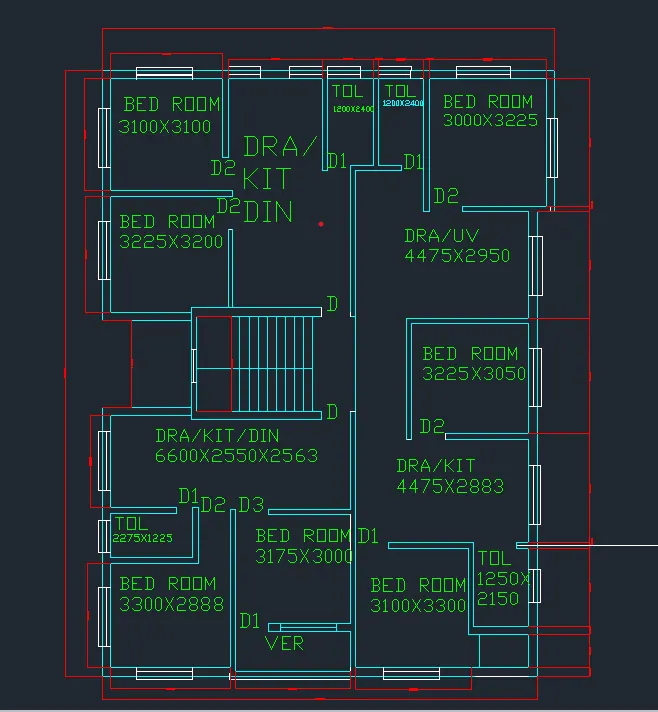

• In the command type the xl line drow the horizontal and vertical line
• the take the offset horizontal and vertical at the particular distance which is used in construction
• then trim the unwanted lines using the trim command

  STEP 3
• using offset and command drow the window
• then using command dtext drow the name

  STEP 4
• then take command linotype and drow the construction line as dotted

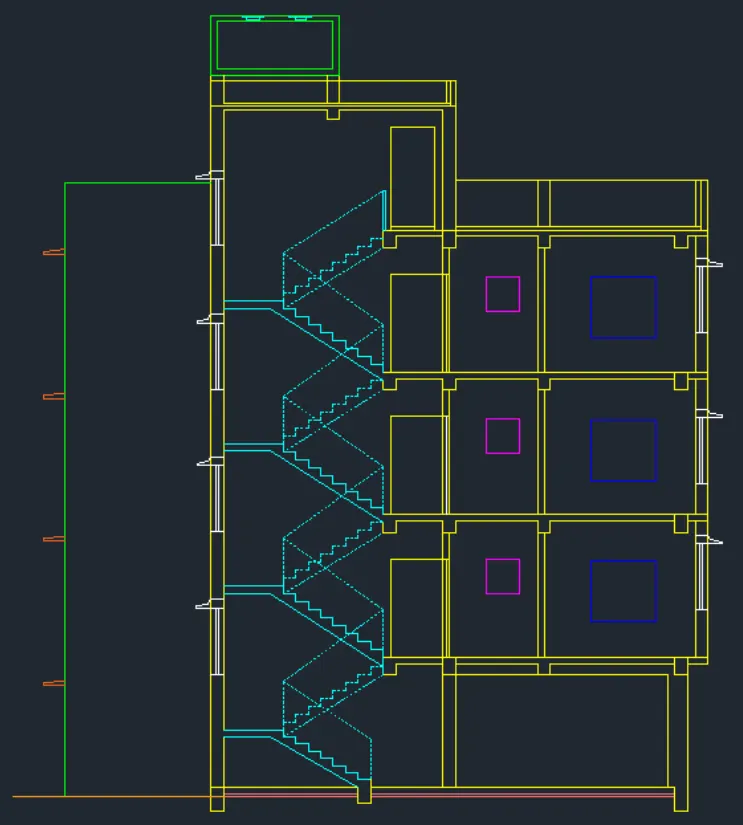

  STEP 5 FOR THE SECTION AA
• drow the horizontal line at bottom of the plan at the particular distance
• with help of extending command extend all lines which are used for the section
• with the help of the trim command remove the unwanted line
• use of command most off taking offset horizontally for the floors by floor aslo window

  STEP 6
• then use of command-line drow the rise and tred for the staircase as well as relying on
• after that drow the headroom with help of command offset
• with the help of the command-line below the chajja

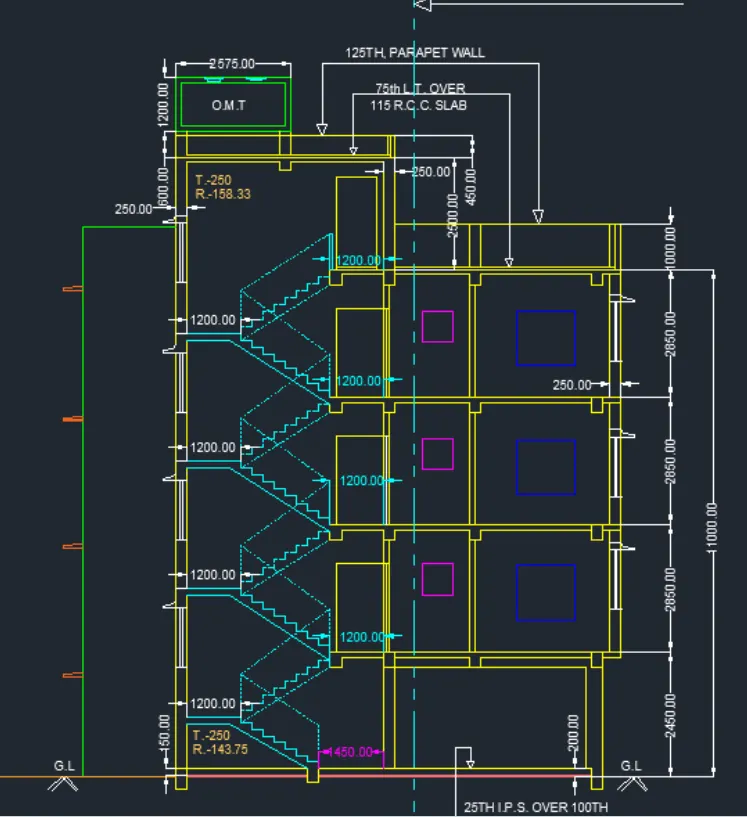

  STEP 7
• then next put dimensions with the help of dim command
• after that select single text command to indicate the parts of section

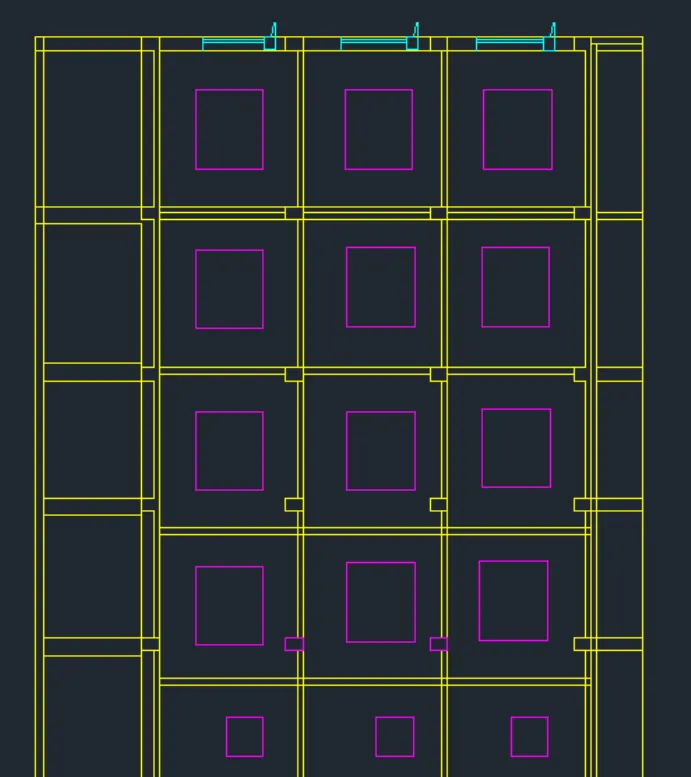

  STEP 8 FOR THR SECTION BB

• first take offset and drow all horizontal lines which are necessary
• as also taken vertically at a particular distance
• the with help of the trim command trim all the unwanted lines

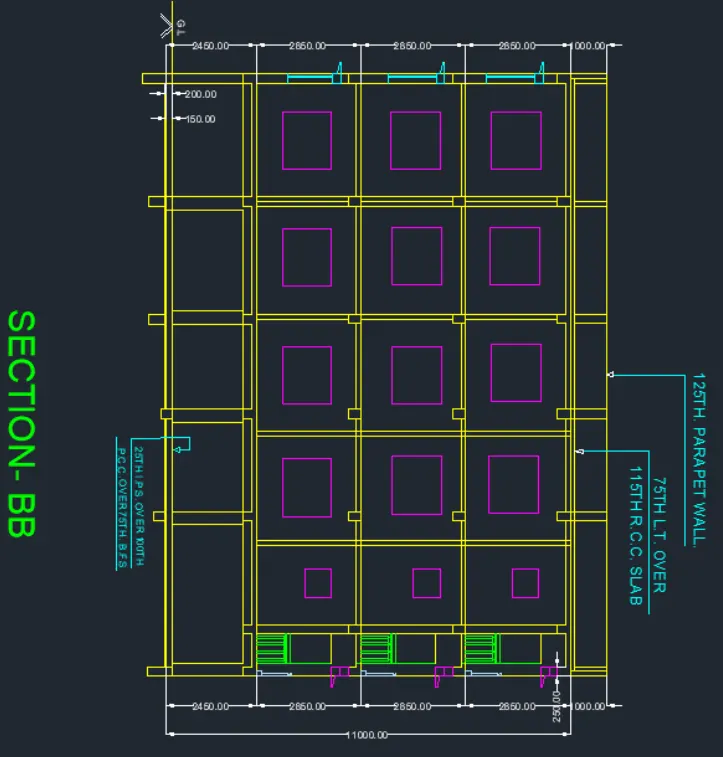

  STEP 9

• use command dim and drow the diminution
• then help of text command denote the part of the section
