Creating a Layout, Section and Elevation with dimensions using AutoCad

CHALLENGE WEEK - 7

AutoCADD Essential

Question no.1:

• AIM:

• To create the Plan and Sections
• To use proper texts and dimensions.

• Procedure:

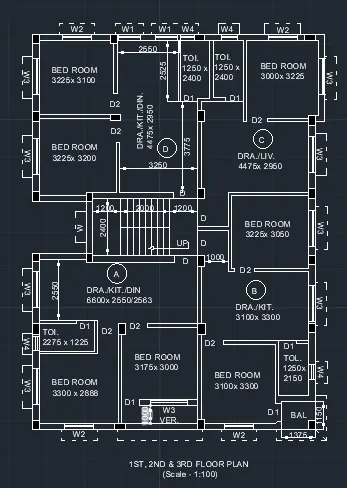

• Select the line tool.
• Drawing the outline sketch of the plan.
• First the outter wall is drawn by of setting line to 250 and 200mm.
• Then the inner wall of respective places.
• The rooms are divded using walls drawn using the line tool.
• The staricase is sketched with offset of 250mm as tread is 250mm.
• Windows are drawn according to the required specification.
• Doors and window sizes are assumed as per the required specification and the room.
• The texts are placed to the respective room spaces along the sizes of the room.
• Windows and door sizes are differntiated by different name for each type of door and windows.
• Thus the required for the plan.
• Now for the sections of the plan.
• There are two sections cut along the plan as SECTION AA and SECTION BB.

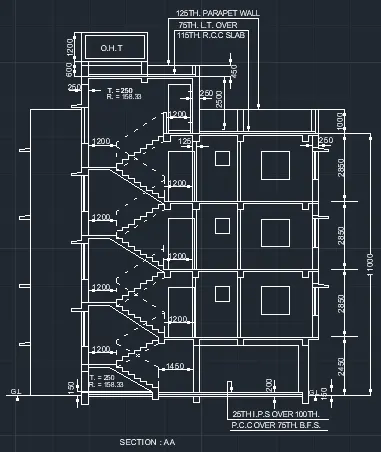

• In SECTION AA the plan is cut such that to show the staircase specifications i.e., riser and tread. and other space specifications.
• The SECTION AA is properly marked with dimensions and texts for specifications.

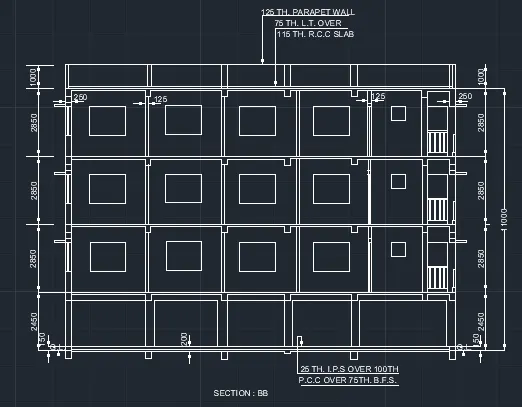

• Then SECTION BB is cut along the plan to show the dimesion specifications of the windows and other spaces.
• The SECTION BB is marked with proper dimension and the texts for various specifications of the drawing.

• Thus a residential plan with proper specifications and dimentions are obtained.

• RESULT:

• The Plan, section and details of the plan is successfully drafted.
• All units are in mm.
• The drawing contains the texts of required sizes.
• The drawing is marked with proper dimentions and specifications.
