Creating 3D Isometric view of various structural elements in AutoCAD
AIM:
TO CREATE A 3D ISOMETRIC VIEW OF THE BUILDING WITH THE GIVEN PLAN AND SECTION.
PROCEDURE:
THE WORKSPACE TO 3D MODELLING
SET THE UNIT AS ENGINEERING.

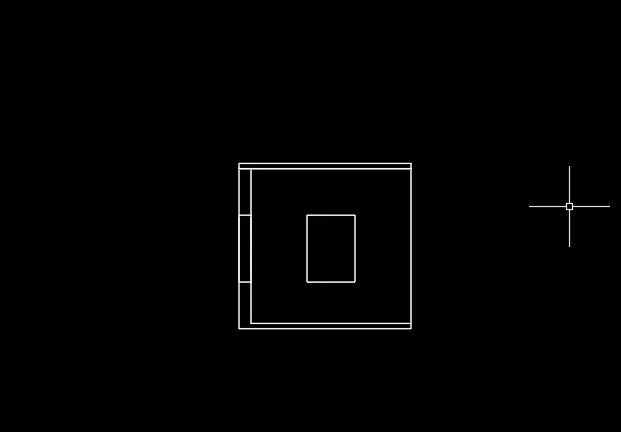

CREATE A RECTANGLE OF SIZE 10'9"*10"9".EXPLODE IT.
THEN OFFSET THE LEFT AND TOP LINE DISTANCE AT 9"
OFFSET THE BOTTOM LINE AT 3'5" AND 3'2" AND RIGHT SIDE LINE AT 3'6" AND 3'
CREATE A WINDOW OPENING.
THEN CHANGE THE VIEW OF S-W DIRECTION.
THEN REGION COMMAND IS USED CREATE A SURFACE OF THE OBJECT.
THEN CHANGE VISUAL STYLE TO CONCEPTUAL.

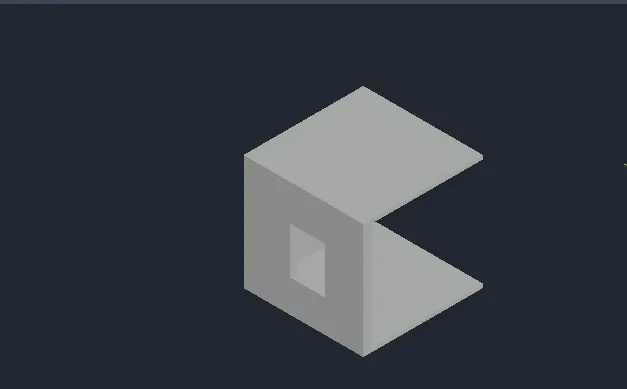

THEN USE EXTRUDE THE WALL HEIGHT OF 10'4"
AND THEN EXTRUDE FLOOR SLAB AT HEIGHT OF 4"

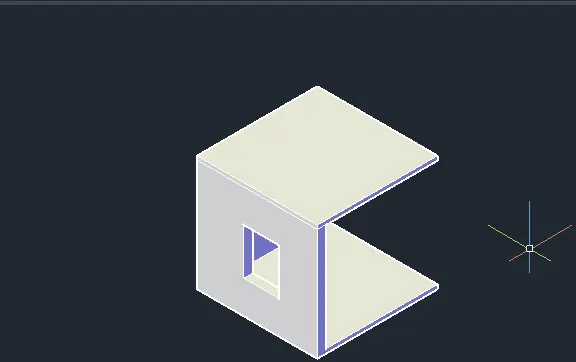

RESULT:
AIM:

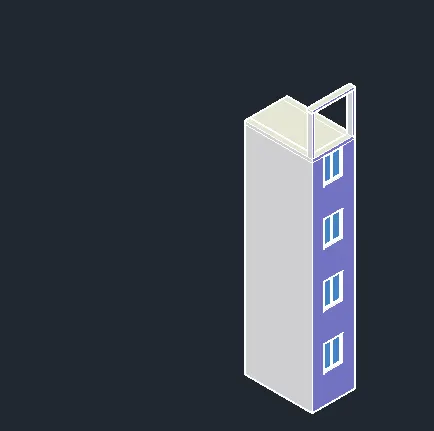

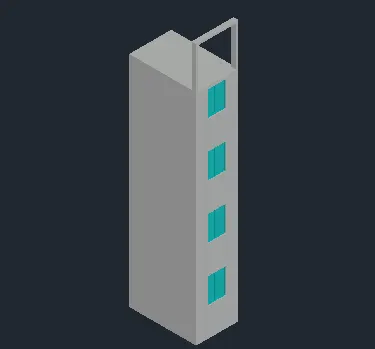

TO CREATE A 3D VIEW OF THE BUILDING FACADE AS GIVEN THE PLAN AND ELEVATION.
PROCEDURE:
THE WORKSPACE TO 3D MODELLING
SET THE UNIT AS ENGINEERING.

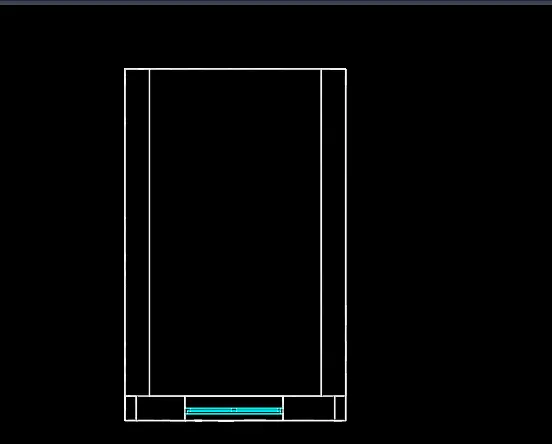

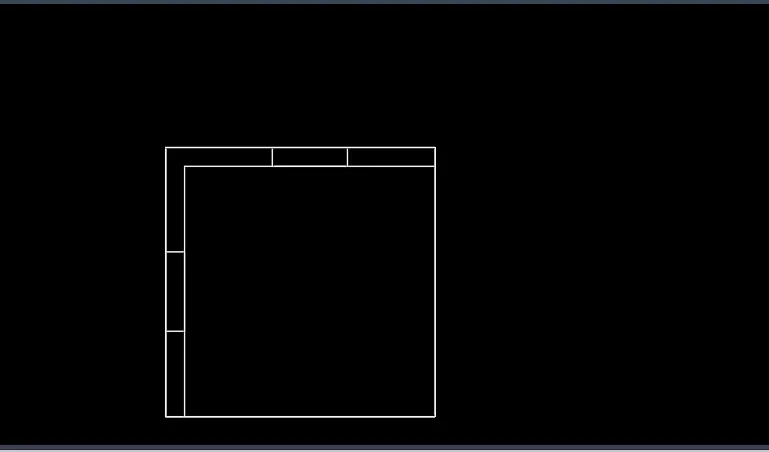

CREATE A RECTANGLE OF SIZE 6'9"*10'9". EXPLODE IT.
THEN OFFSET THE RIGHT,LEFT, AND BOTTOM SIDE LINE AT DISTANCE OF 9"
THEN OFFSET THE OUTER WALL LINE AT 1'11" AND OFFSET LINE AT DISTANCE OF 3'.
THEN VIEW TO S-W ISOMETRIC.
THEN USE REGION AND CREATED SURFACE OF THE OBJECT.

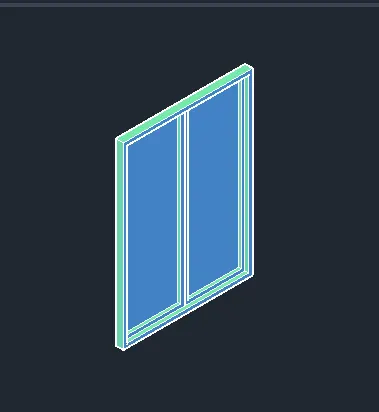

THEN CREATE A WINDOW.
RECTANGLE SIZE OF 3'*4'2" IN PLAN VIEW.THEN OFFSET AT A DISTANCE OF 2"AND3".
THEN REGION THE SURFACE OF THE OBJECT.
THEN EXTRUDE THE WALL AND WINDOW SURFACE AT A HEIGHT OF 8'8".
THEN CREATE A RECTAGLE SIZE 3'*4'2" AT THE SURFACE AT THE WALL.
THEN USE COPY TOOL AND CREATE ANOTHER 3 FLOOR.
THEN USE UNION TOOL SELECT THE WALL SOLID AND MAKE UNION.
THEN SWITCH TO PLAN VIEW
CREATE A RECTANGLE OF SIZE 4"*9" AT THE TOP.
THEN CREATE A REGION TO RECTANGULAR SURFACE.
THEN EXTRUDE THE RECTANGLE AT AHEIGHT OF 6'5"
RESULT:
AIM:

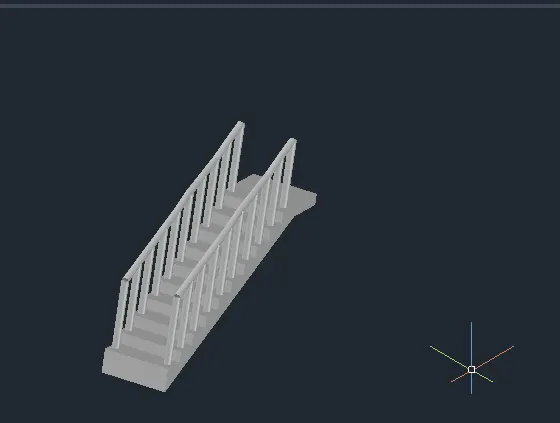

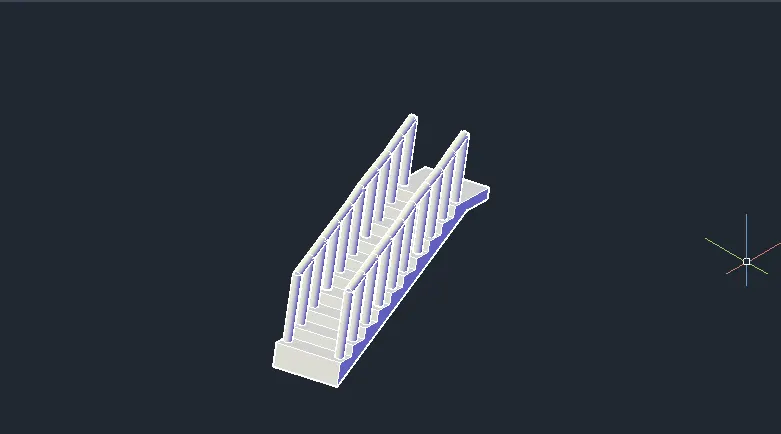

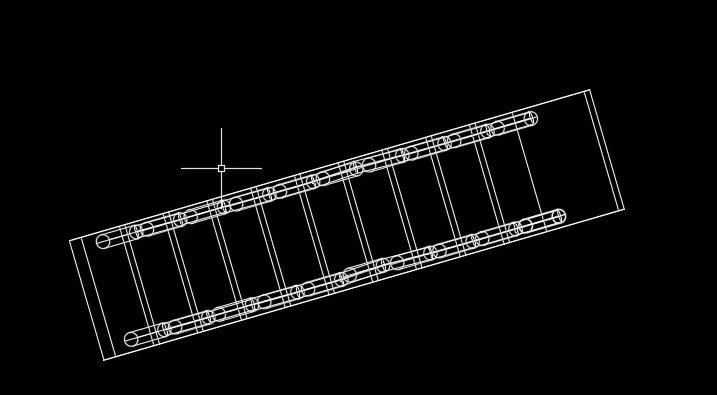

TO CREATE THE ISOMETRIC VIEW OF A STAIR WITH RAILING AS SHOWN IN THE PLAN AND ELEVATION.
PROCEDURE:
THE WORKSPACE TO 3D MODELLING
SET THE UNIT AS ENGINEERING.
CREATE A LINE SPECIFY THE FIRST POINT AS 0,0 AND NEXT POINT AS @0,6 AND @1',0
COPY AS CREATED INTO THE 9 NUMBER AND LANDING DISTANCE AS 2'
THEN CREATE THE WAIST SLAB FOR 6"
THEN CHANGE THE VIEW OF S-W ISOMETRIC.
THEN USE 3D ROTATE THE OBJECT WITH X-AXIS REFRANCE LINE AN ANGLE OF 90 DEG.
THEN USE REGION AND THE SURFACE OF THE OBJECT.
THEN EXTRUDE THE SURFACE AT A DISTANCE AT 3'
THEN CHANGE THE VIEW TO PLAN.
CRATE A CIRCLE BY CENTER POINT AS 3,3 AND REDIUS AS 1"
THEN CHANGE THE VIEW OF S-W ISOMETRIC.
THEN USE REGION AND THE SURFACE OF THE OBJECT.
THEN CYLINDER IS USED AND HEIGHT AT 3'
THEN COPY THE CYLINDER TO THE OTHER THREAD.
THEN CHANGE THE UCS AT THE FACE OF THE RAIL .
THEN CREATE A CIRCLE OF THE REDIUS 1"
USE THE SWEEP TOOL SELECT THE OBJECT AS CIRCLE AND THE PATH IS THE LINE CREATED
THENN COPY THE SWEEPE OBJECT TO THE OTHER SIDE.
RESULT:
AIM:

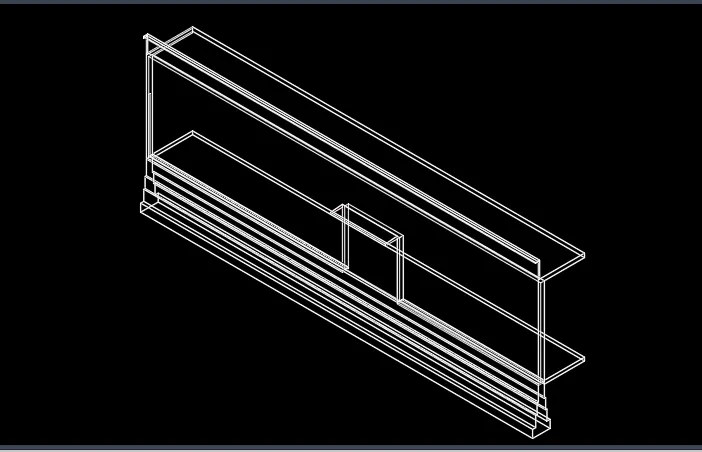

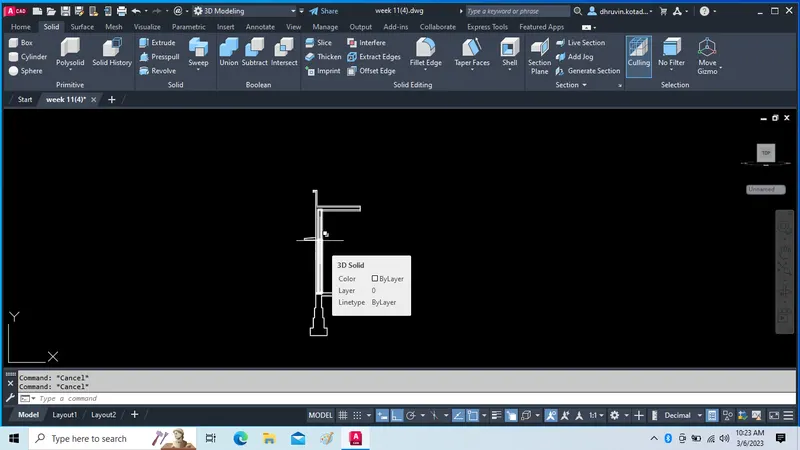

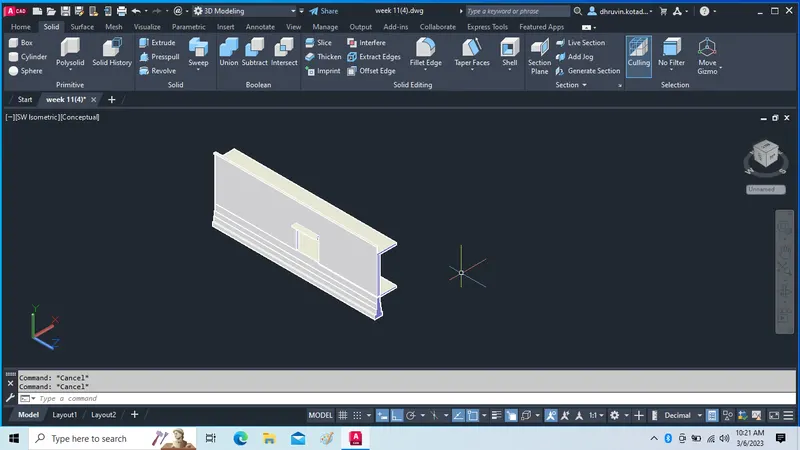

TO CREATE THE 3D VIEW OF A WALL WITH SPREAD FOOTING.
PROCEDURE:
THE WORKSPACE TO 3D MODELLING
SET THE UNIT AS DECIMAL.
CREATE A RECTANGLE OF SIZE 230MM*7500MM AND EXPLODE IT.
OFFSET OF THE BASE LINE AT A DISTANCE OF 3300 MM AND 900MM CREATE A DOOR OPENING.
OFFSET OF THE WALL LINE DISTANCE OF 50MM 50MM AND 100MM BOTH SIDE OF WALL.
THEN VIEW TO S-W ISOMETRIC.
THEN USE REGION AND THE SURFACE OF THE OBJECT.
THEN EXTRUDE THE WALL DISTANCE OF 3300MM AND EXTRUDE THE DOOR FRAME AT A DISTANCE 2100MM
THEN UPPER SIDE OF DOOR FRAME AND CREATE A RECTANGLE OF SIZE 230*150MM.
THEN EXTRUDE THE RECTANGLE THROUGHOUT THE WALL.
THEN USE 3DROTATE THE OBJECT 90 DEG WITH RESPECT TO X-AXIS.
THEN AKE A SUREFACE AND EXTRUDE IT AT A DISTANCE OF 900MM.
COPY AND PLACE IT AT THE LINTEL ABOVE DOOR .CREATE A SLAB.
CREATE A RECTANGLE AT THE TOP OF THE WALL FACE SIZE 230*750MM
THEN EXTRUDE HEIGHT OF 150MM.
THEN CREATE A PARAPET WALL
CREATE A RECTANGLE OF SIZE 230MM*7500MM AT THE TOP OF THE SLAB.
MAKE IT SURFACE AND EXTRUDE IT AT A HEIGHT OF 900MM.
THEN CREATE A RECTANGLE AT THE FACE OF THE PARAPET WALL OF SIZE THICKNESS WALL OF SIZE THICKNESS IS 100MM AND WIDTH IS 150MM.
CREATE A DPC OF SIZE 230*50MM AT THE BOTTOM OF THE WALL.
EXTRUDE THE FIRST STEP OF FOOTIG AT A DEPTH 600MM.
THEN SECOND FOOTING AT A DEPTH 400MM AND THIRD FOOTING AT A DEPTH OF 400MM.
CREATE A PCC AT THE SAME PROCEDURE AT A EPTH OF 300MM.
THEN THE VIEW TO S-W ISOMETRIC.
RESULT:
