Challenge 4 : Concept Modelling of Alloy Wheel
CONCEPT MODELLING OF ALLOY WHEEL
1.OBJECTIVE - MODELLING OF ALLOY WHEEL
2. INTRODUCTION - DRAW THE ALLOY WHEEL
METHODOLGY
↓

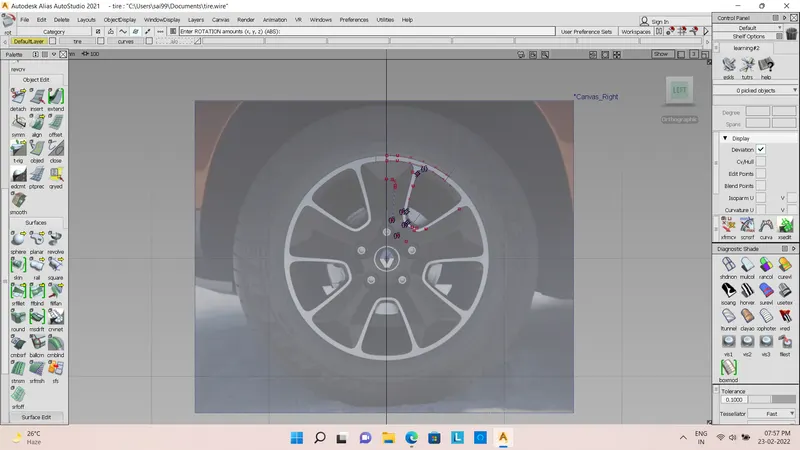

IMPORT AN IMAGE INTO CANVAS IMAGE
↓

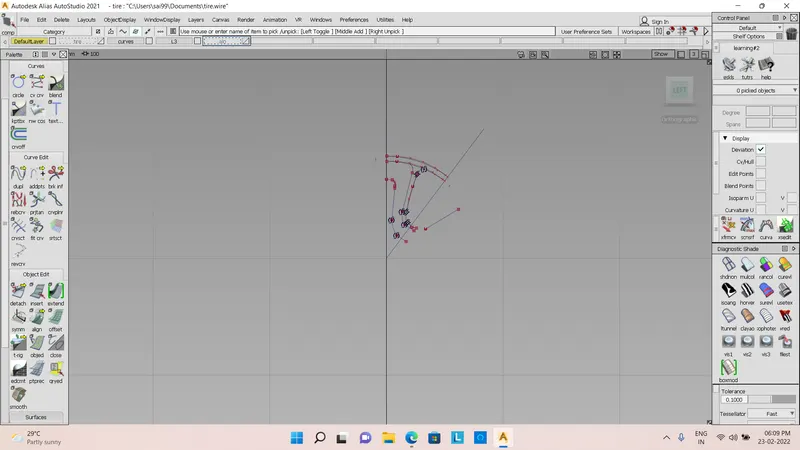

DRAW CURVES AS PER BLUE PRINT
↓
THEN ASSIGN THE CURVES TO LAYERS FOR PICK AND UNPICK
↓
MAKE A SURFACE ON WIRE FRAME
↓
MAKE A SURFACE USING {FFBLND} -FREEFORM BLEND TOOL
↓
INTERSECT THE SURFACE AND TRIM THE UNWANTED SURFACES
↓

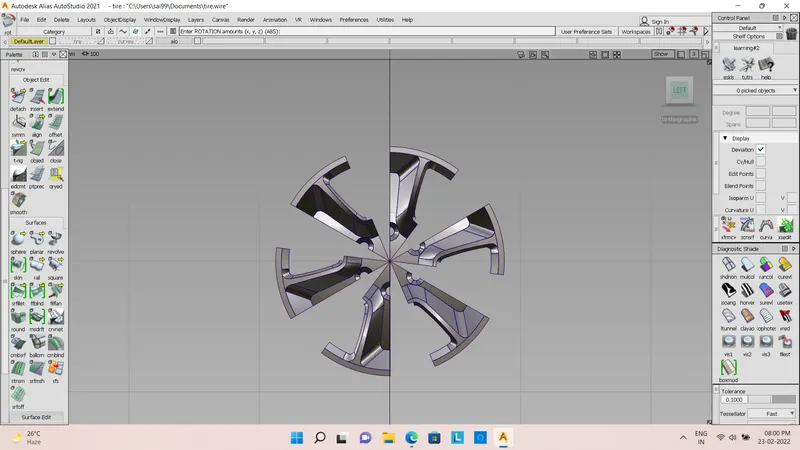

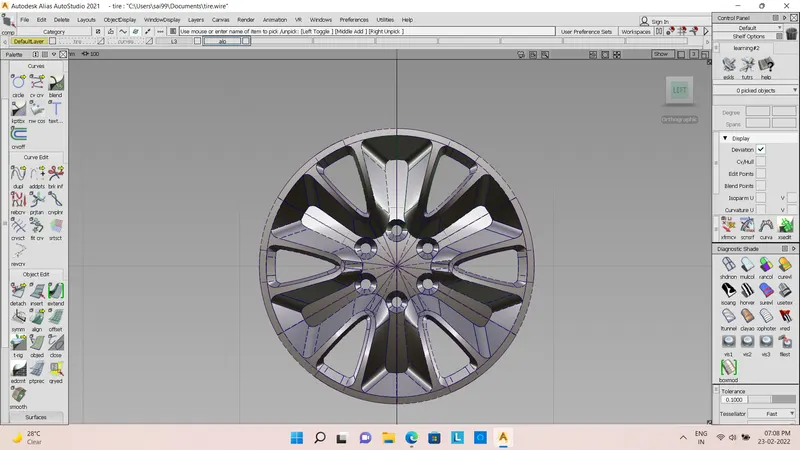

THEN USE THE LAYER TO SYYMETRY THE SURFACE AND DUPLICATE USING → EDIT→ DUPLICATE → OBJECT
DESCRIPTION : TOOLS USED FOR MODELLING OF ALLOY WHEEL
↓
TOOLS USED FOR WIRE FRAME →CV CRV , BLEND TOOL ,LINE TOOL , CIRCLE TOOL
↓
TOOLS USED FOR SURFACING ON FINISHED WIRE FRAME →SKIN , RAIL , FREEFORM BLEND TOOL
↓
TOOLS USED FOR EDITING ON CURVES
ALIGN : IS USED TO ALGN TWO SUFACES
DETACH : IS USEDFOR SINGLE SURFACE DIVEDED INTO MULTIPLE SURFACES
↓
TOOLS USED FOR SRFACE EDITS →PROJECT , TRIM & UNTRIM TOOLS

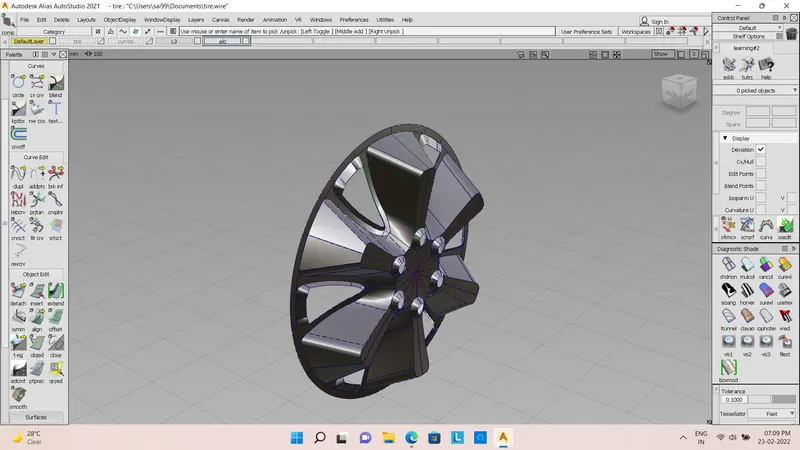

LEARNED ABOUT HOW TO BUILD SURFACES ON ALLOY WHEELS
LEARNED ABOUT FREE FORM BLED TOOL AND DETACH TOOL
LEARNED ABOUT HOW TO DUPLICATE OBJECTS
