Challenge 3 Dimple using solid punch
TOPIC : The design of the advanced sheet metal design for creating a dimple using solid punch
Introduction:
- flat solid consists by an process into thin, flat pieces. it's one in all the basic forms utilized in metalworking and it is cut and bent into a range of shapes.
- Nx: it's formerly kenned as "Unigraphics" and is a complicated high-end CAD/CAM/CAE system that's owned by Siemens PLM Software. Most of it's utilized for design, engineering analysis, and manufacturing. Design methodology: Design methodology is explicated by the subsequent flow chart.

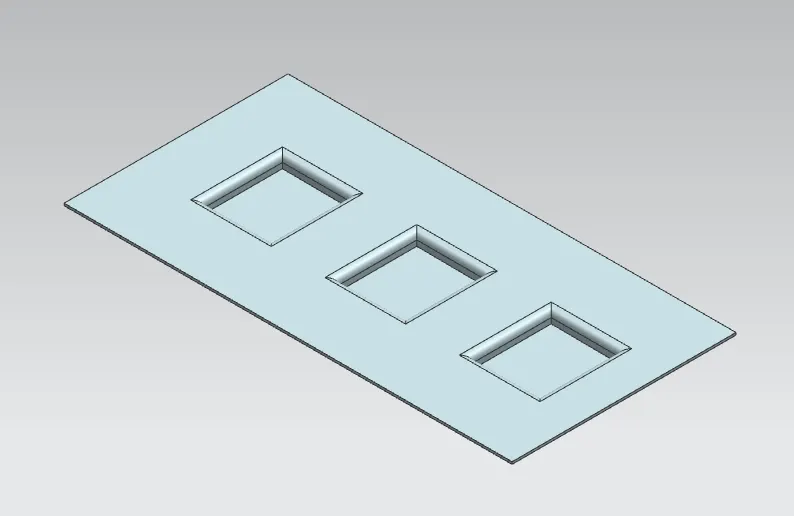

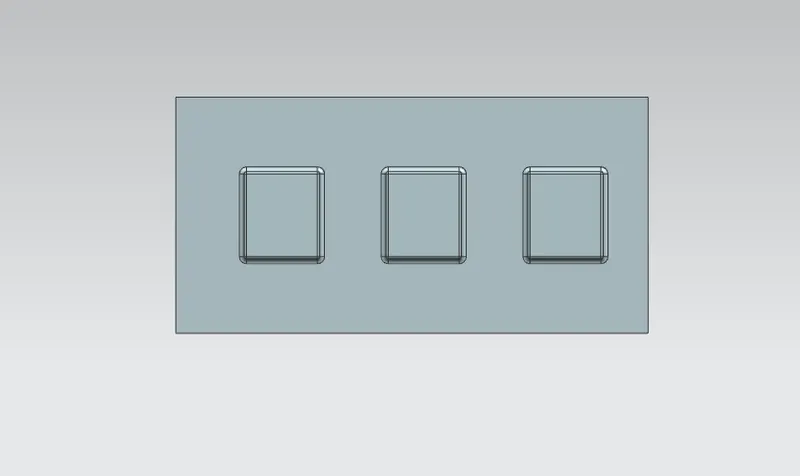

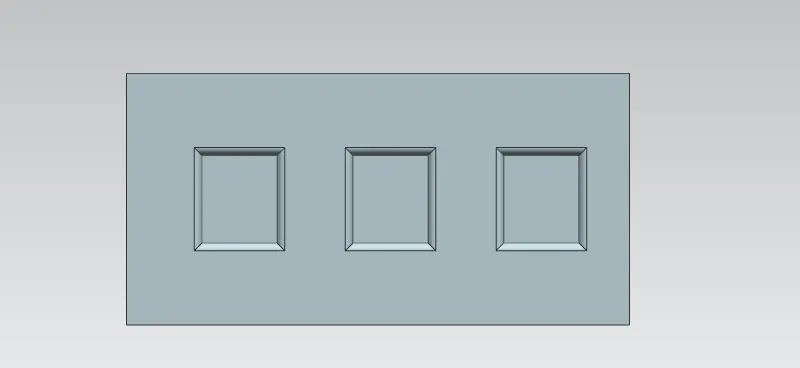

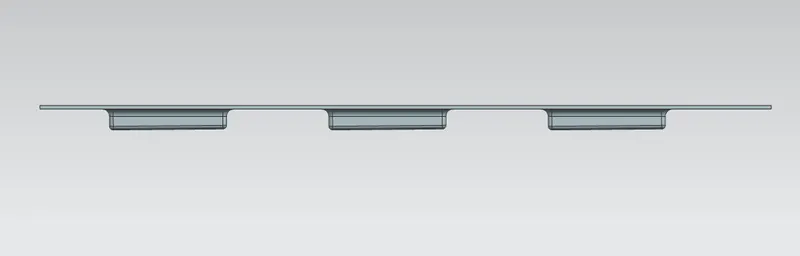

Objective: Dimple Using Solid put down sheet Part. Dimple is employed to present more strength to the part. The flat portion of the part posses less strength & rigtity. So, there are high chances of failure within the part. The Dimple adds strength & rigidity to the part also reduces the chances of failure.
Explanation of Punch & Die Punch:
Punching may be a forming process that uses a press to force a tool, called a punch, through the workpiece to form a hole via shearing. Punching is applicable to a large type of materials that are available sheet form, including flat solid, paper,vulcanized fiber and some varieties of plastic sheet. The punch often passes through the work into a die. A scrap slug from the opening is deposited into the die within the process. looking on the fabric being punched this slug is also recycled and reused or discarded. Punching is commonly the most affordable method for creating holes in sheet materials in medium to high production volumes. When a specially shaped punch is employed to form multiple usable parts from a sheet of fabric the method is thought as blanking, in metal forging applications the work is commonly punched while hot, and this is often called hot punching. Slugging is that the operation of punching during which the punch is stopped as soon because the metal fracture is complete and metal isn't removed but held in hole.
Die:
A die could be a specialized machine utilized in manufacturing industries to chop and/or form material to a desired shape or profile Stamping dies are used with a press, as hostile drawing dies (used within the manufacture of wire) and casting dies (used in molding) which aren't. Like molds, dies are generally customized to the item they're accustomed create. Products made with dies range from simple paper clips to complex pieces employed in advanced technology. Continuous feed laser cutting may displace the analogous die-based process within the automotive industry among others.
