Challenge 2- Comparing the performance of three types of beams under bending load.

Objective:

Conduct a bending stress simulation using simple FEA in Soliworks.

Conduct them for the above given three different cross sectional beams.

Procedure:

CAD model:

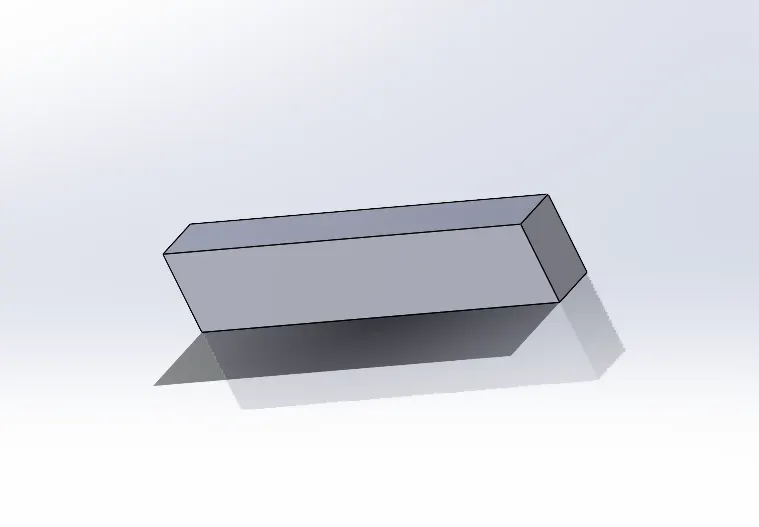

Rectangular section

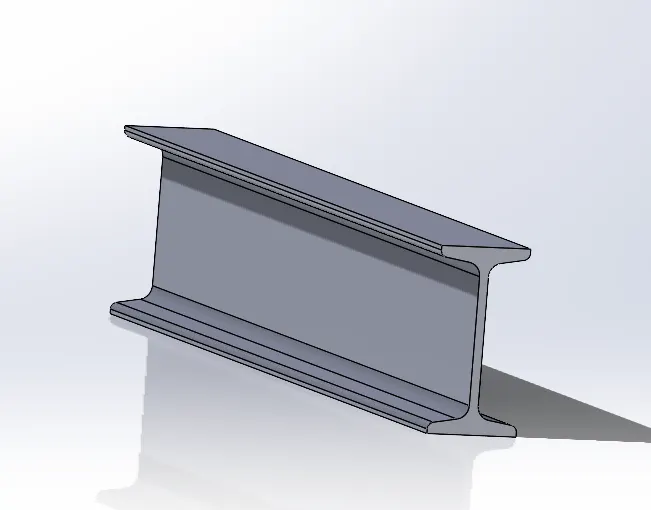

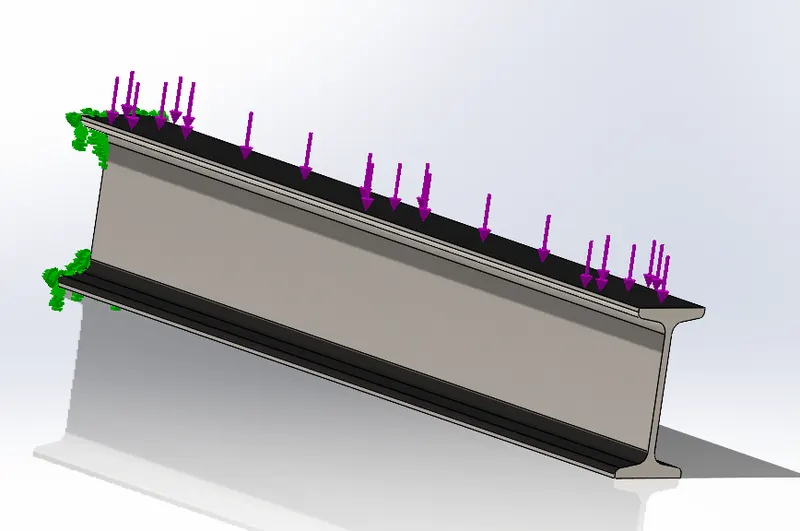

I-Section

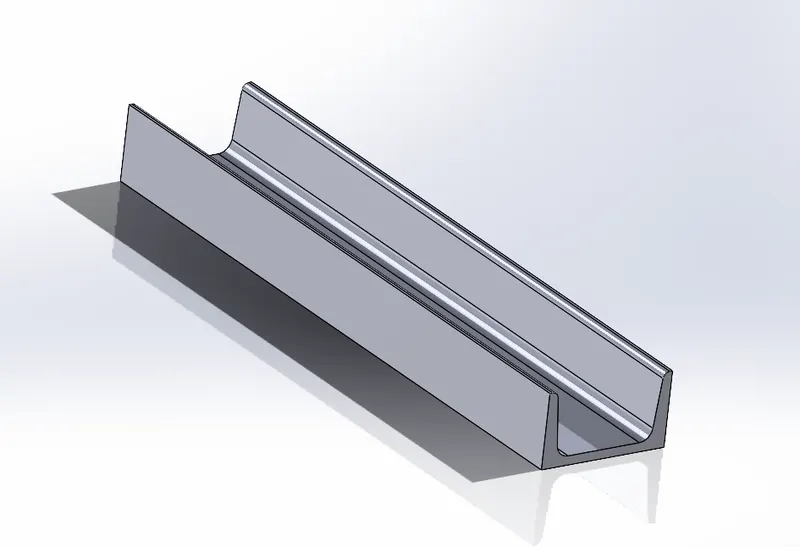

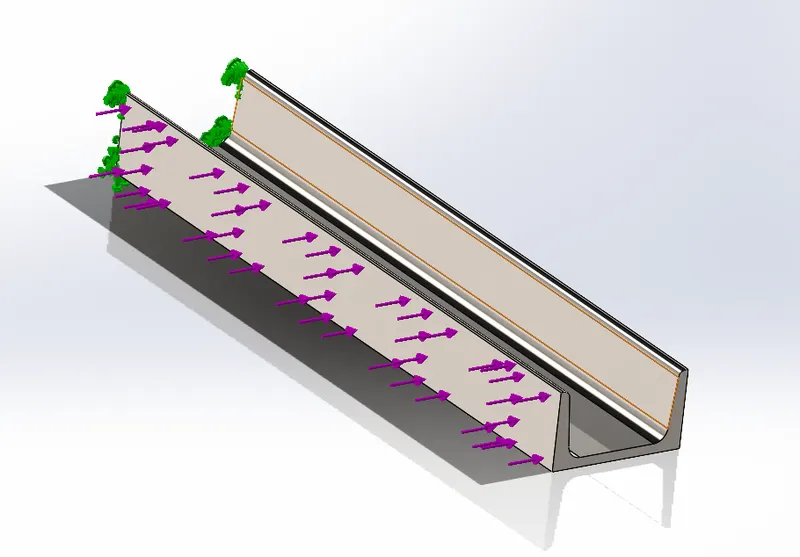

C-Section

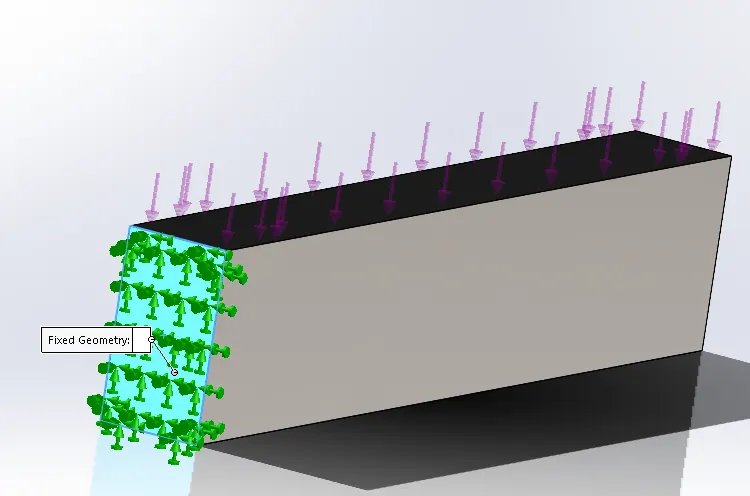

Boundary Conditions:

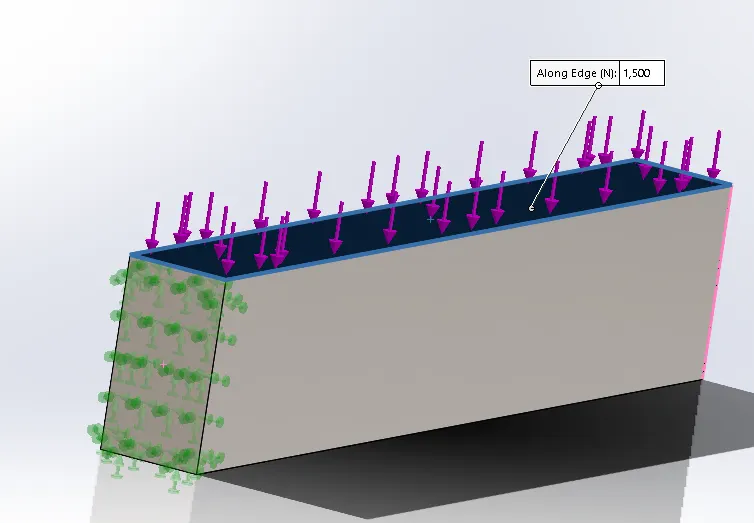

One edge of the beam is fixed and lateral force of 1500N is applied as a uniformly distributed load.

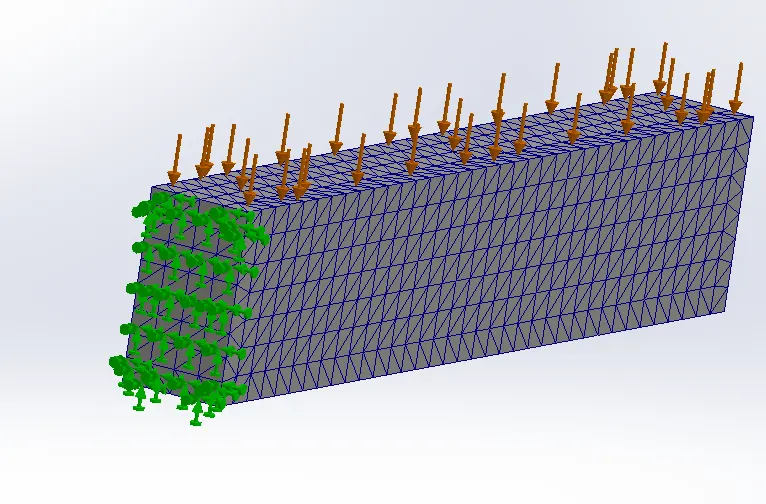

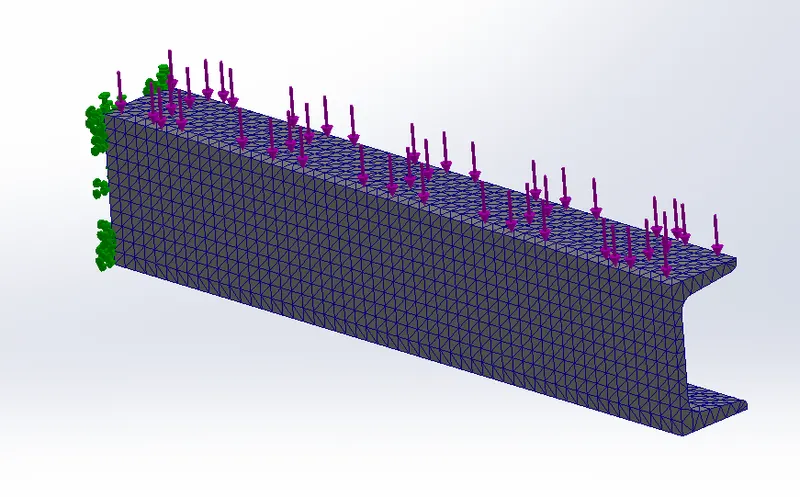

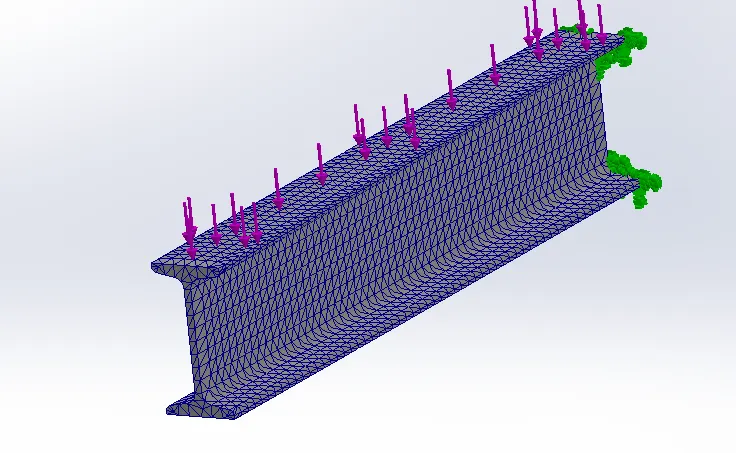

Mesh:

Results:

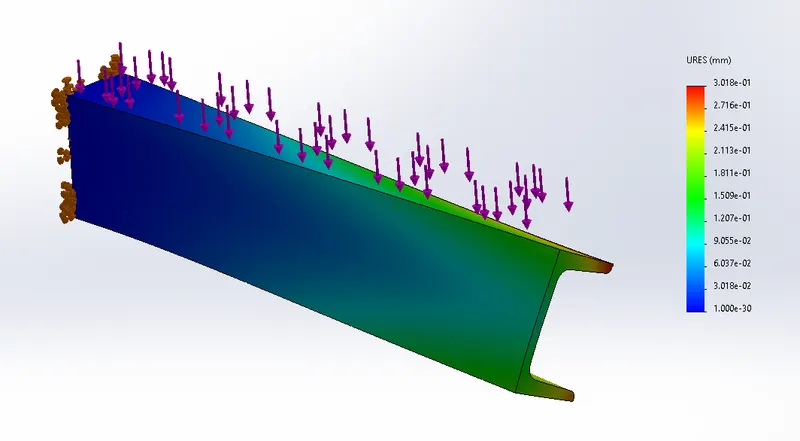

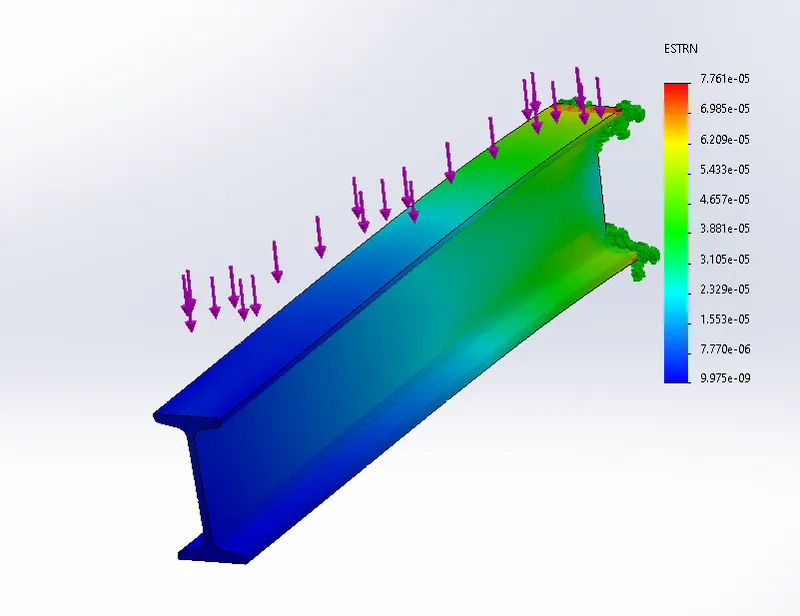

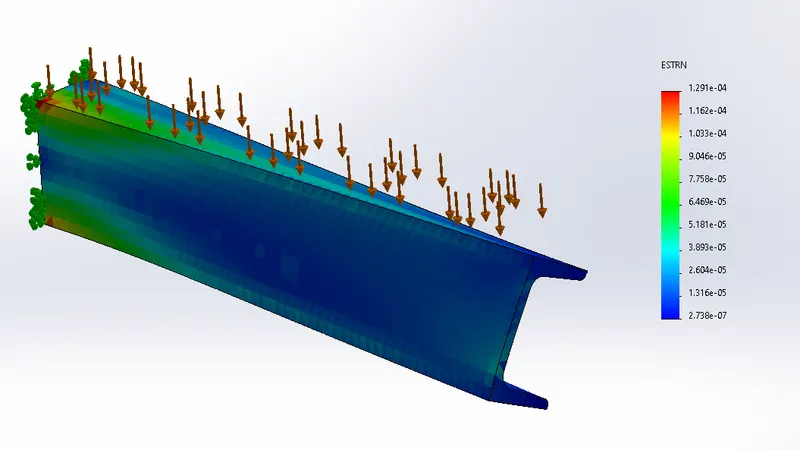

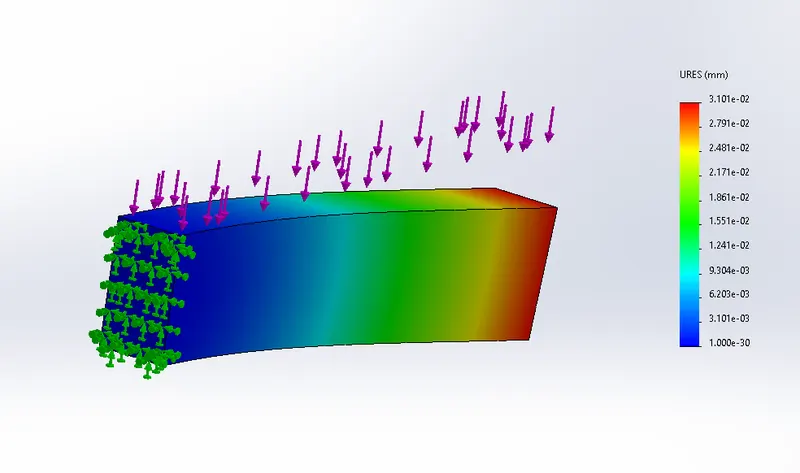

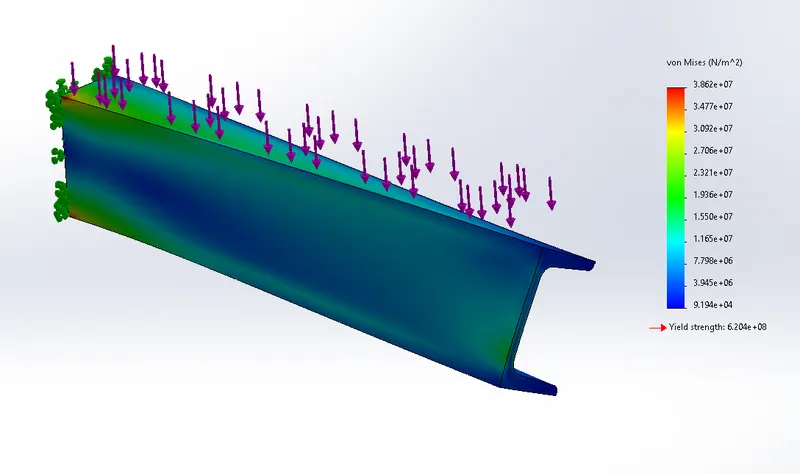

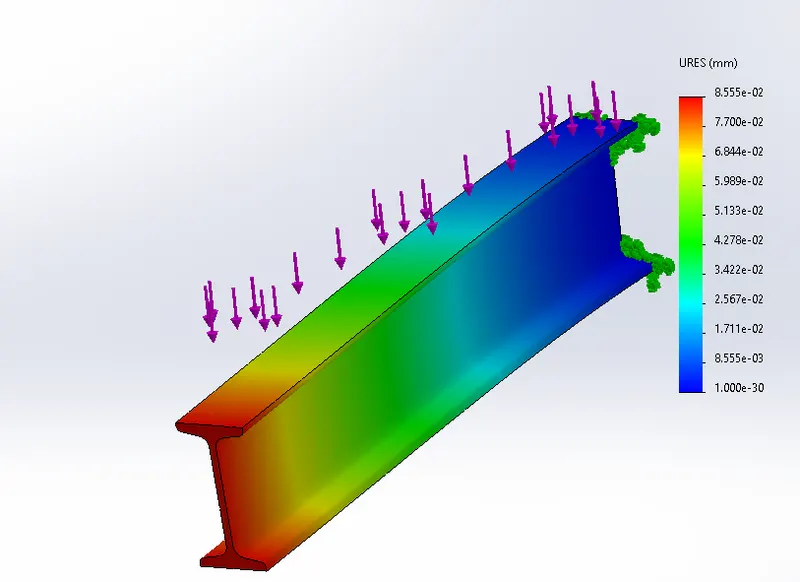

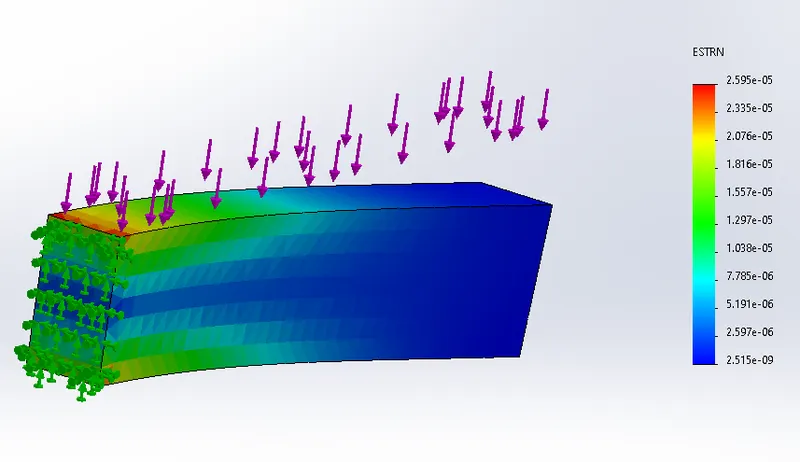

The corresponding stress, dispalcement and strain values are displayed.

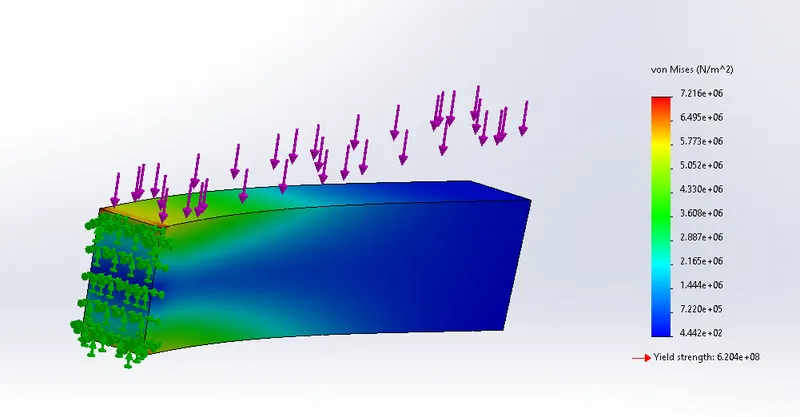

Rectangular section:

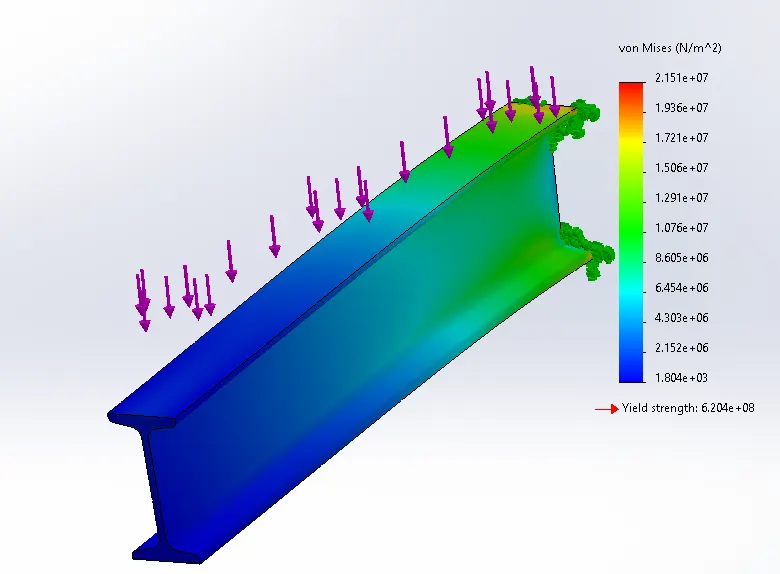

I-Section:

C-Section:
