Challenge 2- Comparing the performance of three types of beams under bending load.

Aim:- To Create three different types of sections in the beam and compare the results of stress, displacement, and strain for all three cases and suggest the best out of the three.

Procedure:-

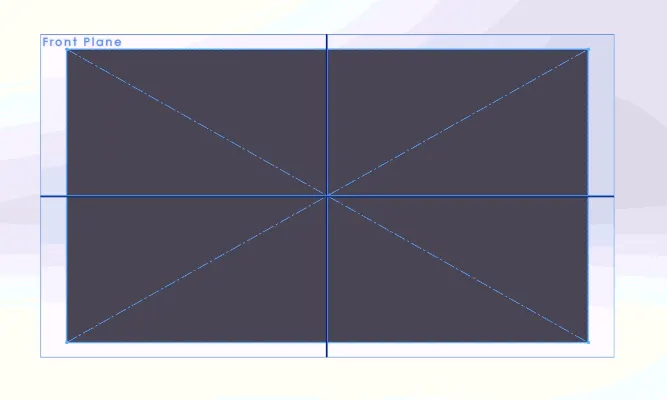

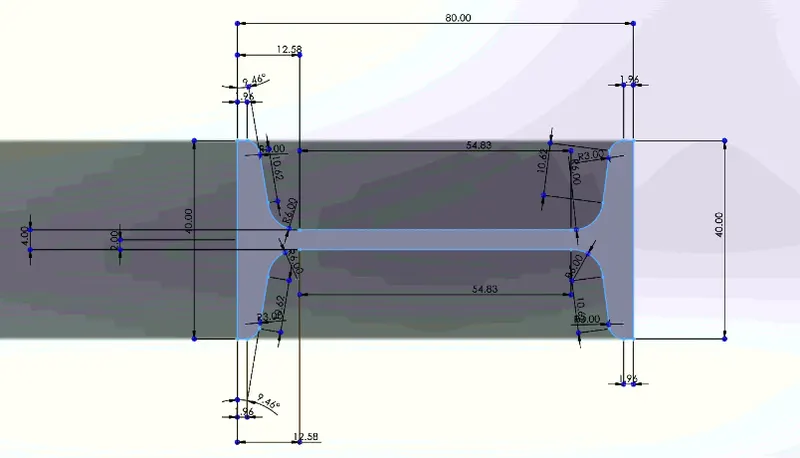

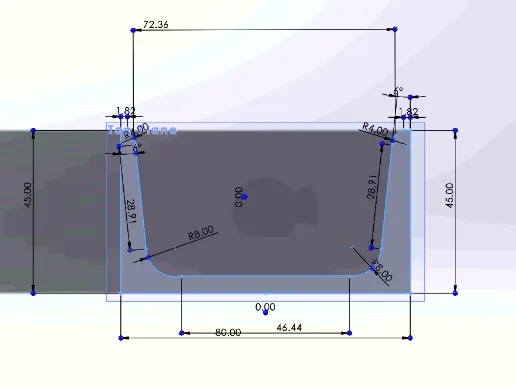

1. We have to create the Sketches as per the dimensions given on the question page.
2.
3.
4.
5. All three sketches have been created in Sketch mode by using the help of a Line, 3-point arc, and rectangle.
6. After sketch completion, we have to move to the Features mode and we have to use the Extrude over there and we have to extrude for a length of 400 mm.
7. Move to the simulation mode and add the default materials to the beams.

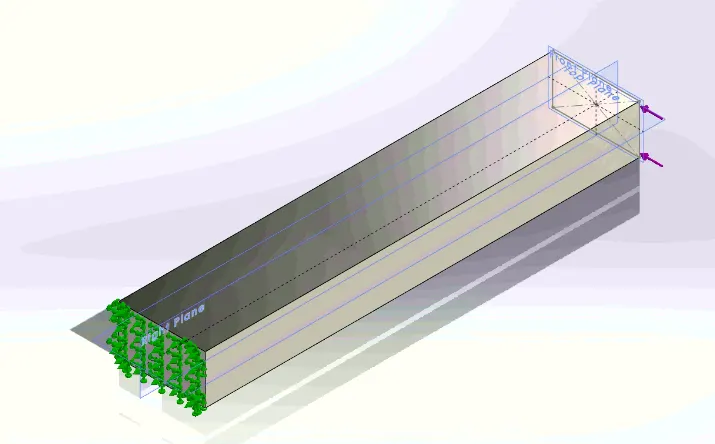

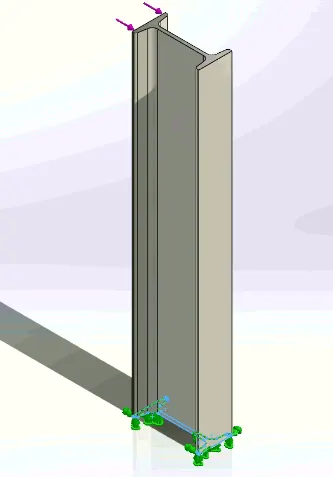

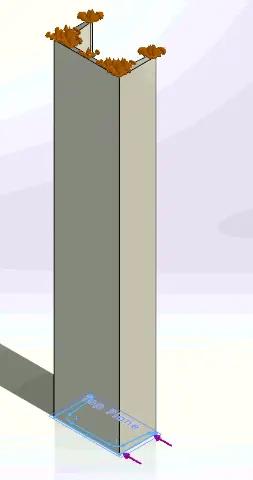

8. We have to fix one end and on another end, we have to provide the 1500N load.
9.
10.
11. We have to mesh and run.

Results:-

Case 1:-

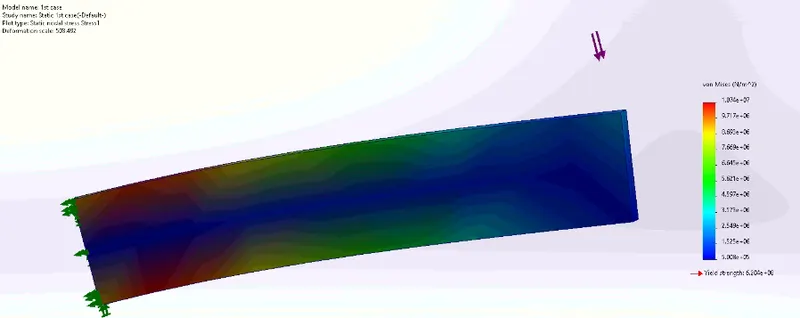

Stress:-

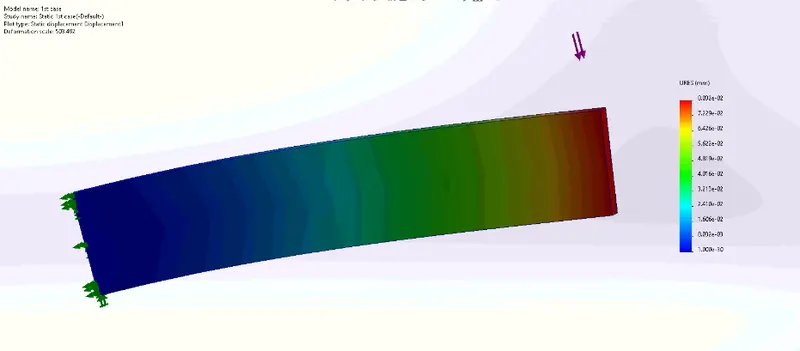

Displacement:-

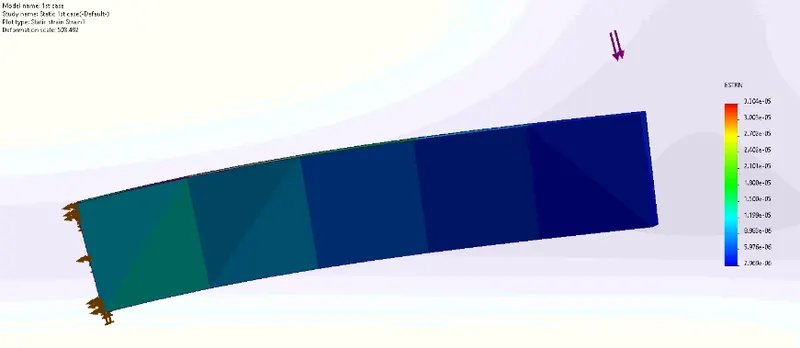

Strain:-

Case 2:-

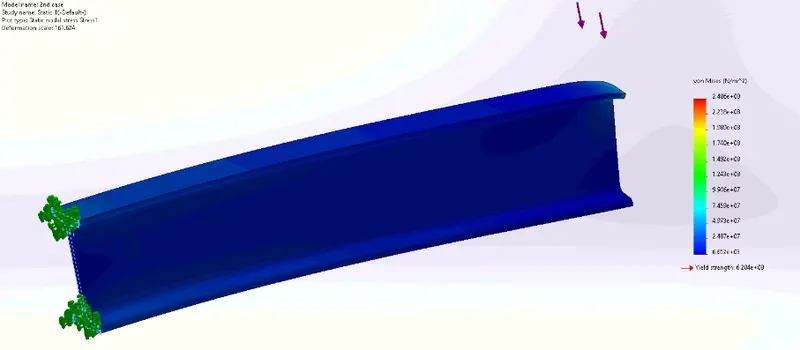

Stress:-

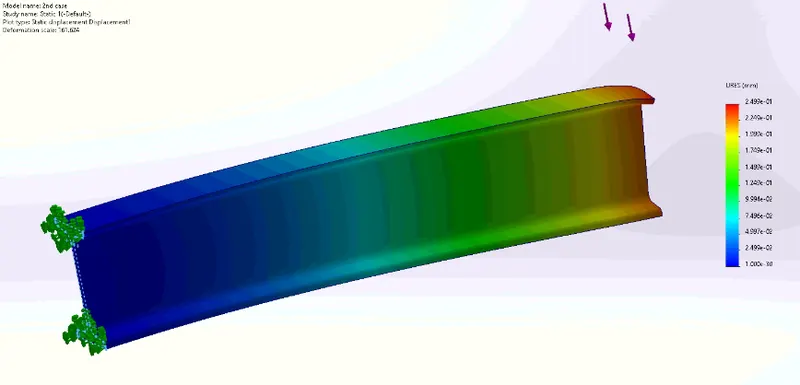

Displacement:-

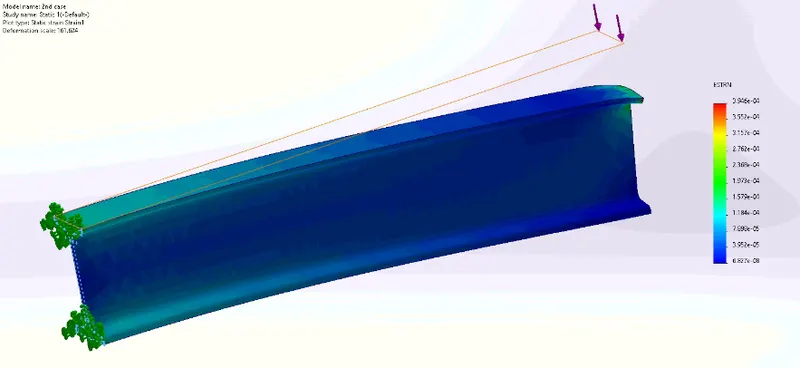

Strain:-

Case 3:-

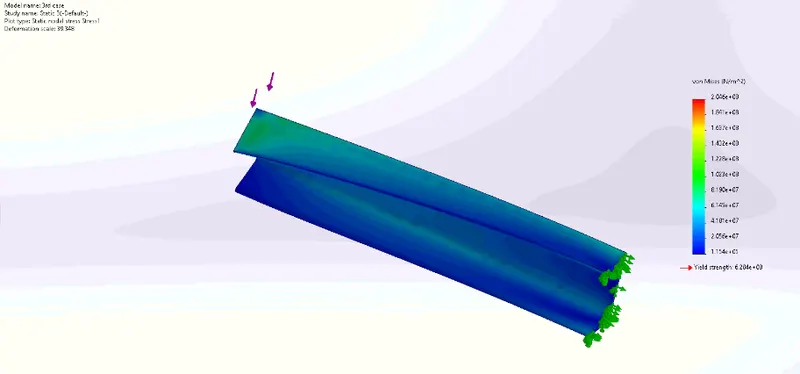

Stress:-

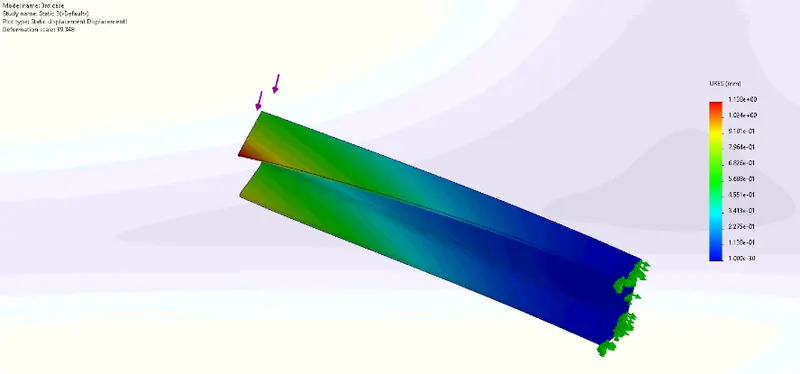

Displacement:-

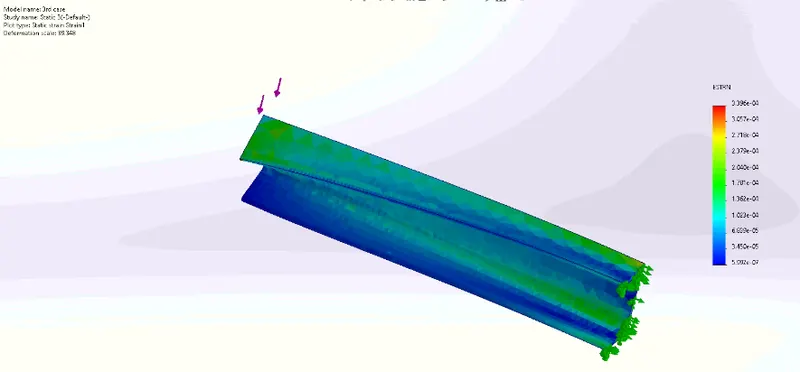

Strain:-

	Stress	Strain	Displacement
Case -1	1.074e^7	3.304e^-5	8.032e^-2
Case -2	2.486e^8	3.94e^-4	0.249
Case -3	2.04e^8	3.396e^-4	1.138
