Calculation of Stiffness in Structural elements

Q1-answer

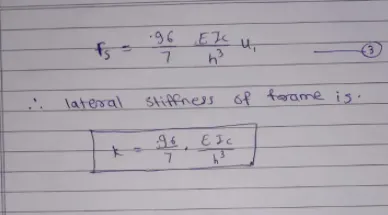

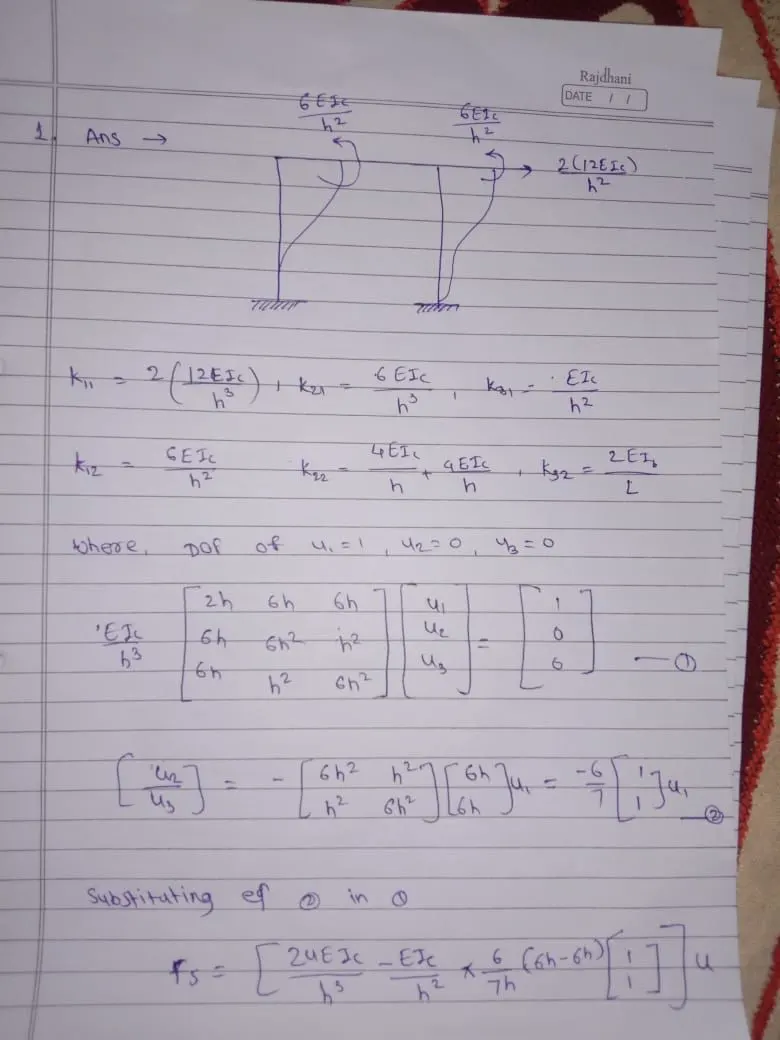

aim- To Compute lateral stiffness of the one storey frame with an intermediate realistic stiffness of the beam.

Q2.a-answer

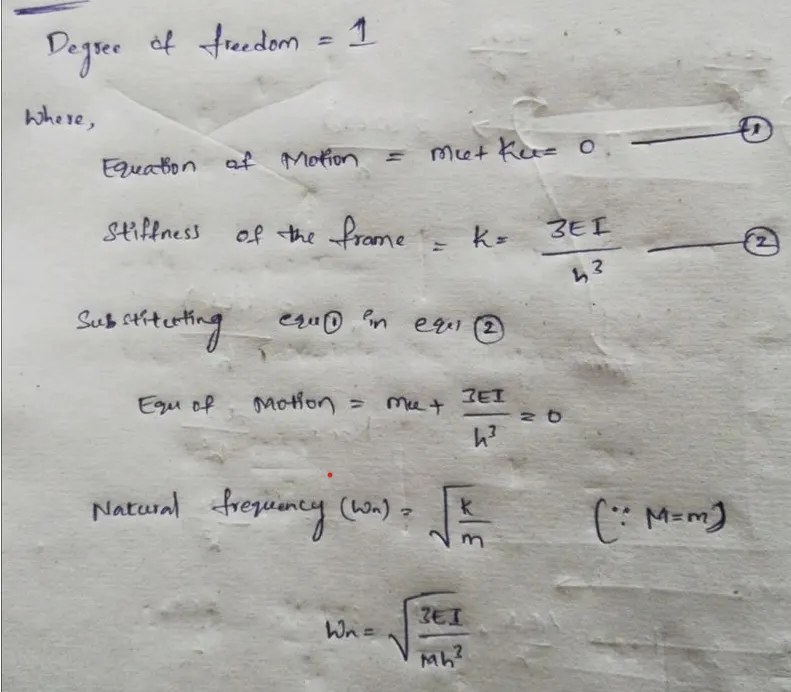

aim-1.to Determine the number of degrees-of-freedom for dynamic analysis

2.to Establish the equation of motion

3. to Calculate their natural frequencies

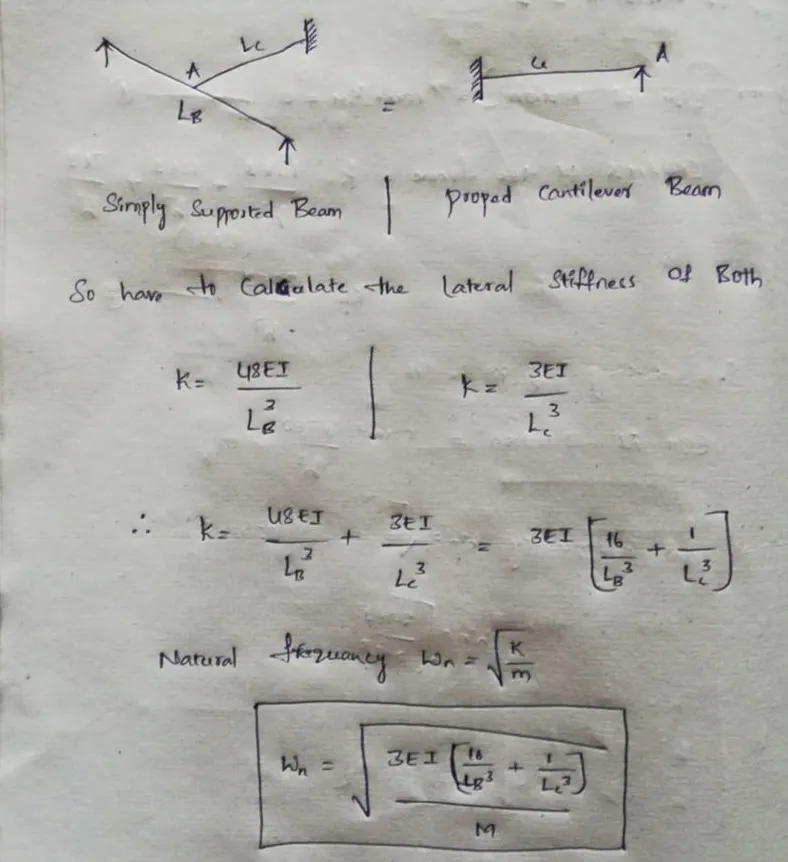

Q2.b-answer

Q3-answer

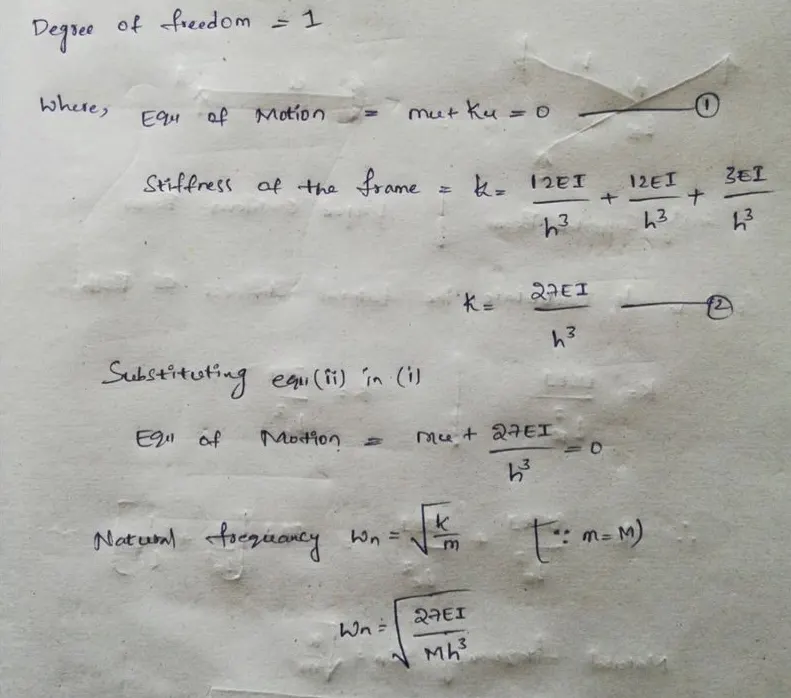

aim-to calculate natural period of given system

Q4-answer

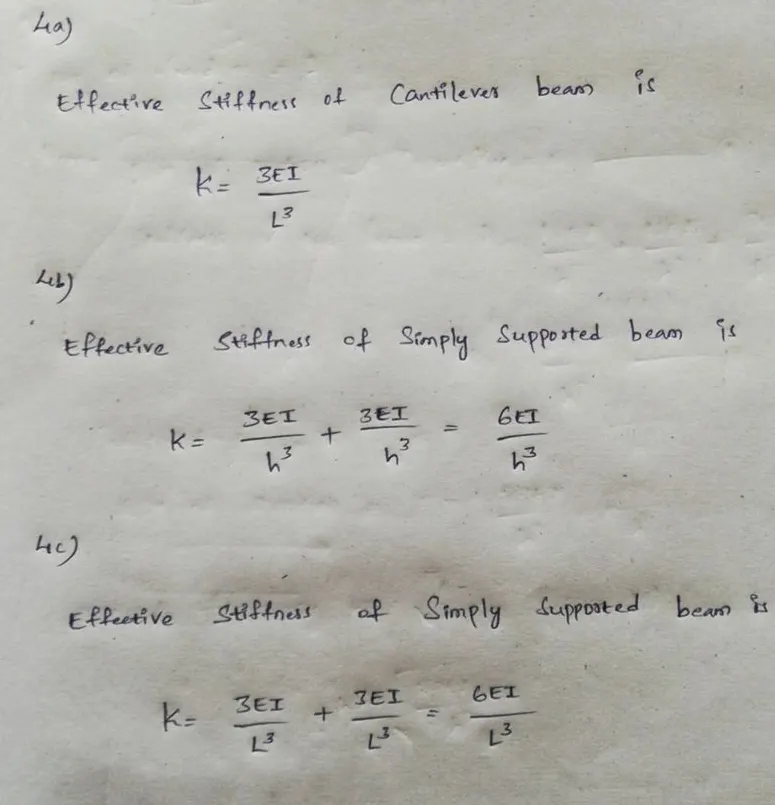

aim-to Determine an expression for the effective stiffness of the given systems
