Calculation of Stiffness in Structural elements

Question 1:

Compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam. The system has 3 DOFs as shown. Assume L = 2h and El_b = El_c

Answer :

Aim :

To compute lateral stiffness of the one story frame with an intermediate realistic stiffness of the beam.

Steps :

We use the definition of stiffness influence coefficient to solve the problem.

fig (a)

fig (b)

fig (c)

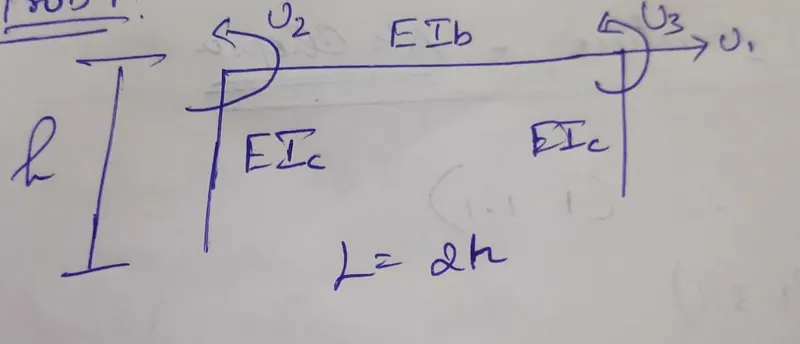

The system has 3 DOS as shown in fig (a)

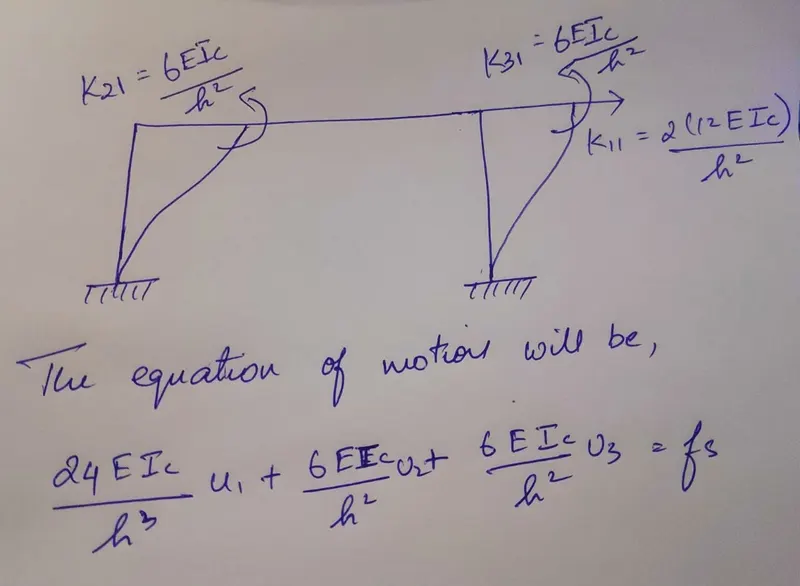

The elements kil in the first column of the stiffness matrix we impose unit displacement in DOF u1, with u2 = u3 = 0, as shown in fig-b

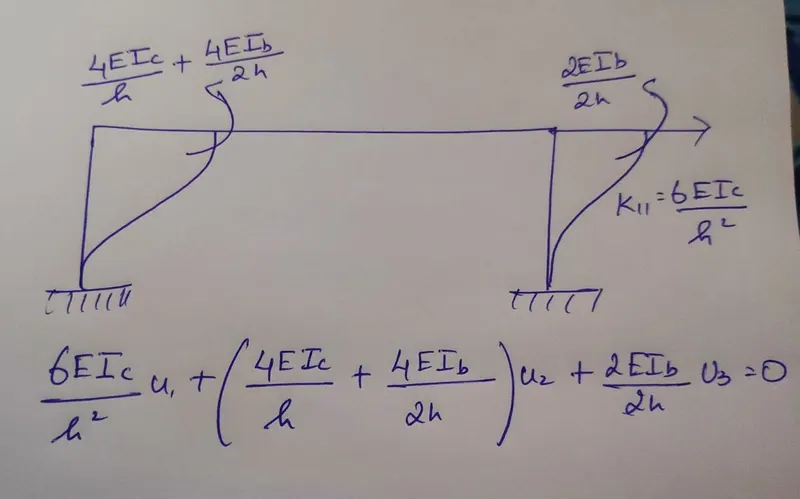

The elements ki2 in the second column of the stiffness matrix are determined by imposing u2 = 1 with u1=u3 = 0, as shown in fig-c

Similarly, the elements ki3 in the third column of the stiffness matrix can be determined by imposing displacements u3=1 with u1=u2 = 0

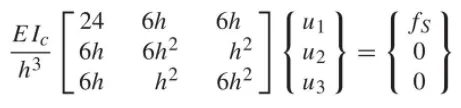

Thus the 3x3 stiffness matrix of the structure is known and the equilibrium equations can be written. For a frame with lb = Ic subjected to lateral force fS, they are

From the second and third equations, the joint rotations can be expressed in terms of lateral displacement as follows

Substituting Eq. (b) into the first of three equations in Eq. (a) gives

Thus the lateral stiffness of the frame is

____________________________________________________________________________________________________

Question 2:

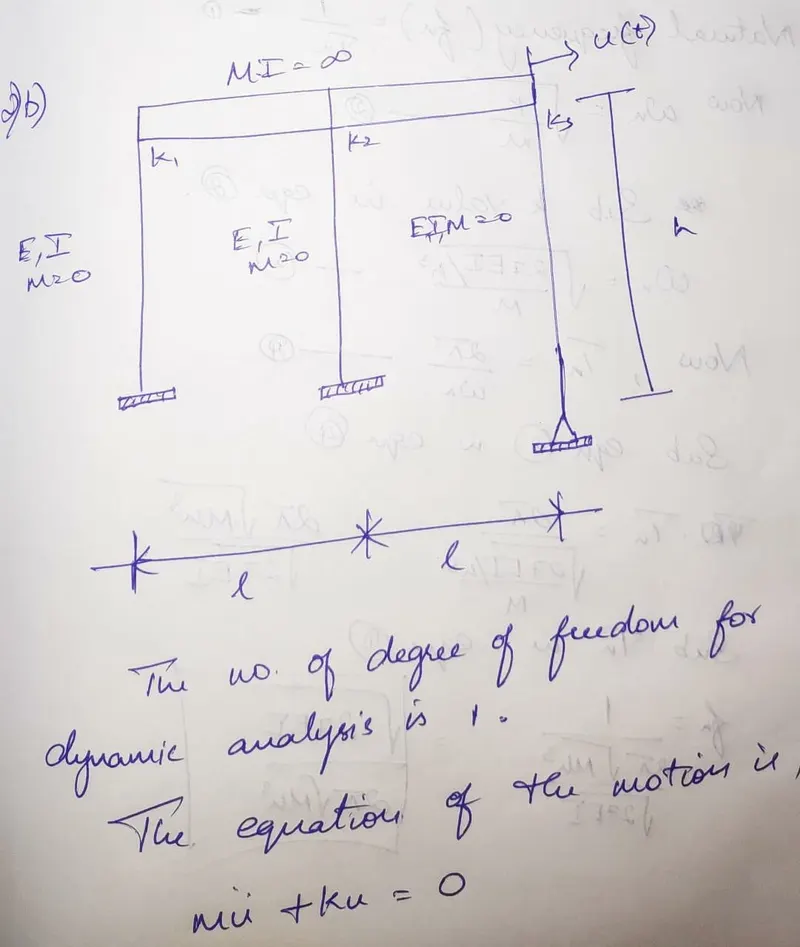

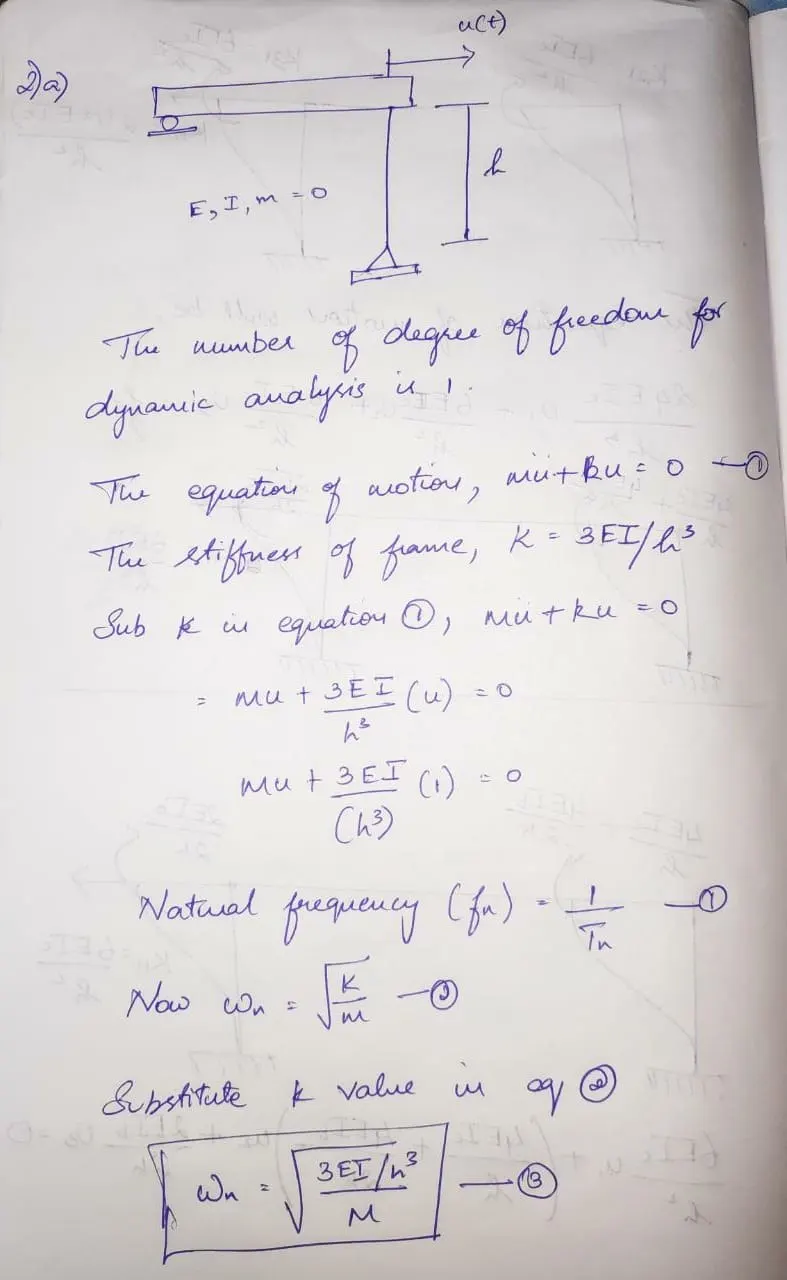

For the following structures:

• Determine the number of degrees-of-freedom for dynamic analysis
• Establish the equation of motion

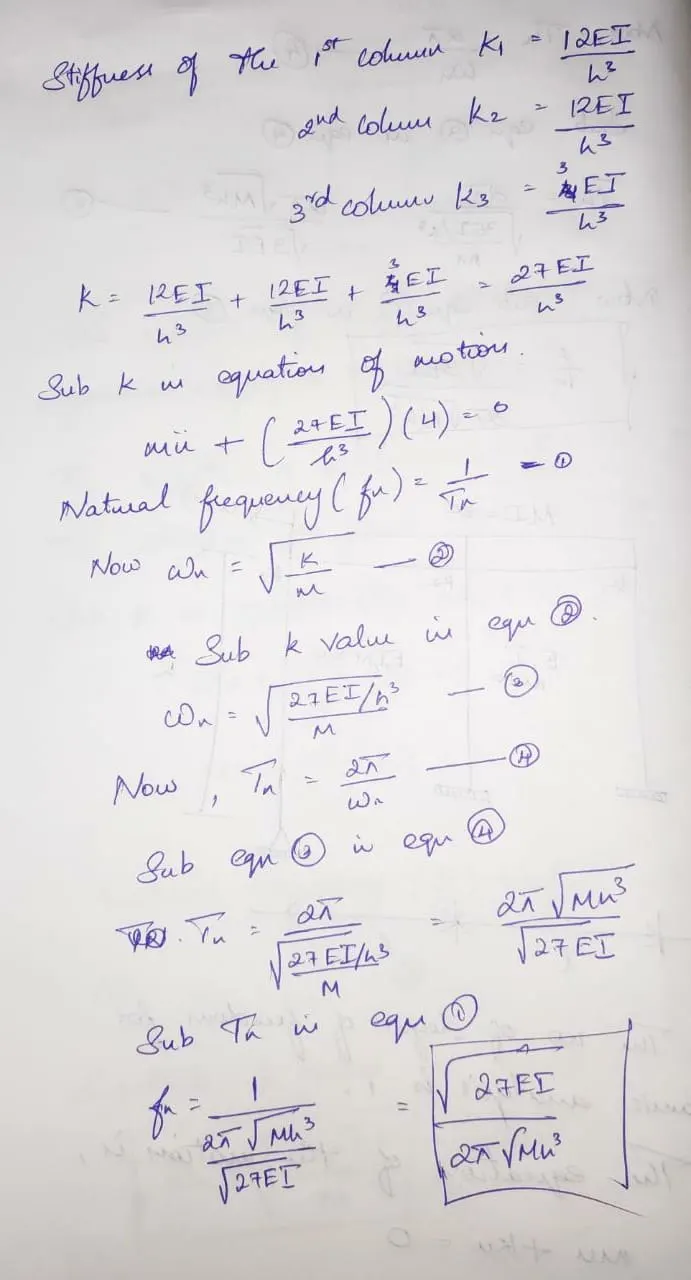

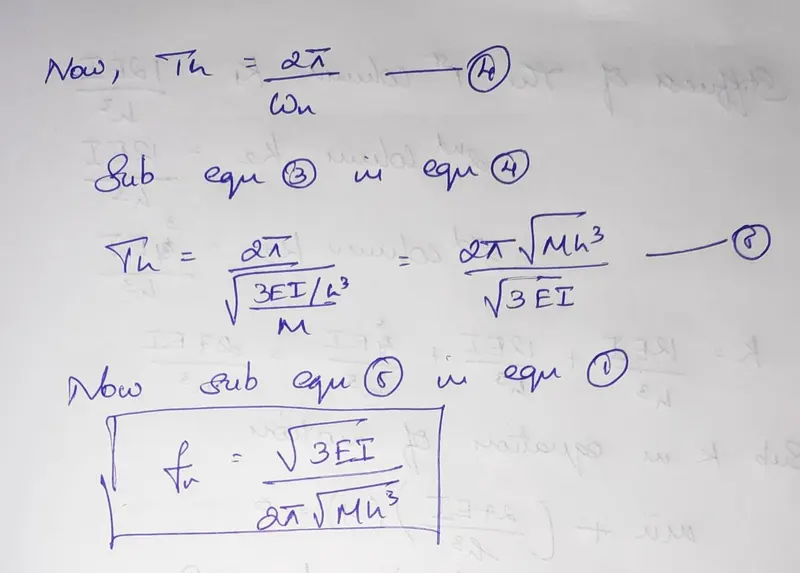

• Calculate their natural frequencies

________________________________________________________________________________

Question 3:

Consider the propped cantilever shown in the figure below. The beams are made from the same steel section and have lengths as shown on the diagram. Determine the natural period of this system if a large mass, M, is placed at the intersection of the beams at point A. The weight of the beams in comparison with the mass M is very small.

Answer :

The natural period of this system if a large mass, M. is placed at the intersection of the beams at point A.

w = ku, There fore k = w/u

Now, we know that w = Mg therefore, M = w/g

and the natural period,

____________________________________________________________________________________

Question 4

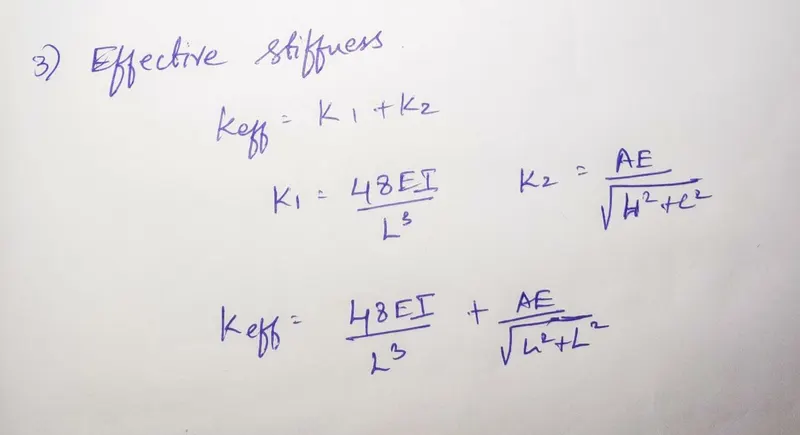

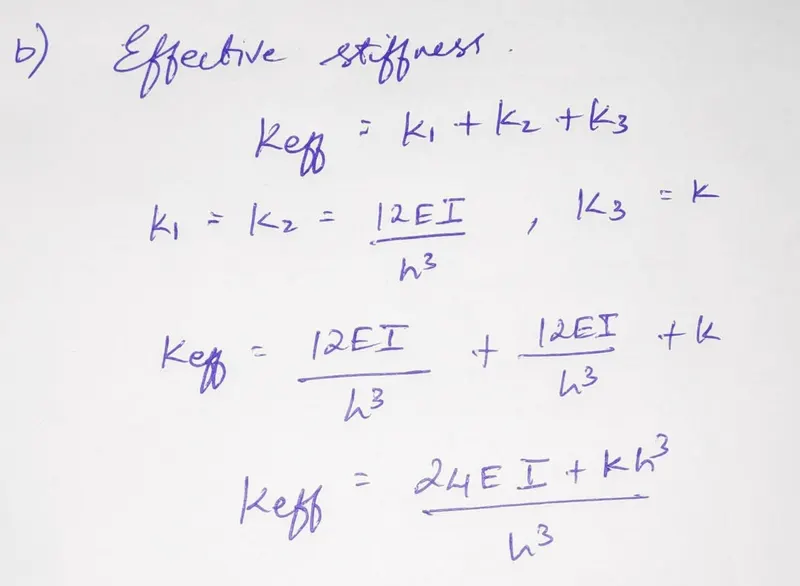

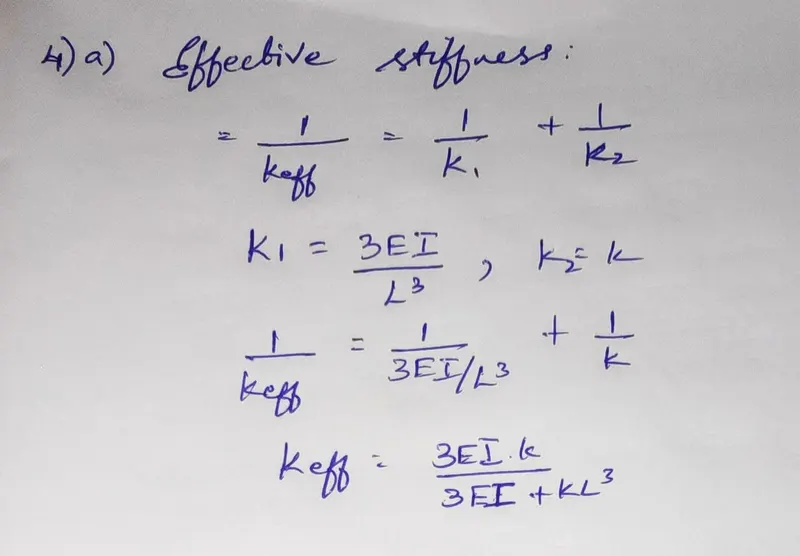

Determine an expression for the effective stiffness of the following systems:
