AutoCAD_3D Model of a Residential Building with Rendered View_Project 2
3 Dimensional Model of the Residential Building
Aim:
To create a 3Dimensional model of the Residential Building and create a Render View

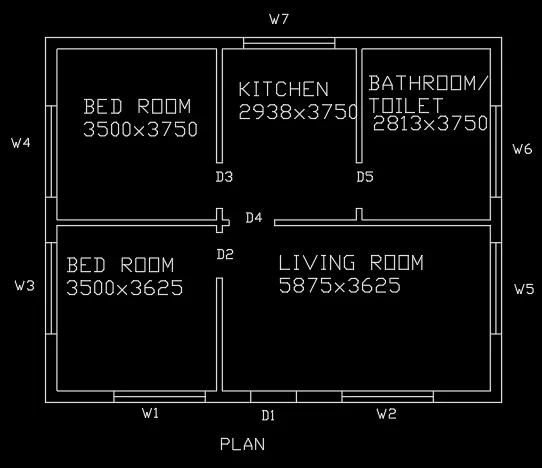

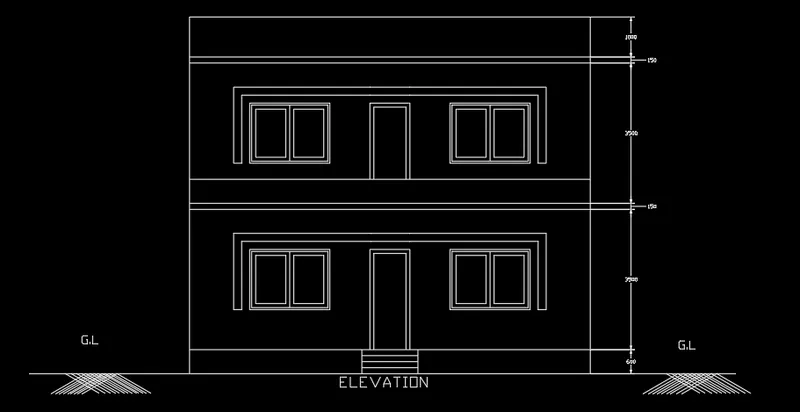

General Information: To Create a 3Dimensional model of the Residential Building i have drawn a random plan of size 10000X8000 Sq mm which have a required rooms the plan and Elevation details are below:
To Create a 3Dimensional Window and Door the Window and Doors are drawn with appropriate size the details are shown below:
Procedure:
- Open AutoCad
- Selecting Imperial system
- Command UN(units) and selecting Engineering with precision of 0
- Command LIMITS and having limit of (0,0) in lower left corner and (100000,100000) in upper right corner
- Command ZOOM and selecting All
Commands used:
LINE, OFFSET , PLINE, TRIM, RECTANGLE
These commands are used to draw the plan and Windows with its dimensions
REGION
- REGION is used to create the region of the plan walls
- REGION is used to create the region of the Floor
BOUNDARY
BOUNDARY is used to create the boundary of the region created by picking the points.
EXTRUDE
- EXTRUDE is used to extrude the walls created as a boundary to a height of 3500
- EXTRUDE is used to extrude the Floor created as a boundary to a height of 150
- EXTRUDE is used to extrude the Ceiling created as a boundary to a height of 150

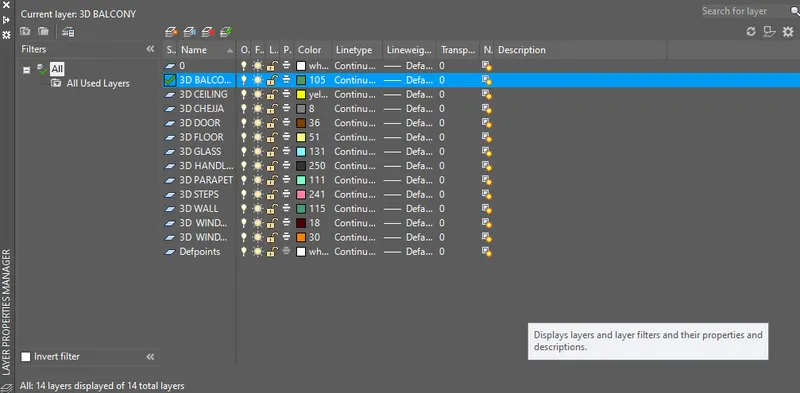

LAYER
LAYER is used to crate the layer of different components like 3D Wall, 3D Window,3D window mullion, 3D Glass etc
3DORBIT
3DORBIT is used to see the 3D plan in the desired direction
SLICE
SLICE is used to cut the model using the 3points with desired axis
3DROTATE
3DROTATE is used to rotate the window created in the xz plane to xy plane
EXTRUDE
- EXTRUDE is used to extrude the window created as a boundary to a height of 250
- EXTRUDE is used to extrude the window glass created as a boundary to a height of 200
LAYER
LAYER is used to assign the different layers created to the different components with differnt colours to distinguish.

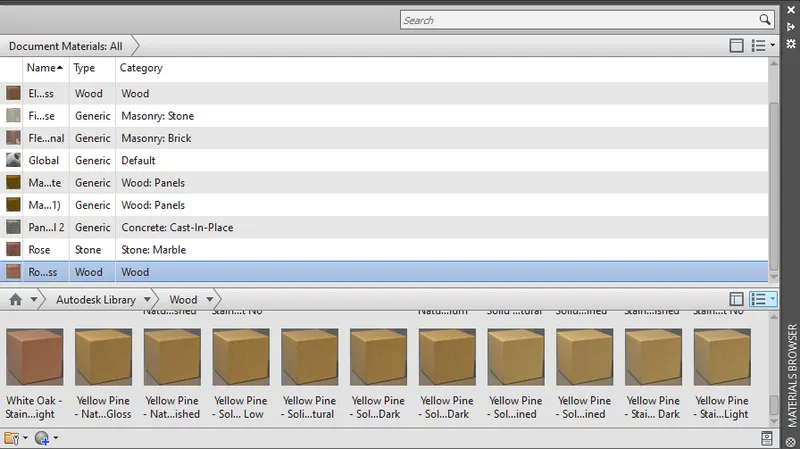

MATERIAL BROWSER
MATERIAL BROWSER is used to browse the appropriate materials to different components and assign it to create a rendering view
RENDER TO SIZE
RENDER TO SIZE is use to select the quality of the rendering view and selecting FULLHD resolution 1920X1080 p
RENDER
RENDER is used to render the view
Step by Step Procedure by Picture

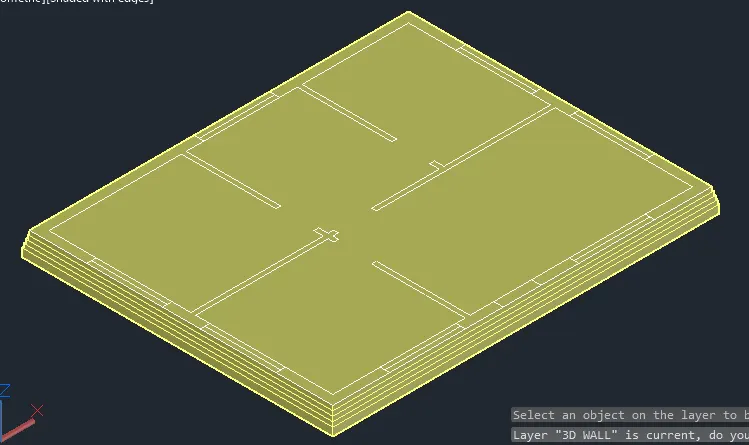

Step 1: Create a Plinth level by using Region and Boundary

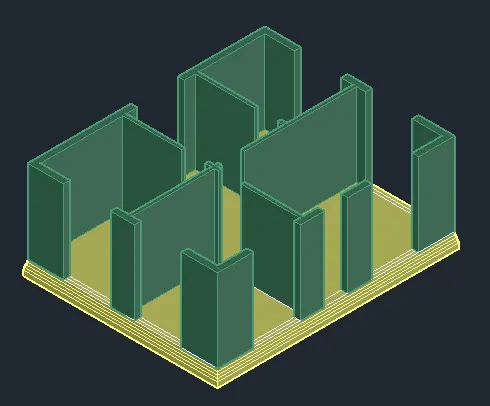

Step 2: Creating a wall

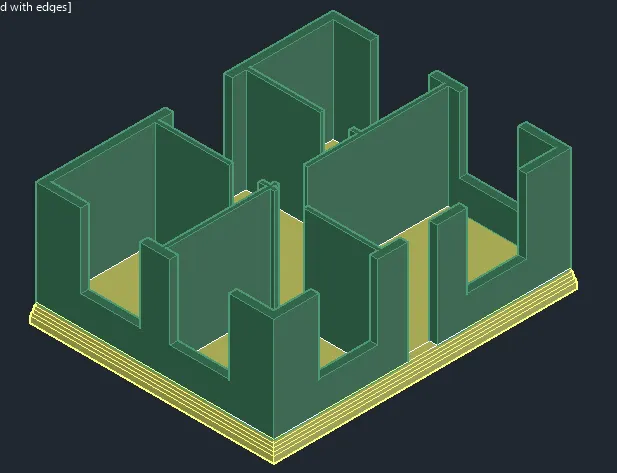

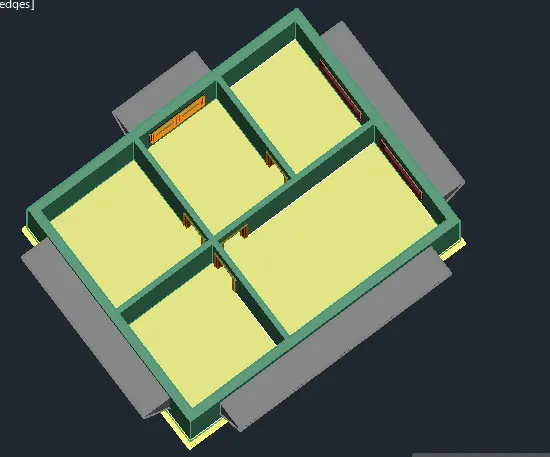

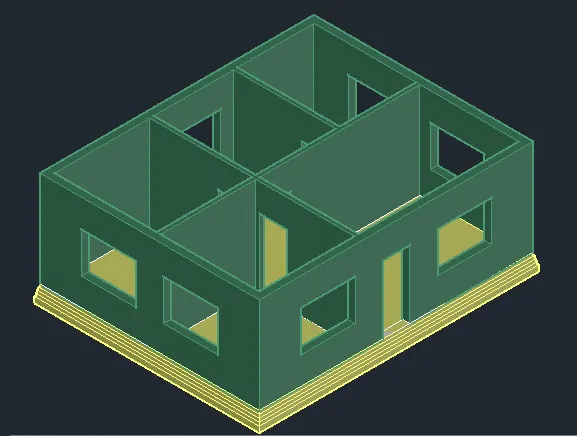

Step 3: Creating Wall with opening of Window and Door

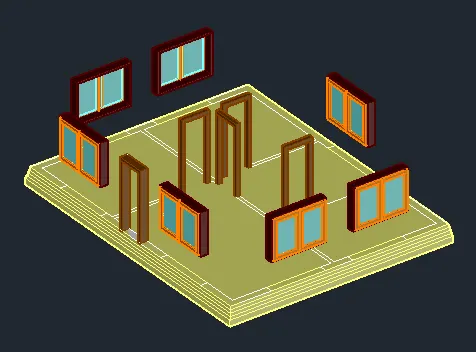

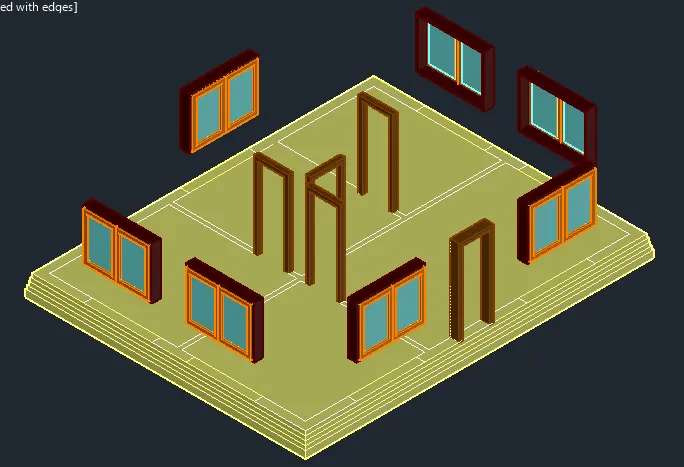

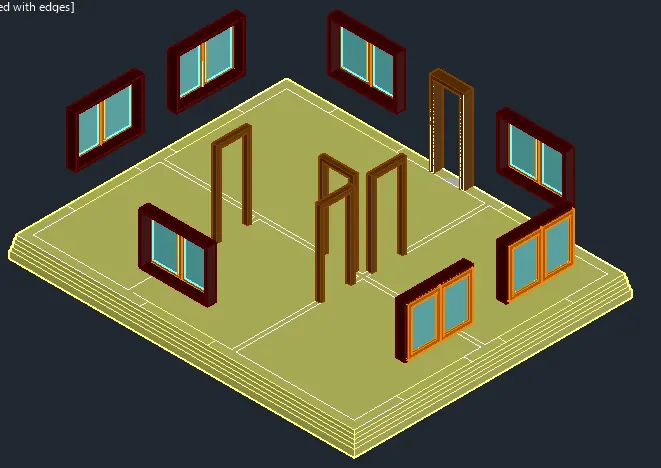

Step 4: Creating Window and Door and placing it in a place

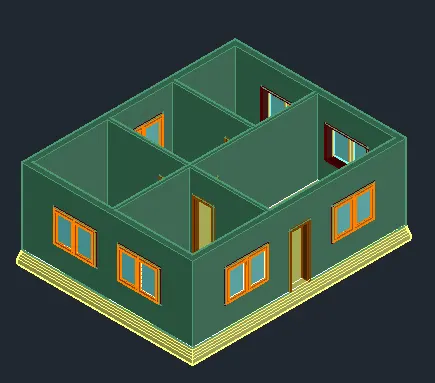

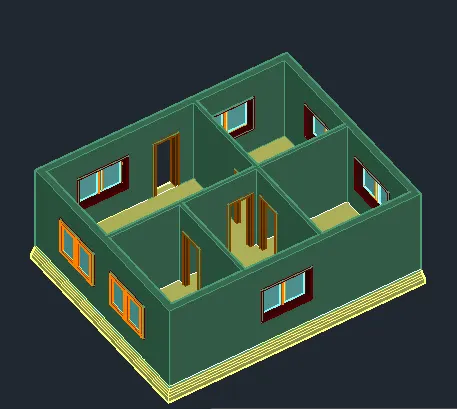

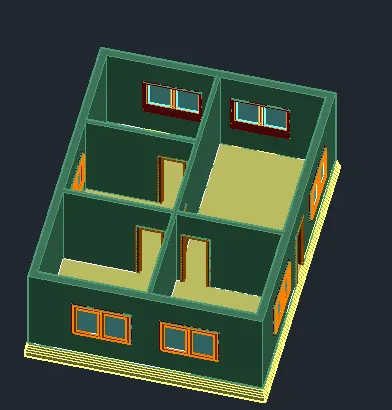

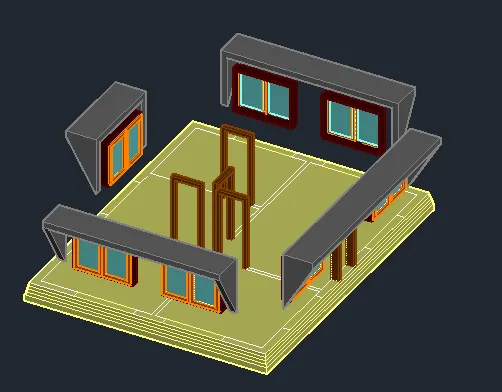

Step 5: Placing Walls, Door and Windows all together

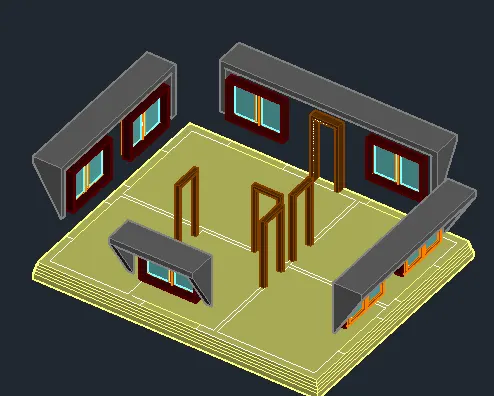

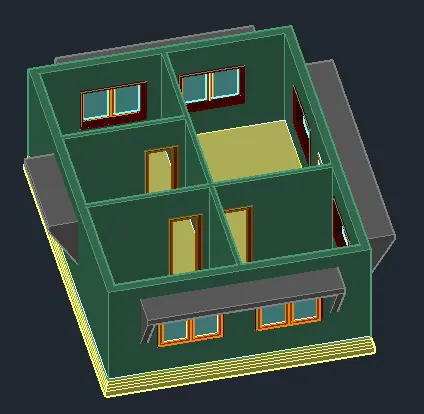

Step 6: Creating Chejja

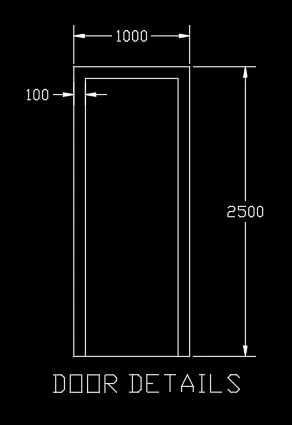

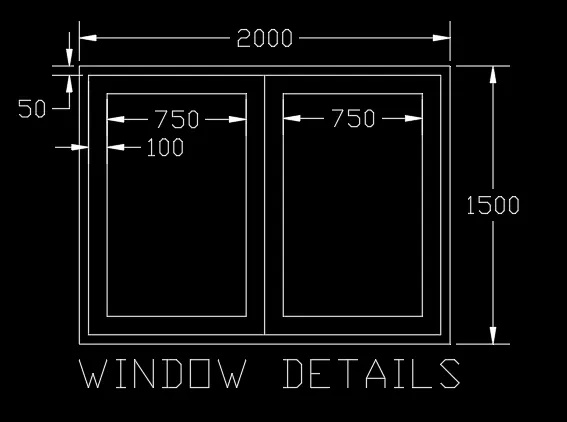

Step 7: Diagram of Window, Doors and Chejja

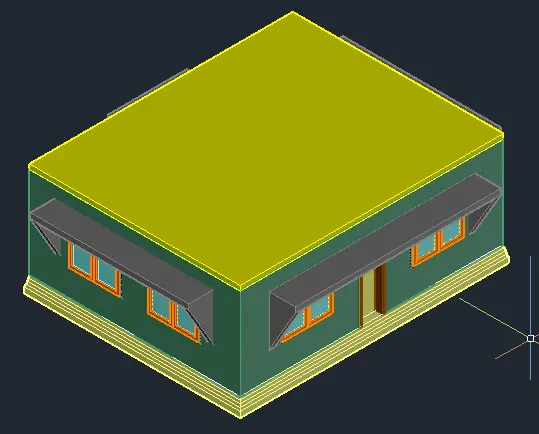

Step 8: Placing Ceiling over the Ground Floor

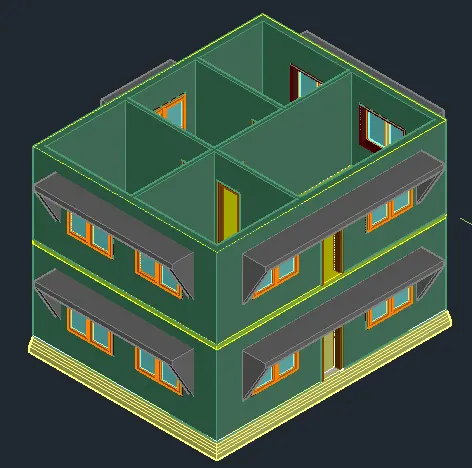

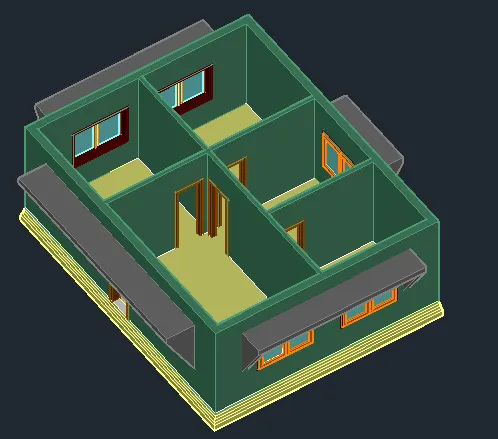

Step 9: Creating the Same that is created in Ground Floor to the First Floor

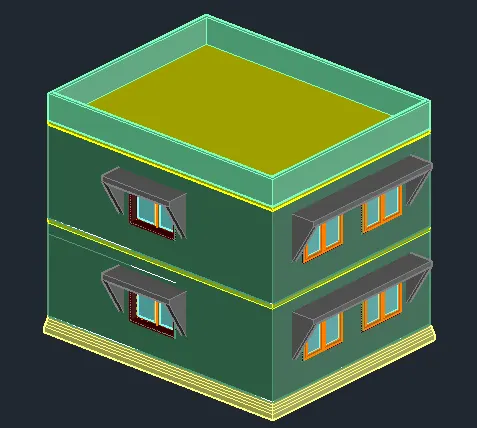

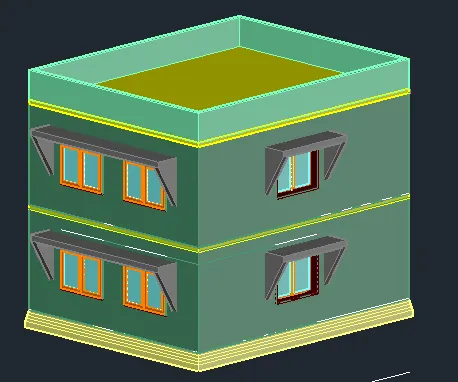

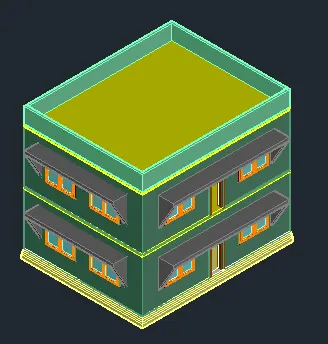

Step 10: Creating the Ceiling of the First Floor and creating the Parapet Wall

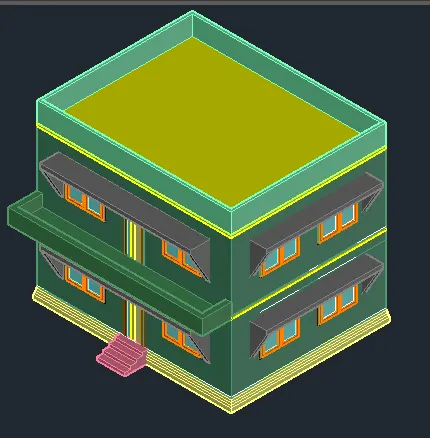

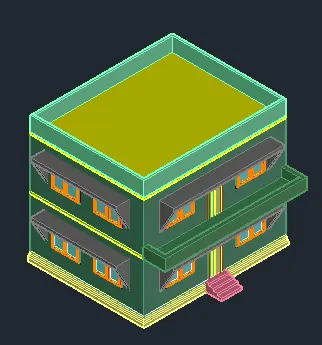

Step 11: Creating the Stairs and Balcony on the First Floor

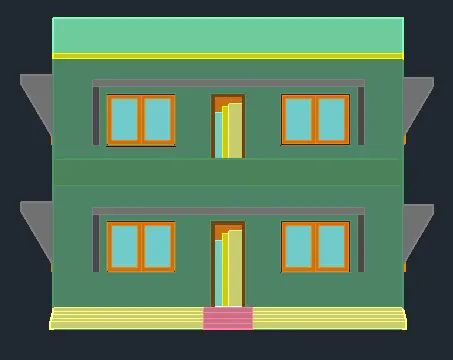

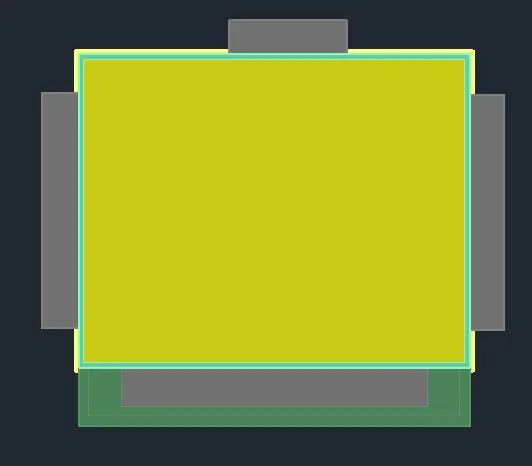

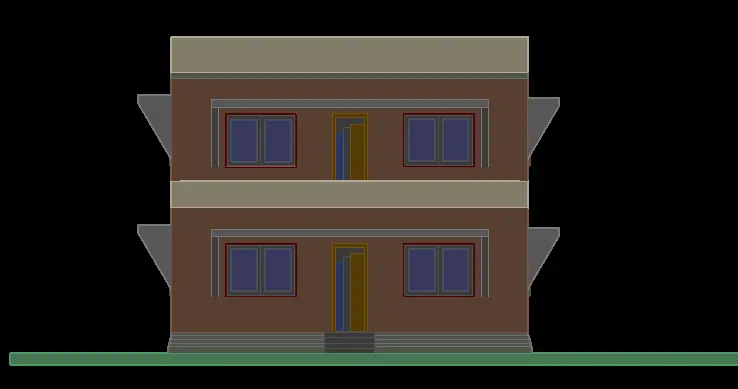

Step 12: The Front and Top View of the Building
Step 13: The Image after assigning the Materials to the to the different components

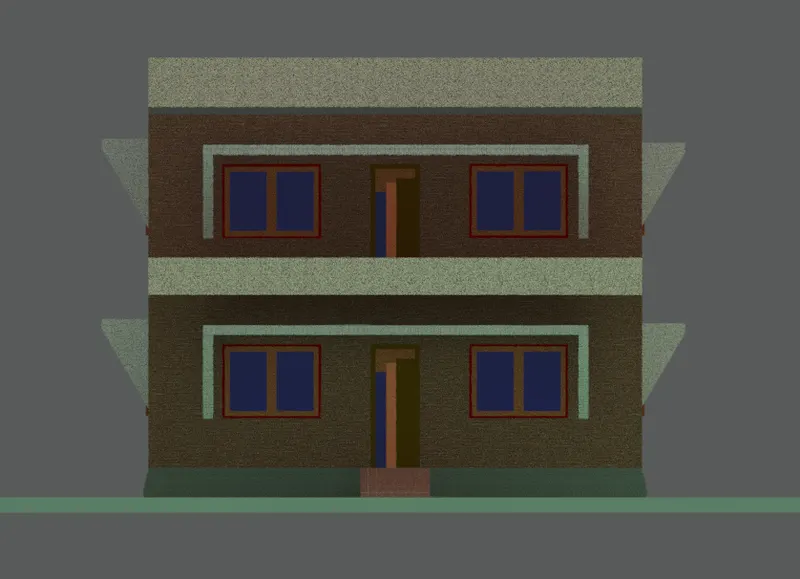

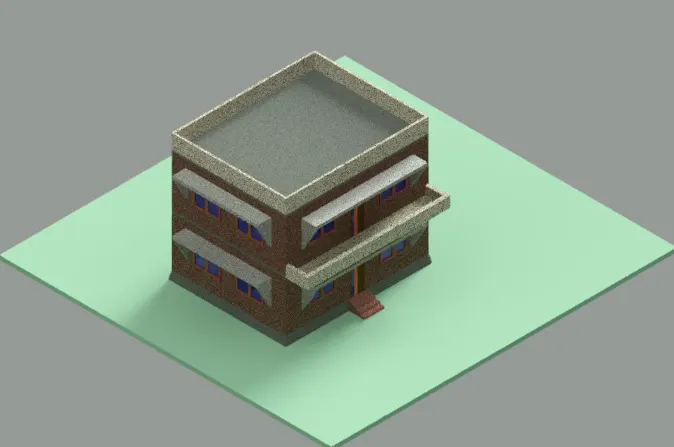

Rendered Image of the 3D modelled Building
RESULT:
