Assignment 5-RADIOSS Interfaces & Study of Effect of Notches Challenge

procedure: download the 0000.rad file which is initial file and to run the file selct analysis radios and save th efile before running and

after run the file select hypergraph selct file and run the file in split window

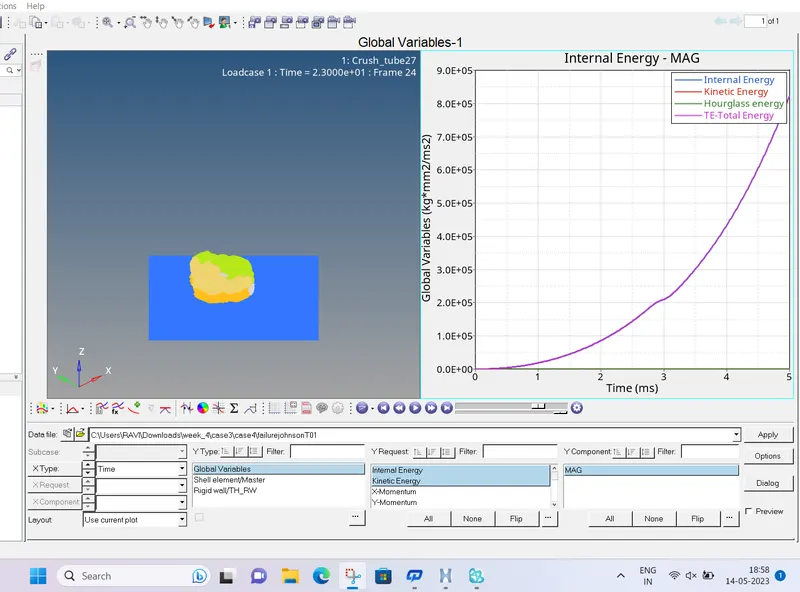

case1:

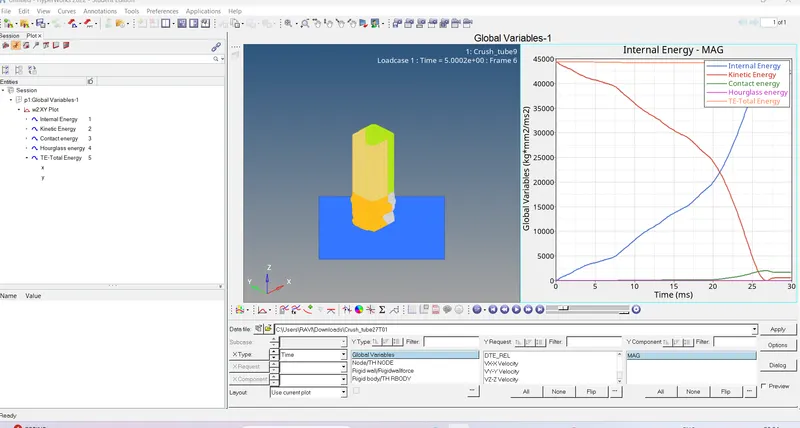

case2:

in this case before running file change inact as 6 . go to solver inter selct type 2 and scroll down to change inact as6.

and continue the procedure.

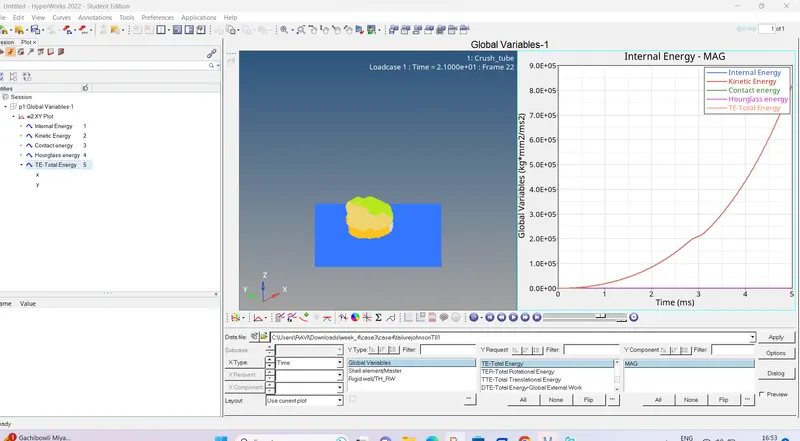

case3

in case 3, select create inter and select type 11 , select components and run the file
