Assignment 4
Comparative Study of all 6 Iteration Run
FAILURE_JOHNSON
|
Type |
Energy Error |
Mass Error |
Simulation Time (seconds) |
Material Used |
Failure Criteria |
Eps_max |
Vonmises Stress (N/mm2) |
Crack or Deleted |
|
Law2 _epsmax_failure |
0.8% |
0.00 |
99 s |
MAT 2 (PLAS_JOHN) |
FAILURE_ JOHNSON |
0.151 |
2.752e+02 |
Deleted Elements |
|
Law2 _epsmax_crack |
4.1% |
0.00 |
109.24 s |
MAT 2 (PLAS_JOHN) |
FAILURE_ JOHNSON |
0.151 |
3.182e+02 |
Cracked Elements |
|
Law2 _epsmax_nofail |
0.8% |
0.00 |
154.76 s |
MAT 2 (PLAS_JOHN) |
NO |
0.151 |
2.202e+02 |
Cracked Elements |
|
Law2 |
1.1% |
0.00 |
163.68 s |
MAT 2 (PLAS_JOHN) |
FAILURE_ JOHNSON |
0.00 |
2.451e+02 |
Deleted Elements |
|
Law1 |
1.3% |
0.00 |
162.80 s |
MAT 1 (ELASTIC) |
FAILURE_ JOHNSON |
0.151 |
1.089e+04 |
No deformation |
|
Law36 |
1.5% |
0.00 |
172.01 s |
MAT 36 (PLAS_TAB) |
FAILURE_ JOHNSON |
0.5 |
1.075e+03 |
Deleted Elements |
Reason

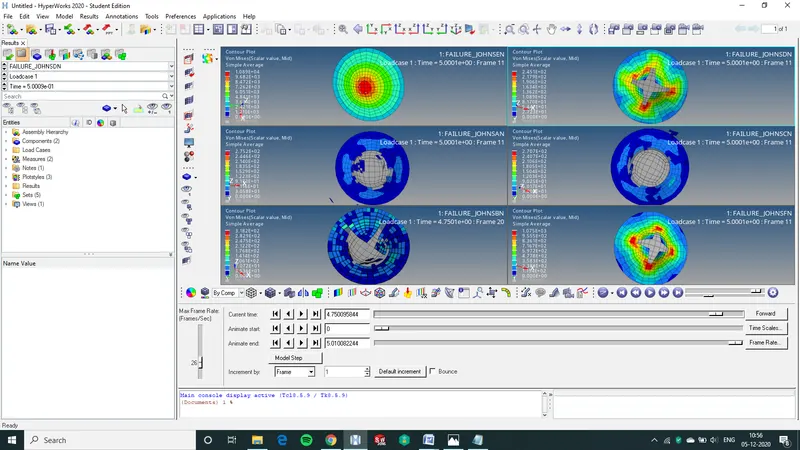

- As observed from the animation for all the 6 Iteration runs it can be seen that in the First 3 Runs, elements can be seen cracking away and then being deleted from the animation.
- It means to tell that Law 2 (PLAS_JOHNS) materials are more realistic.
- Keeping Dadv=Ixfem=1 shows cracking more significantly.
- Material in LAW 1 and LAW 36 are exceeding UTS of 425 MPa which is unrealistic.
- Result Files of all the 6 Iteration run will be attached.

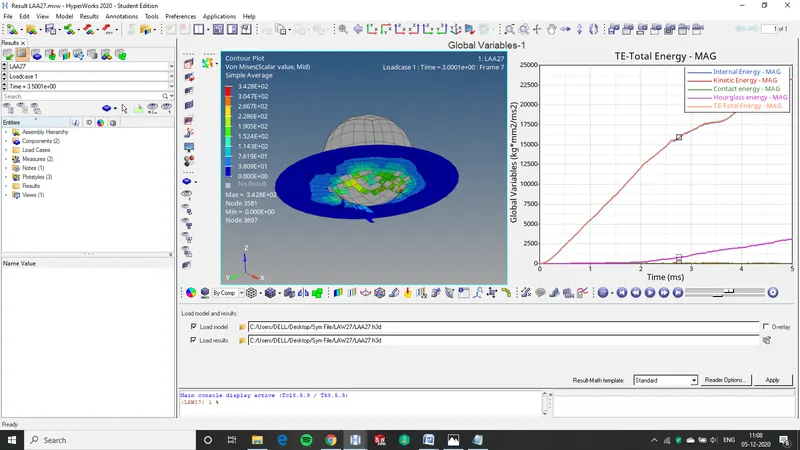

LAW 27
|
Type |
Energy Error |
Mass Error |
Simulation Time (seconds) |
Material Used |
Failure Criteria |
Vonmises Stress (N/mm2) |
|
LAW 27 |
-7.1% |
0.00 |
144.85 s |
PLAS_BRITTLE |
FAILURE_ JOHNSON |
3.428e+02 |
Elements are seen cracking away.
