Assignment 2-RADIOSS Engine File Editing & 3D Meshing Challenge

1. the material property of the component is steel

younges modulus is E=210000pa

density =rho= 0.000078kg/m3.

Speed of sound in steel = `root`of E/rh`)

= root of 210000/0.0078

=5188m/sec

2.given length 1000m

speed = distance/time

time = distance/speed

time=1000/5188

t=0.19seconds.

3.t=0.19seconds.

7.

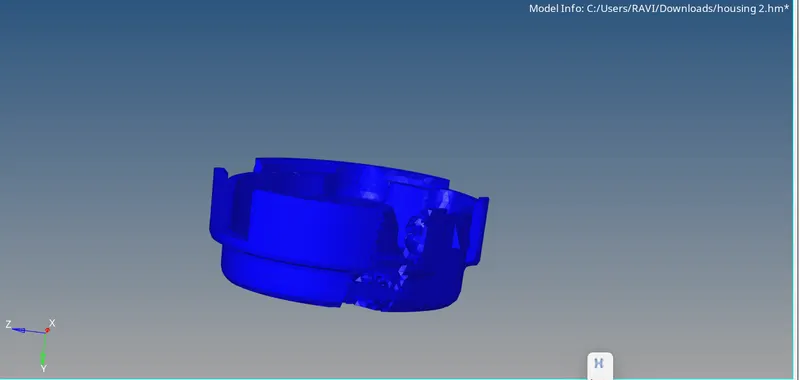

AIM: to perform tetra meshing for a given component.

procedure: download the component.

delete the solids if found any.

go to view browseer, hypermesh, geotools,tetra

select trias only give target element and select the component.

after meshing go to 3D meshing tetra mesh and select the component.

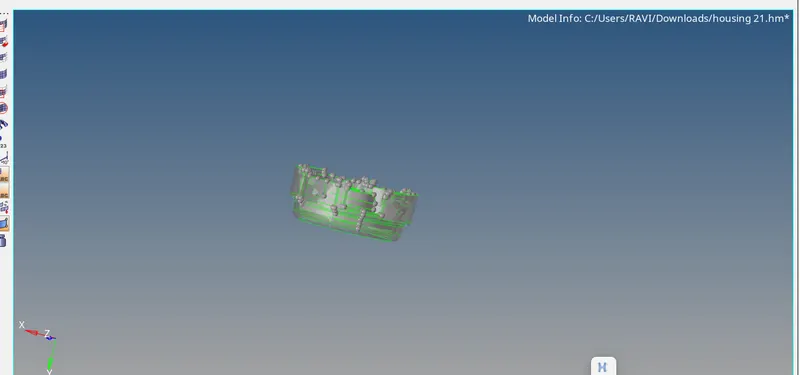

mask the component and view the tetras present

7.
