Assignment 1-2D Meshing Challenge

 Aim

1.Creat midsurface

2.To Mesh the Given component

Procedure:

Midsurface

Step 1

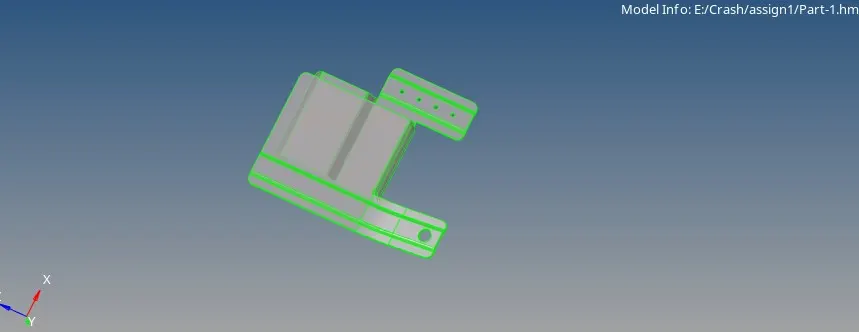

Import geomentry

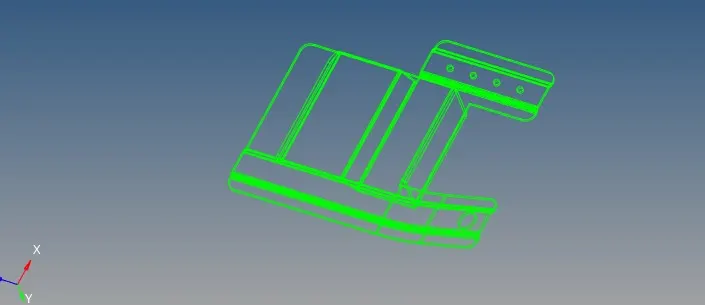

As shown in below wireframe to find out any free edges,triple cons,small holes,irregular geom. is there or not

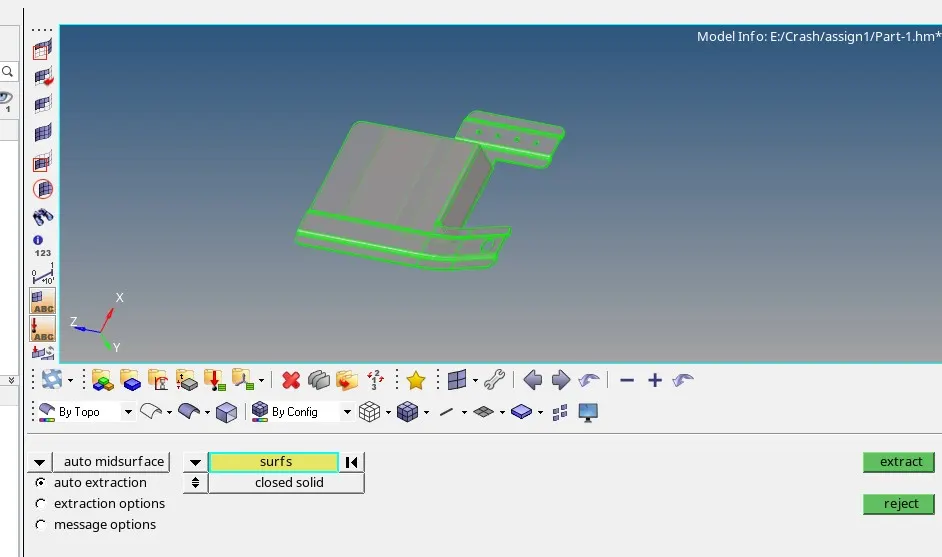

if there are free edges then geomentry repaired and small holes are fill using filler and using automidsurface surface created

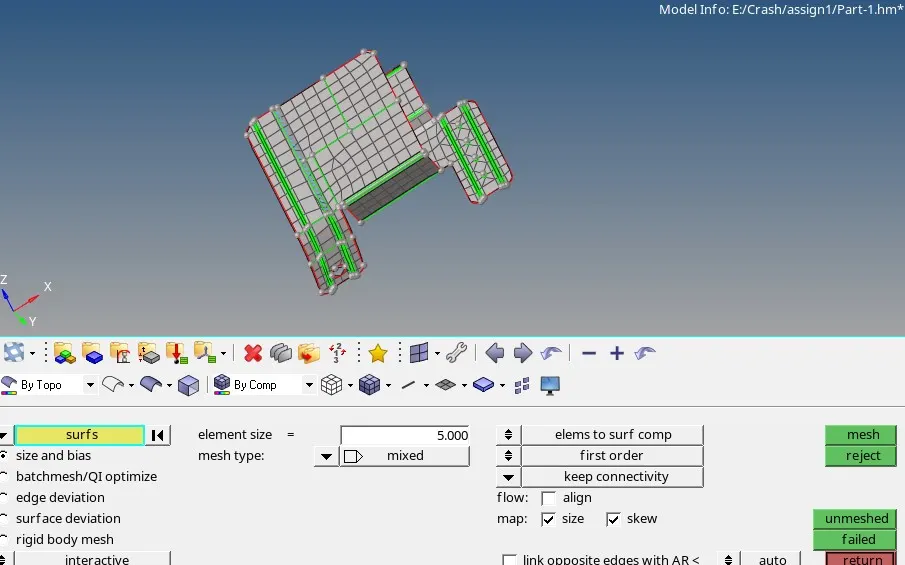

 Now using automesh option mesh the given geomentry

final mesh as shown below

model 2

step 1

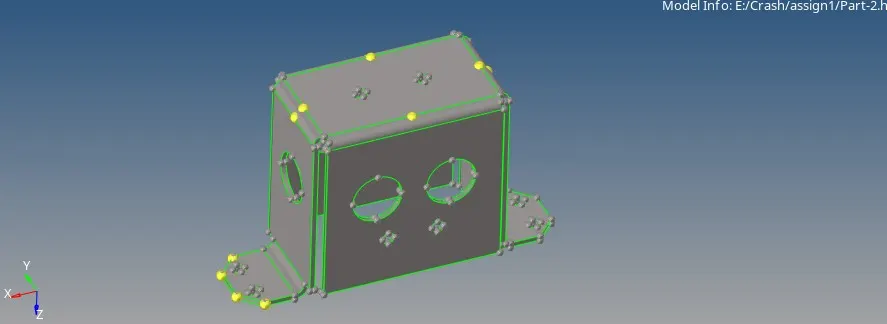

import geomentry as

if there are free edges then geomentry repaired and small holes are fill using filler

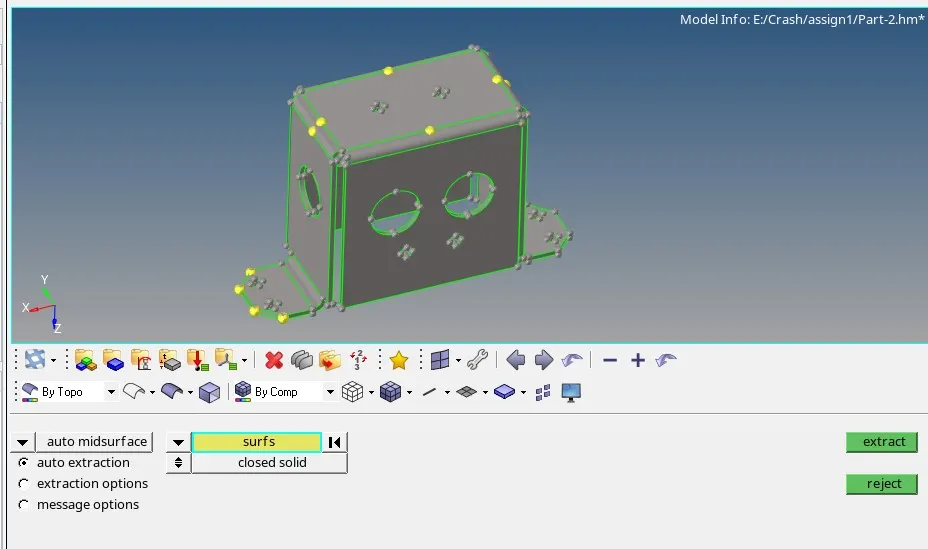

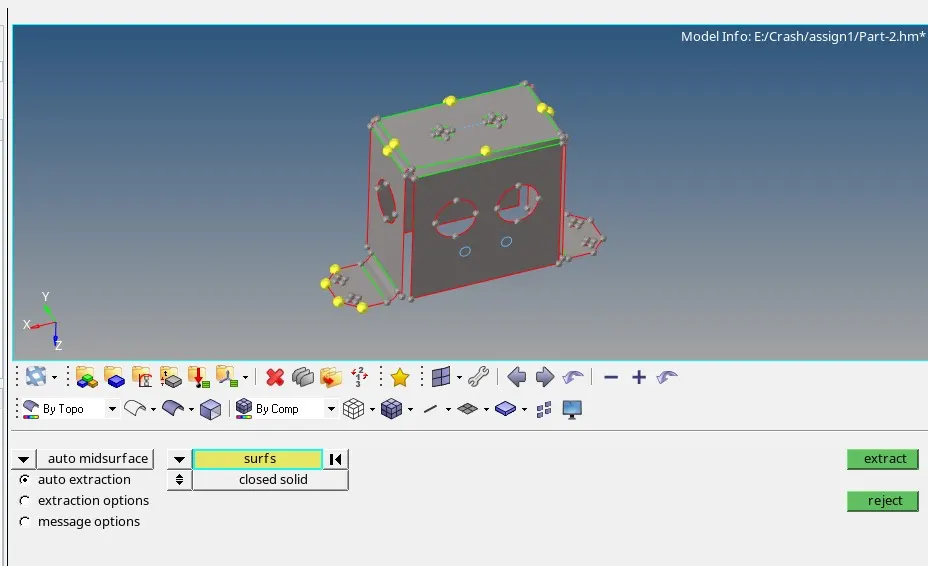

and using automidsurface midsurface created

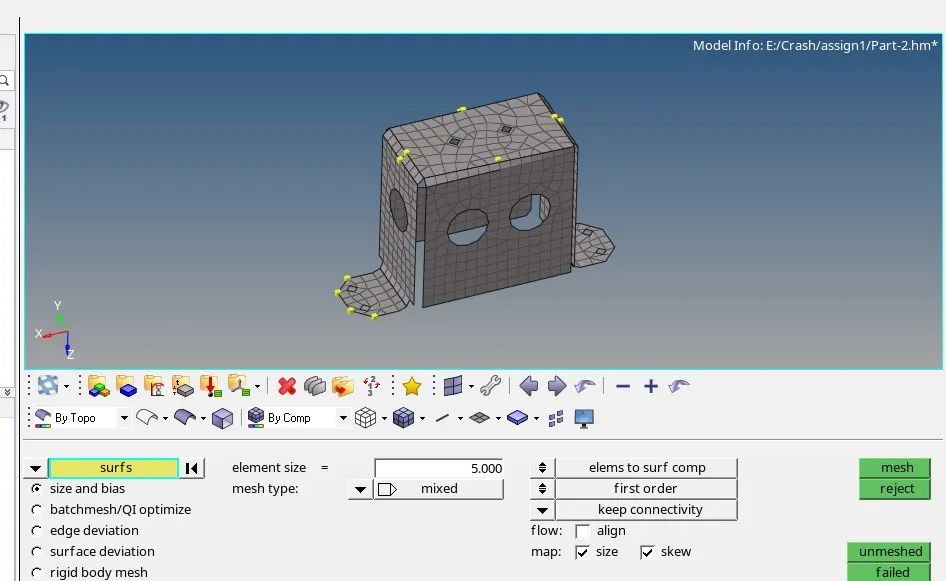

Now using automesh option mesh the given geomentry

final mesh as shown below
