Assignment 1-2D Meshing Challenge

Aim: To carry out the geometry cleanup operation for given 3 files.

Procedure :

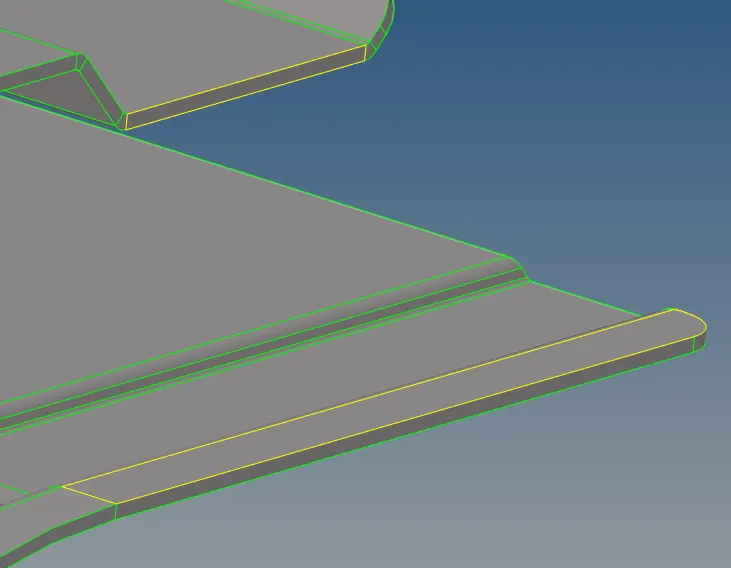

Using filler surf option in the quick edit option tool the open surface are closed.

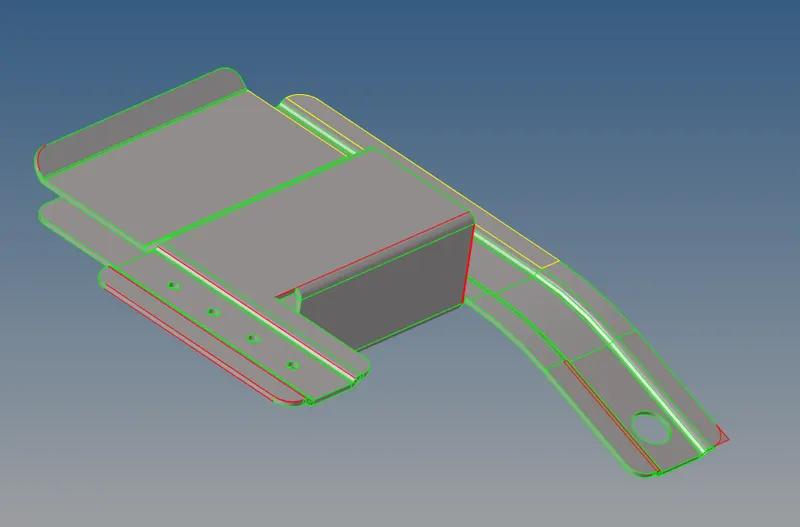

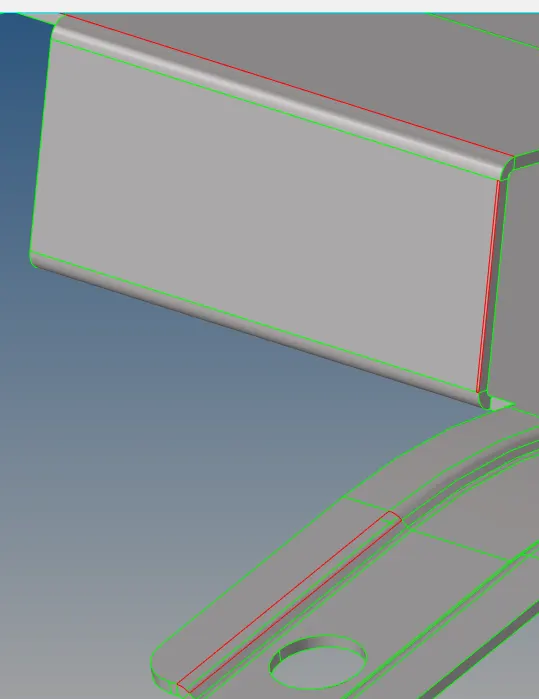

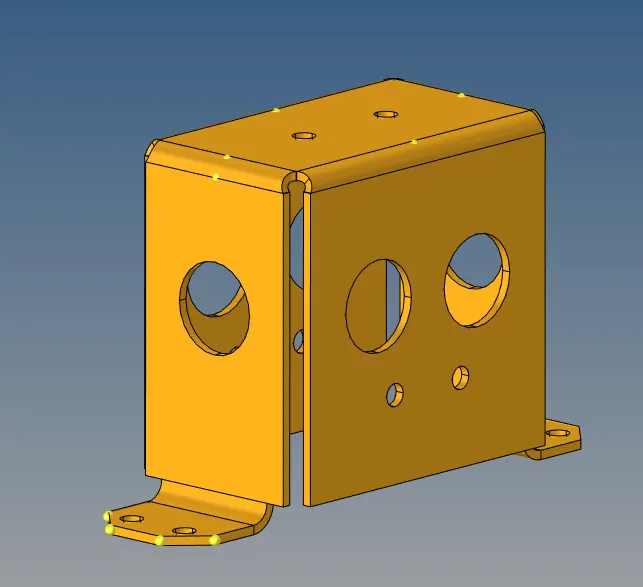

Deleted the non manifold surfaces as followed image.

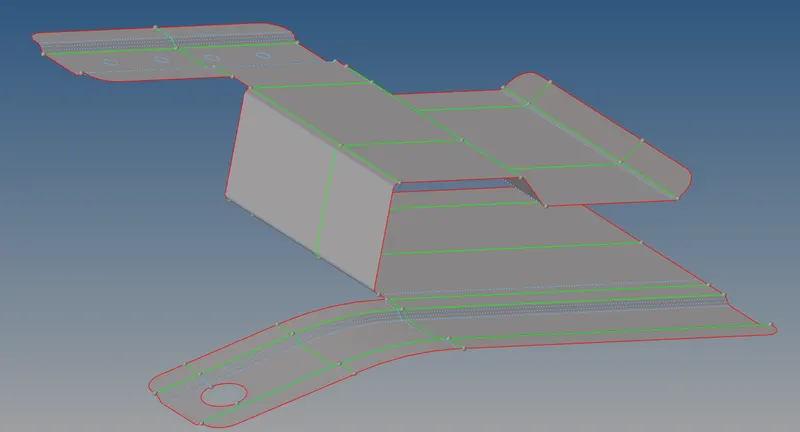

After completing the surface cleanup, midsurface was generated using the midsurface option.

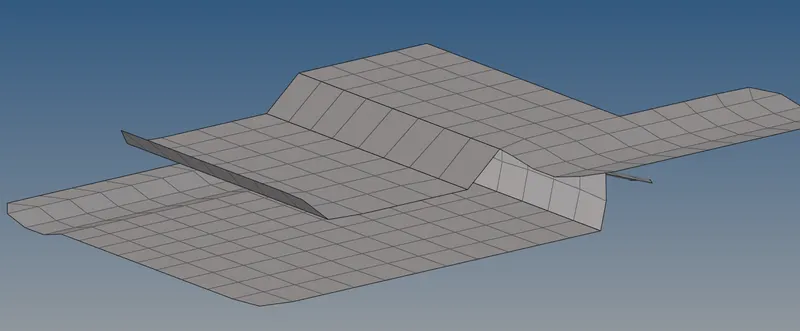

After creating the midsurface, mesh generated using automesh option.

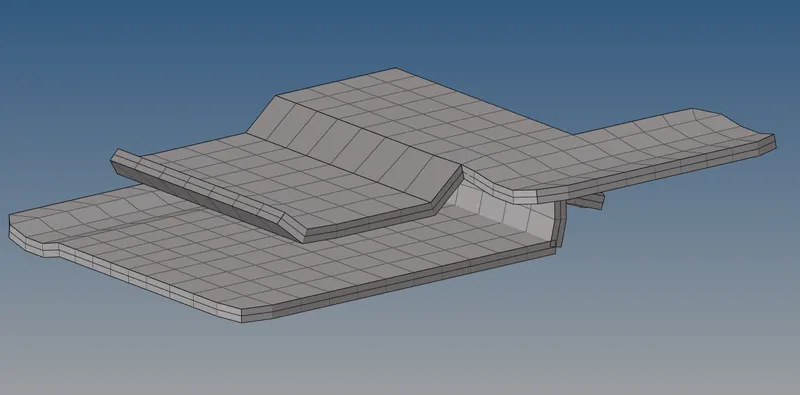

After generating the mesh, thickness is applied to the mesh using property option.

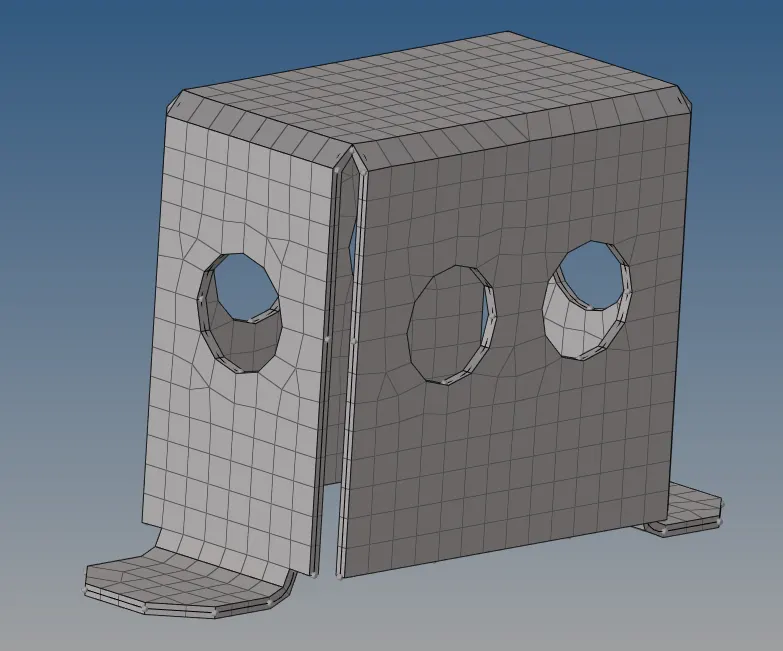

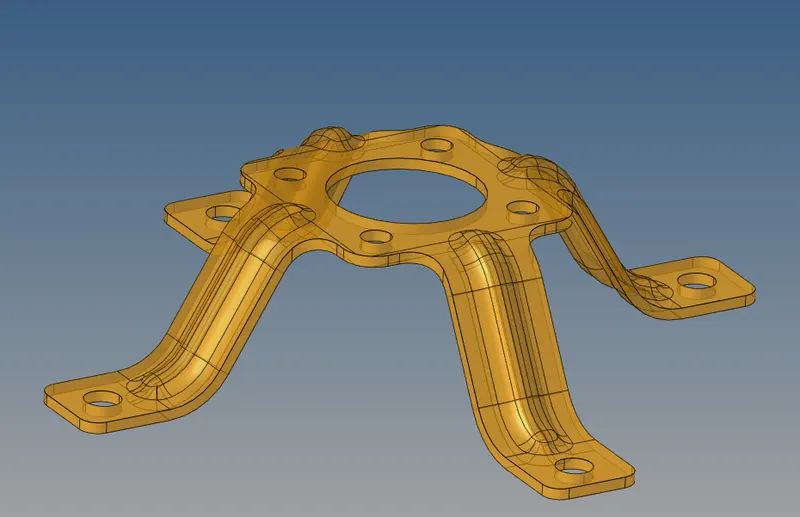

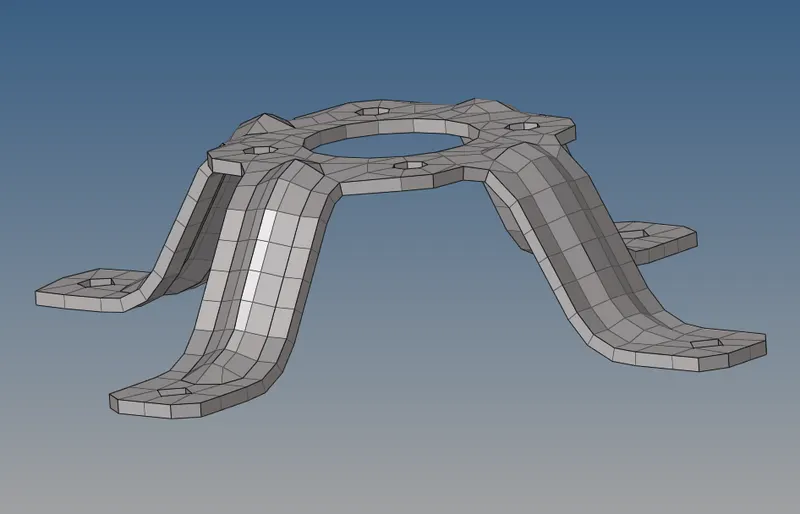

Result:
