Assignment 1-2D Meshing Challenge

Objective: To mesh the given components as per the given criteria after geometry cleanup and midsurfacing. The three components are:

• Practice Component
• Clip Repair
• Mounting Bracket

The 2D mesh is to have a target length of 5 mm with a minimum of 3.5 mm and a maximum of 7 mm. The thickness will also need to be assigned after meshing.

Procedure:

1. Import the model which was in the .hm file. There are 3 parts are present in the folder, each model is to be imported with completion of each other.

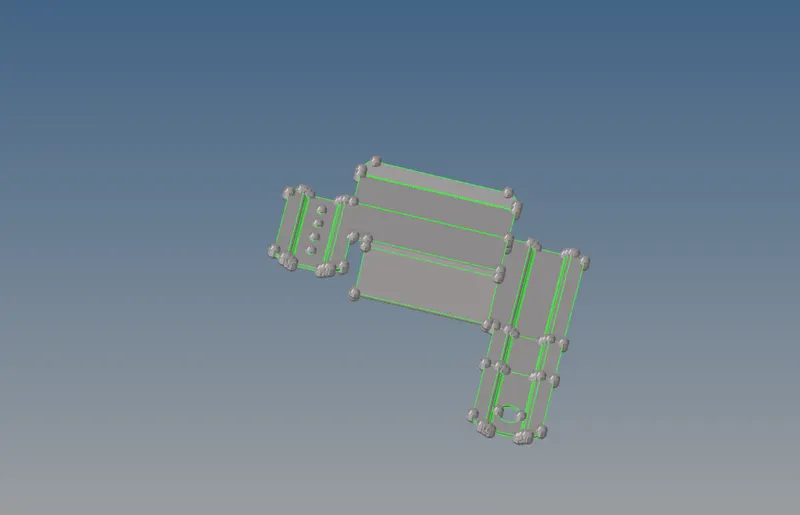

2. After impoting the model we have to clean surfaces. The part has some of the cracked edges and free edges.

The errors are cleared by using the command quick edit > filler surf.

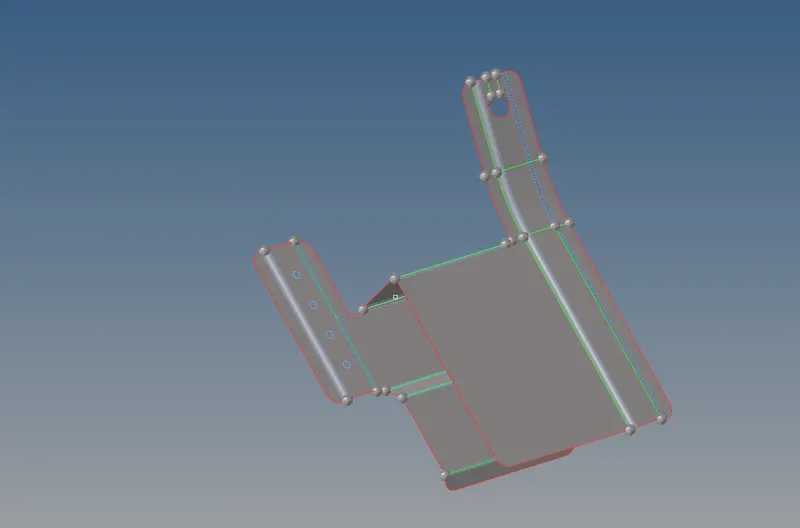

3. After the clearing the geometry we have to extract the midsurface by using the command midsurface > auto midsurface. in the midsurface extration we used the palnes+offset+sweep.

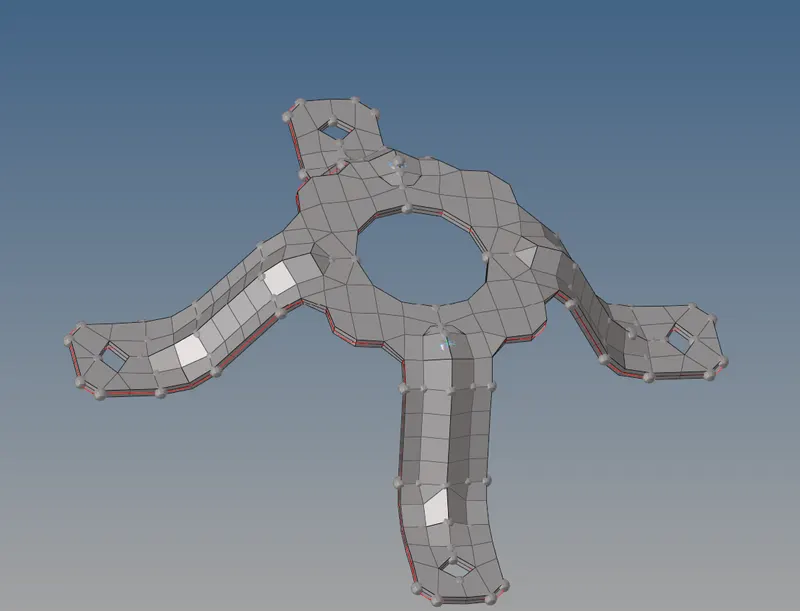

4. After the midsurface extraction the meshing has been carried out has for the given criterias.

5. The meshing is completed we have done the thickness assessment by creating a property and materials.

6. Some of the elements are failed due feature lines capturing.

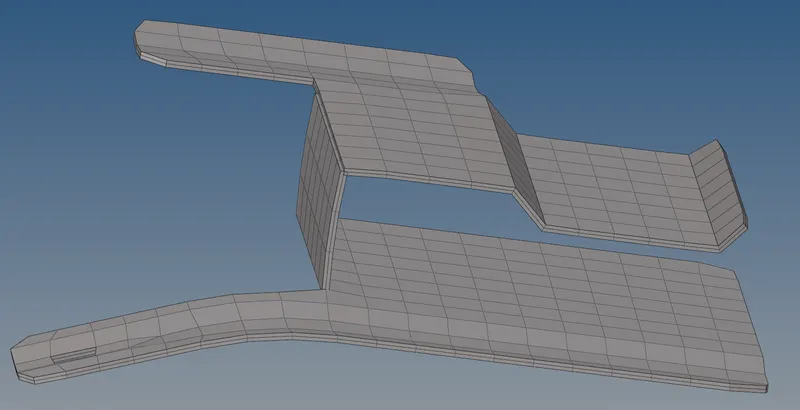

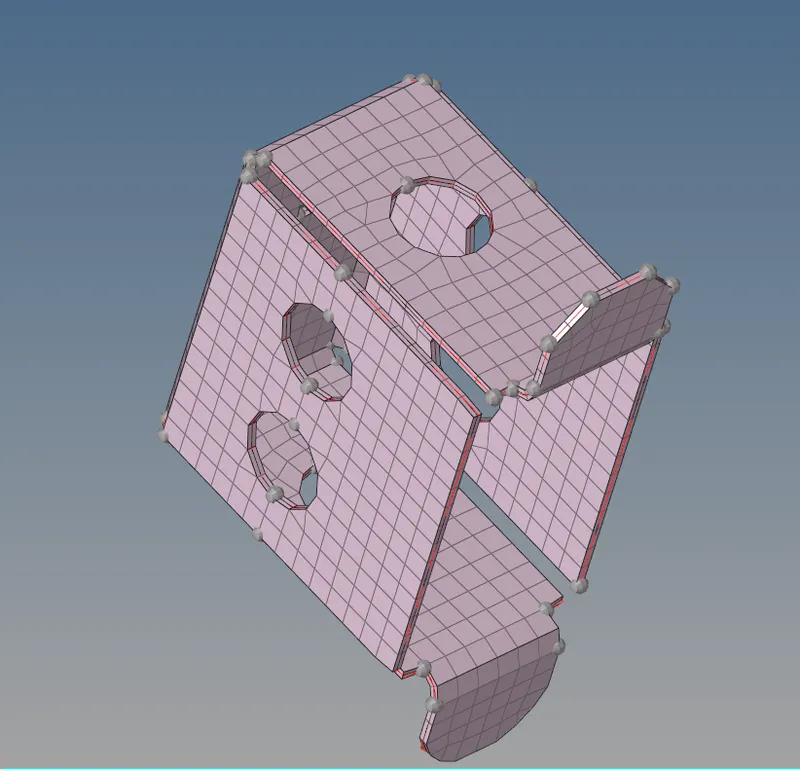

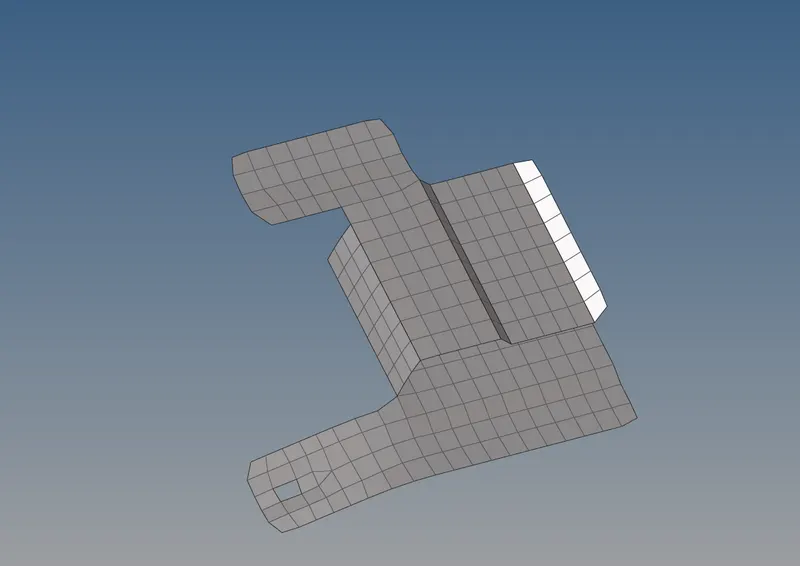

7. similarly we have done with other two parts .

Result:

The given components are meshed by extracting mid-surface, and mesh cleanup operations are carried out.
