Assignment 1-2D Meshing Challenge

Aim

To perform geometry clean up, extract mid surface and mesh with given Elements criteria

Objective

• Geometry clean up
• Extract mid surface
• Clean mid surface geometry & Ignore holes less than dia 5mm
• Create 2D mesh with target length 5mm, min 3.5mm and max 7mm
• Assigning proper thickness

PROCEDURE:

Model1

Step1: Importing the geometry

Open HyperWork software, go to file-> import-> select the file format and click on import, similar way all the different componets are imported

Step2: Geometry clean up

The premary stage of meshing any part is to clean the geometry, if the part created in any modeling software and then imported in any CAE software due to change in the formate of the file. some error in the geometry can be seen like Free egdes, deformed shape, duplicate surface, missing surface, unconnected adjection surface so on and so forth

Step3: Extract mid surface

After Geometry clean up on parent geometry its time to extract mid surface. The mid surface is extract by automid surface .Geometry->Midsurface-> Automid surface -> select the component-> click on extract.

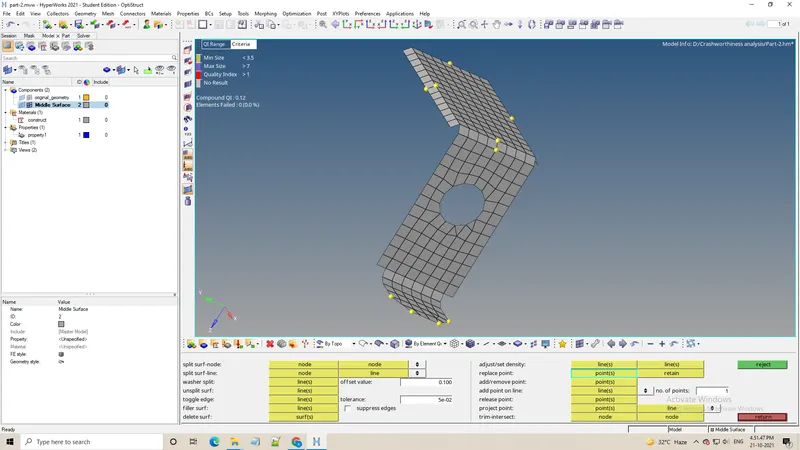

Step4: Geometry clean up on mid surface

since below hole is less than 5mm, so it is ignored.

Step5: Assigning Quality criteria

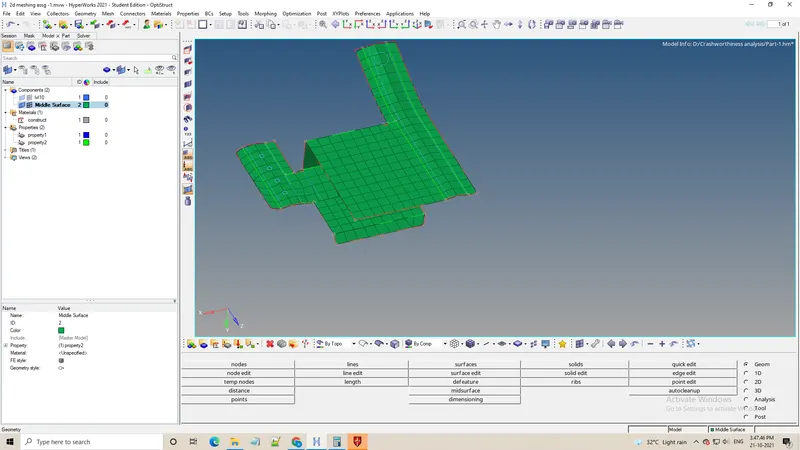

Step6: Meshing

While meshing any component, the one thing has to be kept in mind is that the flow of mesh has to be smooth for smooth flow of energy.to make mesh flow smooth certain criteria like no tria should be facing directly each other, tria should not be present at the edge and rotating quad are also not required if the preparation for durability analysis.

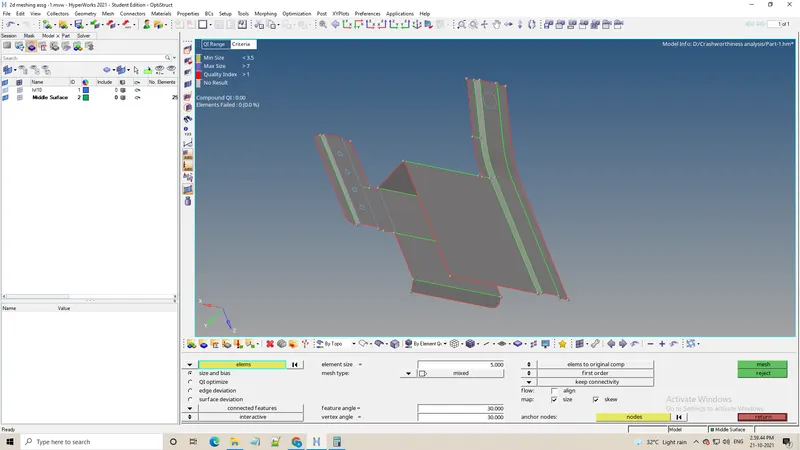

Go perform mesh on the model, got to 2D panel-> Automesh-> assign elements target length and other parameter-> select the surface to mesh-> click on mesh.

Some mesh clean up tools are used to make better mesh flow and reduce tria concentraction and rotating quad.

Model 2:

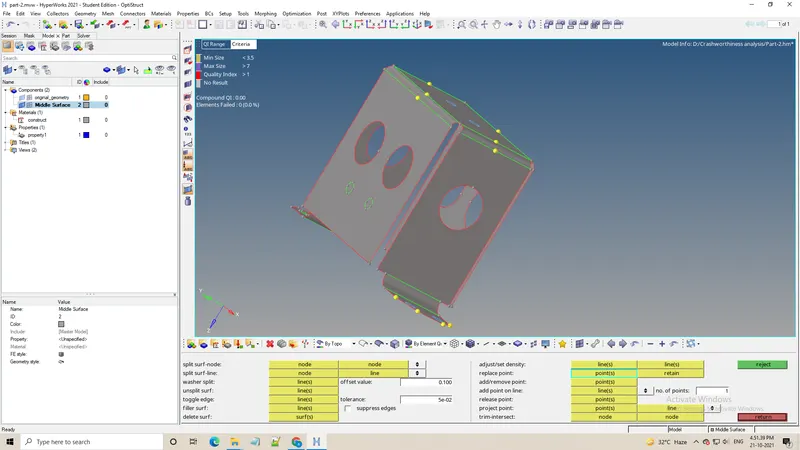

Step 1: Geometry clean up

The premary stage of meshing any part is to clean the geometry, if the part created in any modeling software and then imported in any CAE software due to change in the formate of the file. some error in the geometry can be seen like Free egdes, deformed shape, duplicate surface, missing surface, unconnected adjection surface so on and so forth

Step 2: Extract mid surface

After Geometry clean up on parent geometry its time to extract mid surface. The mid surface is extract by automid surface .Geometry->Midsurface-> Automid surface -> select the component-> click on extract.

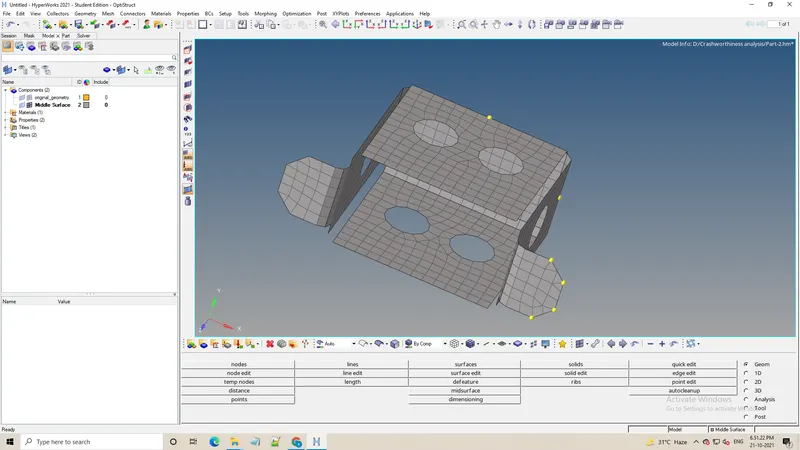

Meshing

Go perform mesh on the model, got to 2D panel-> Automesh-> assign elements target length and other parameter-> select the surface to mesh-> click on mesh.

Some mesh clean up tools are used to make better mesh flow and reduce tria concentraction and rotating quad.

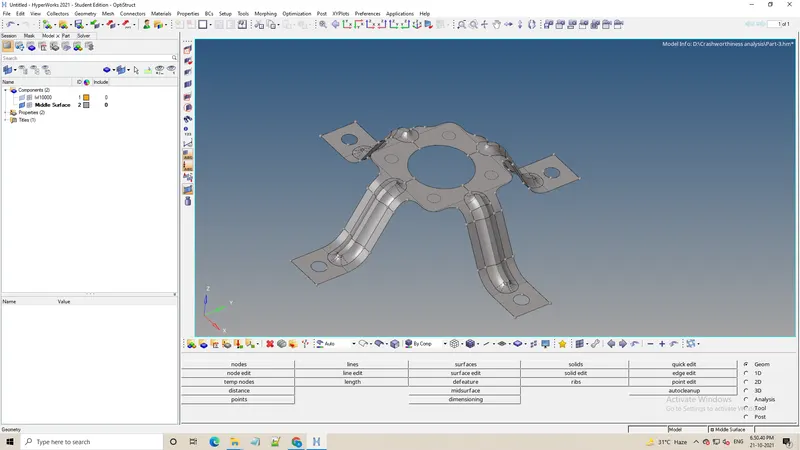

Model 3

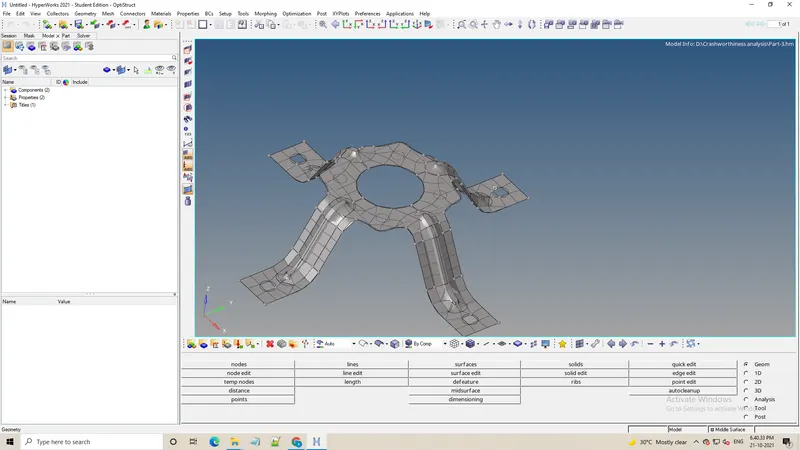

Step1: Geometry clean up

The premary stage of meshing any part is to clean the geometry, if the part created in any modeling software and then imported in any CAE software due to change in the formate of the file. some error in the geometry can be seen like Free egdes, deformed shape, duplicate surface, missing surface, unconnected adjection surface so on and so forth

Meshing

Go perform mesh on the model, got to 2D panel-> Automesh-> assign elements target length and other parameter-> select the surface to mesh-> click on mesh.

Some mesh clean up tools are used to make better mesh flow and reduce tria concentraction and rotating quad.

Learning Outcomes

Able to understand

• Geometry clean up
• Mid surface extraction
• 2D Meshing
• Assigning material and property
• Defeaturing
• Assigning thickness

Conclusion and Result

For all the three model, geometry clean up, mid surface extraction and 2D mesh generated and Materials, property and thickness is assigned. No any off Elements are present on the model.
