ANSA - Usage of Wrap for Thermal Analysis

AIM :

-Make a Detailed Report on How to approach the model for Thermal Analysis

-Include the step by step procedure and snapshots for Surface wrap of the model

-Only need to wrap the cooling system of given geometry

Procedure :

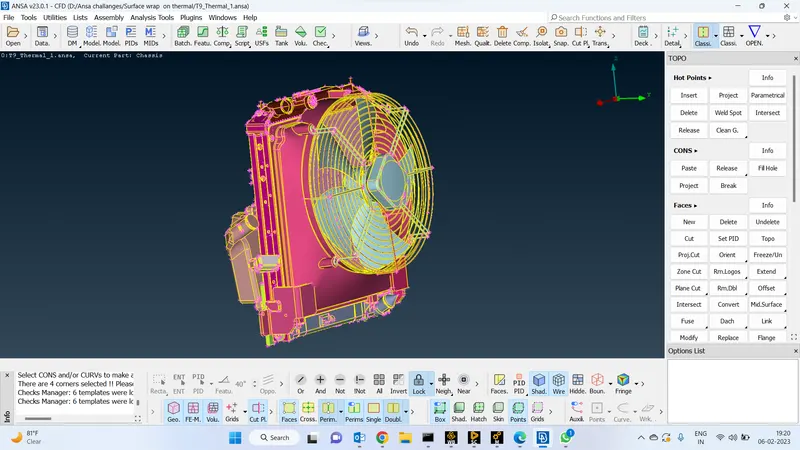

-initially, we will have to load the geometry.

-Check the errors and clear the errors

-the do the stl meshing capture the geometric properties

-Then perform the wrapping scenario in batch meshing.

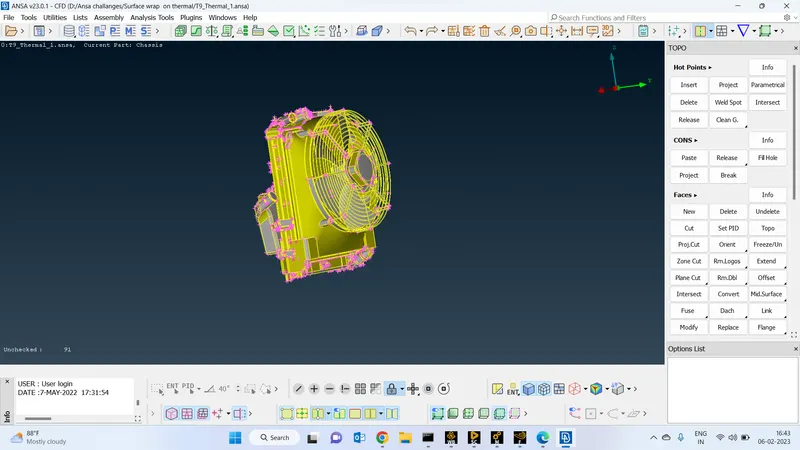

Isolate the thermal part :

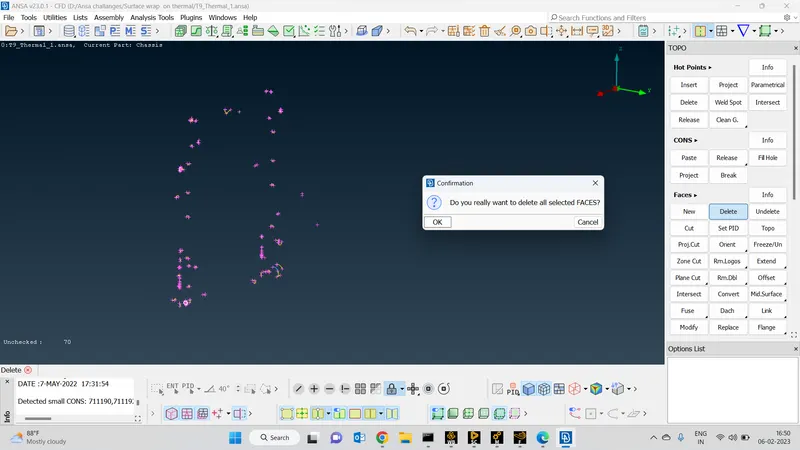

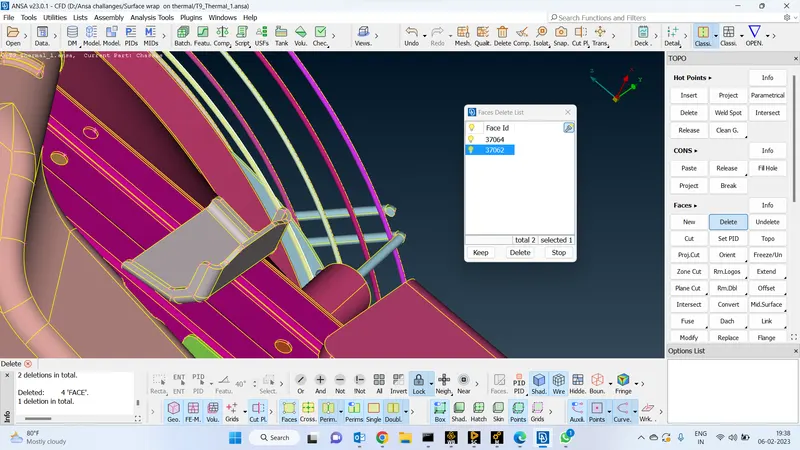

Delete the unchecked faces :

created a new face :

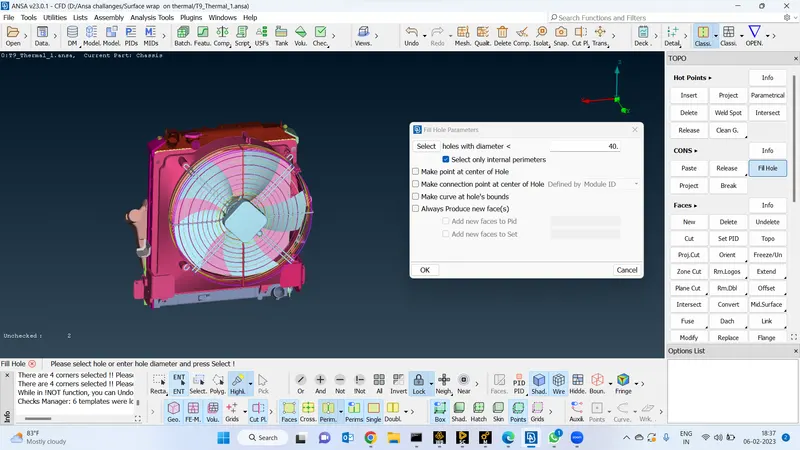

fill hole use 40 size and close the holes :

Create a porous media at the fan front :

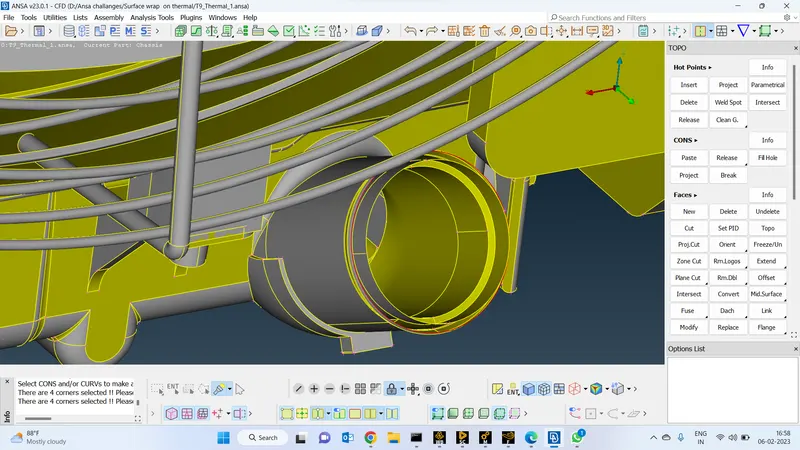

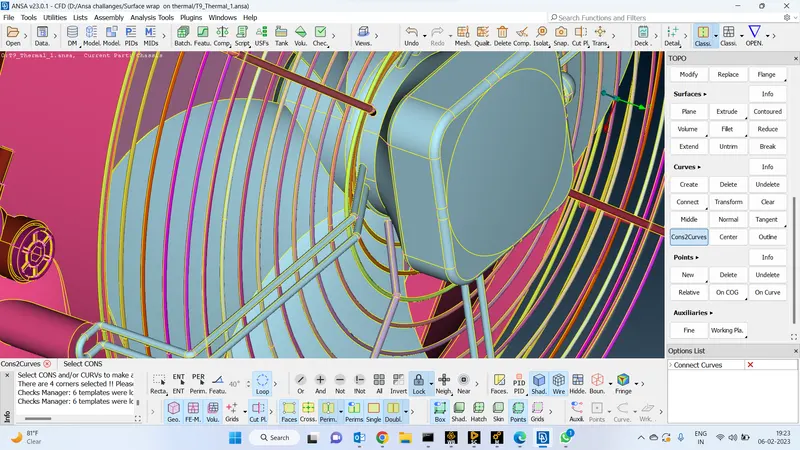

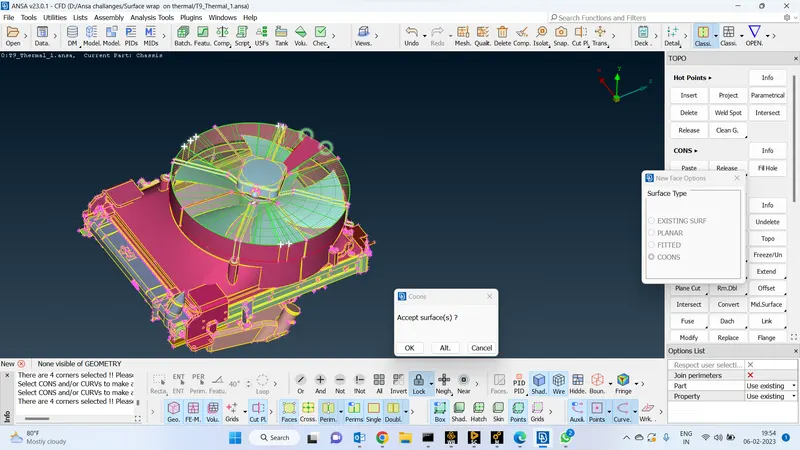

Use curves to coons option to create a reference circles :

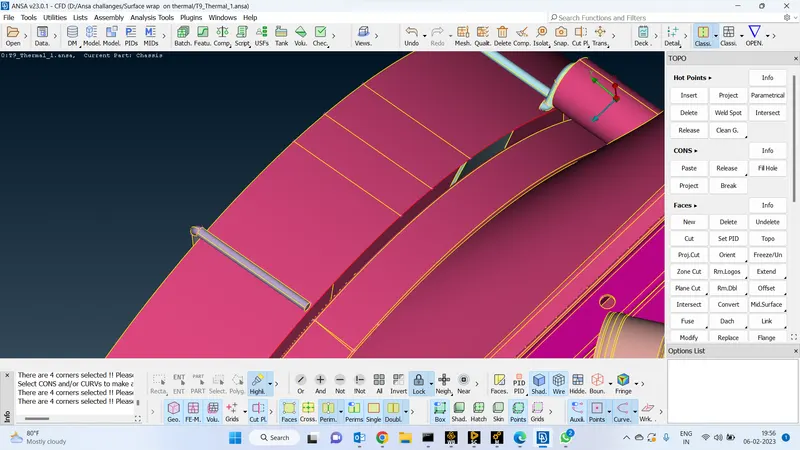

Delete unnecessary faces to create water tight model :

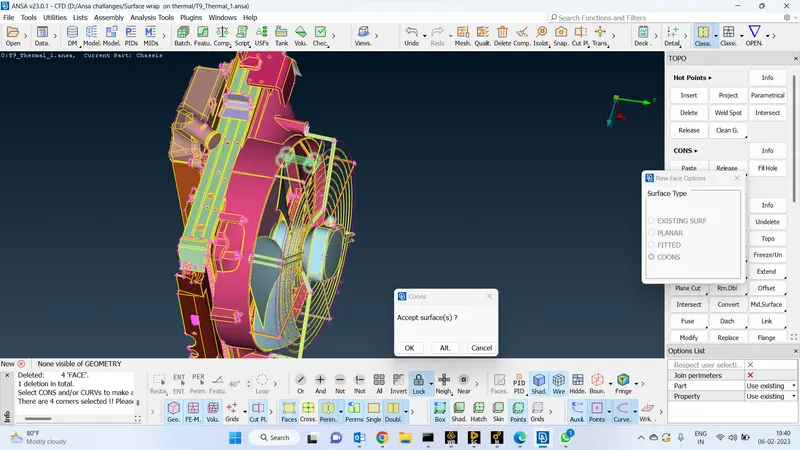

Create a face using curves we created :

Create a water tight model :

Close the face :

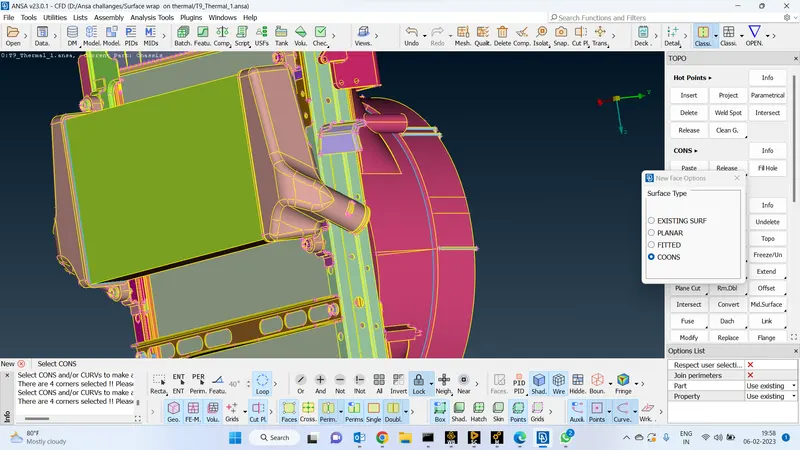

Created a face :

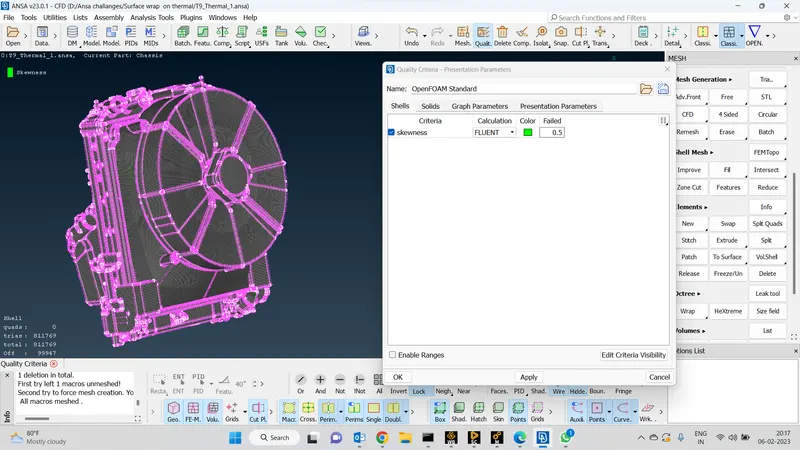

Set STL skewness :

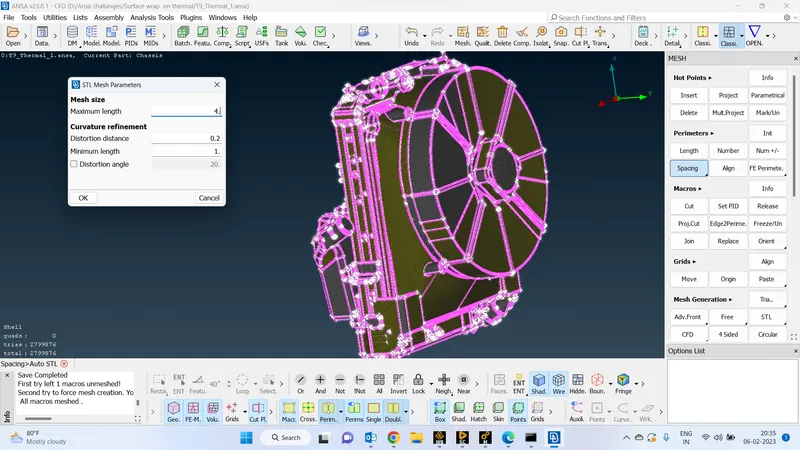

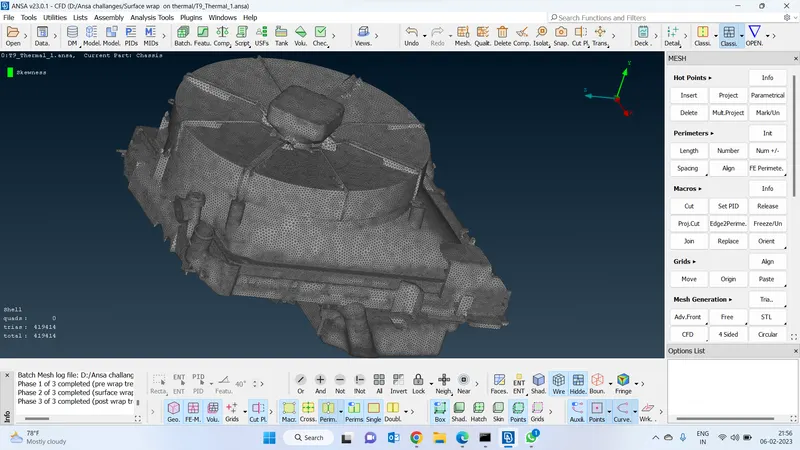

After stl mesh target length :

After stl mesh target length provide :

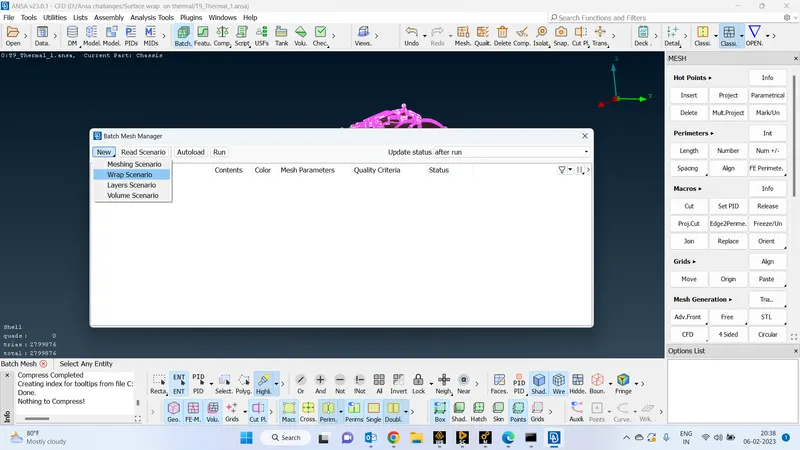

Wrap scenario :

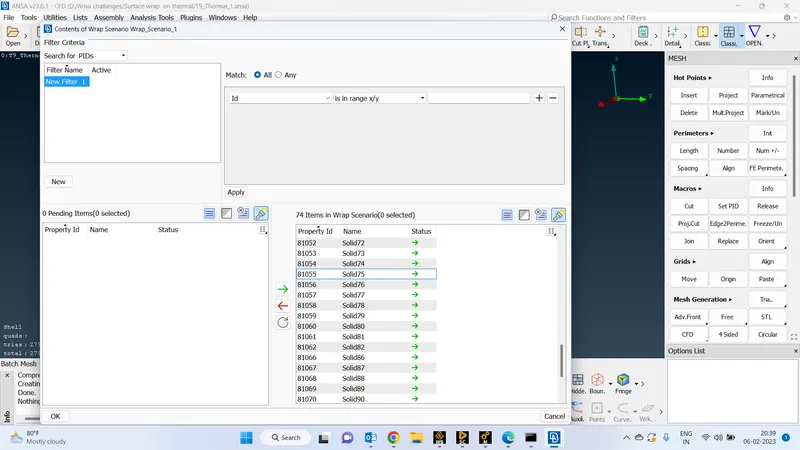

Add all the contents into it :

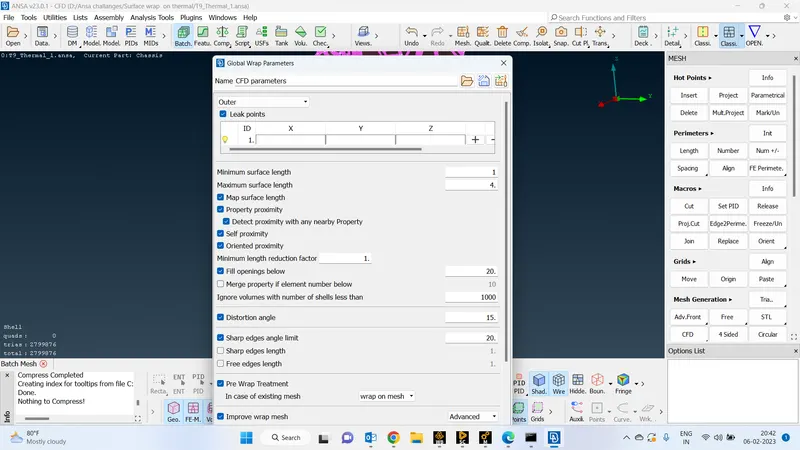

Cfd parameters :

Final wrapping geometry of the thermal cooling part :
