Analysis & Design of RCC shear walls in the model using ETABS

Aim:

To run the analysis and design the RCC shear walls shown in the etabs model.

Step 1:

Open the Etabs file.Run the analysis.

Step 2:

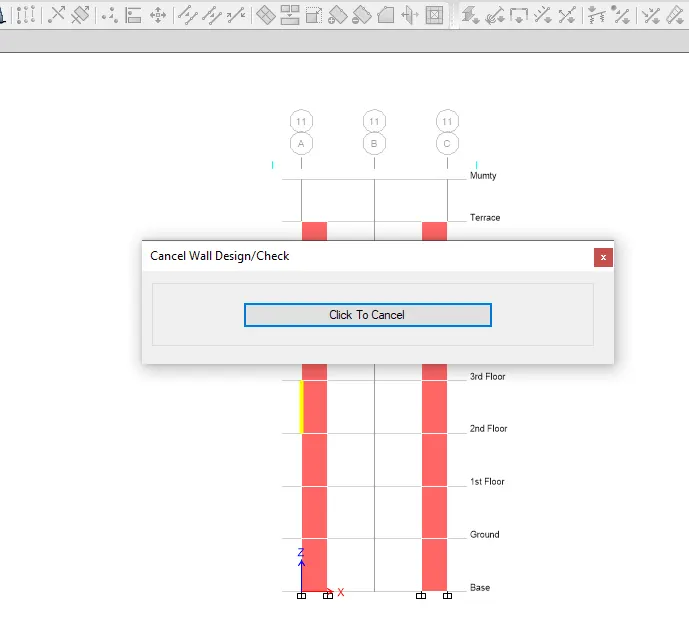

After the analysis click Shear Wall design.

Step 3:

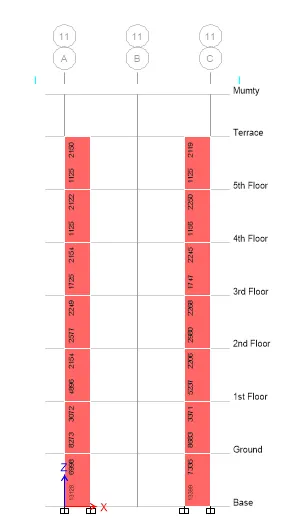

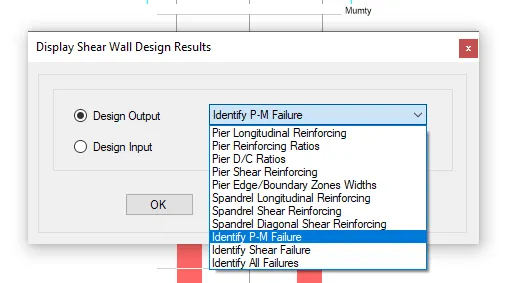

Select Display info and choose PM failure.

Step 4:

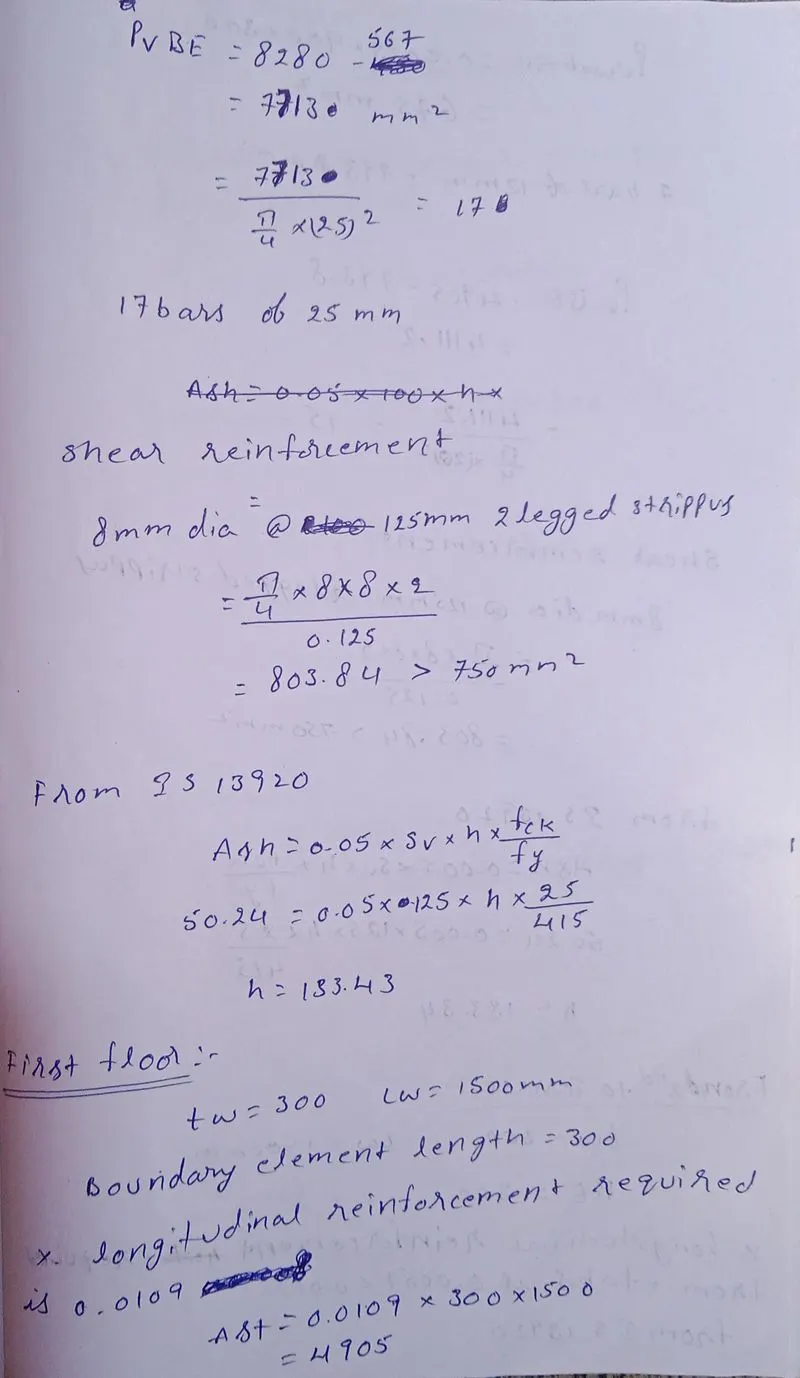

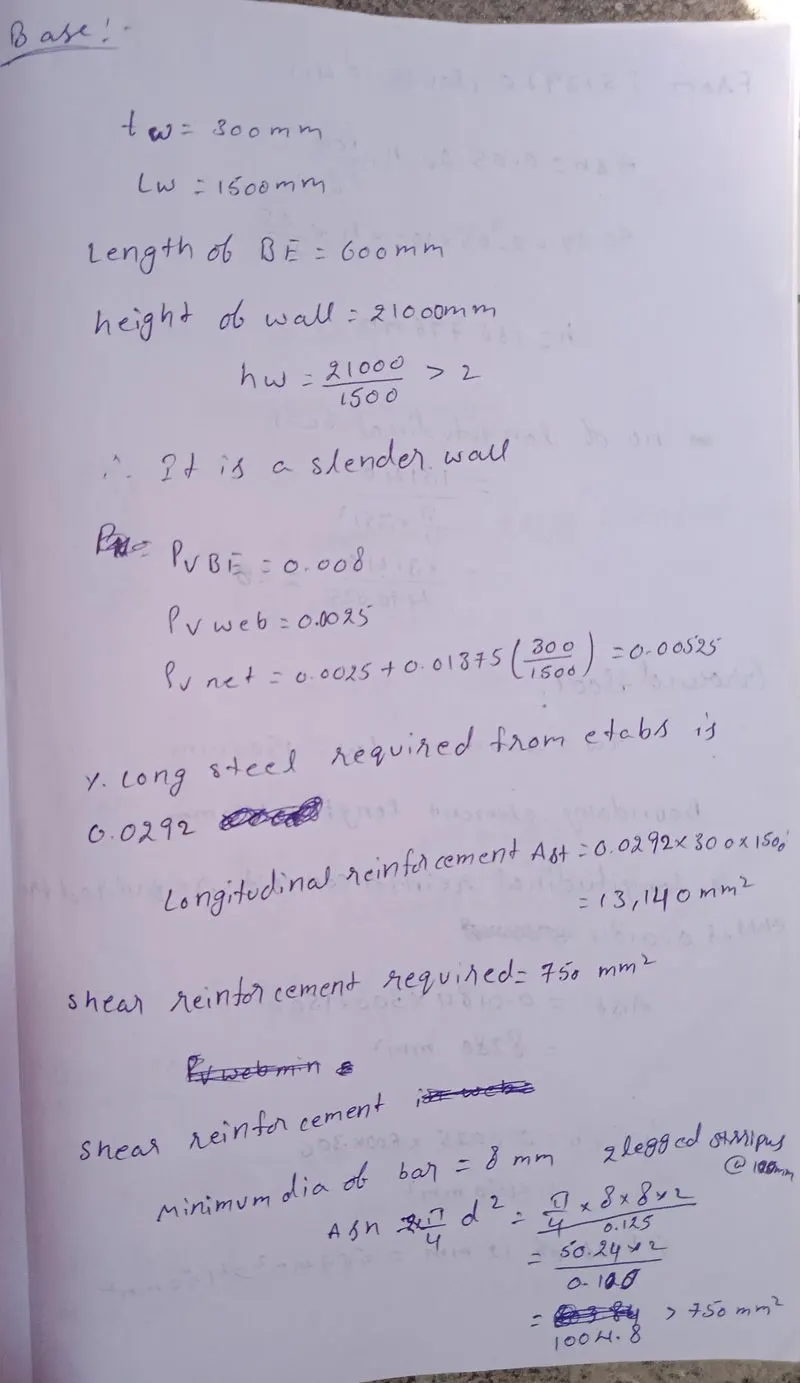

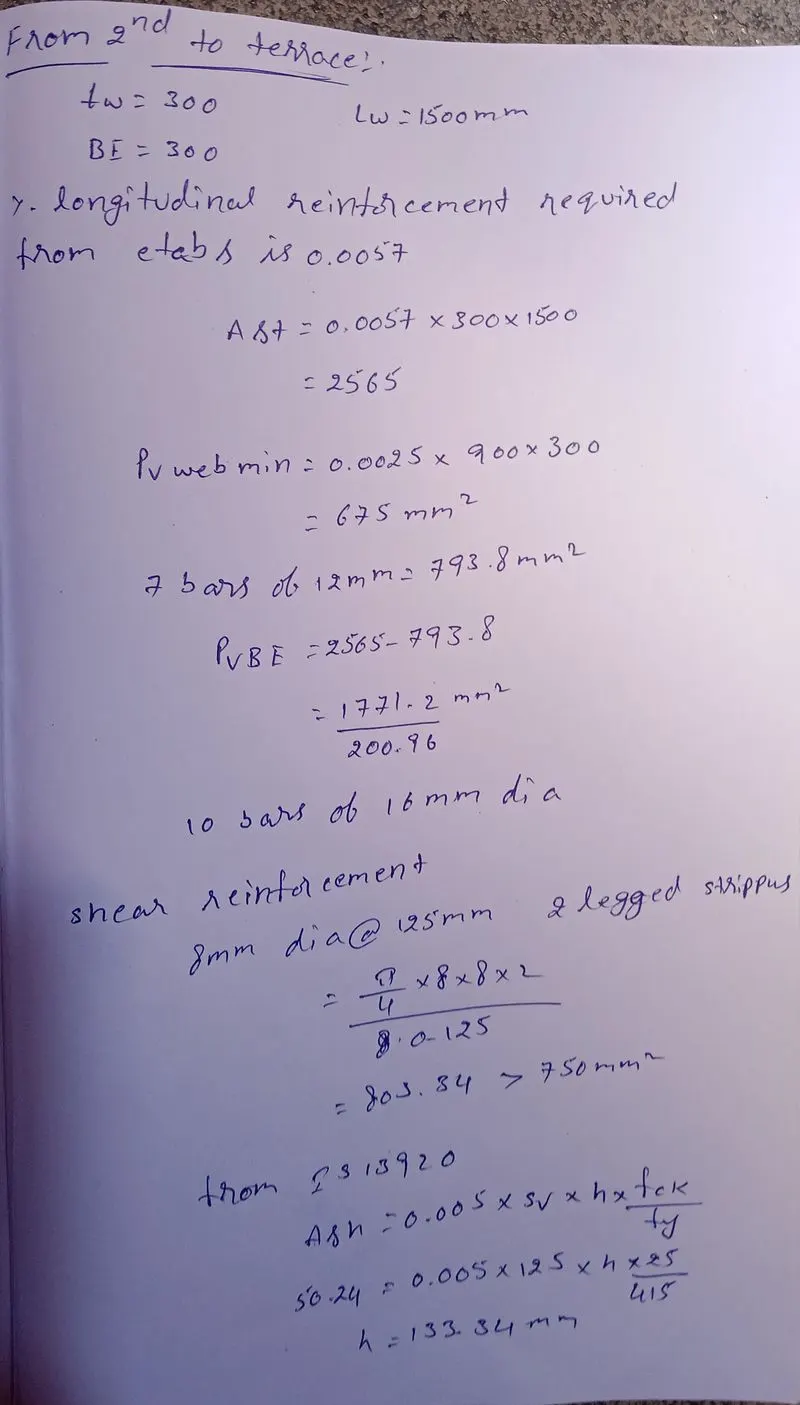

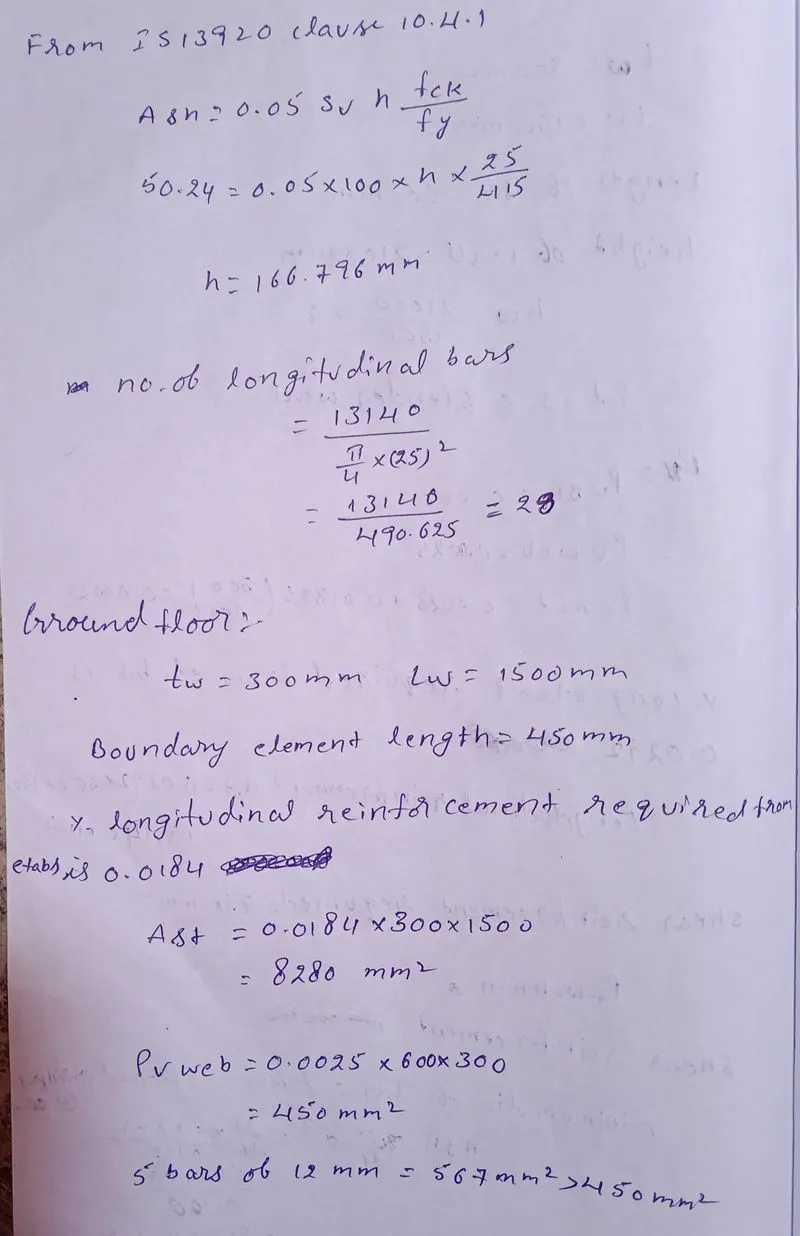

Longitudinal Reinforcement:

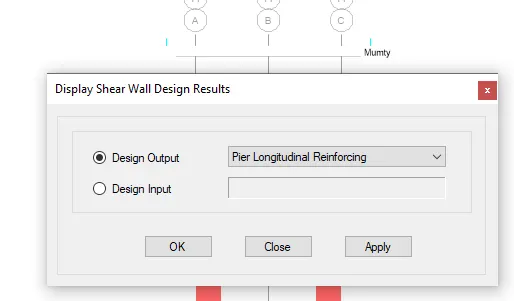

Go to concrete frame design.Click Display design info.

Choose Pier longitudinal reinforcing.

Step 5:

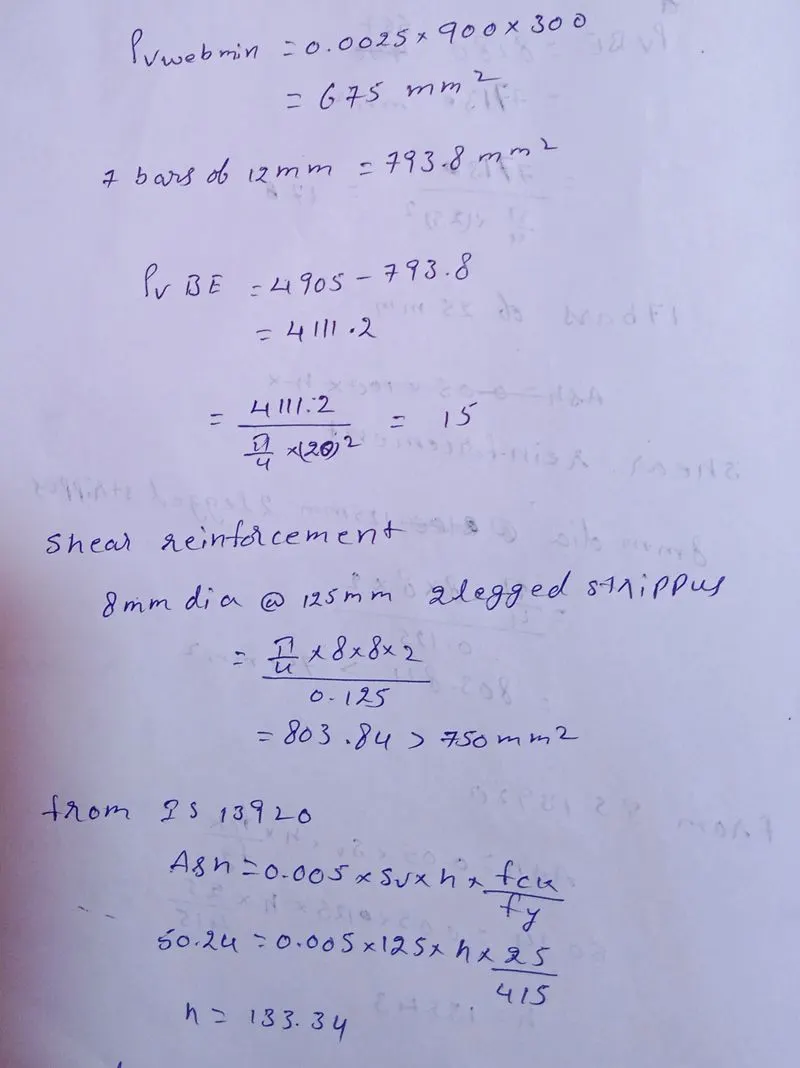

Shear Reinforcement:

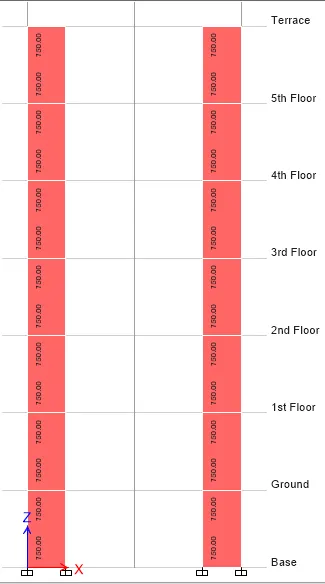

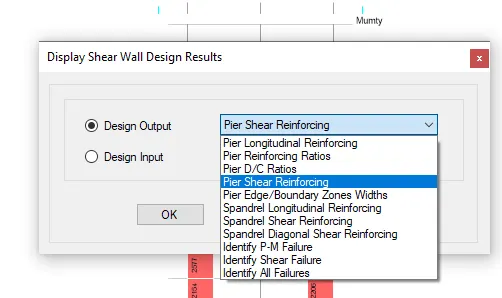

Go to concrete frame design.Click Display design info.Choose Shear reinforcing.

Step 6:

Boundary element width:

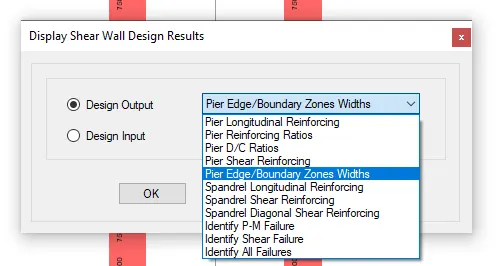

Go to concrete frame design.Click Display design info.

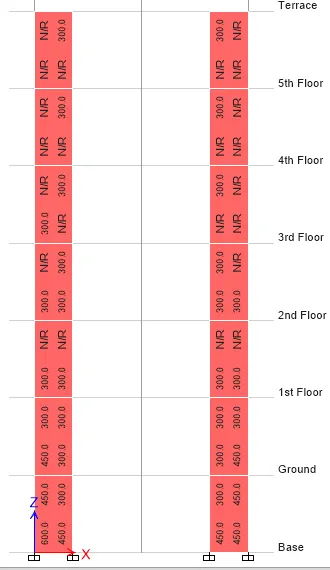

Choose Pier edge or boundary zone width.
