Analysis & Design of RCC shear walls in the model using ETABS

aim

to design the rcc shear wall on etab model

steps

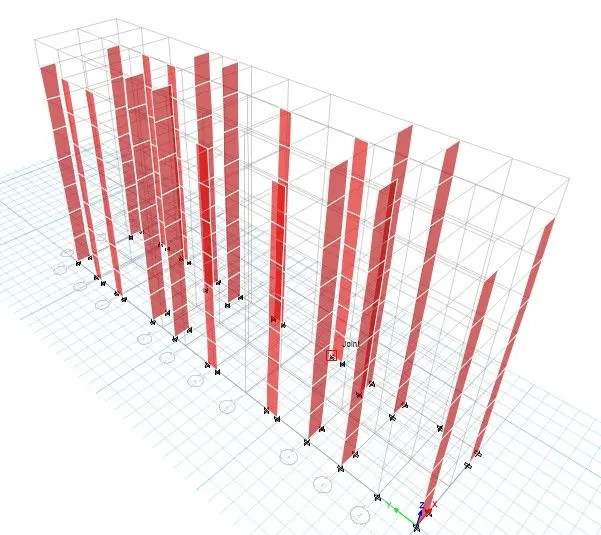

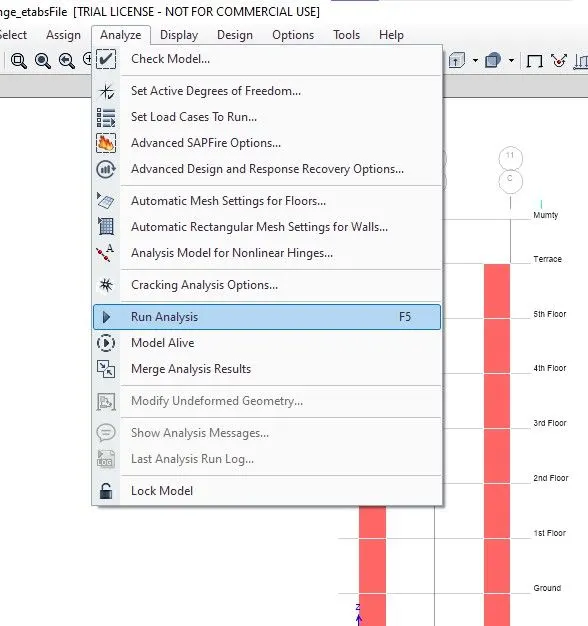

open the file on etab and run the analysis

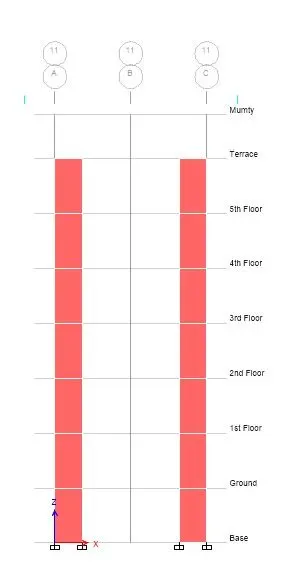

to select the 11a shear wall

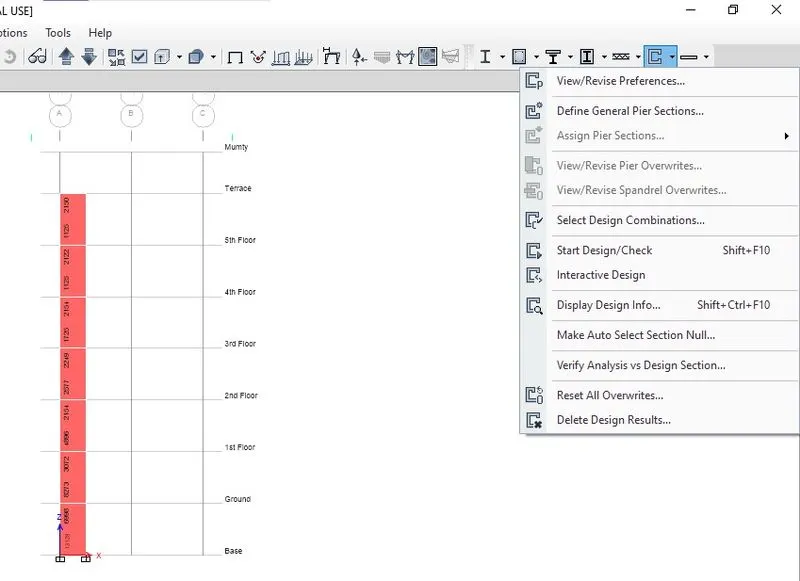

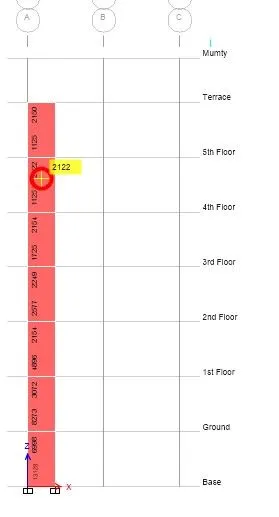

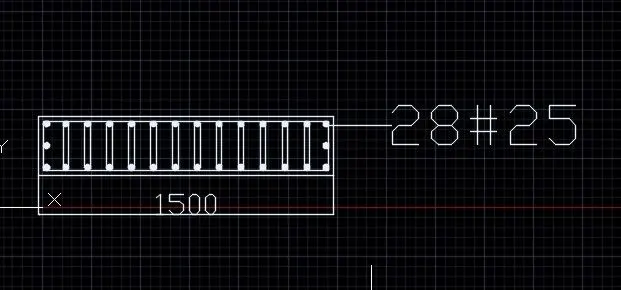

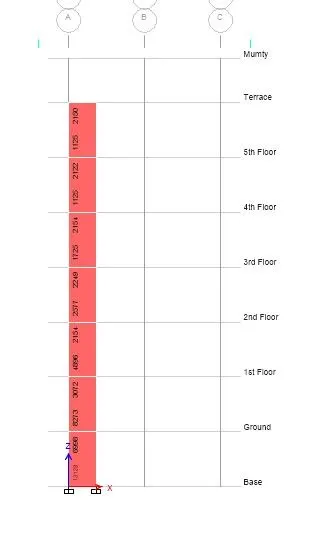

run the shear wall design and longitudinal reinforcemet detalis

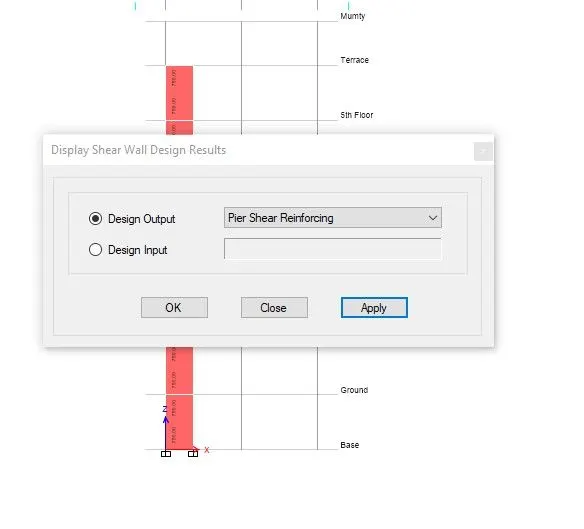

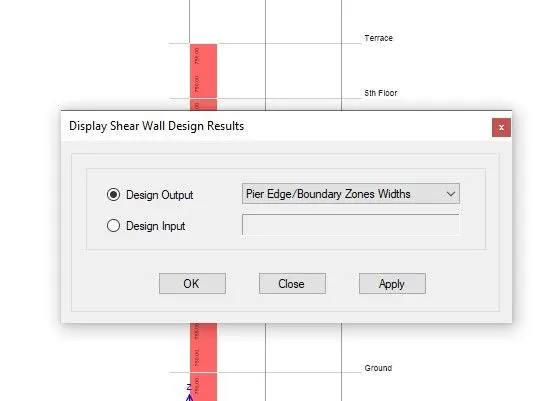

go to display design info and shear reinforcement

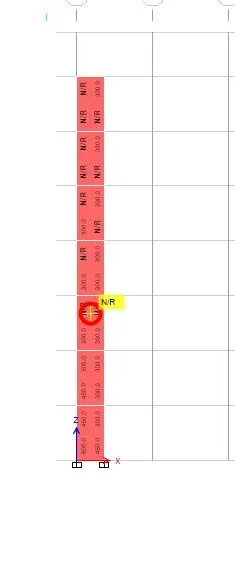

boundary element width

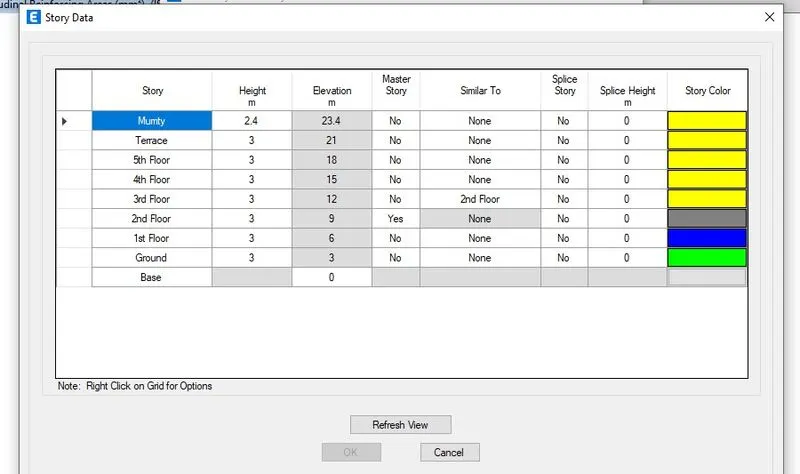

elevation

result

rcc shear wall designed
