Analysis & Design of RCC shear walls in the model using ETABS

• minimum reinforcement for shrinkage and temperature.
• ultimate limit state design rebat reqired.
• ductility rebar requirement.

among these three which is greater should be drawn in RC shear wall detailing

• classification of shear wall as per IS 13920-2016 clause 10.1.4

21000/1500=14>2 slender wall

• minimum net vertical reinforcement as per IS 13920-2016 table -1(iii)

=0.0025+0.01375(300/1500)x area of shear wall

=2363mm2

• minimum net vertical reinforcement with in boundary element as per IS 13920-2016 table -1(iii)

0.008x300x600 =1440mm2(600mm width boundary element)

0.008x300x450 =1080mm2(450mm width boundary element)

• minimum horizontal reinforcementin shear wall as per IS 13920-2016 table -1(iii)

750mm2

• maximum dia of bar use in shear wall as per is 13920-2016 10.1.8
• 1/10 of wall thickness 30 mm
• confining reiforcement spacing for boundary elements as per is 13920-2016 10.4.4

150 mm.

• the shear wall of size 300x1500 at grid A-11 details from given structural model.

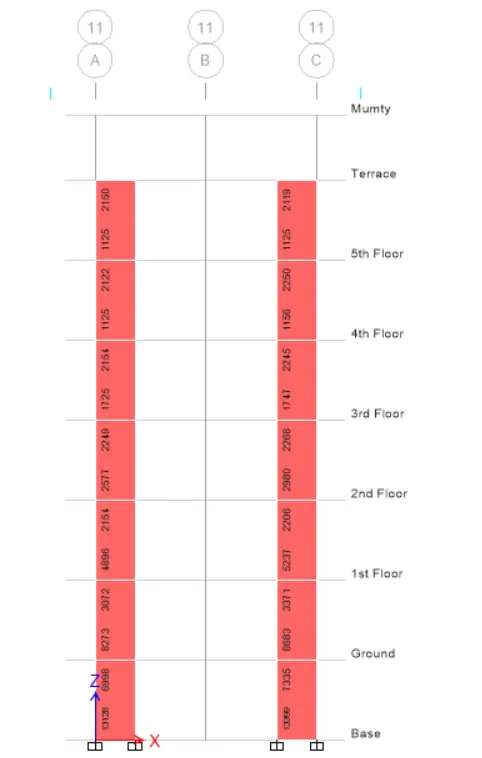

longitudinal reinforcement details from e tabs results.

number of longitudinal reinforcement 13128/490.6=26.75

27 -25mm dia of bars.

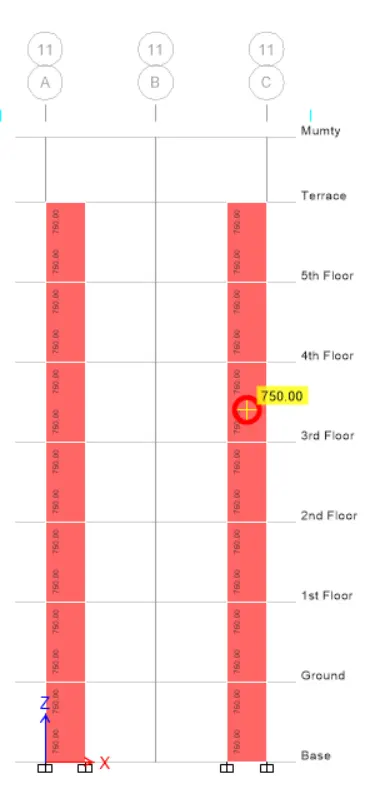

shear reinforcement from e tabs results

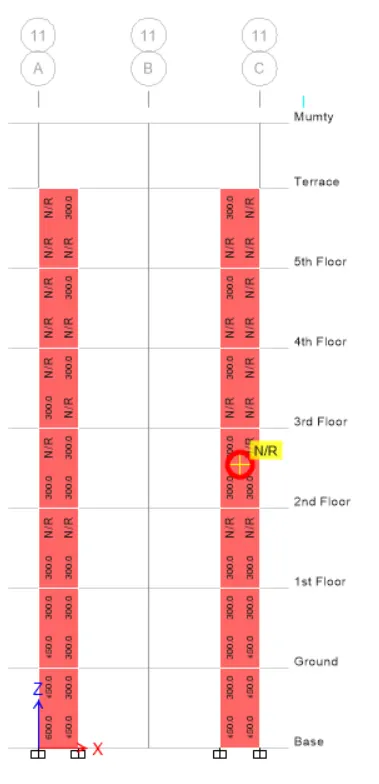

boundary element lengths from e tabs results

height of building shoud consider for the elevation

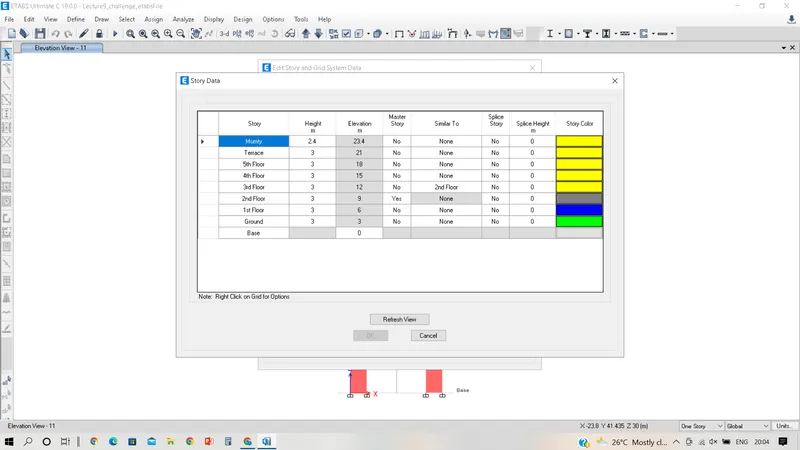

height of the building

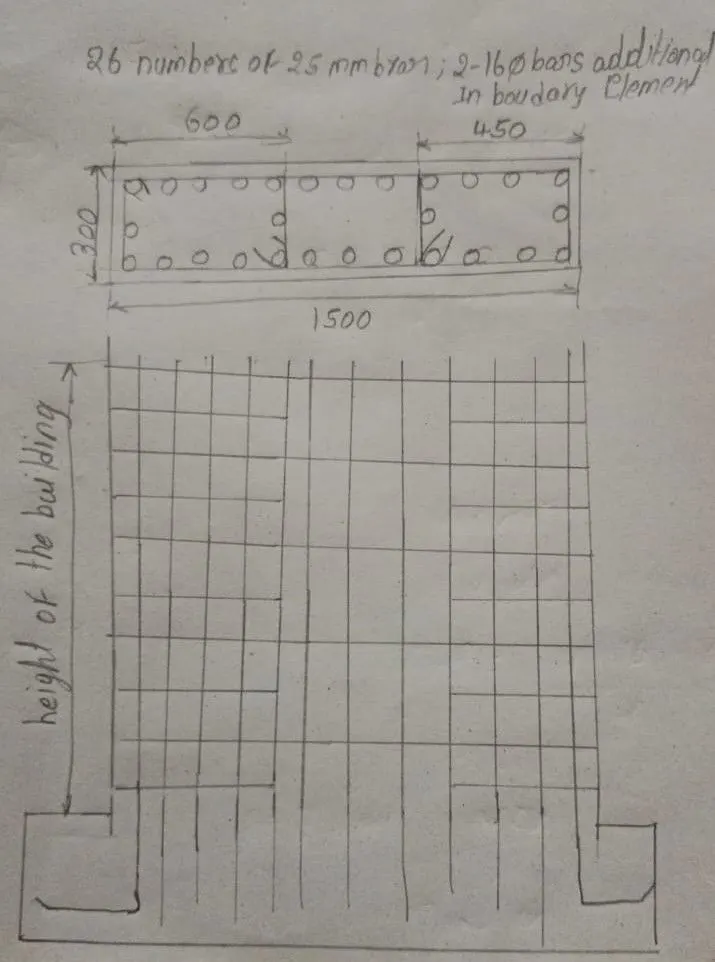

reinforcement detail of shear wall,

26 numbers of 25mm dia of bars and 2-16mm dia bars additional in boundary elements.

overall one link 8mm dia with 250mm spacing, and 2 links 8mm dia of bars with 150mm spacing for boundary lengths.
