Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

1.  TITLE: METAL_BRACKET_WASIM

2. OBJECTIVE:

To design a metal bracket as per the data.

3. INTRODUCTION:

In this challenge I've designed a metal bracket of sheet thickness 3.00 mm. The holes and advanced flanges are given as per the challenge given. Also the fillets are given at the corners.

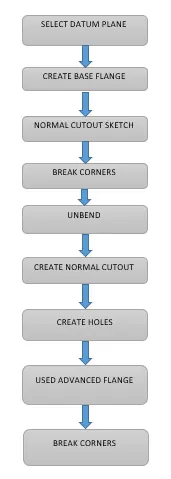

4. DESIGN METHOD:

5. DESCRIPTION:

the features used are as follows:

1. Contour flange

2. Normal cutout

3. Break corner

4. Unbend

5. Normal cut

6. Simple holes

7. Advanced flange

8. Rebend and

9. Break corner

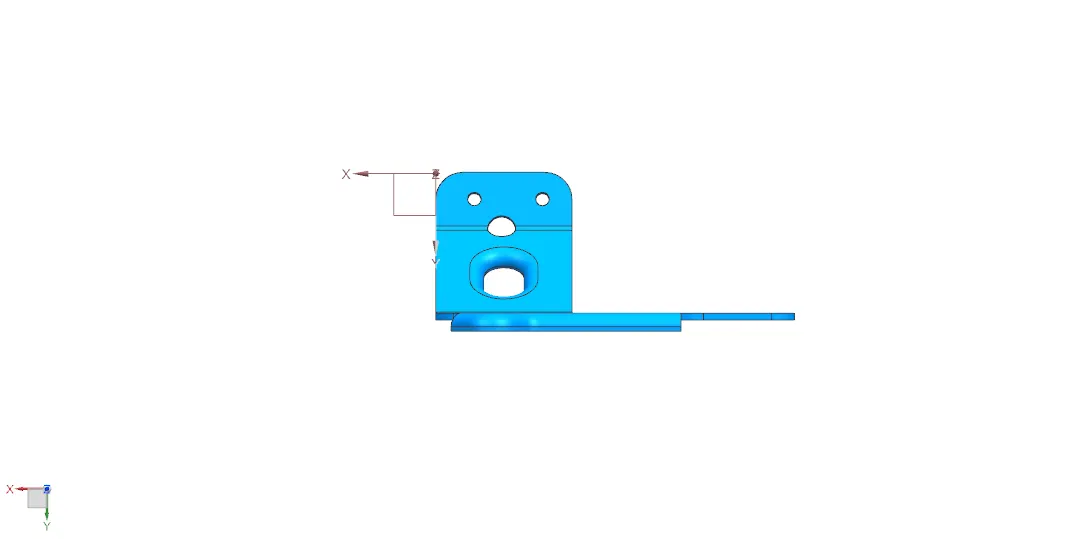

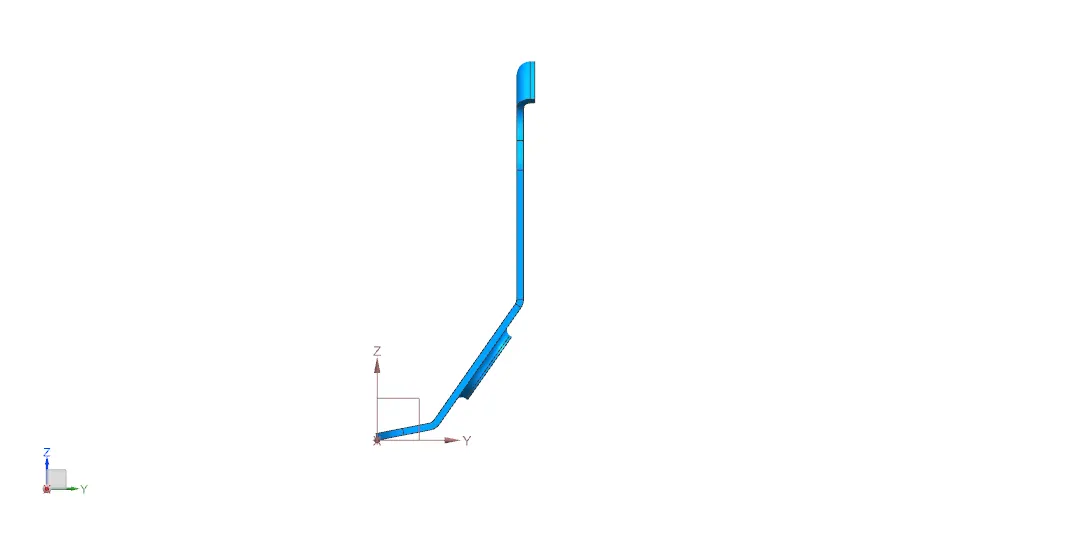

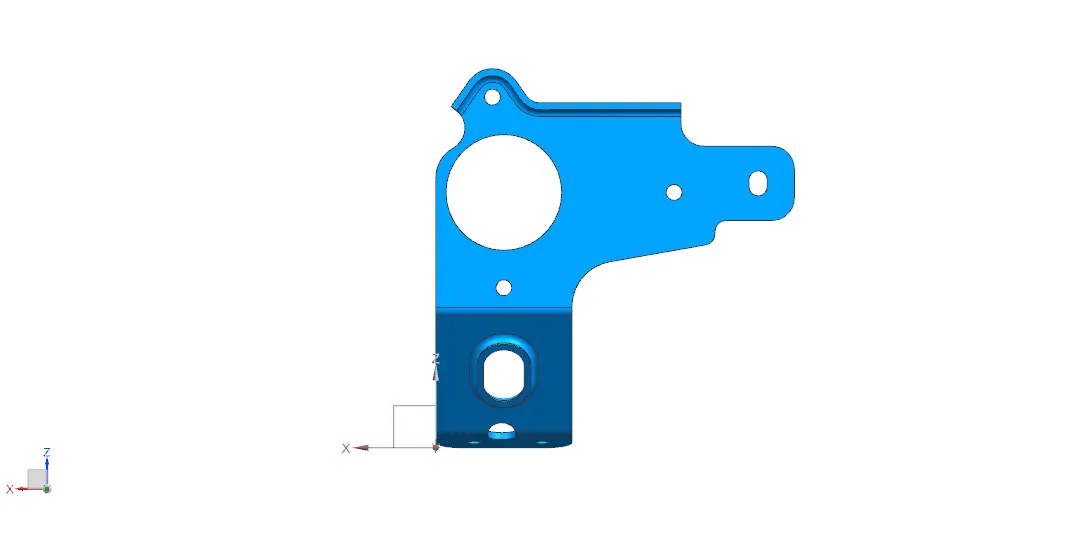

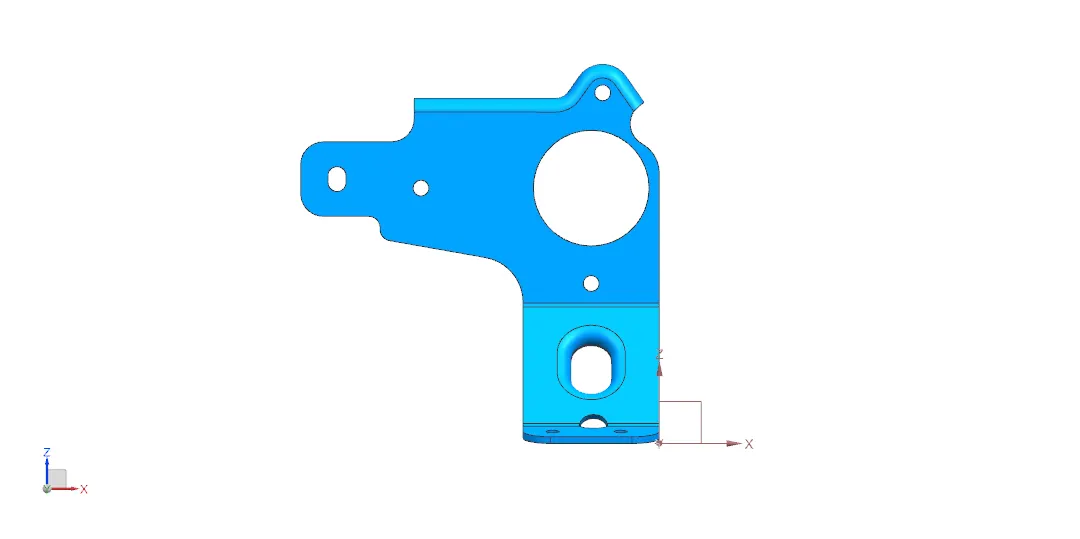

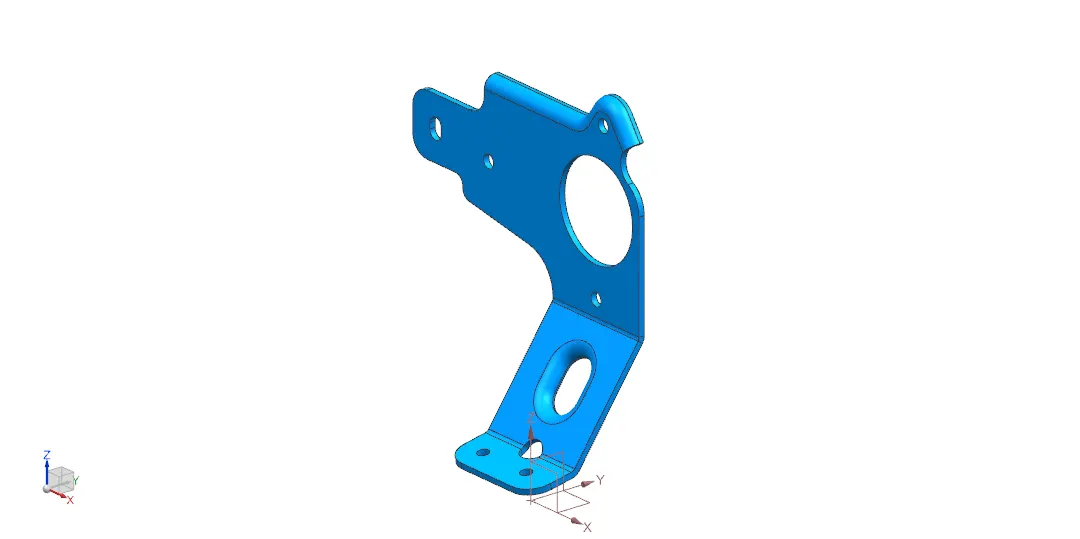

6. IMAGES:

7. CONCLUSION:

Hence designed a metal bracket.
