Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II
- DESIGN OF SHEETMETAL BRACKET
- Objective- The main objective of the Project is to design the ‘Sheet metal Bracket’ using SIEMENS NX CAD.
- Introduction- The designing of the Box assembly is done with the help of 3D CAD software NX CAD by Siemens. This software uses familiar technology and workflows & provides a complete set of tools to efficiently create the desired models.
In NX CAD, we have used Sheetmetal application. This application provides an environment for the design of sheet metal parts which are used in machinery, automotive, aerospace etc. NX sheet metal Design tools incorporate material & bending information, enabling the model to represent both the formed component & flattened blank shapes. Our model is created in ‘.prt’ extension.
Fundamental terminology related to Sheetmetal designing-
Bending- It is a process in which a force is applied to sheel metal at a particular direction which causes it to bend at an angle and form the desired shape.
Bend radius- The distance from the bend axis to the inside surface of the material between the bend lines.
Bend line- The straight line on the surface of the sheet, on either side of the bend that defines the end level of the flange & start of the bend.
Bend angle- The angle of the bend measured between the bent flange & its original position.
Bend relief- When sheet metal makes a transition from a bend to a flat surface, or to another bend, it tends to rip and tear. To eliminate this, a bend relief is added so the edge of the sheet metal is perpendicular to the bend.
Bend height- The sheet metal bending height should be at least 2 times the thickness of the sheet metal plus the bending radius, that is, H ≥ 2t + R.
K-Factor- It is the ratio of the neutral axis to the material thickness. When metal is bent the top section is going to undergo compression and the bottom section will be stretched. The line where the transition from compression to stretching occurs is called the neutral axis.

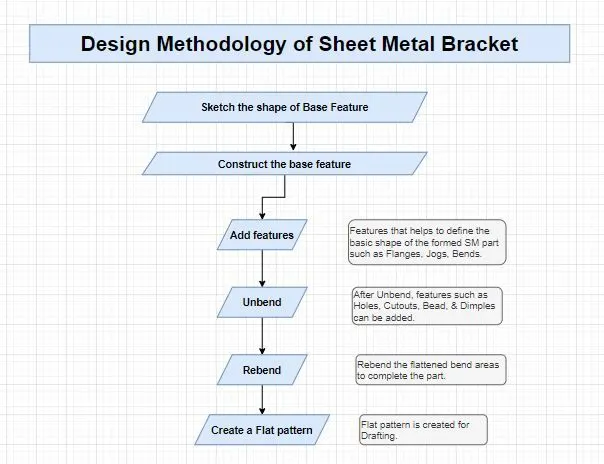

- Design methodology-
- Description of Tools/ Features used in designing Sheet metal Bracket-
Datum Plane- Creates a datum plane used to create other features.
Contour Flange- Creates a base feature by extruding a sketch along a vector, or adds material by sweeping a sketch along an edge or chain of edges.
Normal cutout- Cuts material by projecting a sketch onto a model & them cutting perpendicular to the face intersected by projections.
Break Corners- Rounds a sharp corner of a tab or flange.
Unbend- Flattens a bend and add material adjacent to the bend.
Rebend- Restores an unbend feature to its previous bend state, along with any features added after unbend feature.
Advanced Flange- Adds a flange along an edge using Bend angle or a reference face. The edge & reference face can be curved.
Hole: Adds a hole to one or more solid bodies in a part or assembly.
Gusset- Creates a stiffening gusset on the part.
- Various views of Sheet metal Bracket-

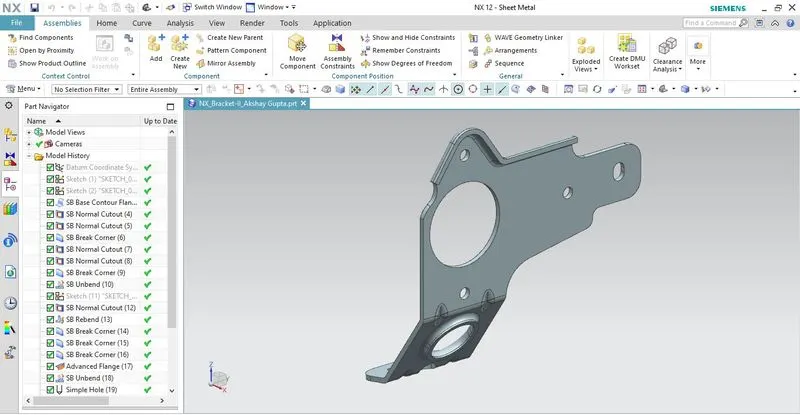

Isometric View

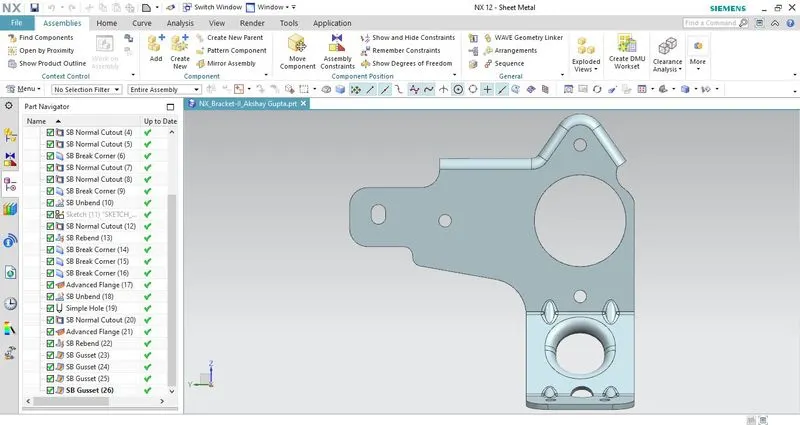

Top View

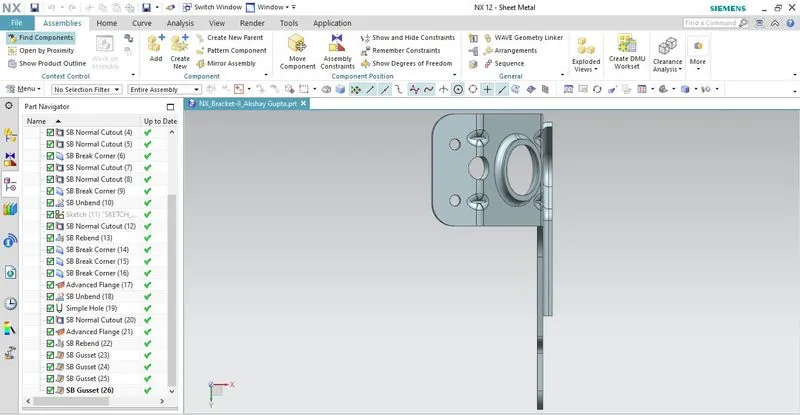

Right View

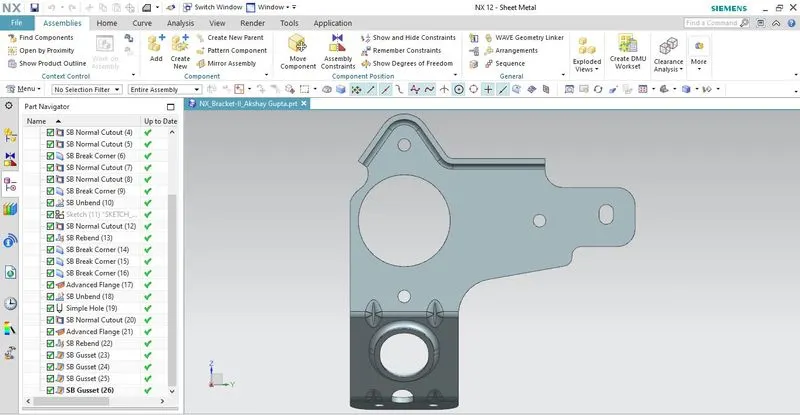

Front View

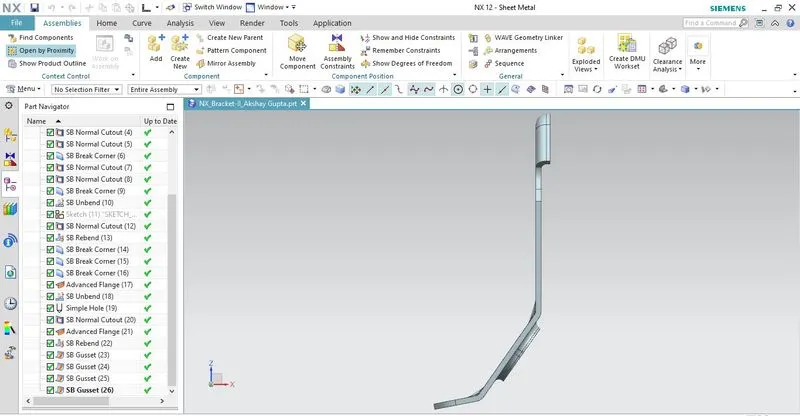

Left view

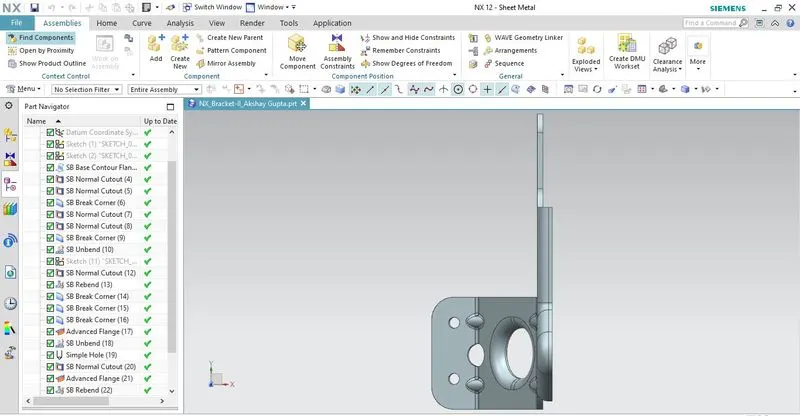

Bottom view
- Conclusion:
- Hence, Sheet metal Bracket-II is designed successfully using NX CAD.
- We have also learned fundamental features of NX Sheet metal environment like creating Sketch, Advanced Flanges, Normal Cutout, Bend, Rebend, etc.
