Objective:
The main objective of this project is to design a sheet metal BRACKET II in NX cad sheet metal application workbench. Also, to perform the drafting for the bracket part.
Software used: NX 12.0

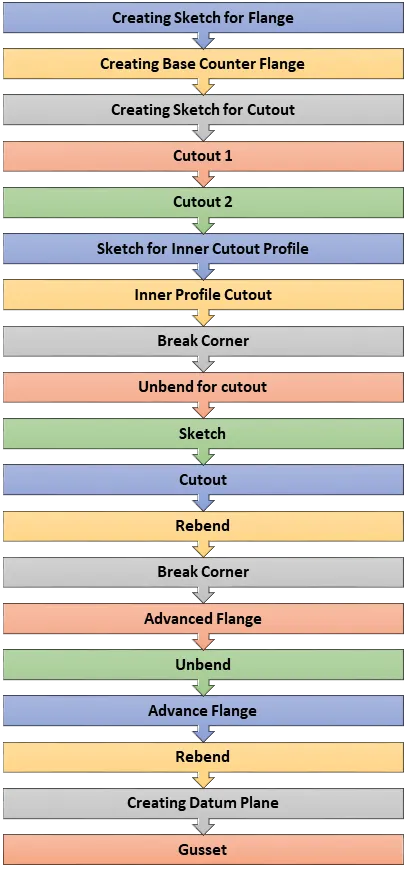

Design Methodology

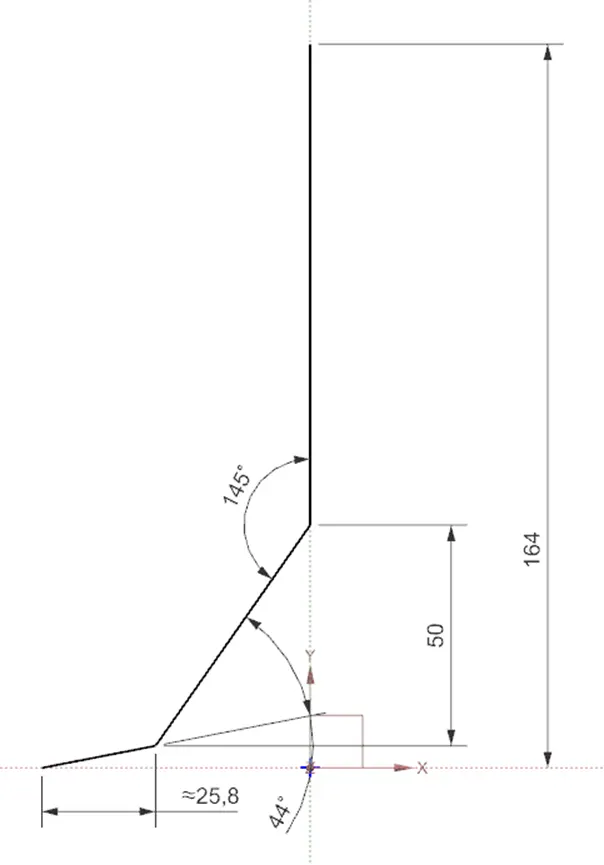

Creating Sketch for Contour Flange

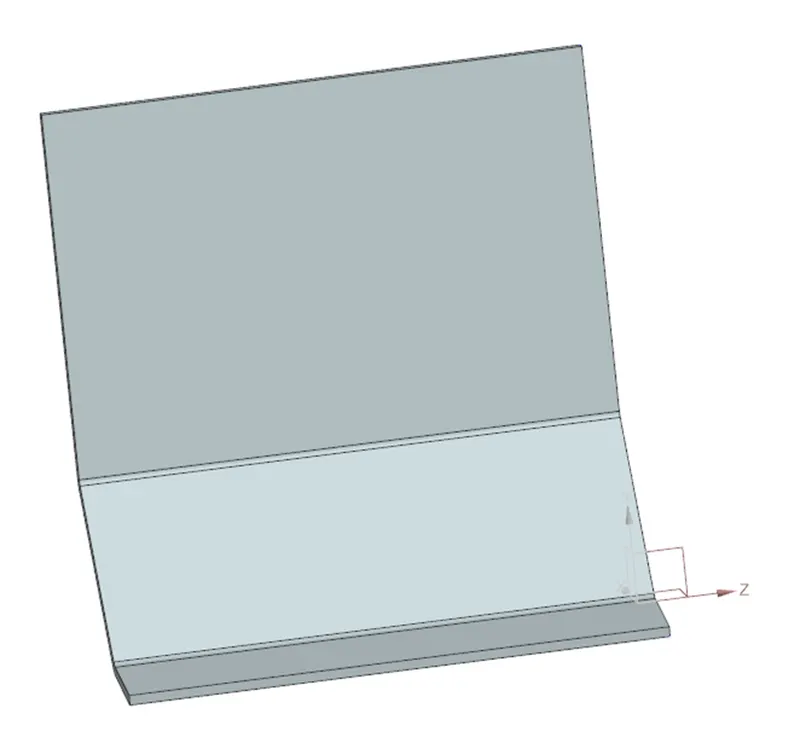

With the help of Contour Flange, we will extend sketch entities into the sheet metal

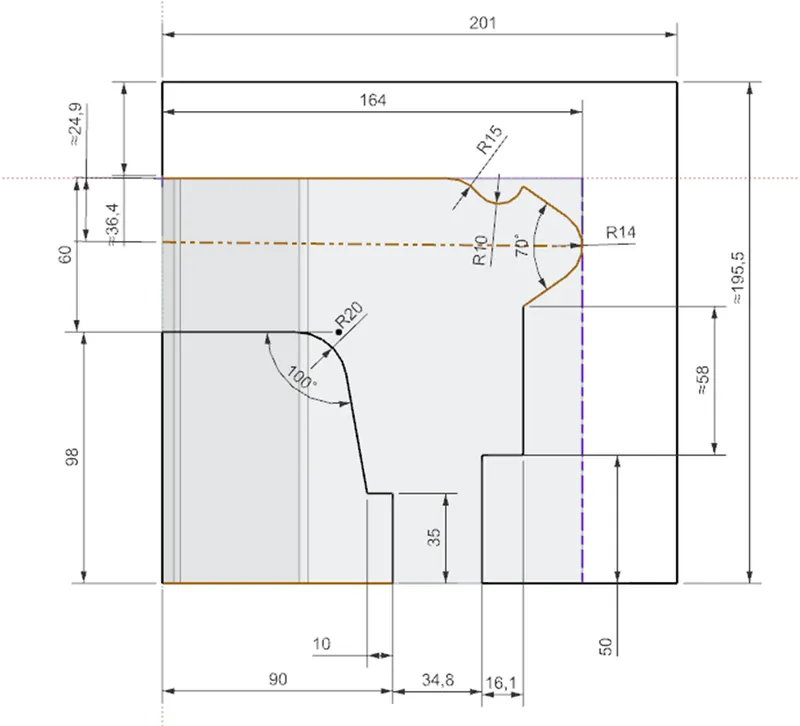

In order to get the desired shape as per the challenge we will trim the material from the sheet metal by using the cutout from the sketch.
I have used Cutout twice due to two closed features.

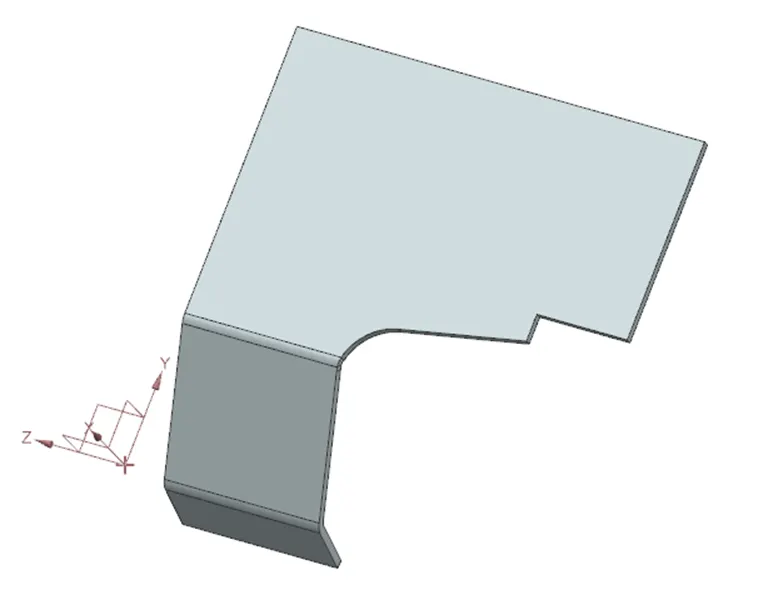

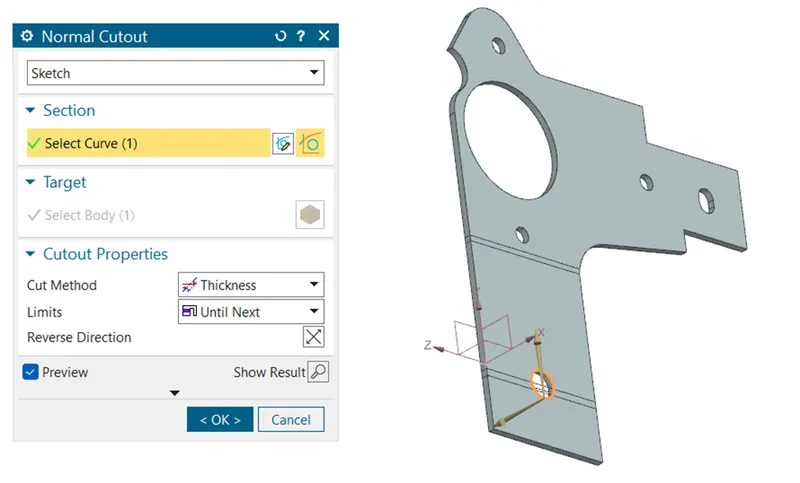

Cutout 1

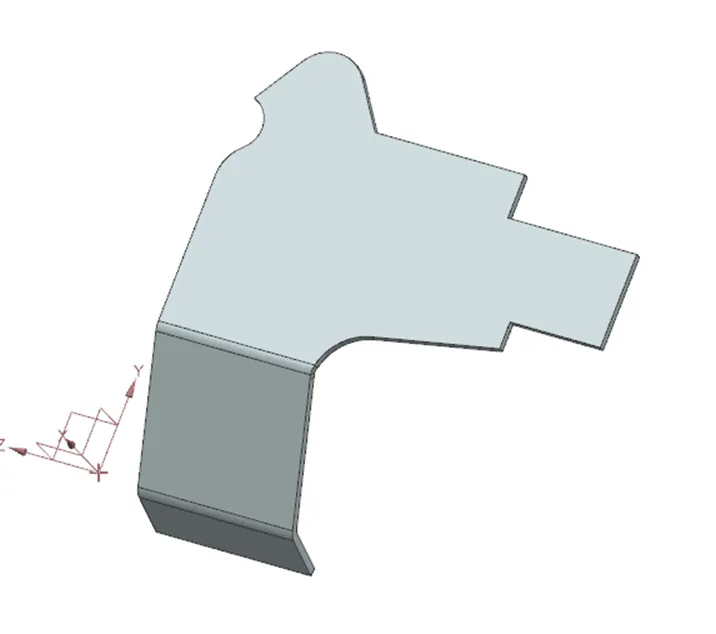

Cutout 2
To create the cutout for Inner profile, we will make a sketch and later will remove them using Normal Cutout

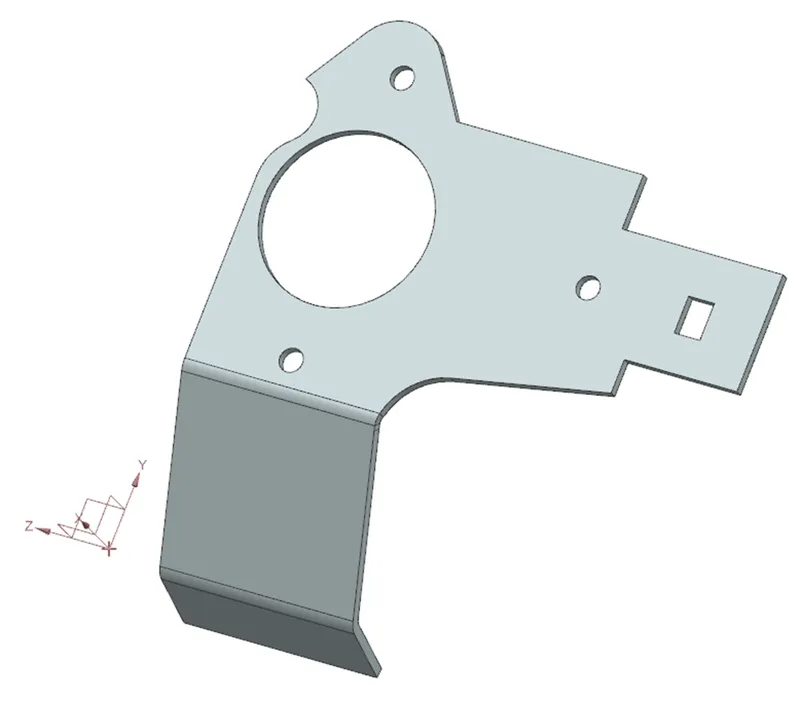

Model after Cutout

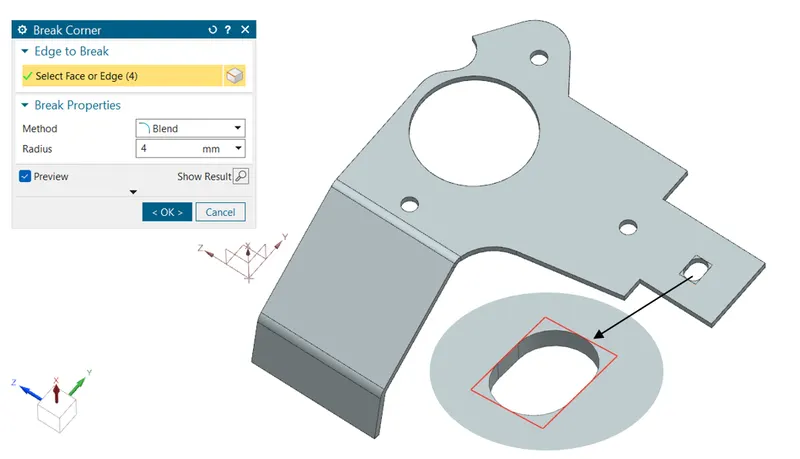

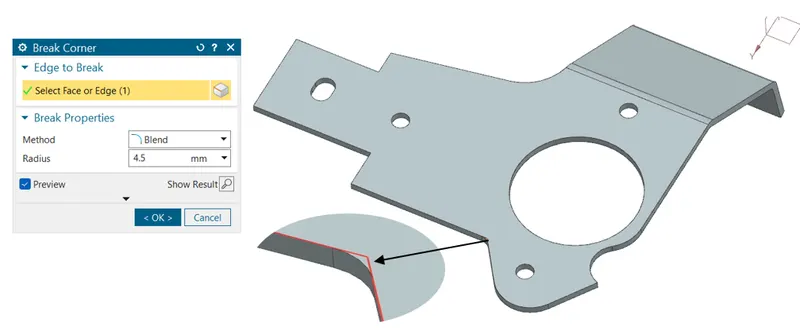

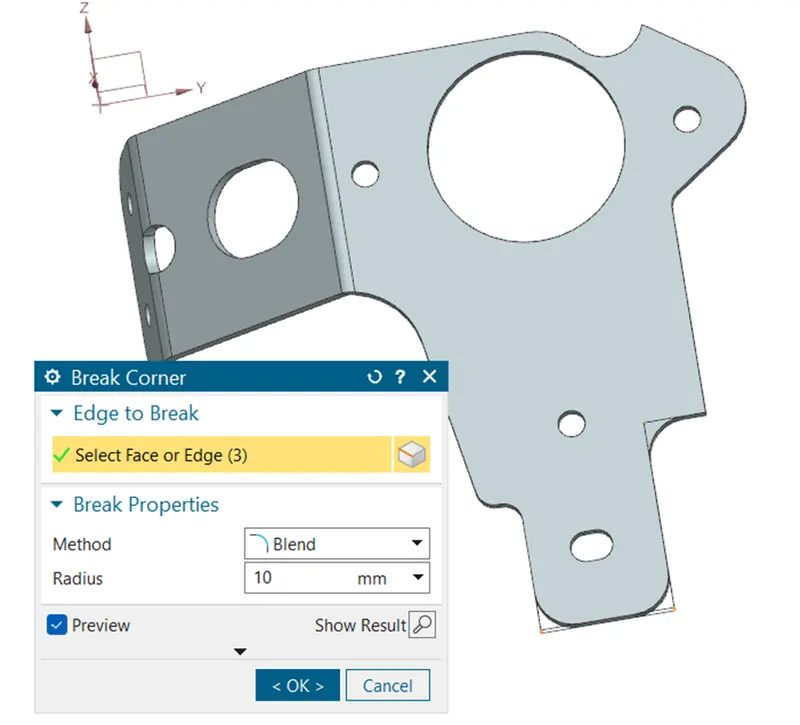

Will apply Break Corner remove the sharp corner to increase tool life

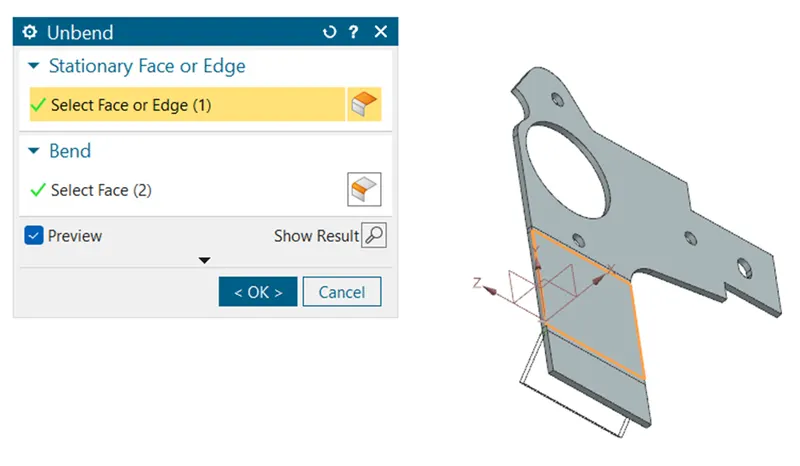

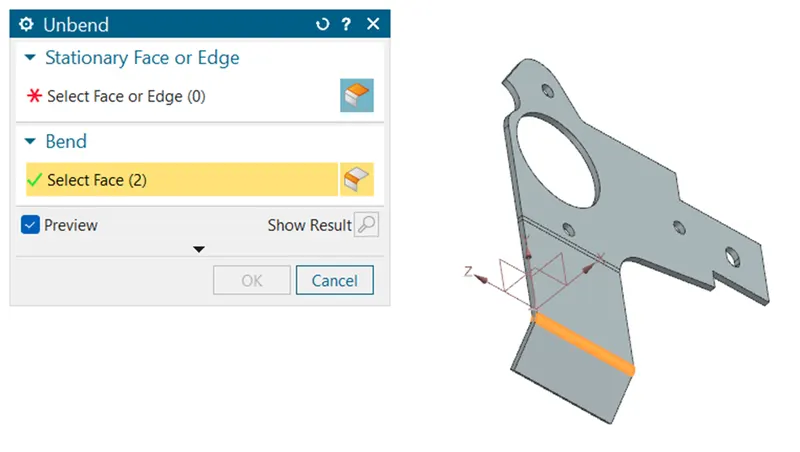

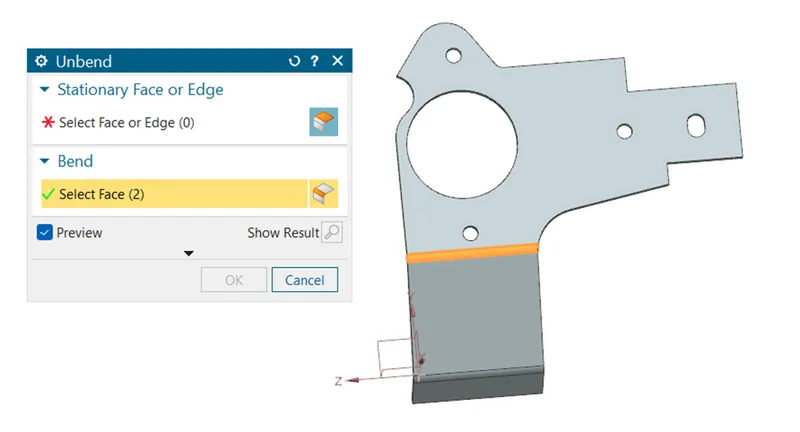

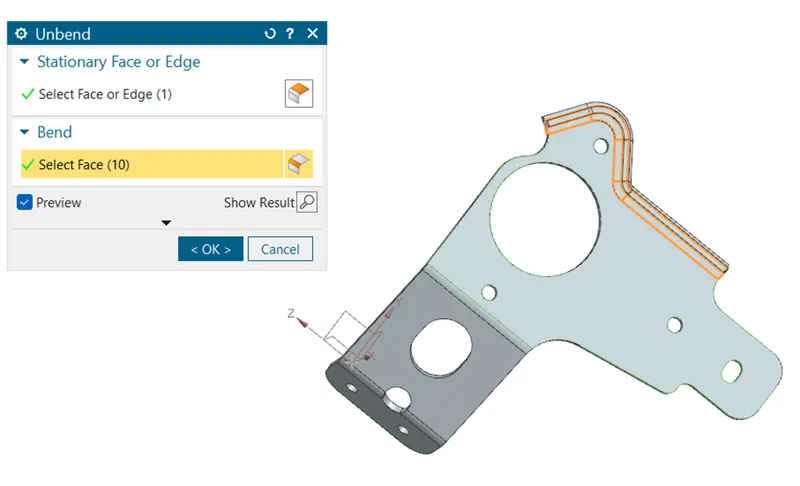

In order to apply further Cutout, we will apply Unbend to remove the bends and straighten the model.

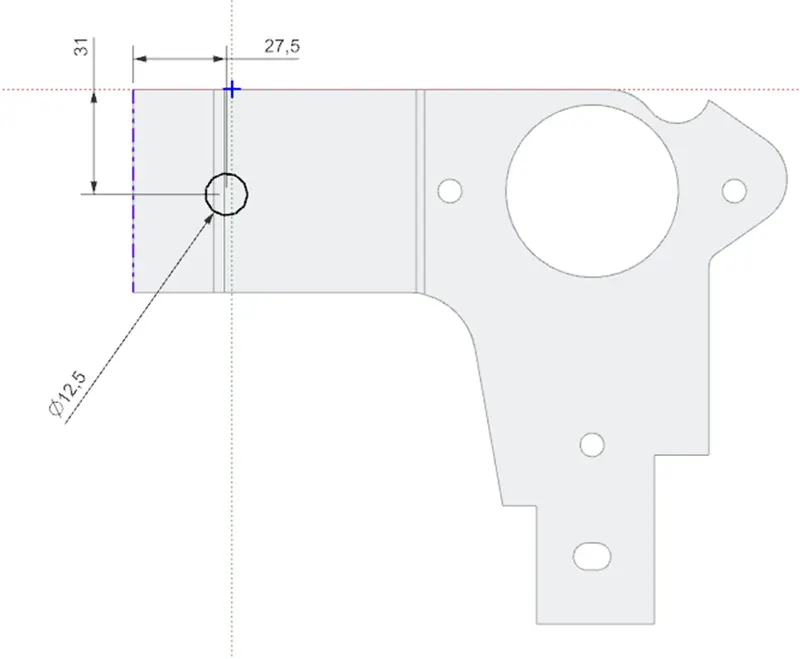

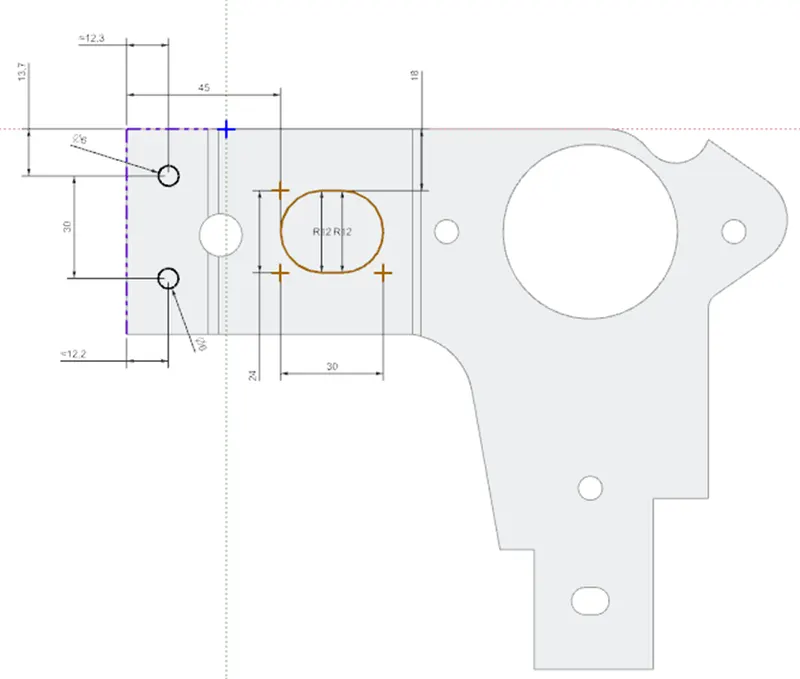

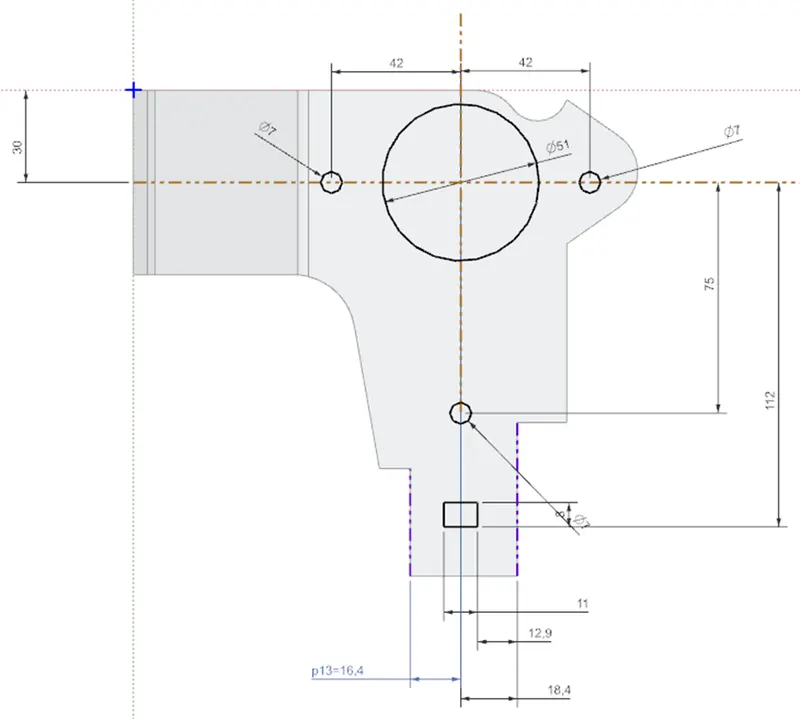

Cutout Sketch

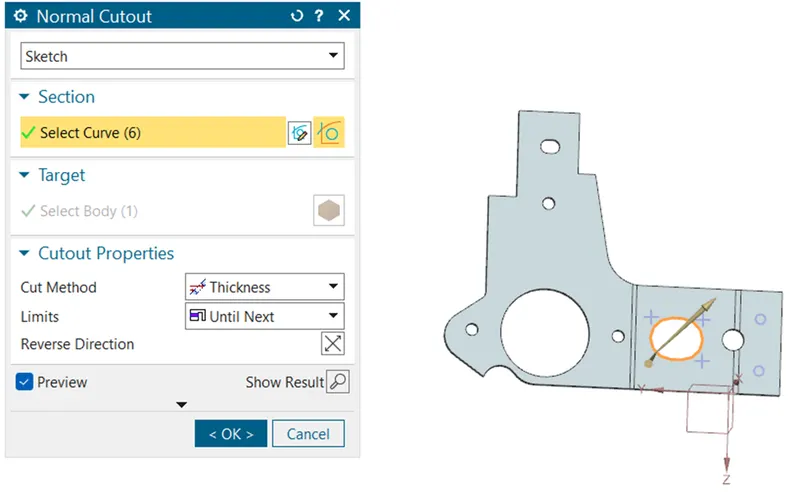

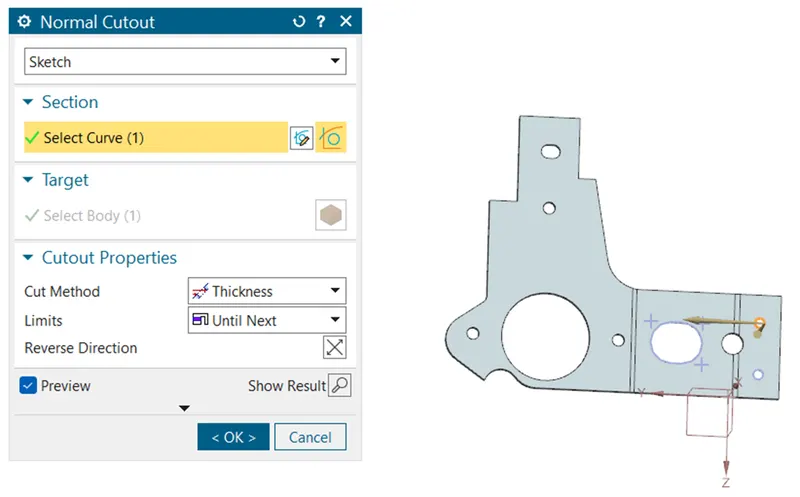

To remove further material from the model we will apply multiple normal cutouts.

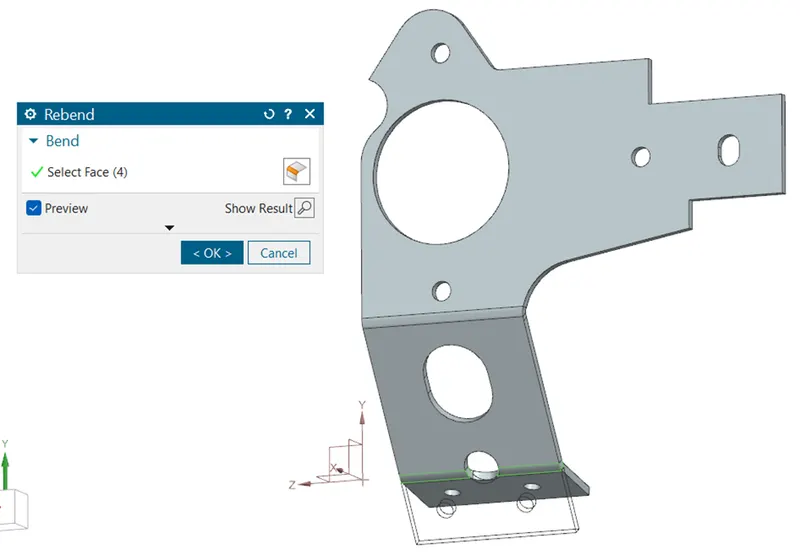

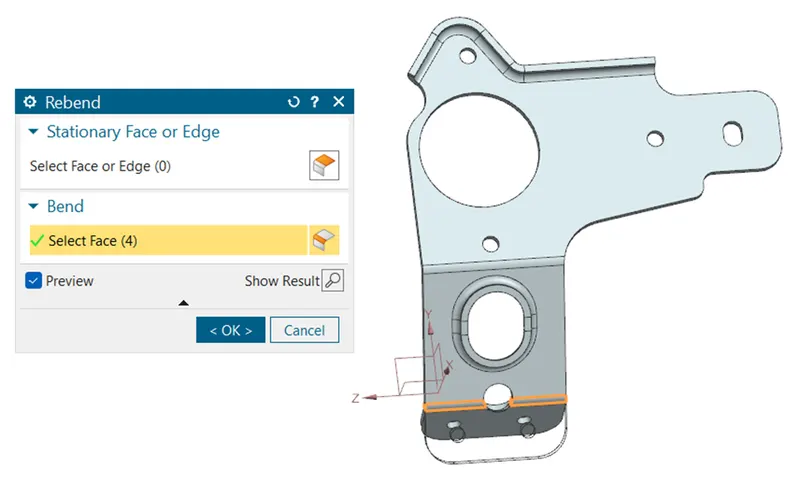

To roll back to the previous bended model we will apply Rebend command

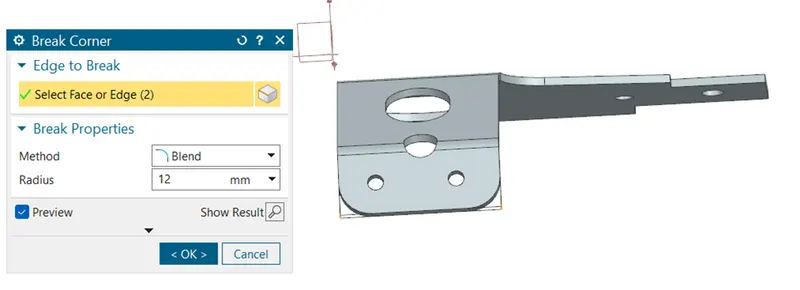

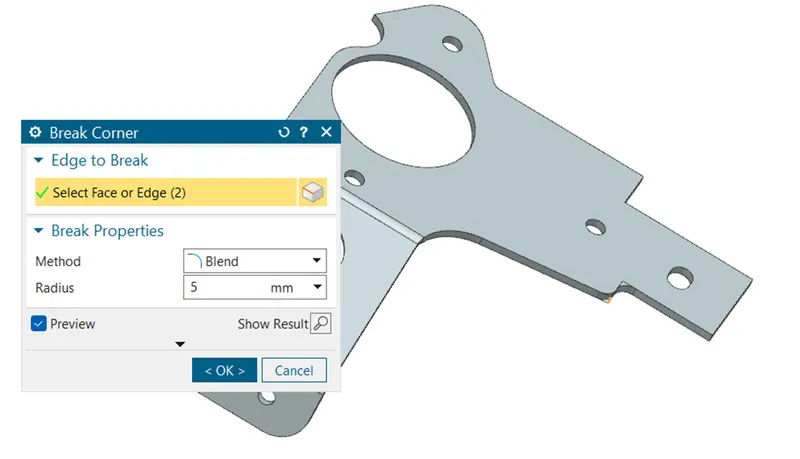

To remove sharp edges from the model we will apply Break Corner Command

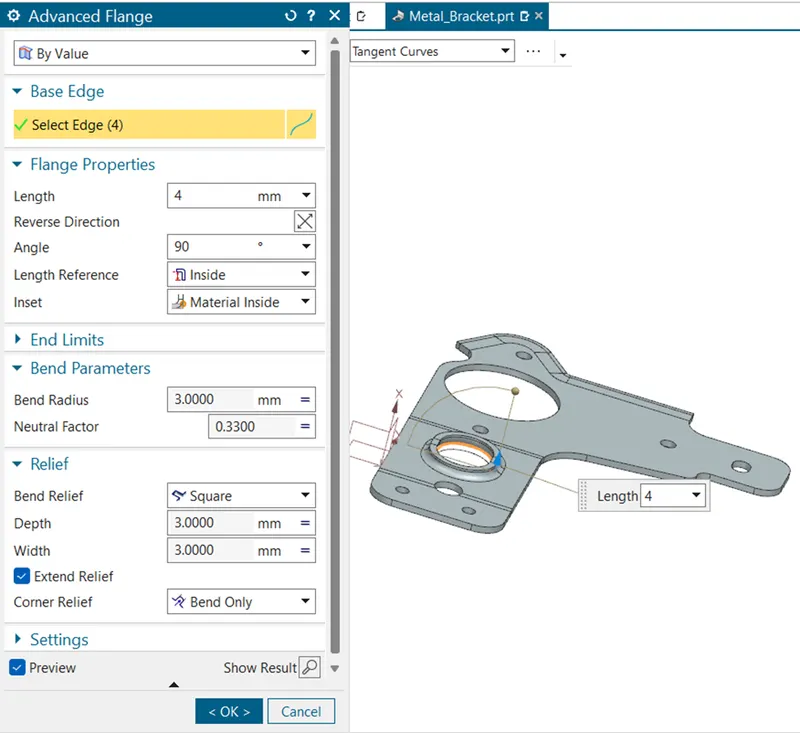

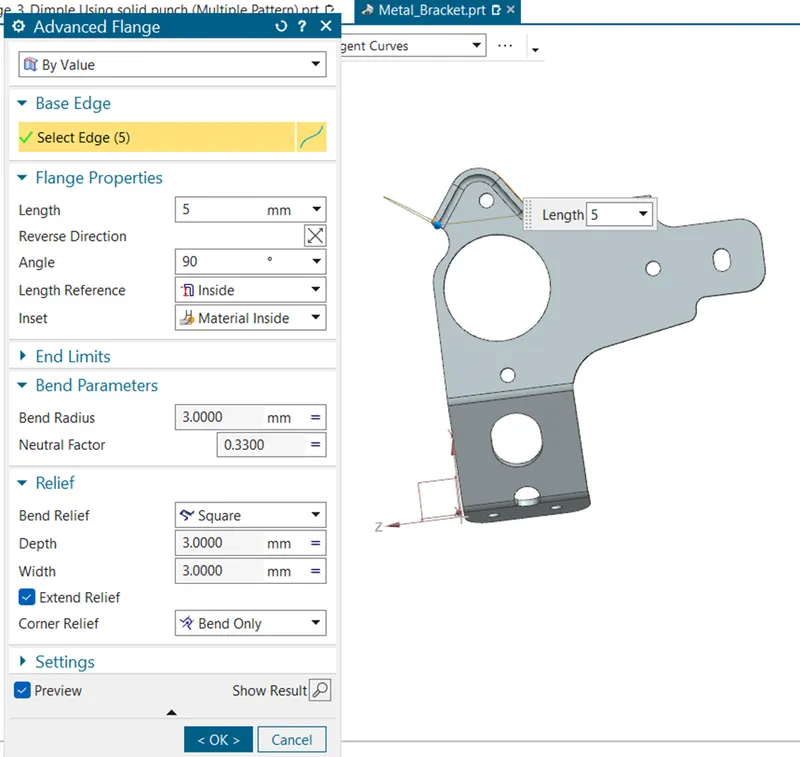

If we have a smooth curve throughout the profile, we can create flange for entire profile by selecting Advance Flange

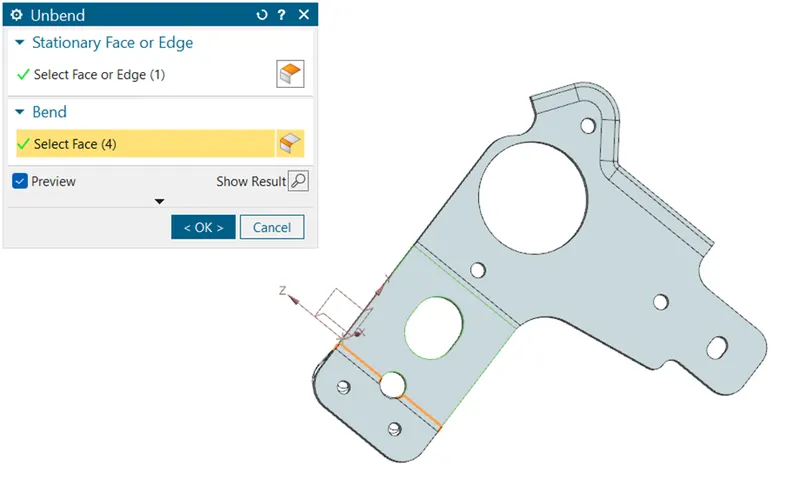

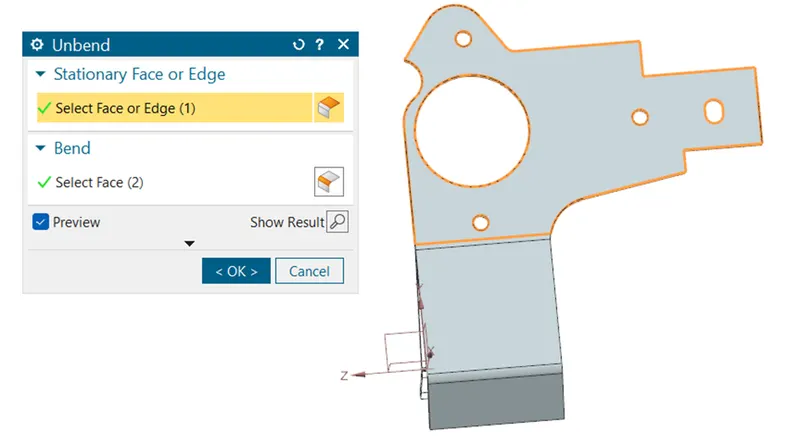

To remove the bend from the profile will select the Unbend command
Again we will select the Advanced Flange to create the flange for Cutout profile
Again we will roll back to previous profile after creating flange, with Rebend command

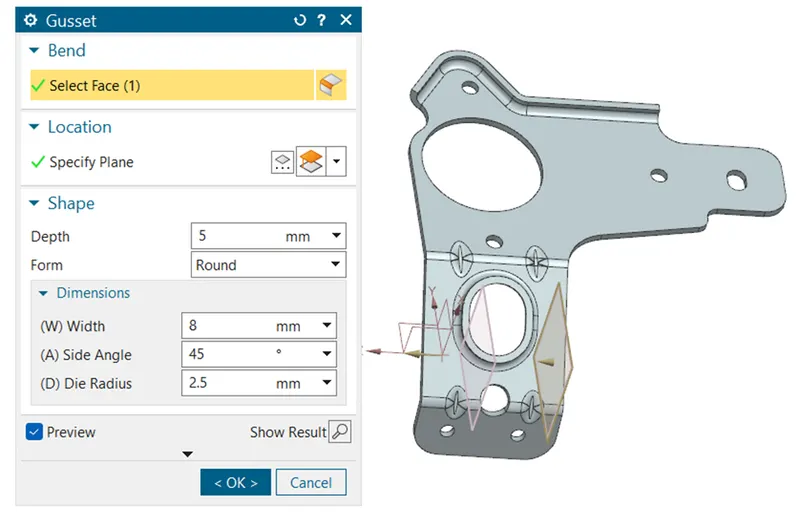

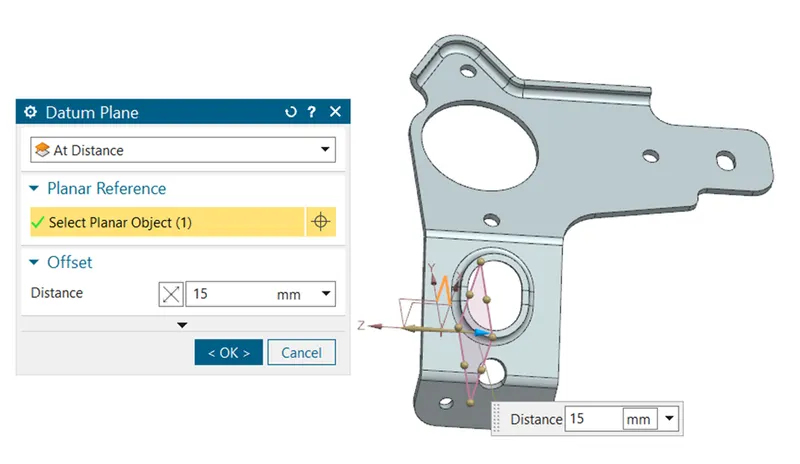

To provide Gusset, over the bend for additional support I have created the plane.
Though we can create the plane, inside the Gusset Command. In order to avoid doing this multiple time, I have created the separate plane

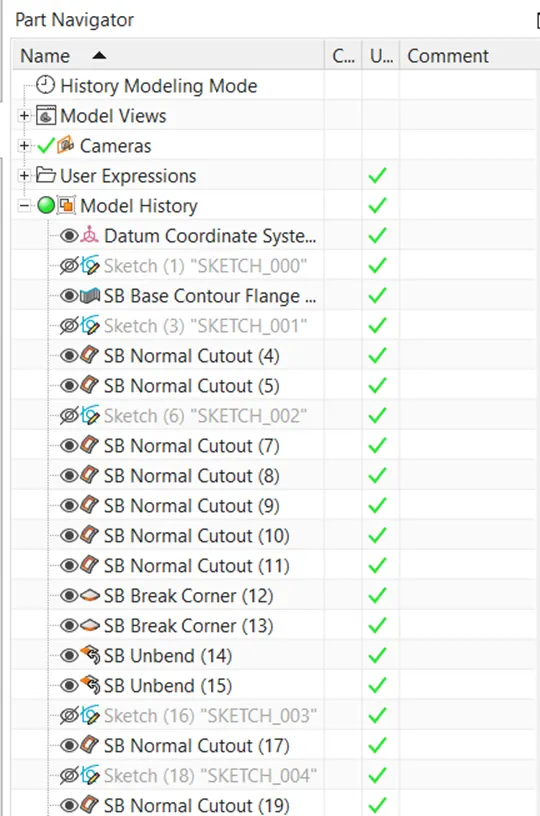

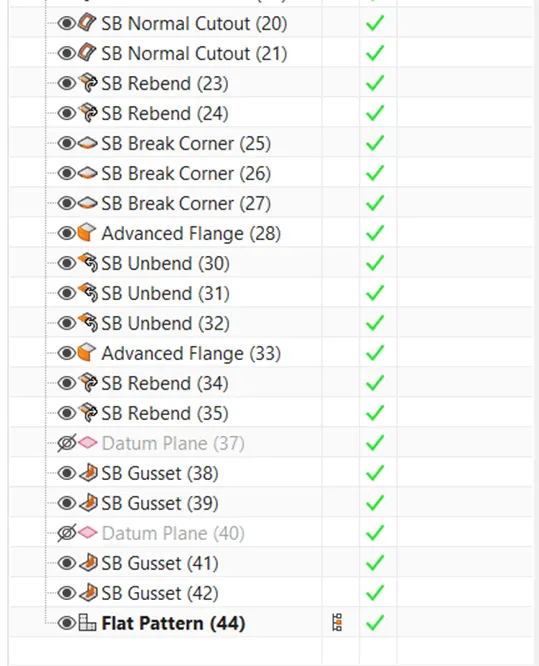

Feature Tree:

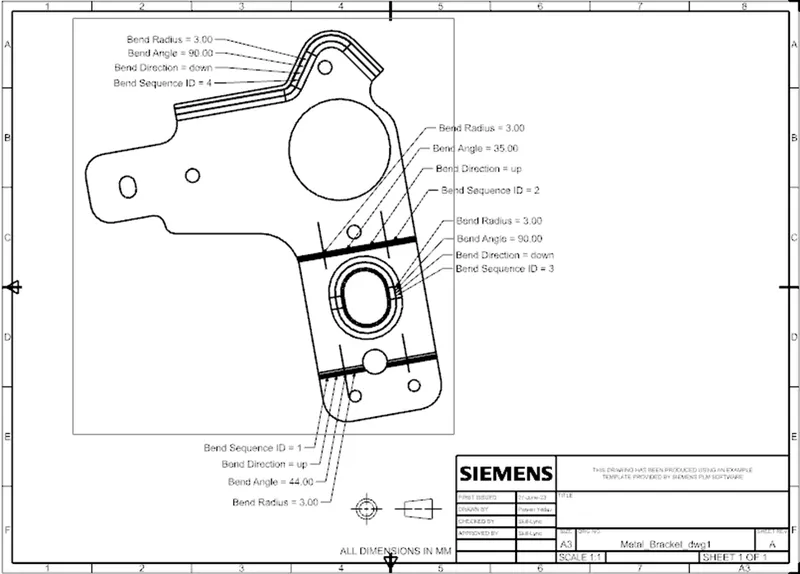

2D- Drawing
3D Views:

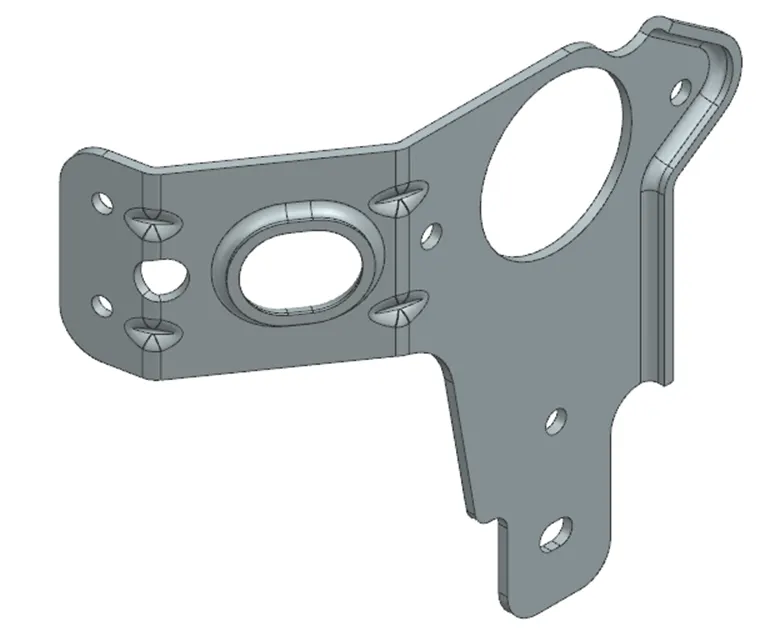

Isometric View

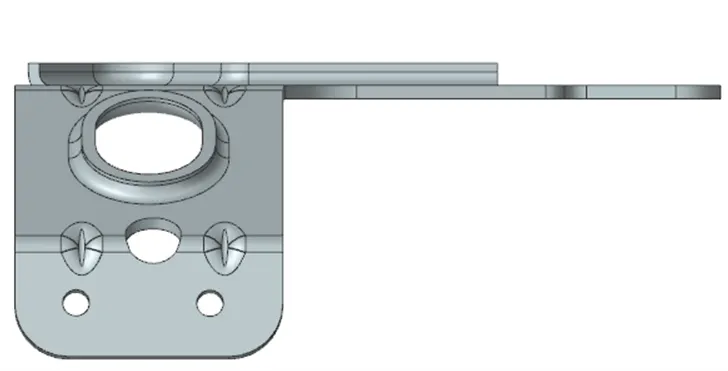

Front View

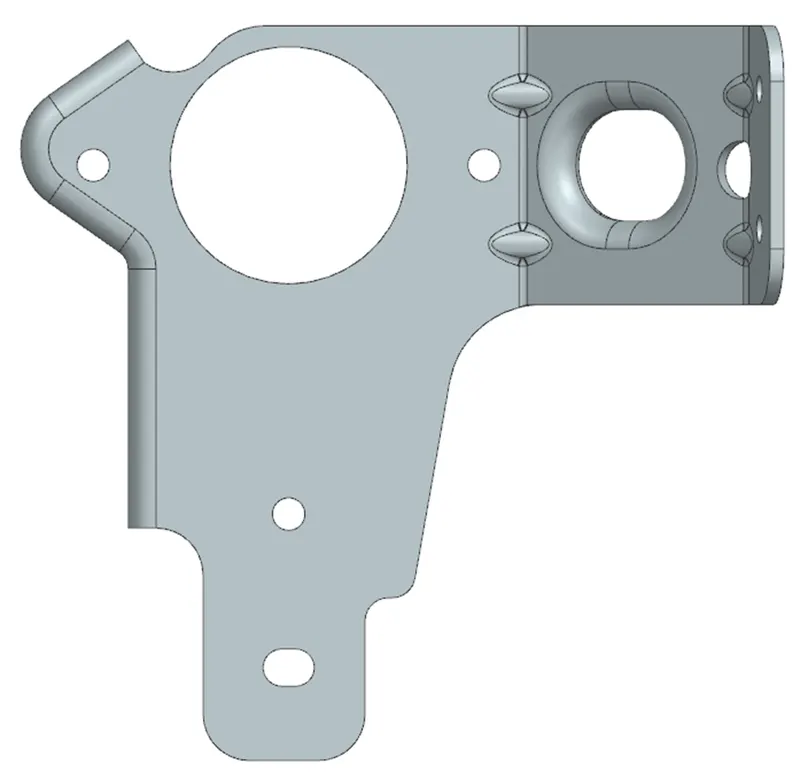

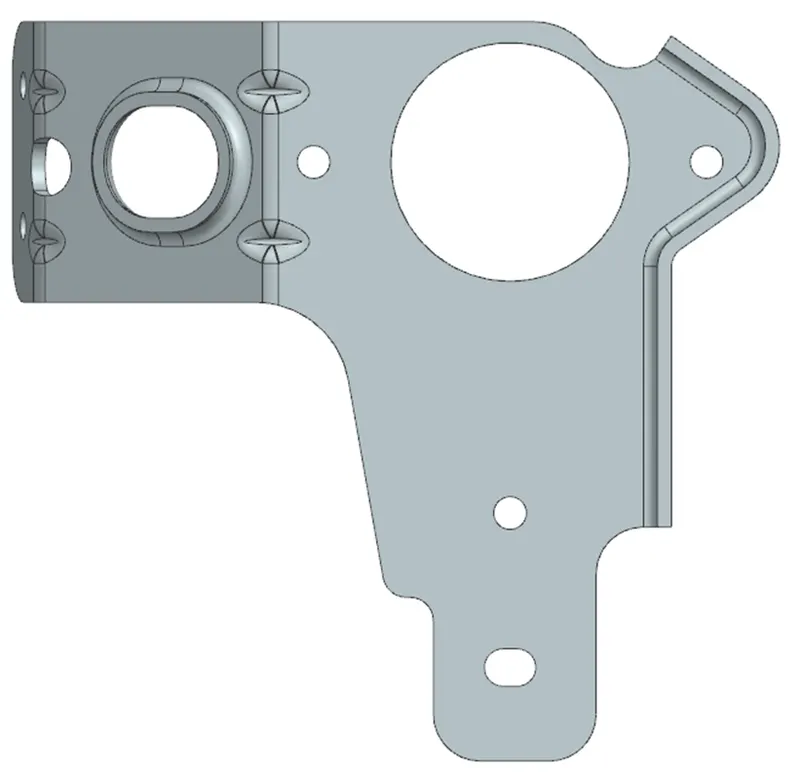

Top View

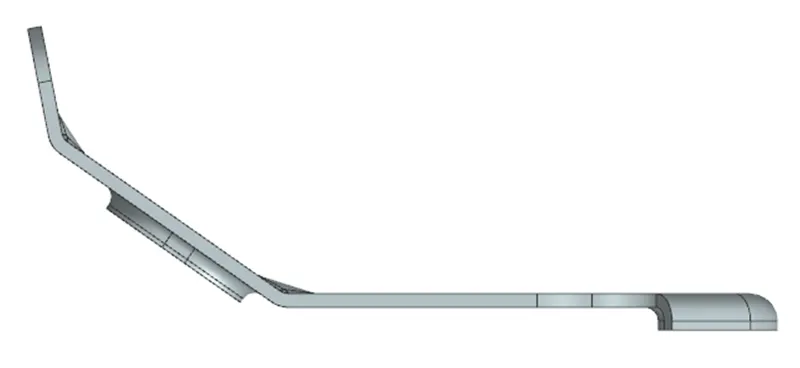

Right Side View
Left Side View
Conclusion:
In this challenge, we have used two new commands (i.e., Gusset and Advance Flange) while completing this challenge
