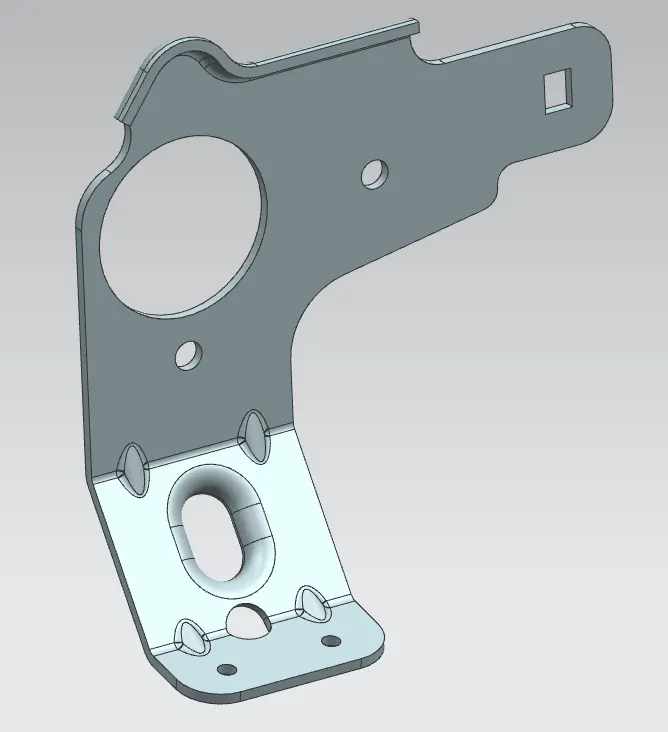

Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

Title: Bracket_2

Objective:

Required to create bracket using NX.

Introduction:

Sheet metal is metal formed by an industrial process into thin, flat pieces.

Sheet metal is one of the fundamental forms used in metalworking, and it can be cut and bent into a variety of shapes.

Countless everyday objects are fabricated from sheet metal.

Thicknesses can vary significantly; extremely thin sheet metal is considered foil or sheet,

and pieces thicker than 6 mm (0.25 inch) are considered plate steel or “structural steel”

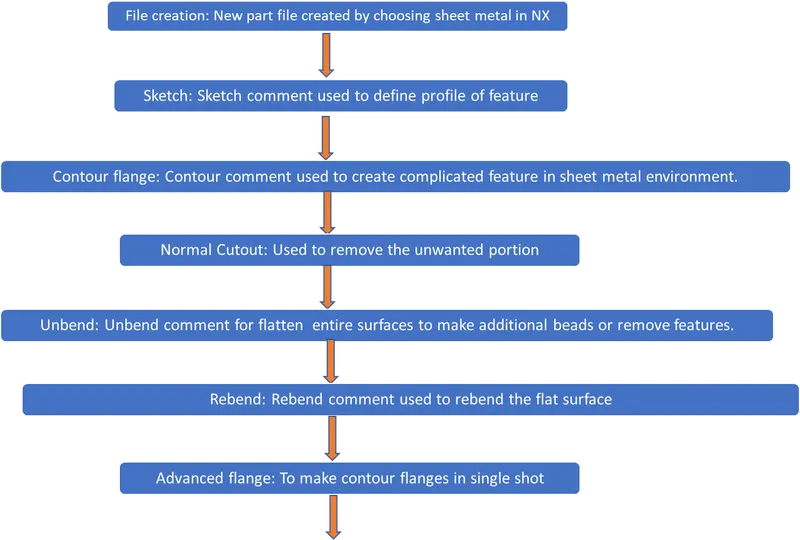

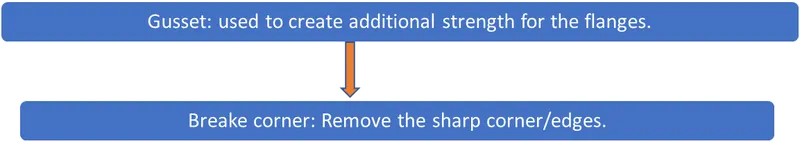

Design methodology:

Conclusion:

Metal bracket created using necessary comments as per DFM.

Final model file attcahed in attachment.
