Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

SHEET METAL BRACKET II IN SIEMENS NX CAD

JEEVA R

OBJECTIVE:

To develop a “Sheet metal bracket” using different commands and tools in NX CAD.

WHAT IS NX CAD?

NX CAD is an advanced high-end CAD/CAM/CAE software used for designing models etc. It was formerly known as “Unigraphics” owned by Siemens PLM Software.

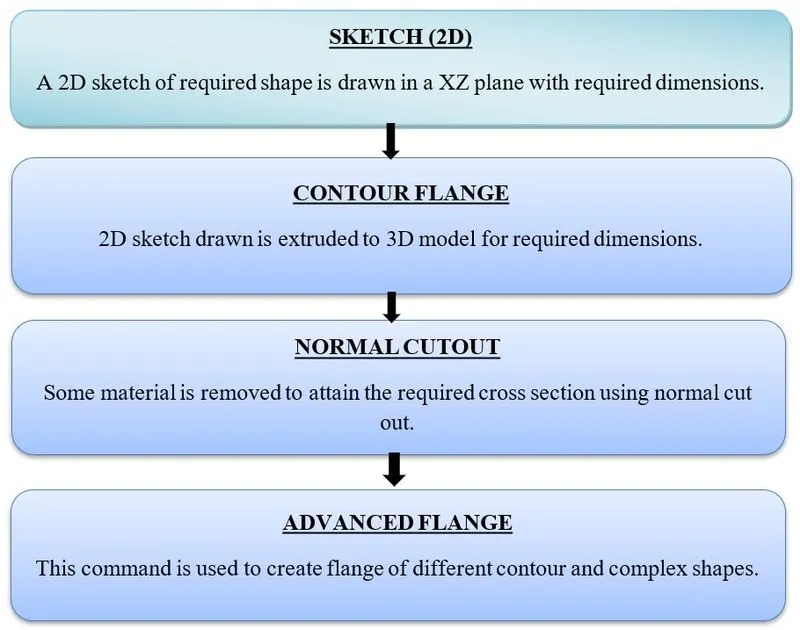

DESIGN FLOWCHART:

COMMANDS USED:

1.SKETCH:

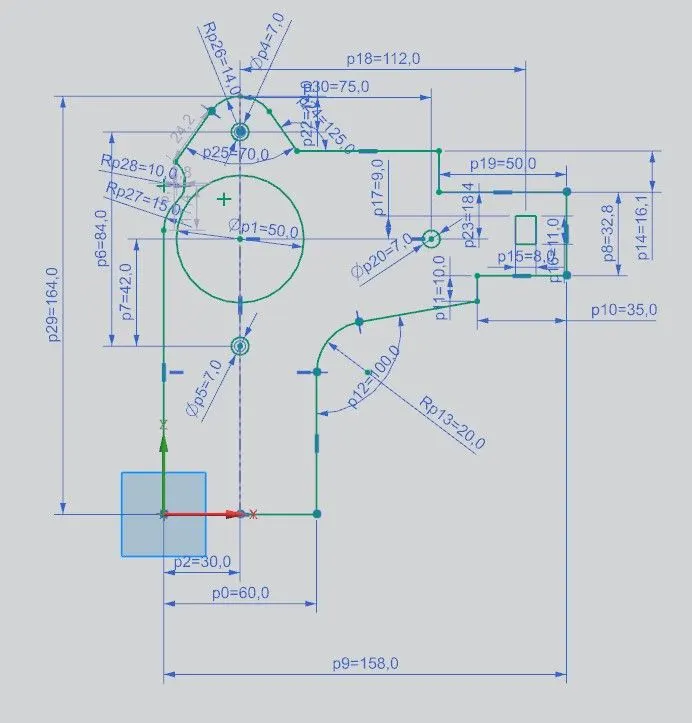

2D sketch is drawn as per the model in the required plane with proper dimensions and relations.

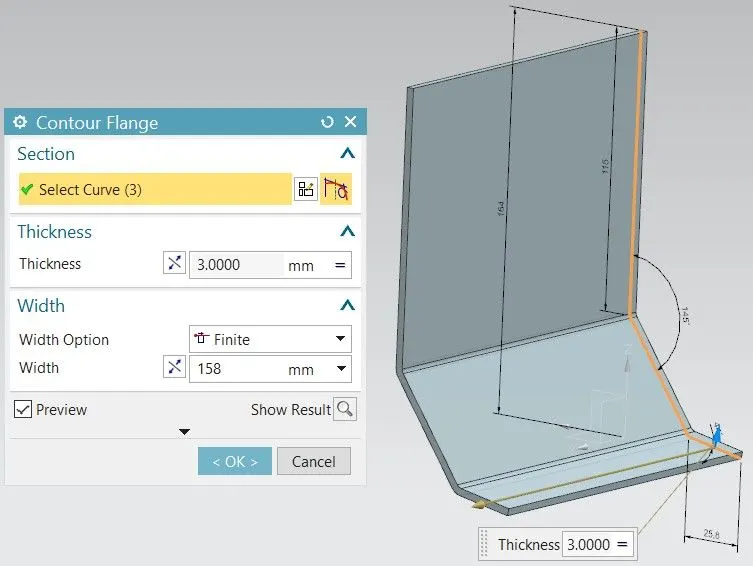

2. CONTOUR FLANGE:

A flange is external or internal ridge or rim for strength as the flange of iron beam. It creates features as per the shape of the sketch drawn.

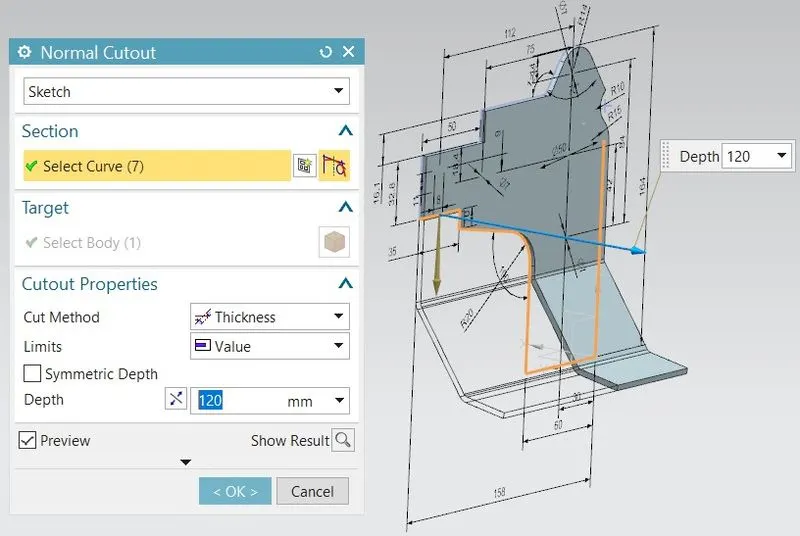

3. NORMAL CUTOUT:

It is used to remove material with defined sketches to facilitate required design.

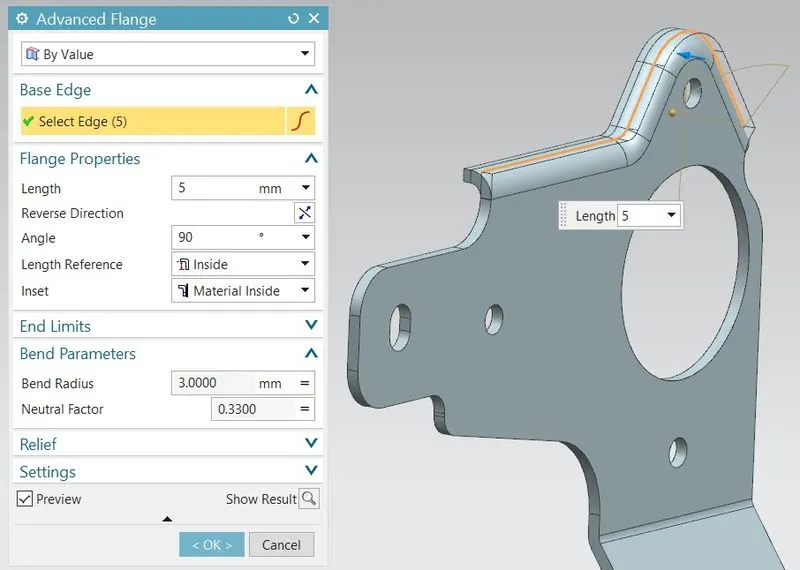

4. ADVANCED FLANGE:

This feature is used to add flange of required contour and complex shape as per the model.

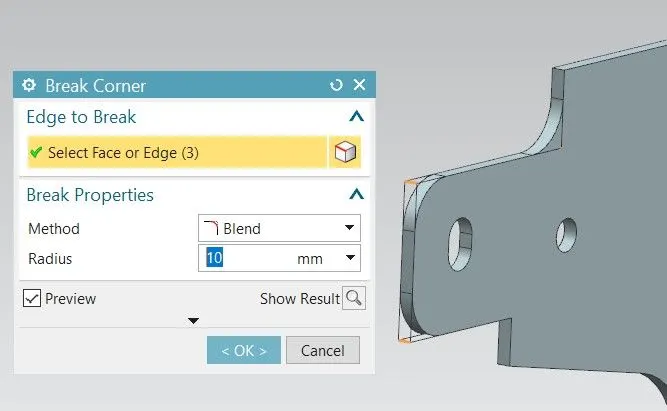

5. BREAK CORNER:

This command is used to round off sharp corners, to avoid injuries.

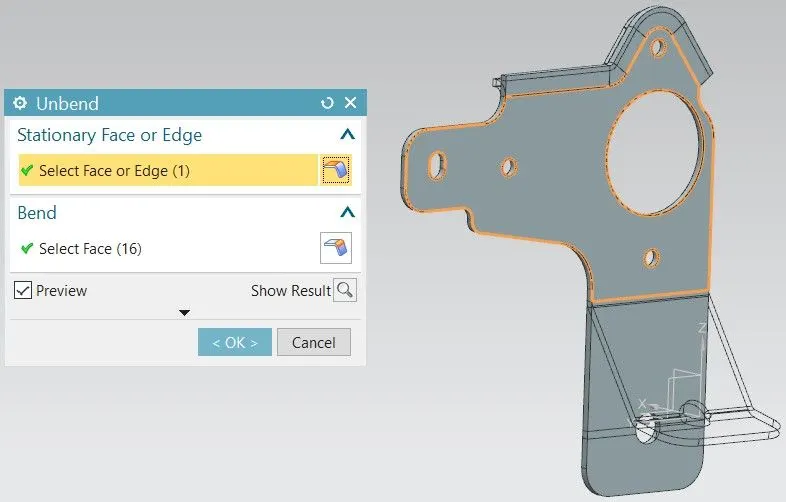

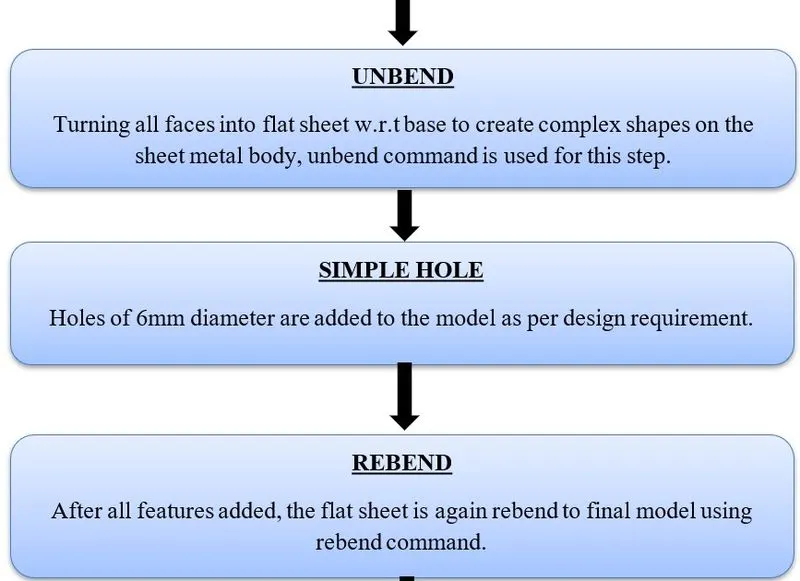

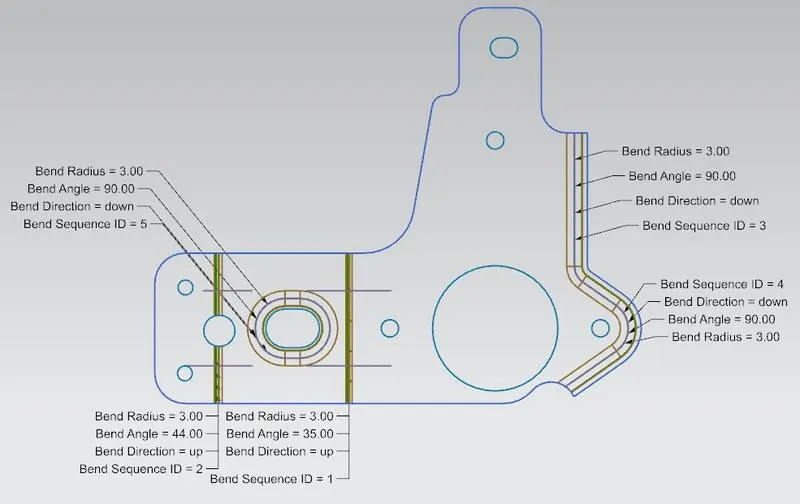

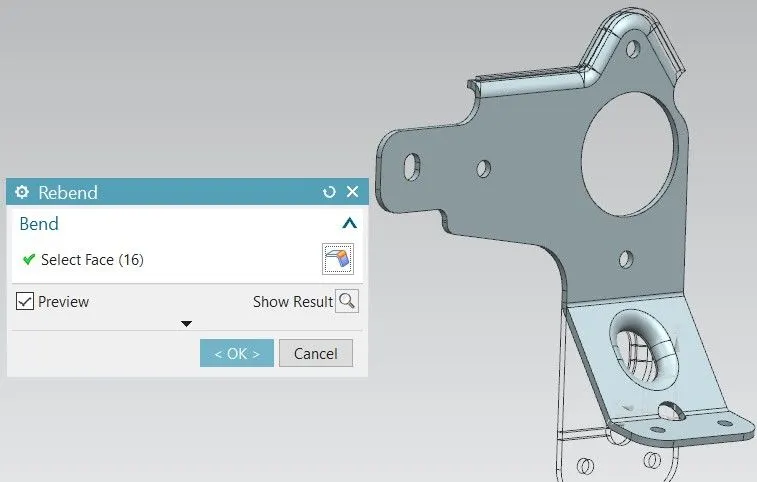

6. UNBEND AND REBEND:

Unbend command is used to flatten the model created to infuse further complex features such as holes, dimple, bead, etc. After, implementing required features then it is again rebend to original model using rebend command.

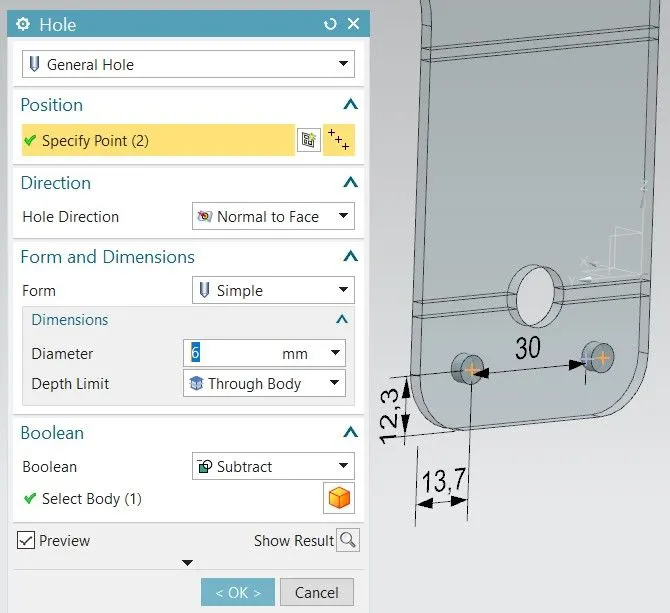

7. HOLE:

It is used to create holes and slots as per design requirements.

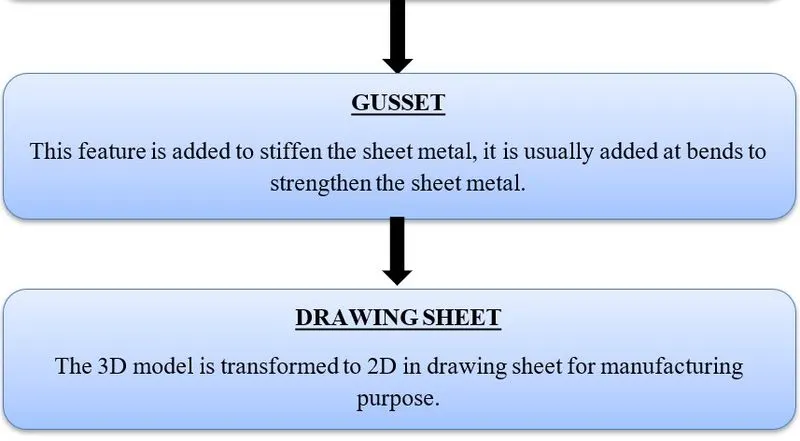

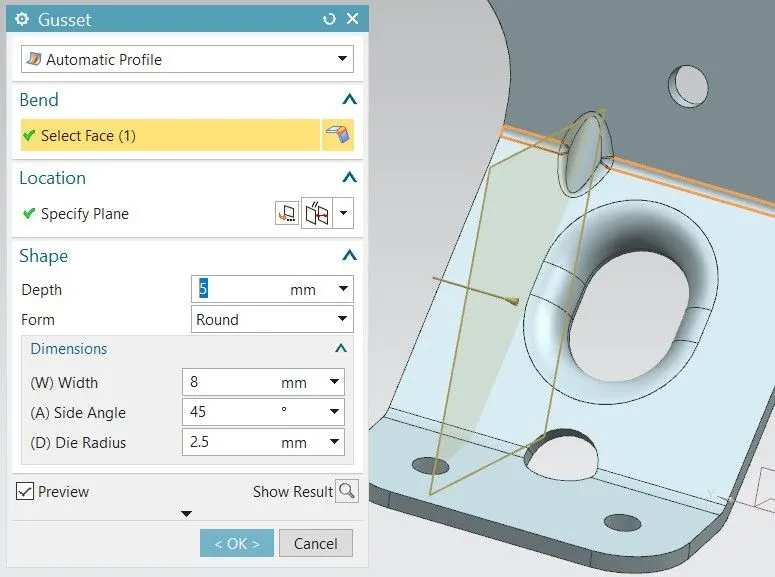

8. GUSSET:

Gusset is a stiffening feature added to sheet metal to enhance its durability and strength. It is similar to that of bead, but it is usually applied at bends.

9. FLATPATTERN:

This command is used to flatten the final sheet metal model to prepare a detailed drawing of the model for manufacturing.

DIFFERENT VIEWS:

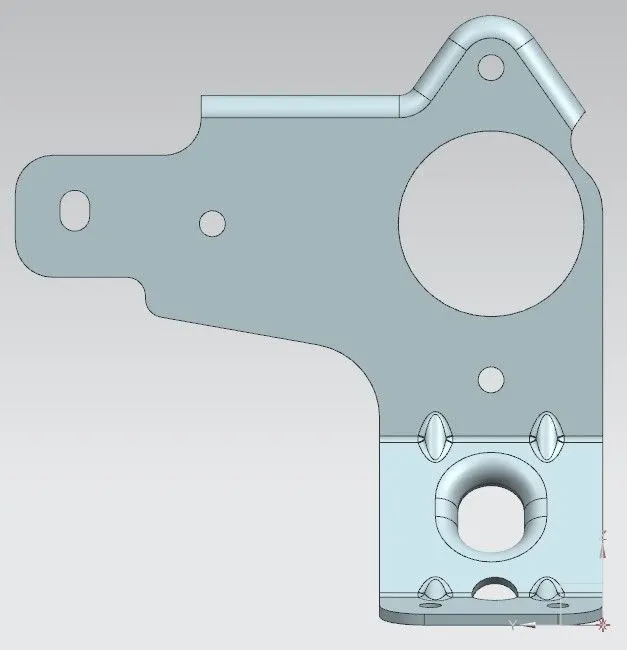

FRONT VIEW:

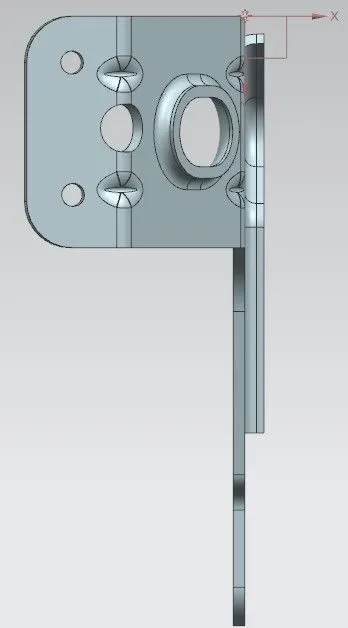

TOP VIEW:

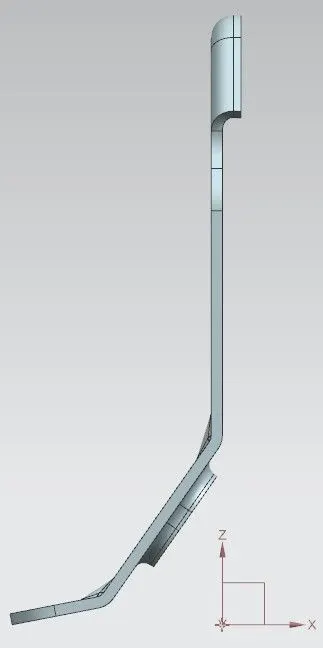

SIDE VIEW:

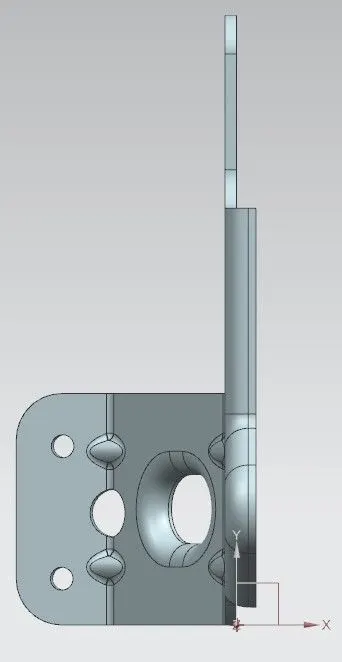

BOTTOM VIEW:

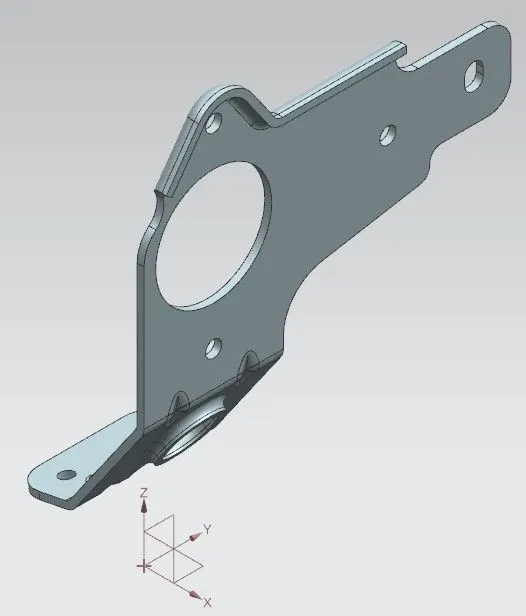

ISOMETRIC VIEW:

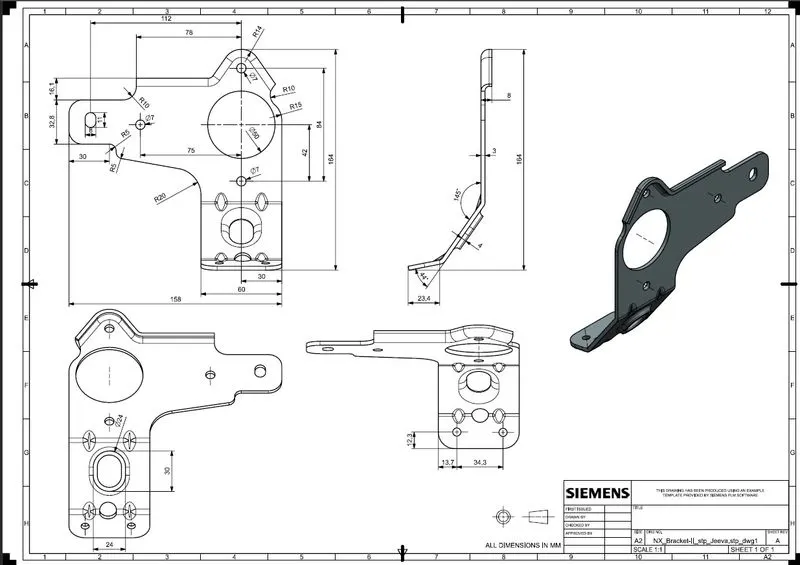

DRAWING SHEET:

CONCLUSION:

Thus, sheet metal bracket II is made using NX CAD with required features successfully.
