Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

1. TITLE :

Bracket_Wasim

2. OBECTIVE:

To design a bracket as per given dimensions.

3. INTRODUCTION:

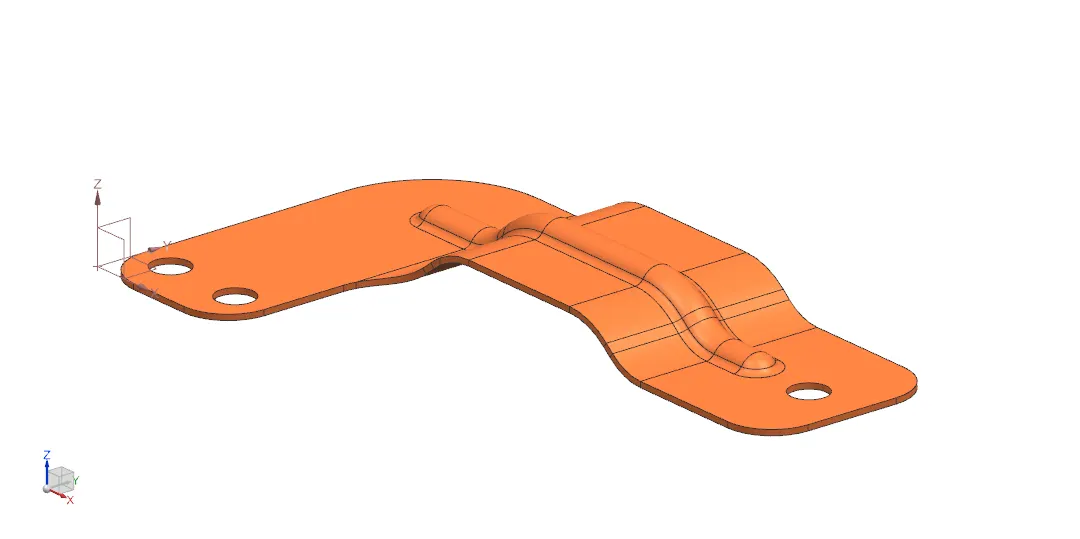

The bracket of sheet thickness 3.00 mm is designed. The bead, fillet and holes are given on the model.

4. DESIGN METHOD:

5. DESCRIPTION:

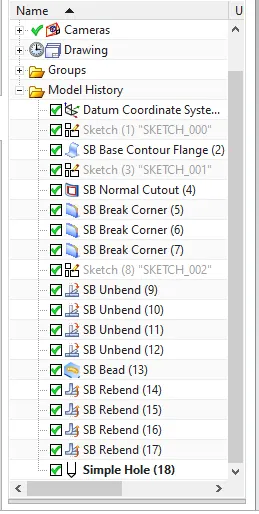

• Base drawn as per given model.
• made a L shaped design by using normal cutout.
• gave fillets.
• gave bead.
• rebend it and eventually gave simple holes.

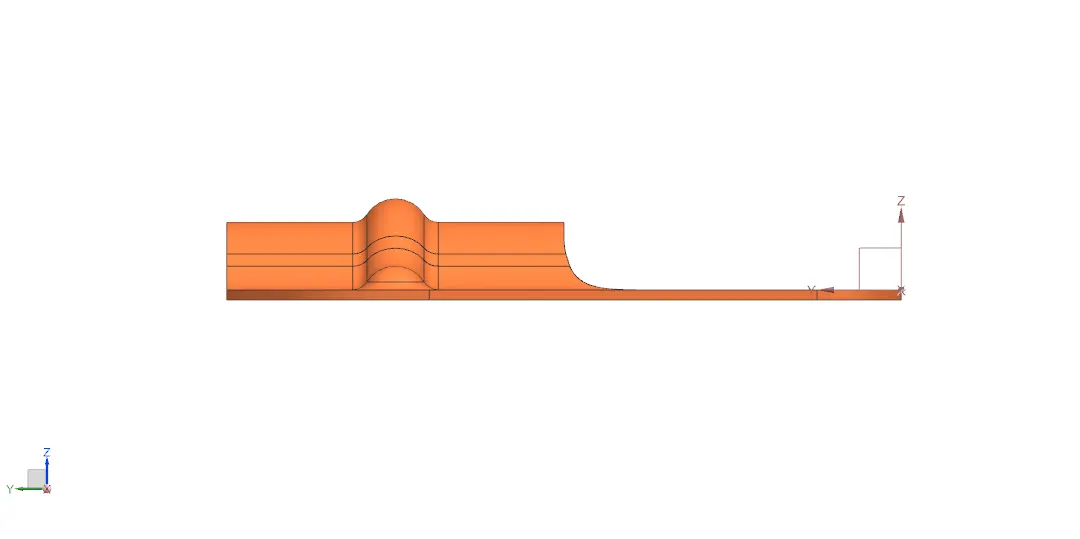

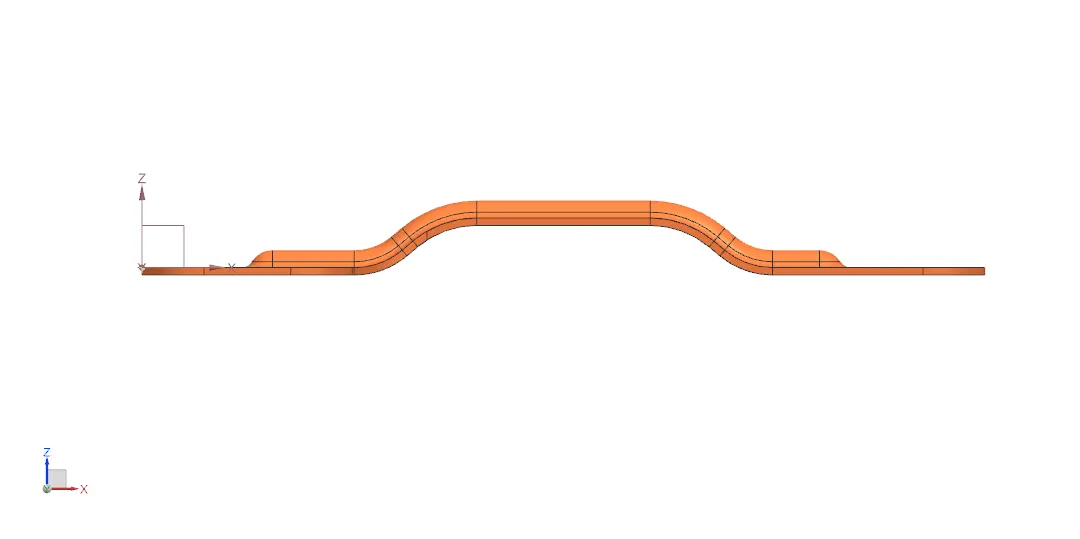

6. IMAGES:

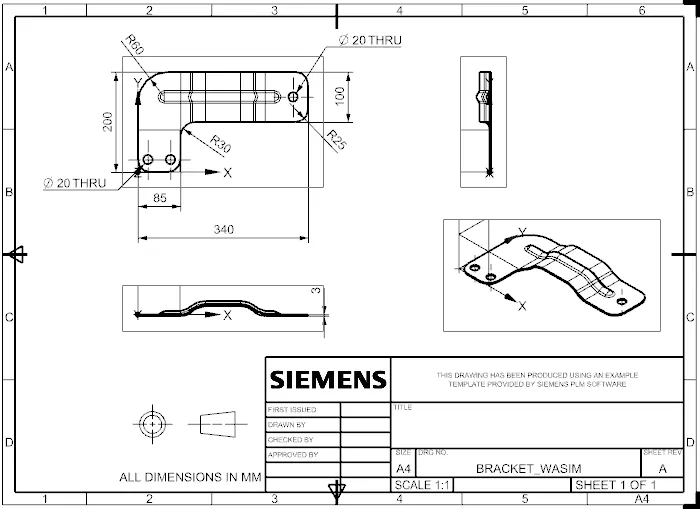

7. SHEET:

8. CONCLUSION:

The base bracket is designed.
