Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
Title of the Project
bracket design using sheet metal application using unigraphics nx 2027
Objective
To design Sheet metal brakcet using bead feature, bending and rebending feature.
Introduction
sHEET METAL DESIGN, it is a very big industry, in each and every component , vehicle, utensile, cars, buses, mahcines, sheet metal part is used. sheet metal we count thickness fromn 0.5mm to 6mm. in fabrication we use sheet metal part, and we bend it using press brake.
we have already blank size, ( flat pattern before bending) then we bend it. the bending radius that also punch radius should be more than or equal to its thickness.
Design methodology / approach (To be explained with the help of Flowcharts only)
Sketch for base->Cbase for bracket->Cutout->Unbending->sketch for bead and bead feature->Rebending->Holes->
Description (Need to explain tools/ Features used while designing)

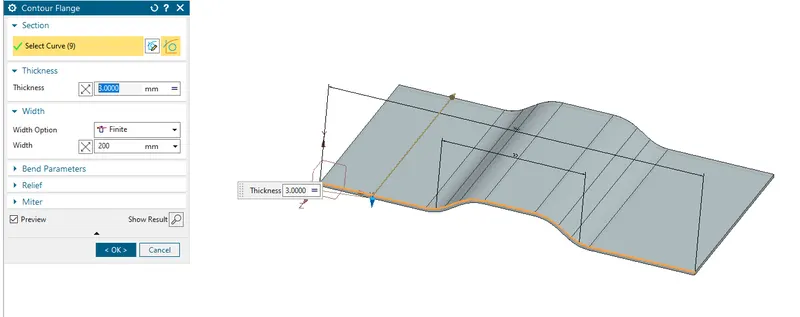

countour flange , for sketch

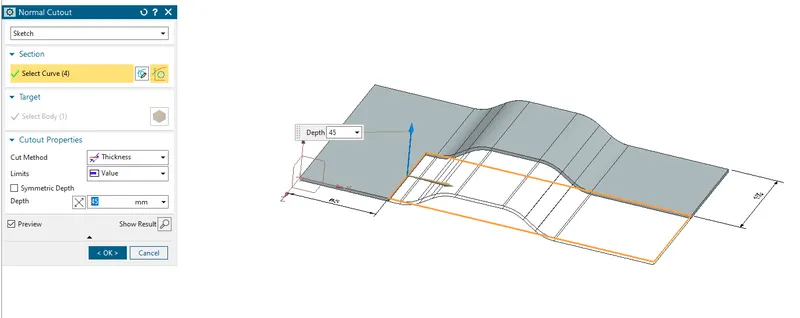

normal cutout as shown below:

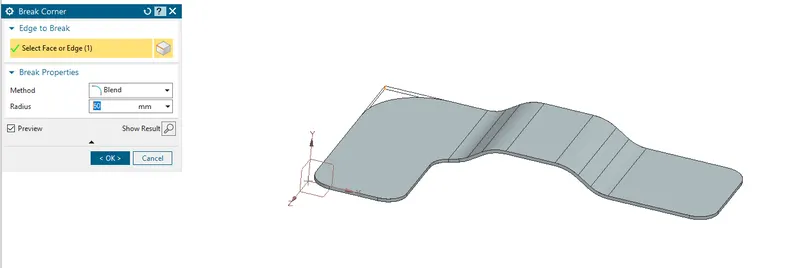

applying fillet at sharp cornors:

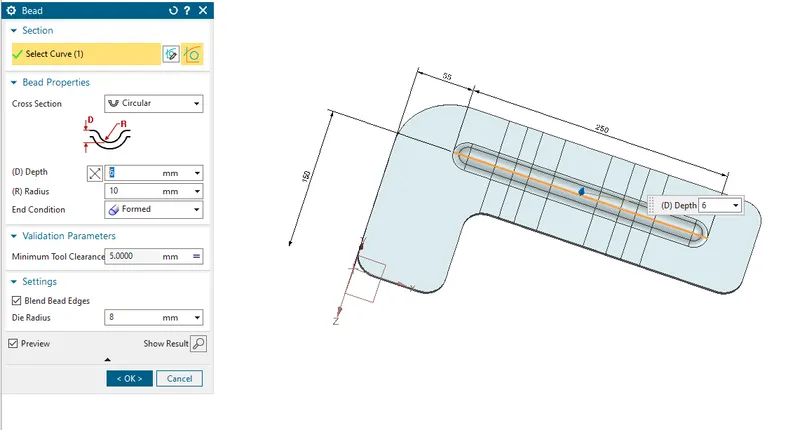

unbending and make skletch as shown , and use bead feature and play with die radius, height and radius

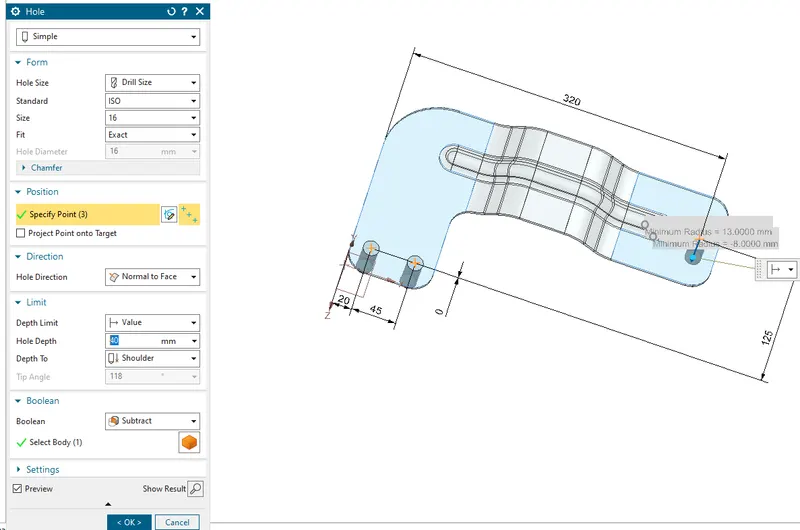

rebend it , and make holes as per your requirment.

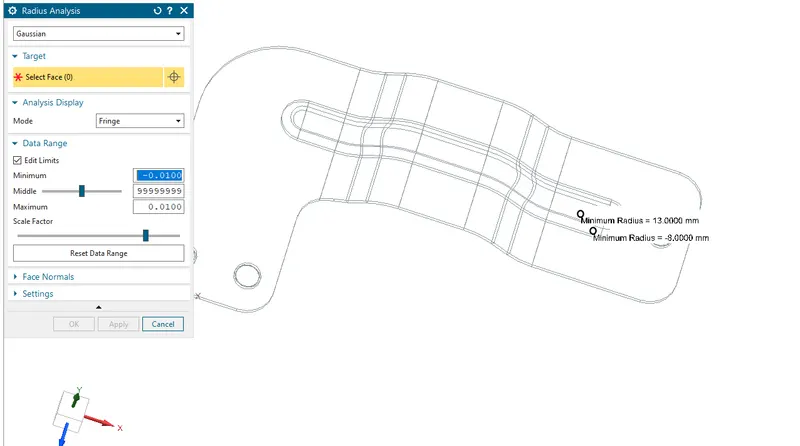

use local radius to check radius:

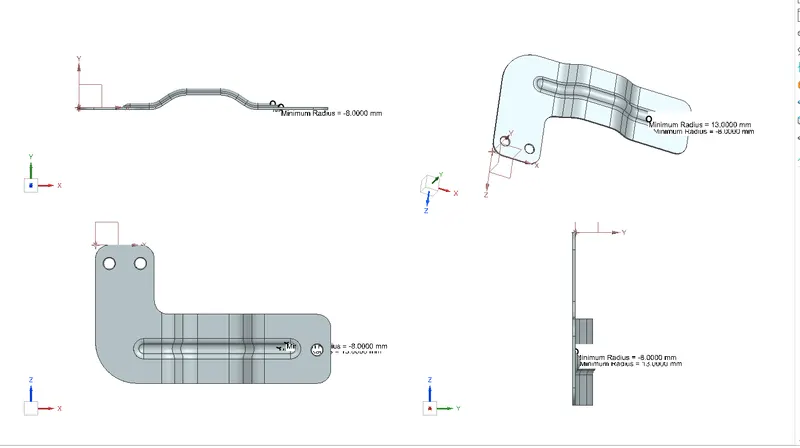

Upload a min of four screenshots of Model in the report. (Front View, Side View, Isometric View and the Top View)

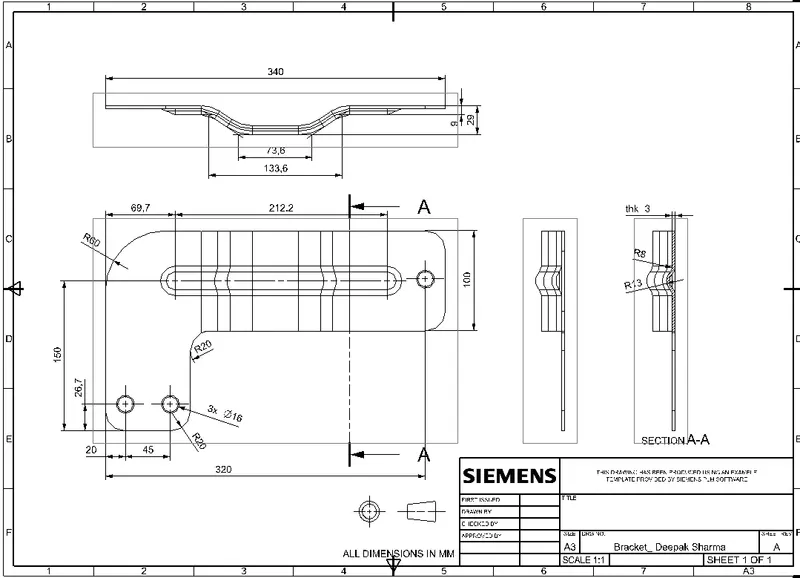

Attach Detailed Drawing Sheet Image (If Required)Conclusion
