Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

Bracket Design

#Objective: To Create a Bracket design following the tutorials using Siemens NX.

#Introduction:

The term “sheet metal” refers to any metal that can be formed into flat pieces of varying thicknesses. Thick metals are called plates. Metals used in the sheet metal industry include cold rolled steel, mild steel, stainless steel, tin, nickel, titanium, aluminum, brass, and copper.

Sheet metal is one of the shapes and forms metal can be bought in. Sheet metal is any metal that has a thickness of between 0.5 to 6mm.

#Procedure:

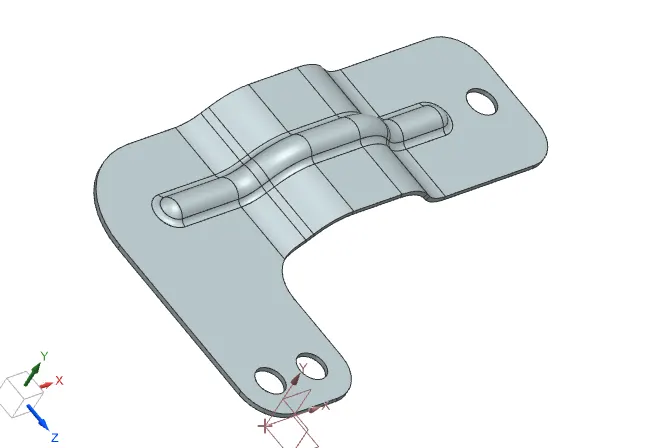

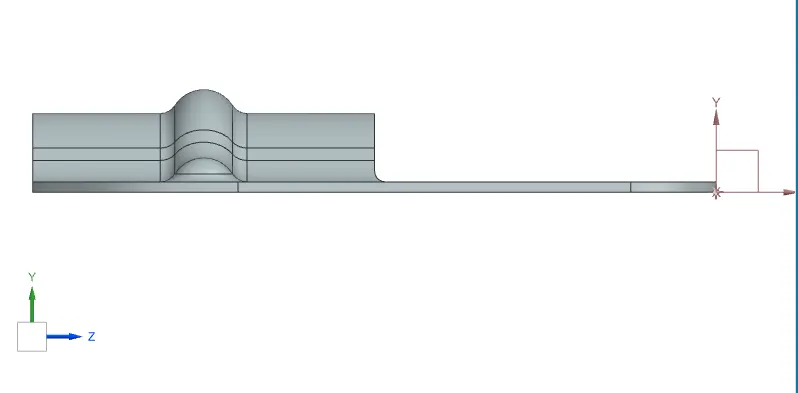

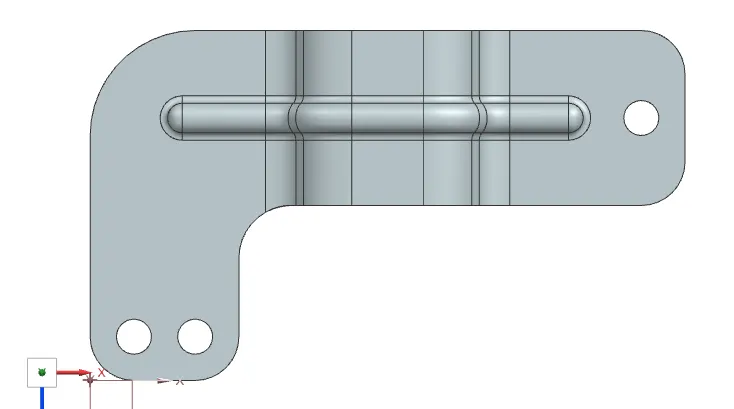

# Bracket Design (Front, Top, Side, Isometric View):

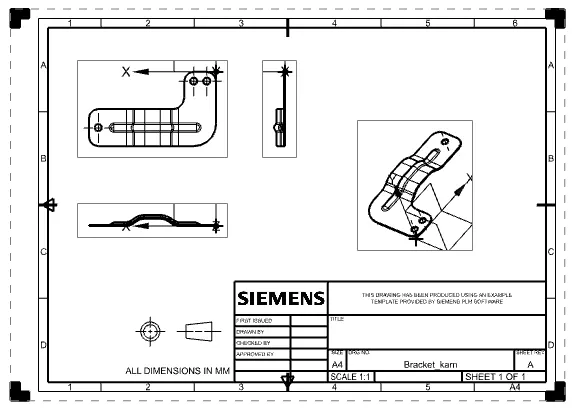

#Drawing Sheet:

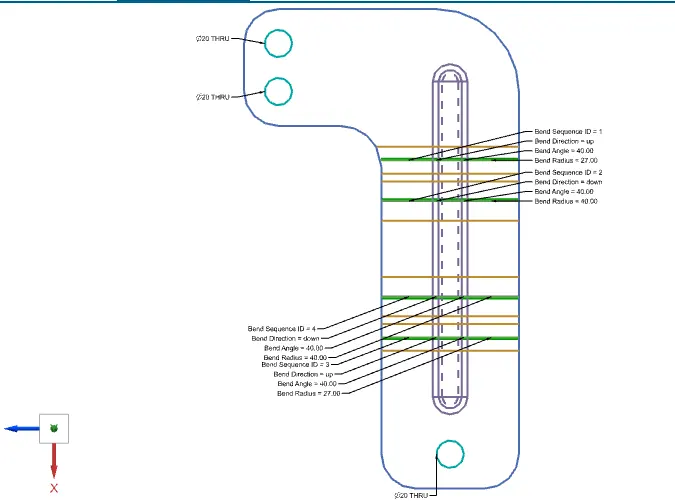

#Flat Pattern:

#Conclusion: Successfully Created the Bracket design using NX.
