Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
- Title of the Project:-Creating a bracket using nx cad sheet metal
- Objective:-To create a bracket using the nx cad sheet metal tools/features
- Introduction :-In this procject this project i was explore the cammands used for stiffening/strengthen the sheet metal objects
- Design methodology / approach:-I follows tadtional workflow of sheet metal job operations
-
skecth profile-base feature add secondary features unbend skecth profiles-add features rebend drafting - Description

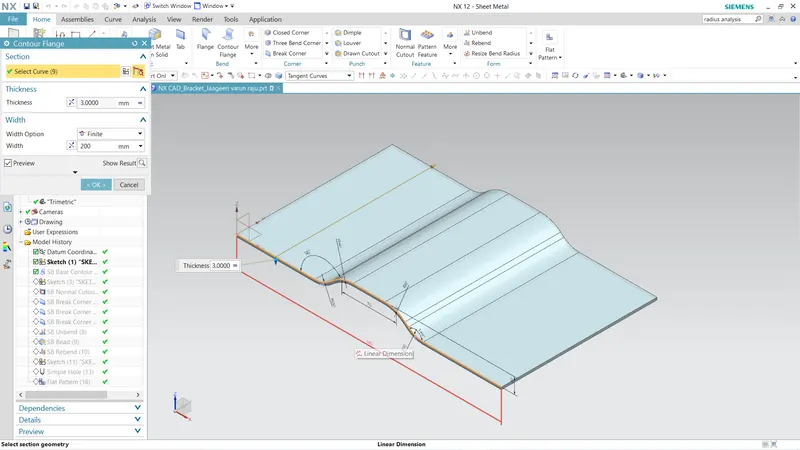

step 1:-countour flange creating a sheet with the use of a countour

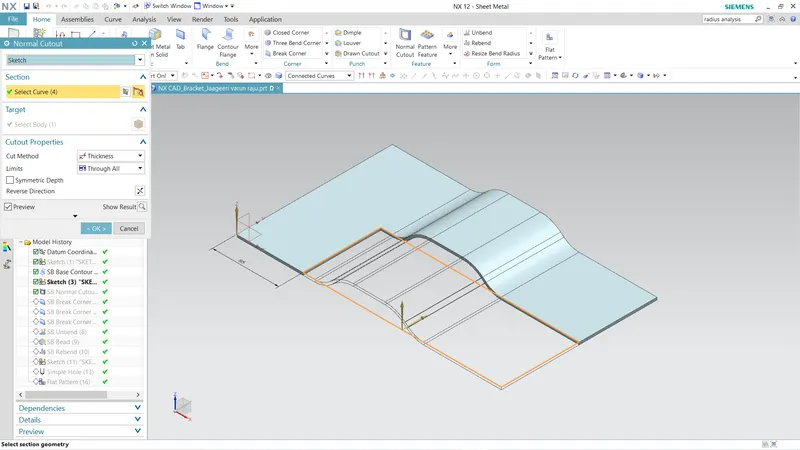

step2:-Normal cutout used to remove a material with in the skectch.

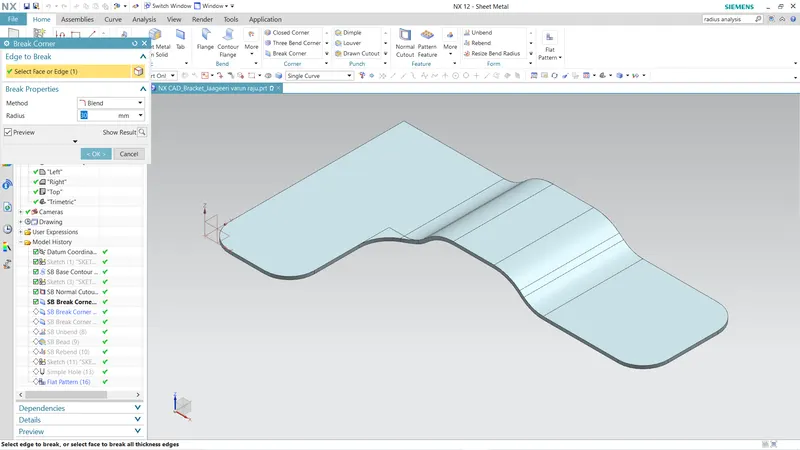

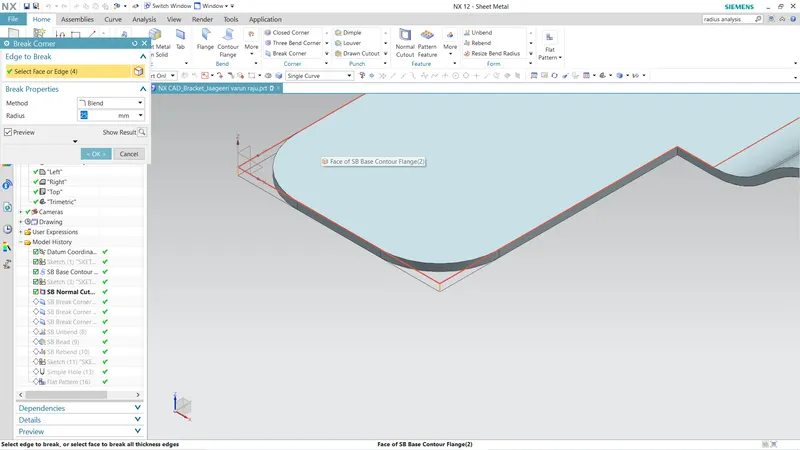

step3:-do corner operations using breakcorner

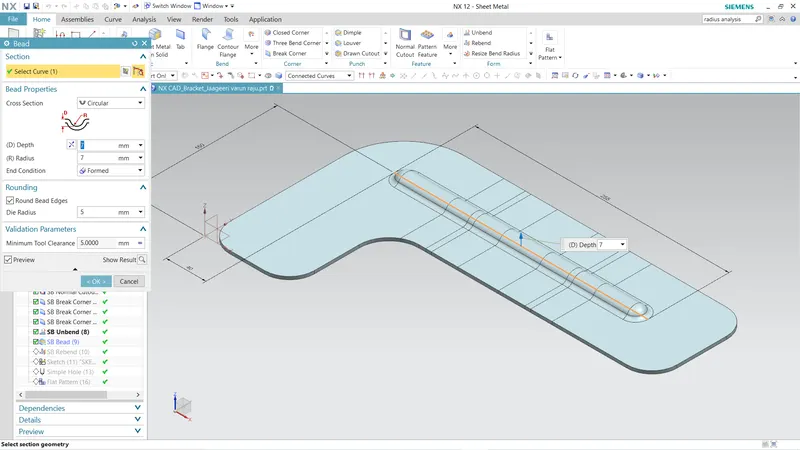

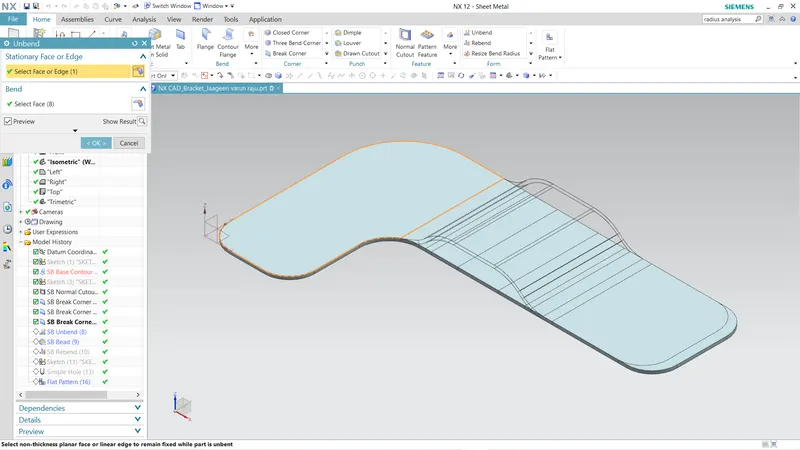

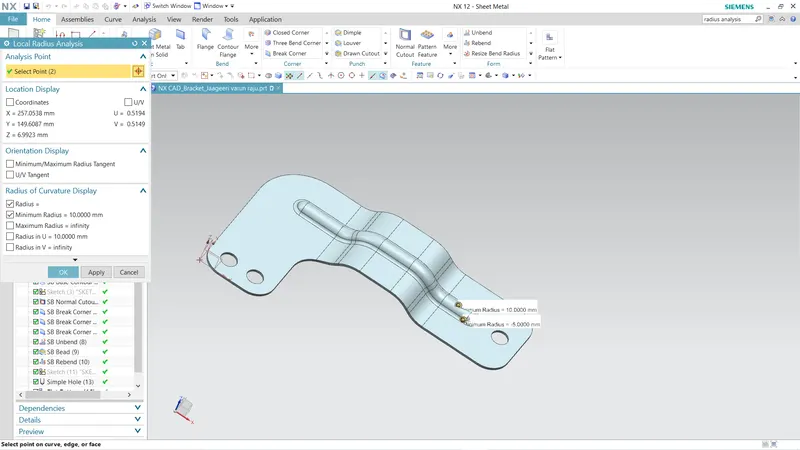

step4:-unbend the sheet and make sketch profile for sheet and apply bead which is used to provide the stiffness to sheet
step5:-make the holes using hole command
7. Conclusion:-In this project i came to know how provide stifnnes to sheetmetrial objects while doing a design.
