Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

1. TITLE: Odd Enclosure

2. OBJECTIVE:

To design a odd shaped enclosure.

3. INTRODUCTION:

• The odd shaped body designed with the help of a solid body.
• the trapezoidal shaped sheetmetal body is created by using the solid part.
• Edge bends, beads and holes are given on the sheet metal body.

4. DESIGN METHOD:

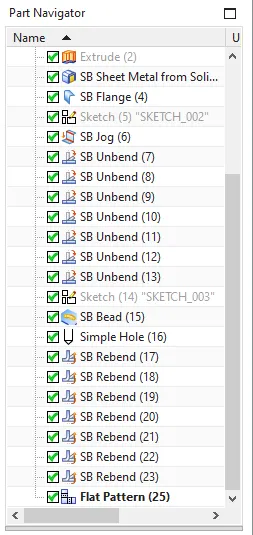

5. DESCRIPTION:

• First the solid body is created.
• used the command 'sheet metal from solid' to create a sheet metal body.
• Give edge bends and jog
• unbend the sheet metal to create the beads and the holes.
• Rebent it and created flat pattern.

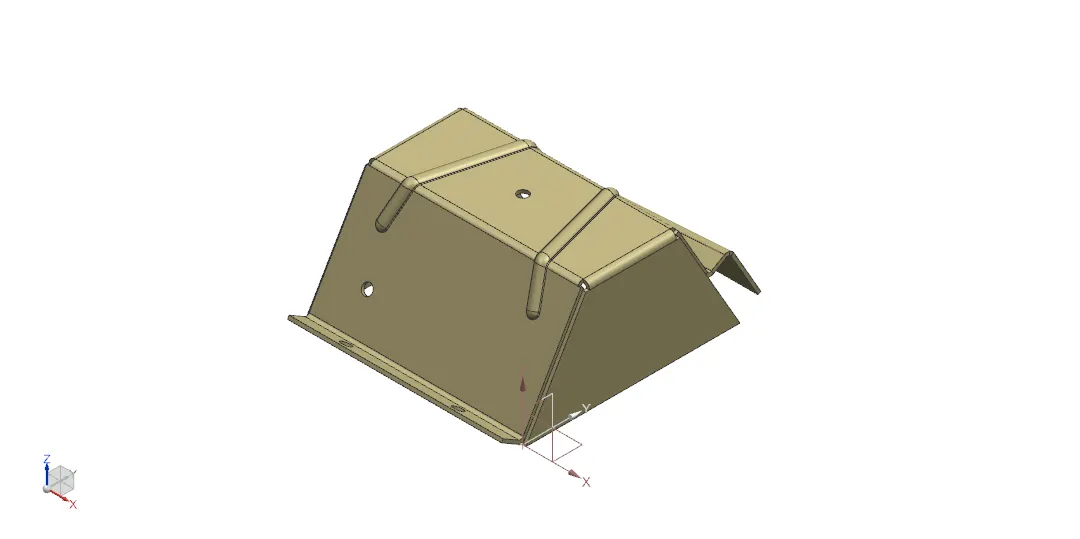

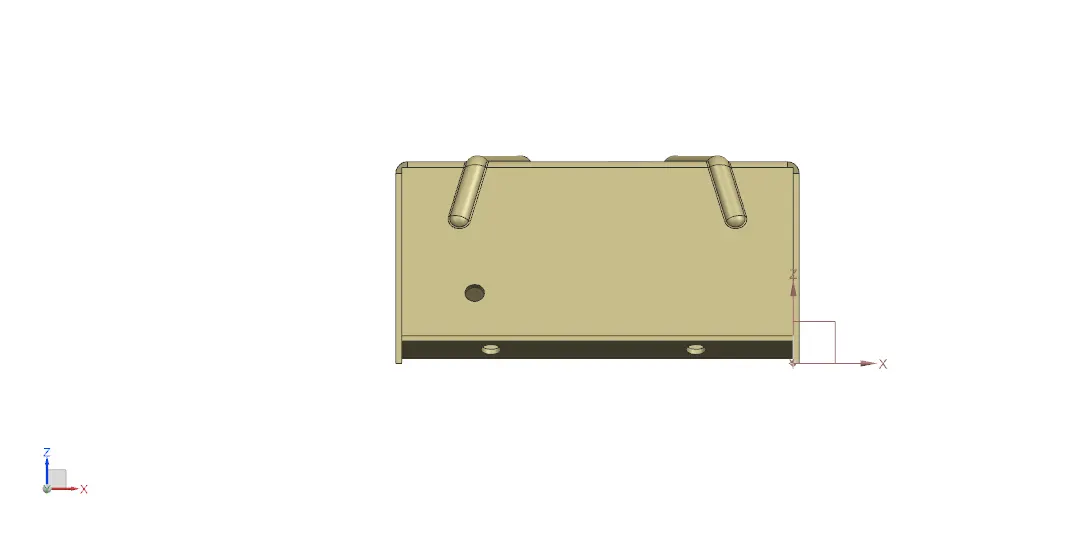

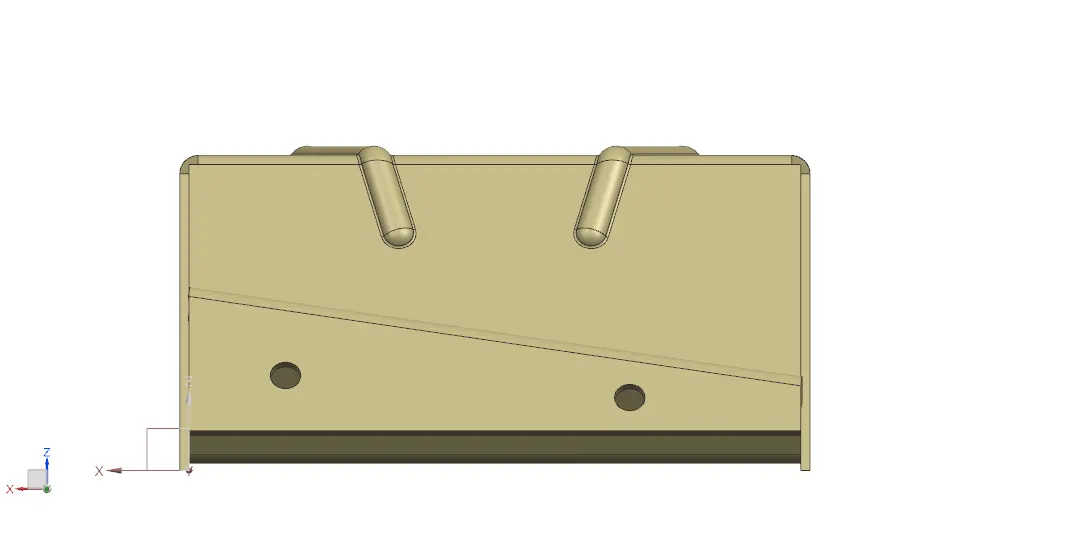

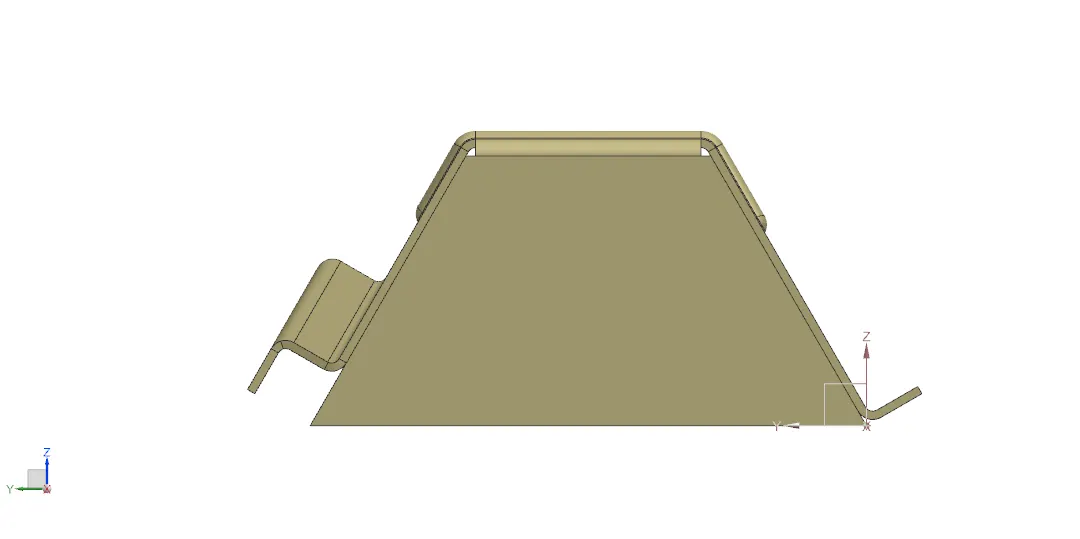

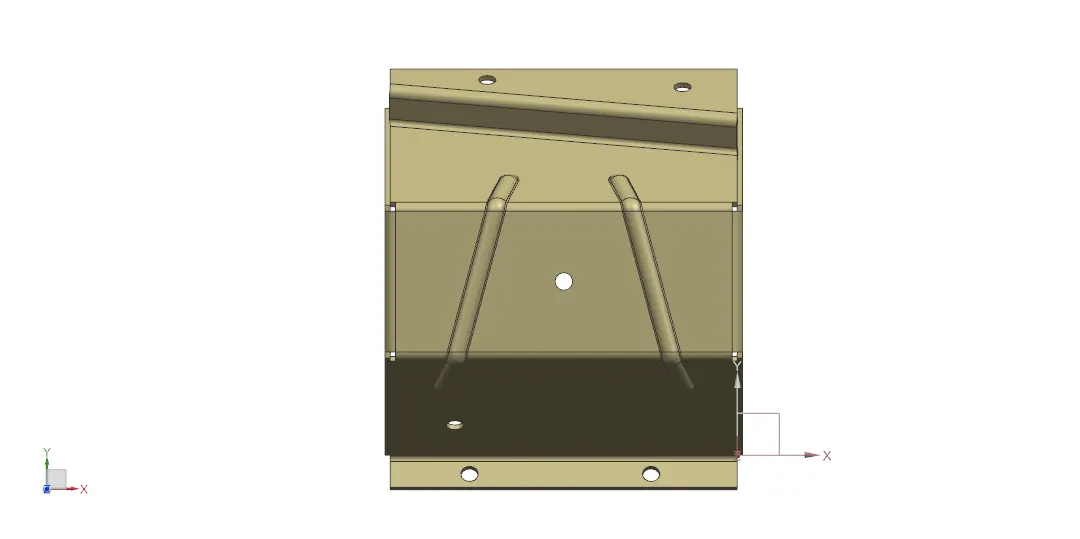

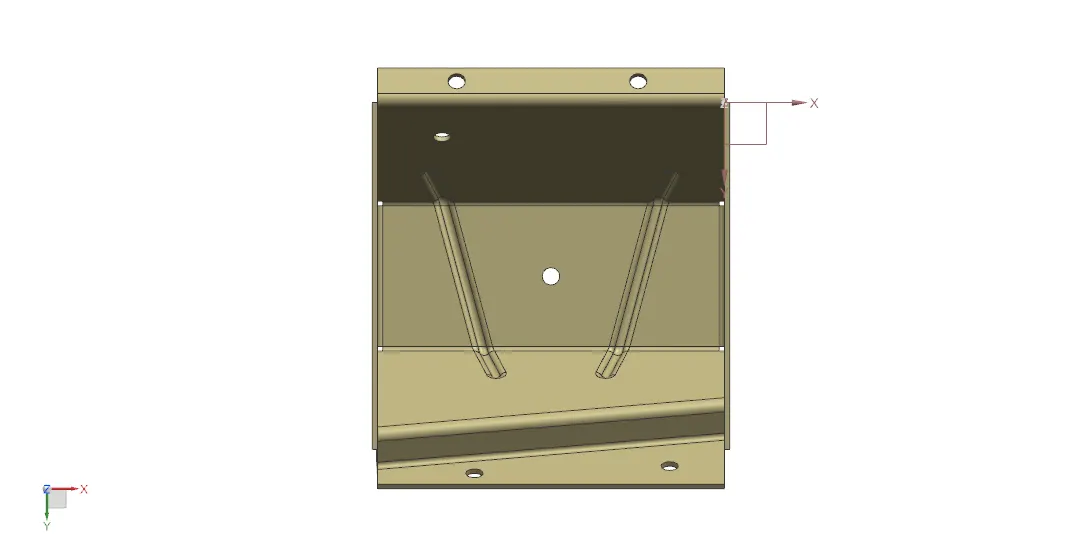

6. IMAGES:

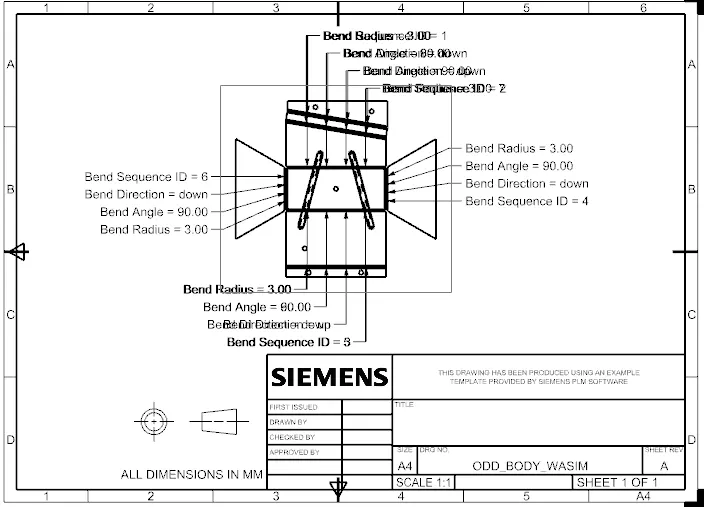

7. DRAWING SHEET:

8. CONCLUSION:
