Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

title of the Project

CREATING CONTAINER USING SHEET METAL APPLICATION USING NX2027,

Objective

OBJECTIVE IS TO USE VARIOUS BENDING COMMANDS, LIKE HEM, FLANGE BENDS IN SHEET METAL BENDING.

Introduction

SHEET METAL DESIGN, it is a very big industry, in each and every component , vehicle, utensile, cars, buses, mahcines, sheet metal part is used. sheet metal we count thickness fromn 0.5mm to 6mm. in fabrication we use sheet metal part, and we bend it using press brake.

we have already blank size, ( flat pattern before bending) then we bend it. the bending radius that also punch radius should be more than or equal to its thickness.

Design methodology / approach (To be explained with the help of Flowcharts only)

Description (Need to explain tools/ Features used while designing)

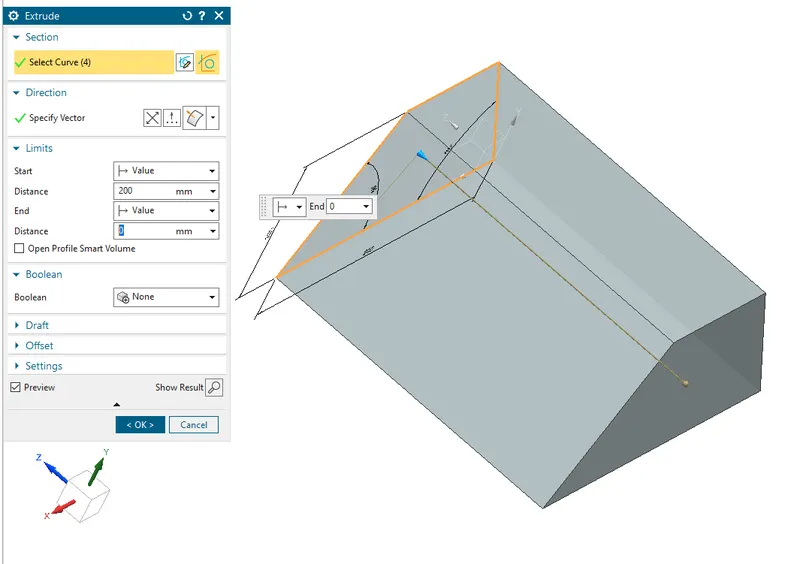

create solid as you desire

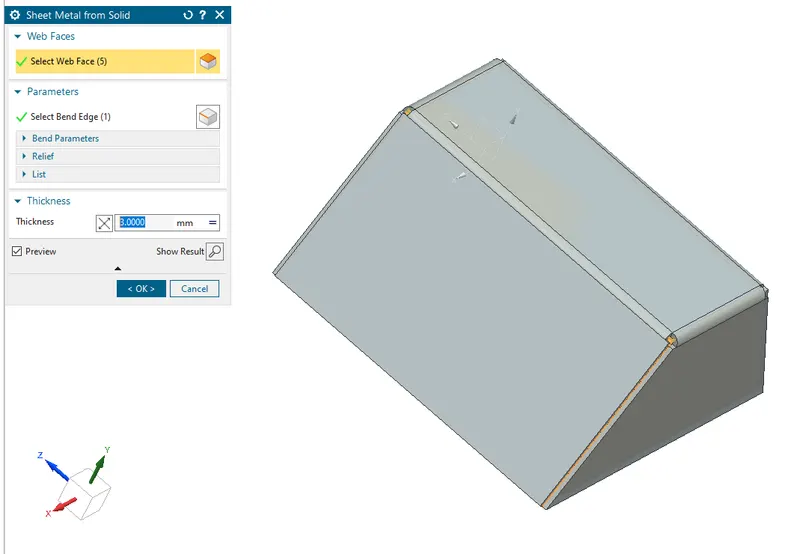

covering it with sheet metal, by using "sheet metal from solid"

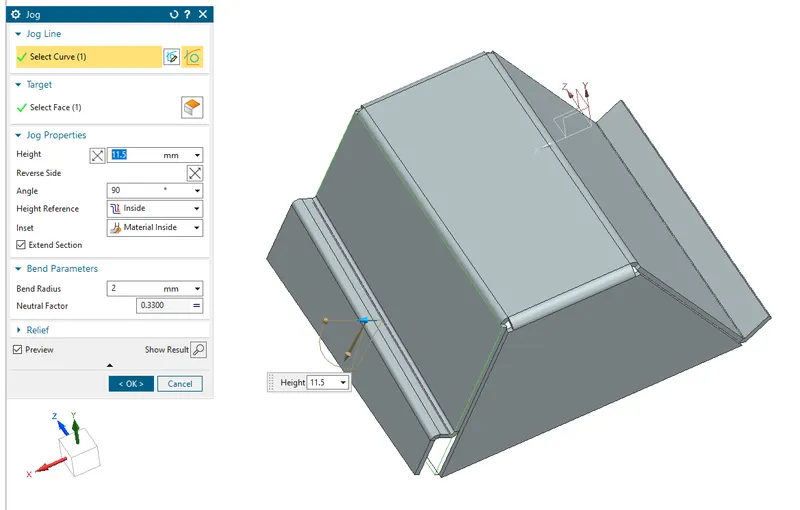

you can use normal flange bend and jog flnage bend as shown:

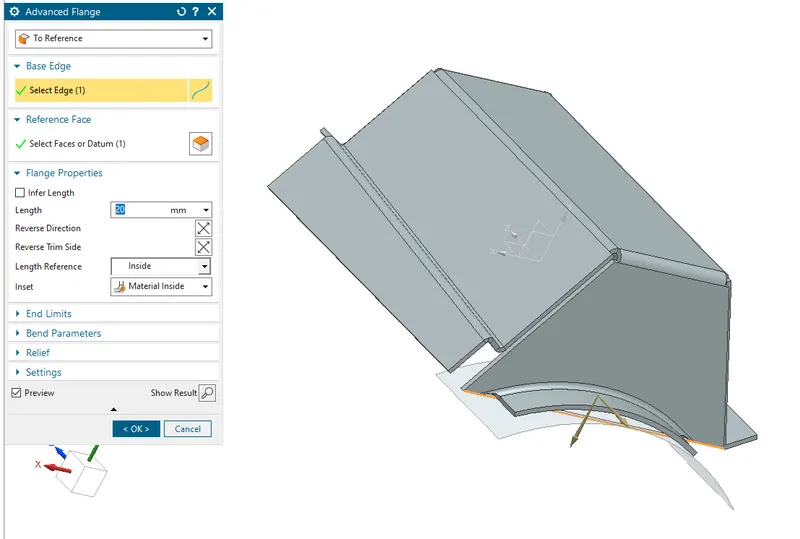

also use advance flanges as per your need or surface:

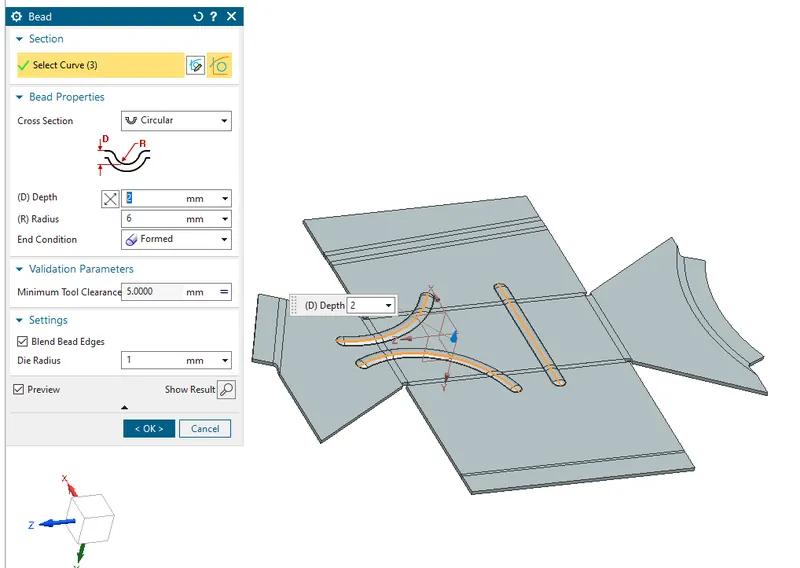

use bead command, after unbending the part:

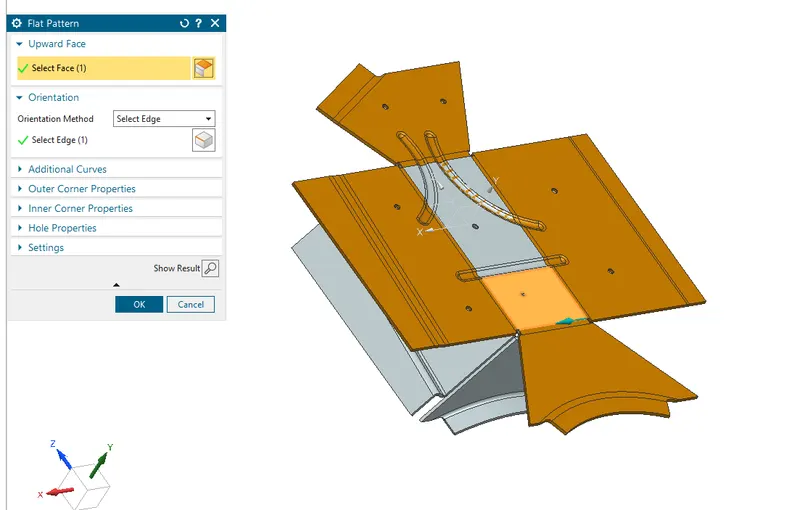

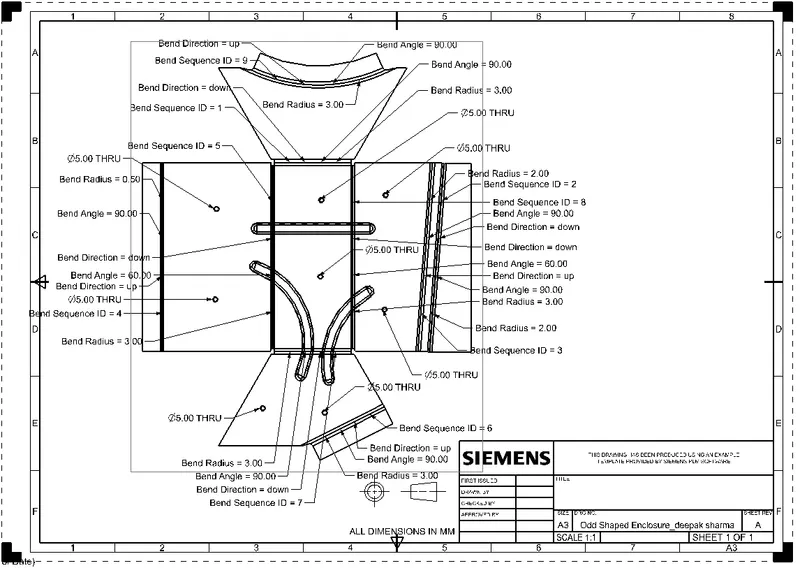

create your solid pattern, and flat solid as per your need, we use flat pattern to have it in drafting or export:

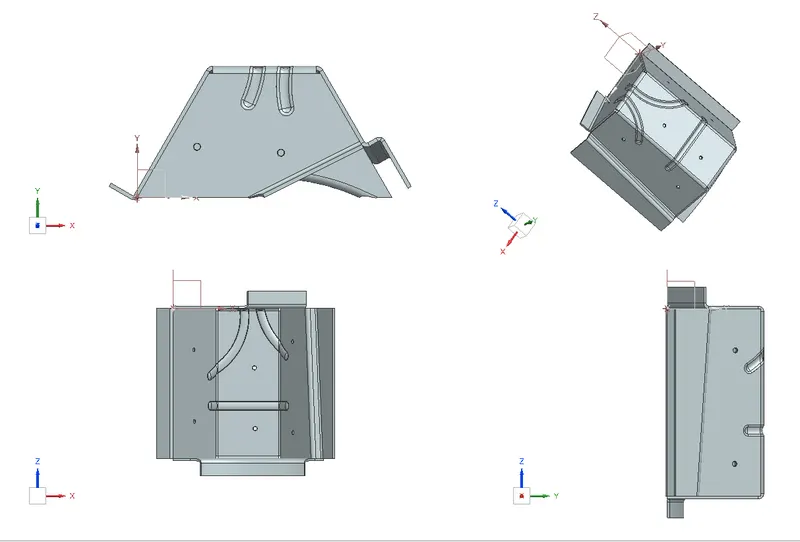

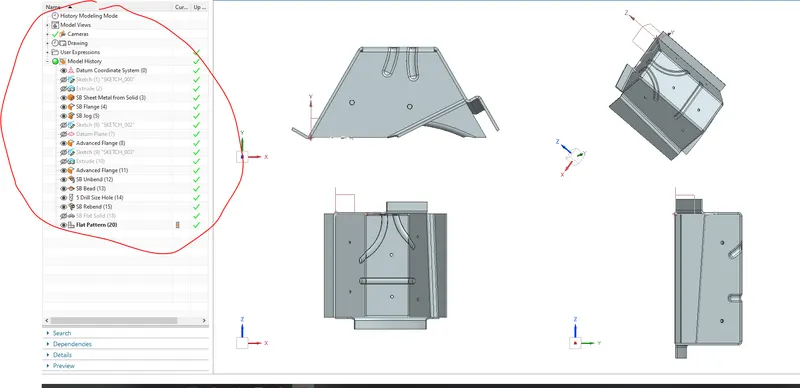

Upload a min of four screenshots of Model in the report. (Front View, Side View, Isometric View and the Top View)
