Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

Odd Shape Enclosure Design

#Objective: To Create Odd Shape Enclosure by following the tutorials using Siemens NX.

#Introduction:

 The term “sheet metal” refers to any metal that can be formed into flat pieces of varying thicknesses. Thick metals are called plates. Metals used in the sheet metal industry include cold rolled steel, mild steel, stainless steel, tin, nickel, titanium, aluminum, brass, and copper.

Sheet metal is one of the shapes and forms metal can be bought in. Sheet metal is any metal that has a thickness of between 0.5 to 6mm.

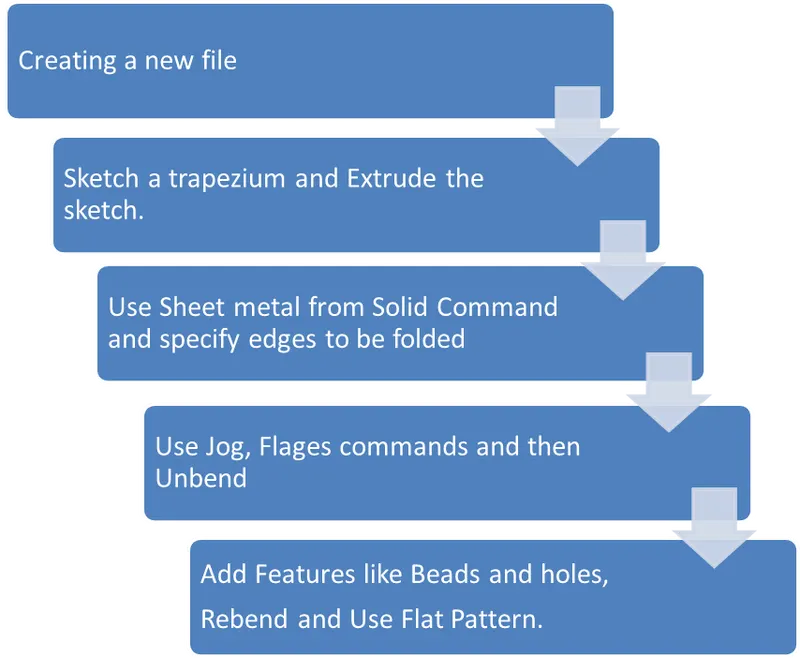

#Procedure:

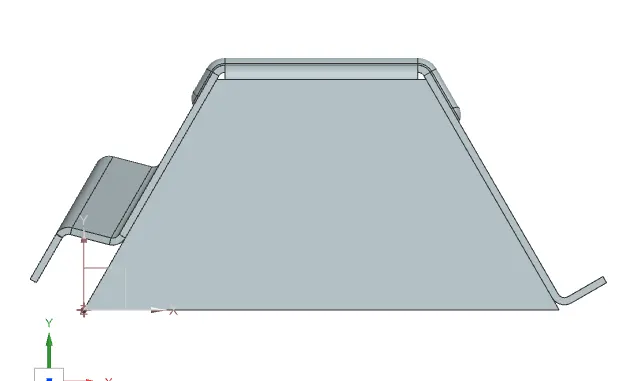

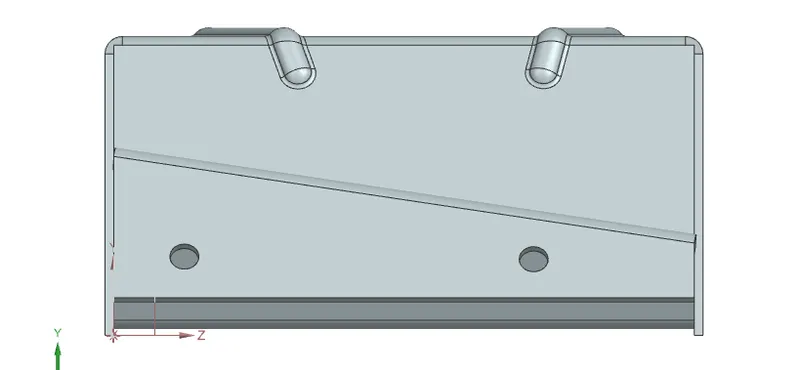

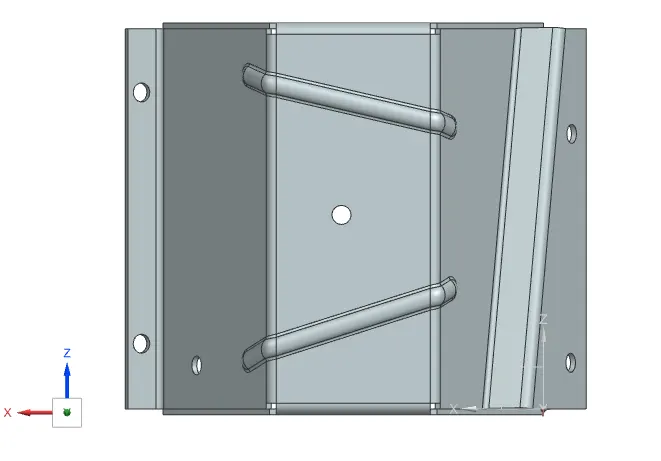

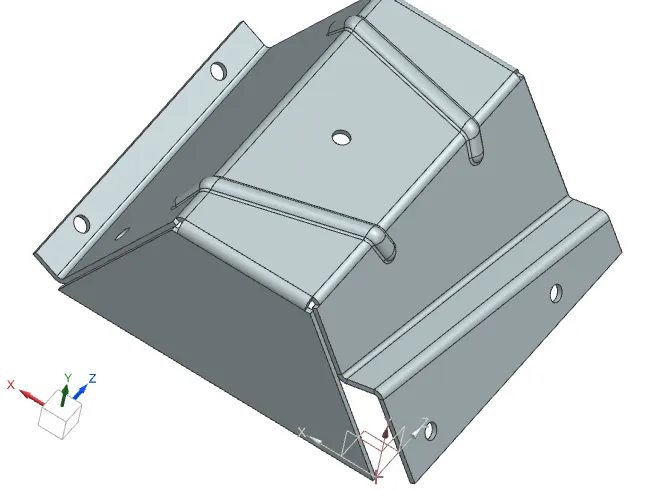

# Odd shape Enclosure Design (Front, Top, Side, Isometric View):

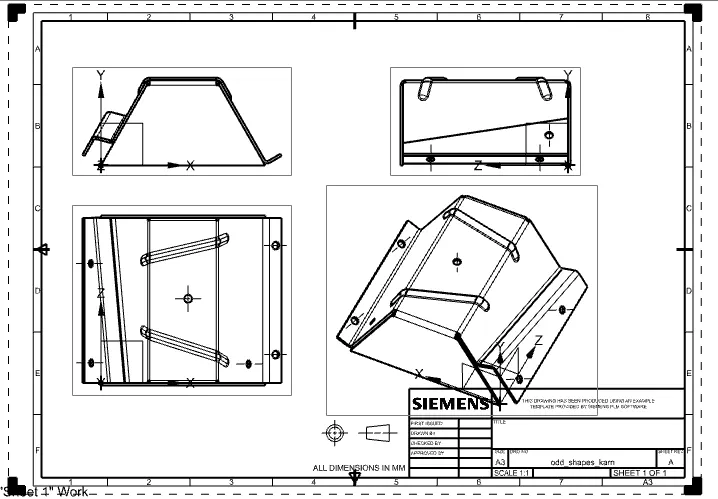

#Drawing Sheet:

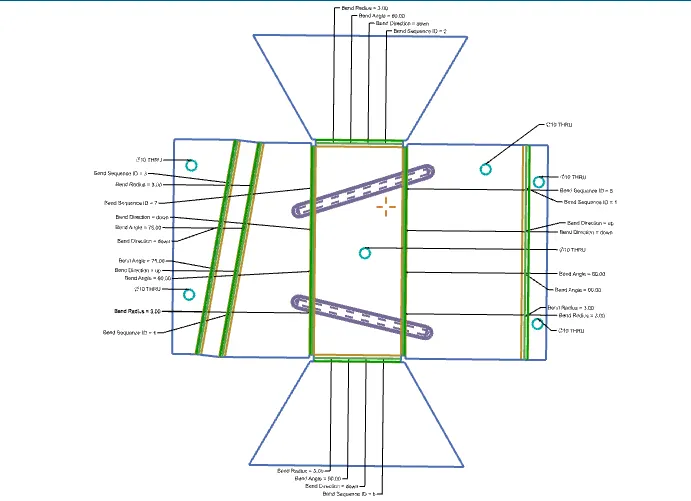

#Flat Pattern:



#Conclusion: Successfully Created an odd shape enclosure design using NX.
