Advanced Sheet Metal Design Using NX Cad Challenge_5_Odd Shaped Enclosure

TITTLE:-To convert solid enclosure to sheet metal using advanced sheet metal techniques.

NAME:-Jaageeri varun raju

SUBMITTED TO:-skill_lync

OBJECTIVE:-To convert a solid body into sheet metal using advanced sheet metal techniques.

INTRODUCTION :- In this project i was explored the diffrent sheet metal techniques which are used to convert a solid body into SM body

METHODOLOGY:- In this Project i follows the general work flow of Convert to sheet metal.

Create solid body

Wrap the soild body with sheet metal

add features

unbend

add more features

rebend the unbend areas

Flat urface

Features Used:-

Extrude:-It is adding of matrial in the direction normal to sketch profile

Sheet metal from solid:-Used to wrap the solid by selecting faces and edges.

Flanges:-making a length of sheet metal a by bendingt our desired angle with respect to line or edge.

Jogs :- modifies the material by lifting one side of sketch and adding the material between two flanges.

Beads:-lifts the material along the countour of the sketch profile.

Flat pattern:-Used to create the flat pattern of the sheet metal object.

PROCEDURE

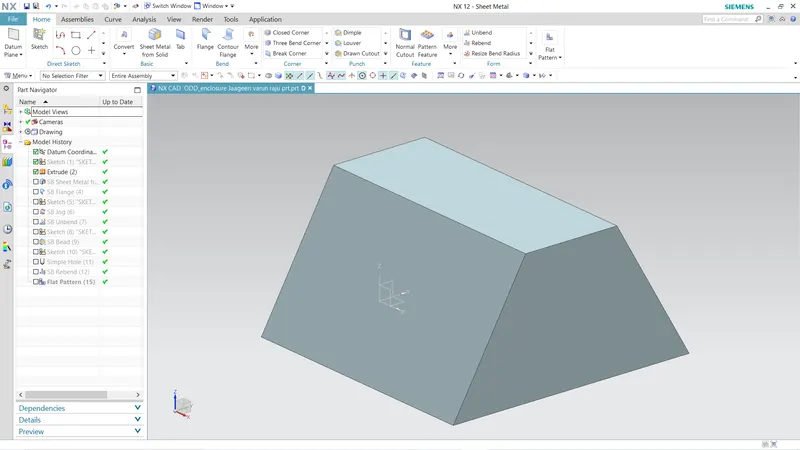

Step1:-Creating a solid

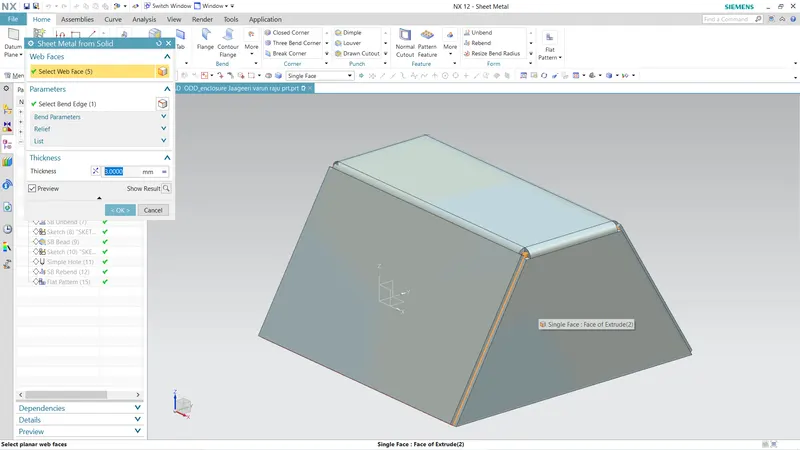

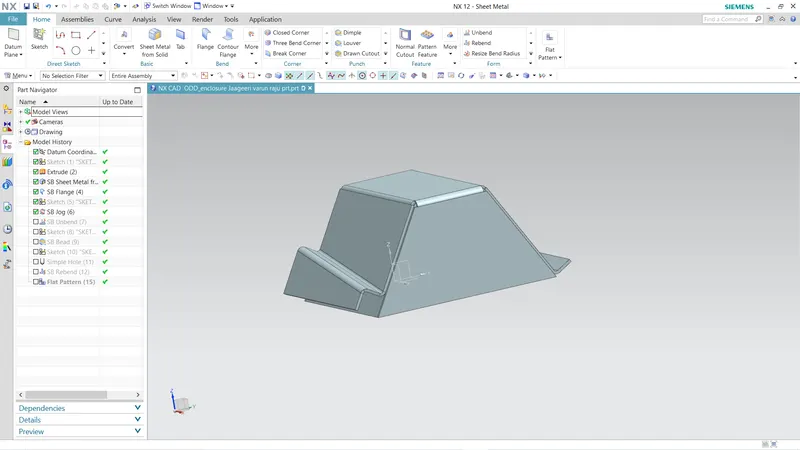

step2:-Wrapping the solid by using sheetmetal freom solid

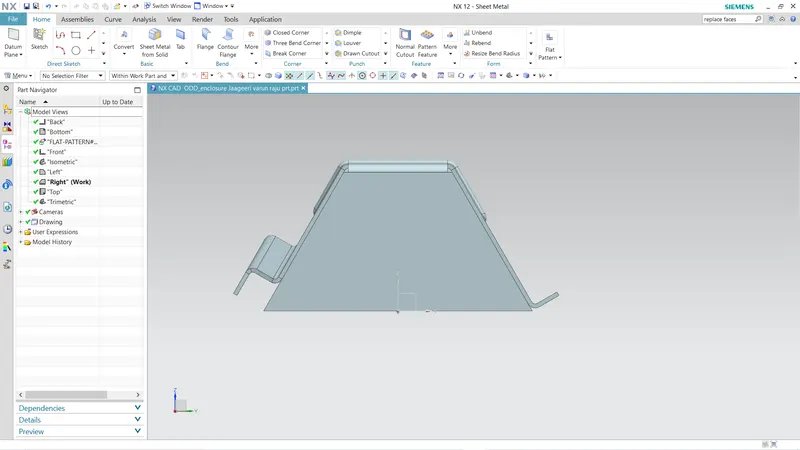

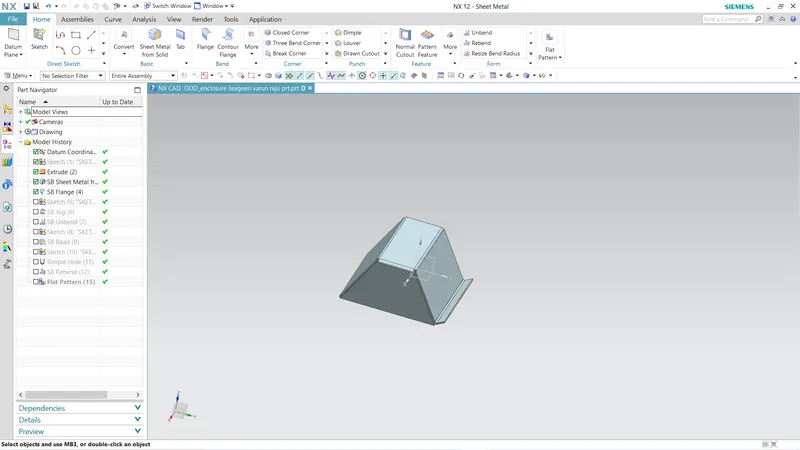

Step4:-Adding primary features here i added flanhe and jog

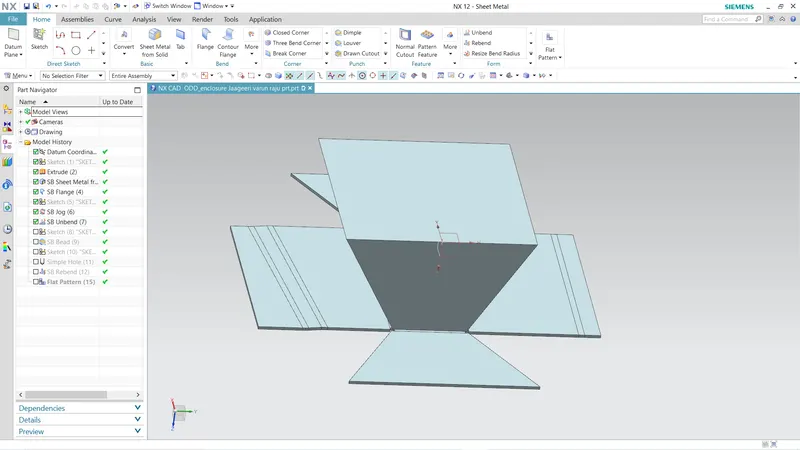

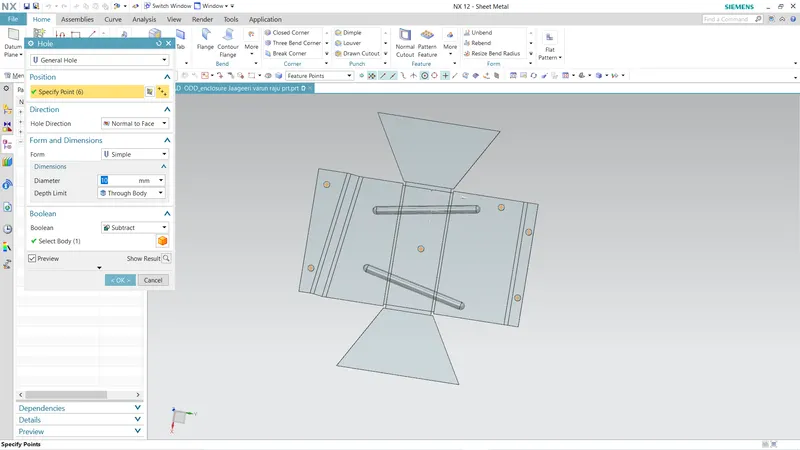

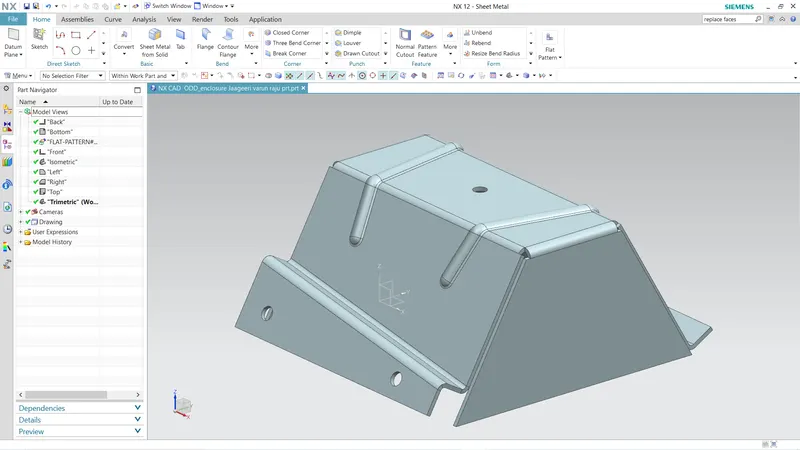

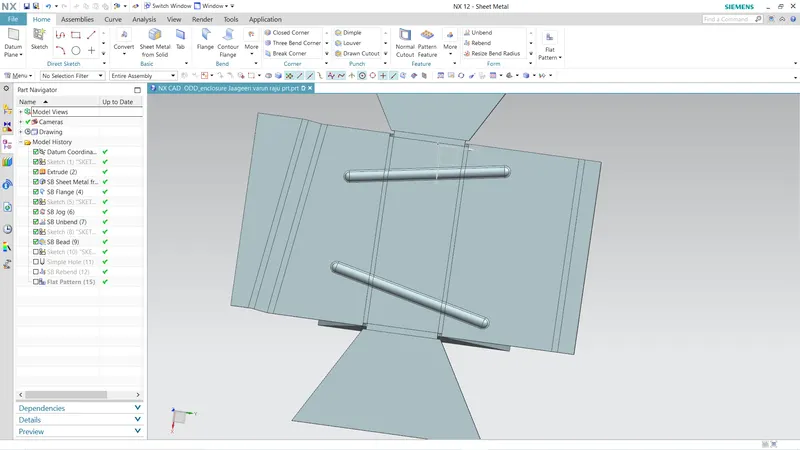

step5:-undent and adding the remaining/necessary secindary features here i add beads and holes

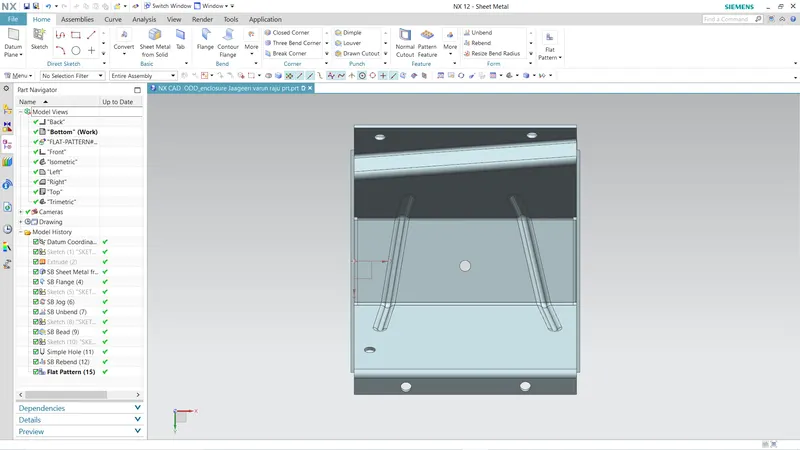

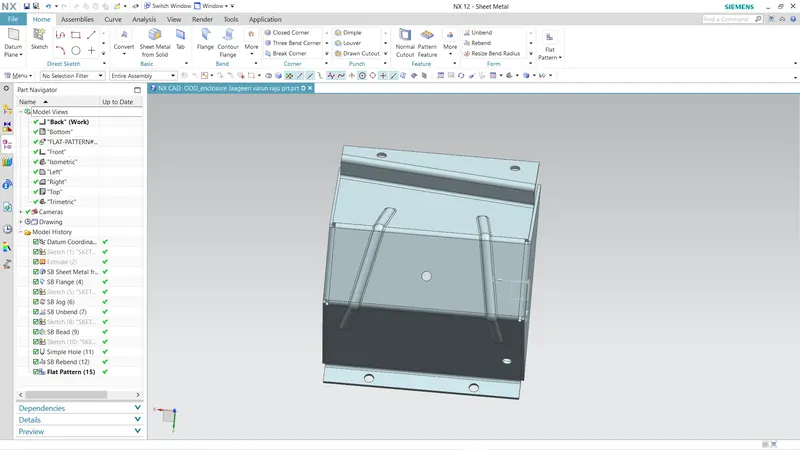

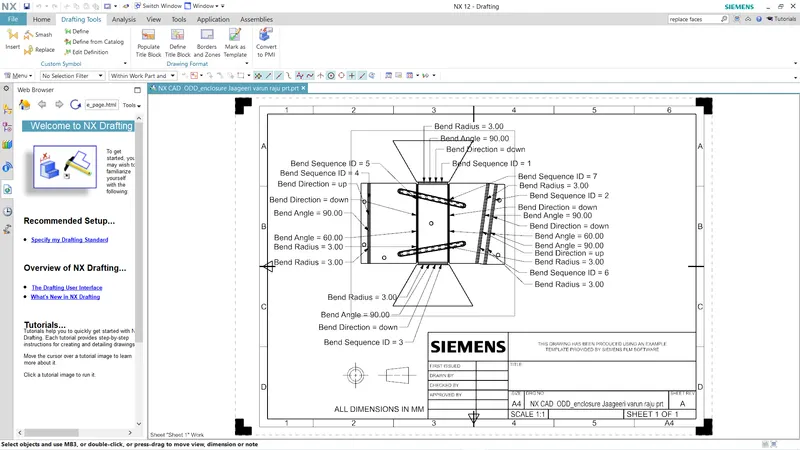

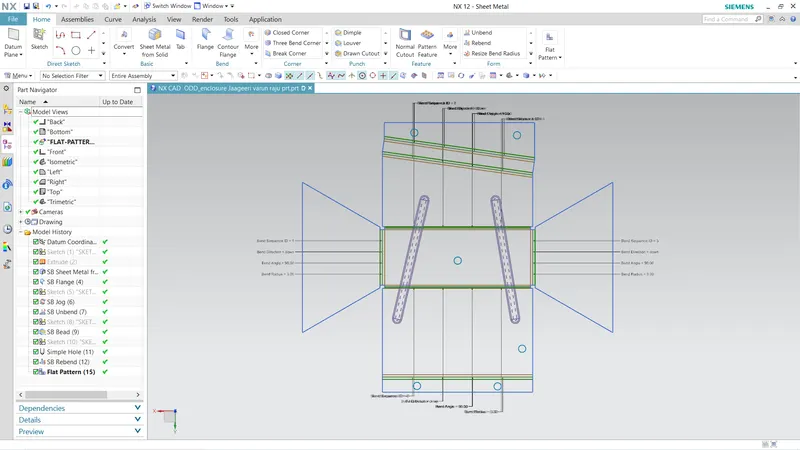

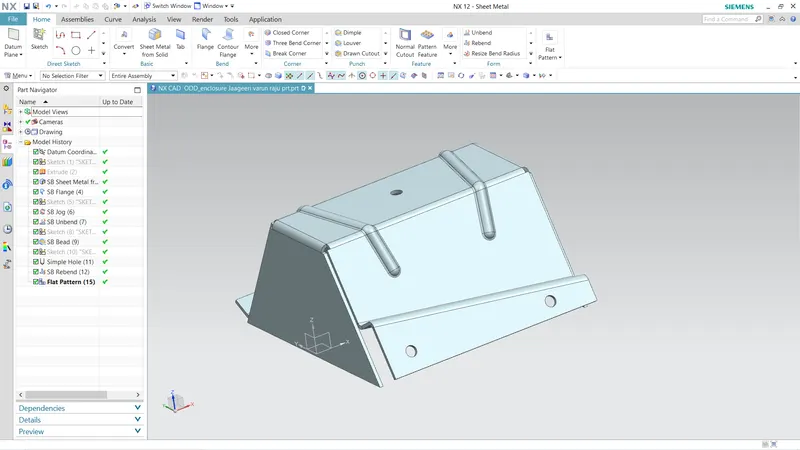

step6:-Rebend and make a flat pattern

CONCLUSION

n this project i was learn about the work of convert to sheetmetal/sheetmetal from solid and explored thr corespoinding features and how to use them effeficiently
