Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly
Box Assembly
Objective - To create a box assembly in sheet metal using NX CAD.
Design Methodology
| 1 | Create a tab |
| 2 | Creation of flanges |
| 3 | Creation of Hem flanges |
| 4 | Closing corners |
| 5 | Adding beads |
| 6 | Break corners |
| 7 | Adding required cut-outs |
Description of features used
- Tab - It is used to create a sheet metal by providing thickness.
- Cut - out - It is used to remove material from sheet- metal.
- Bending - It is used to bend the sheet metal as per requirement.
- Flanges - It is used to create flanges on the edges of the sheet-metal.
- Unbend - It is used to unbend the sheet metal.
- Dimple- It isused to create a projection on the sheet -metal.
- Bead - It is used to create a projection on the sheet-metal.

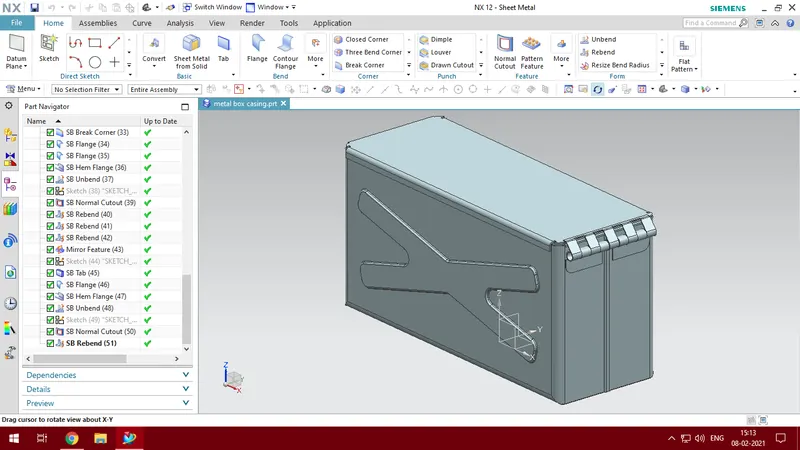

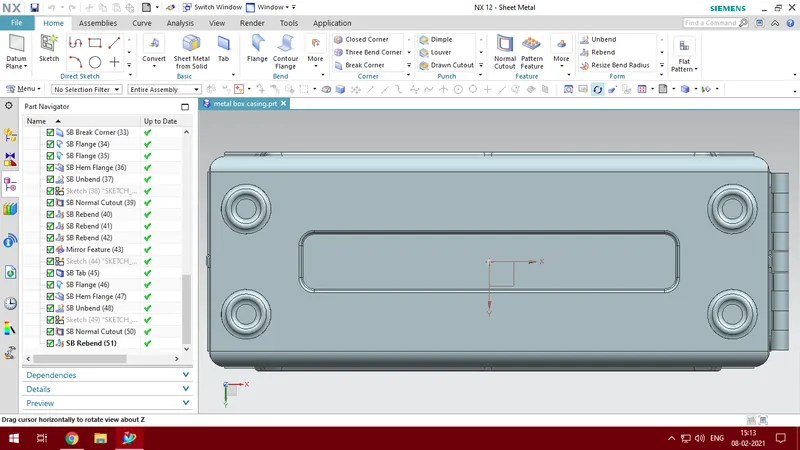

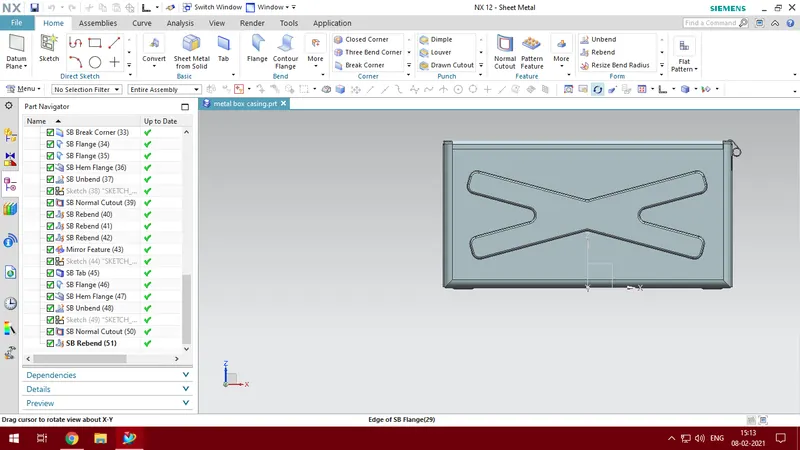

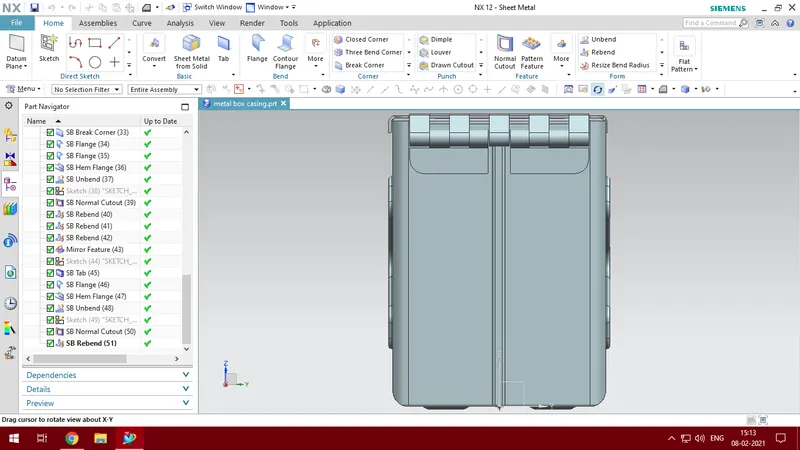

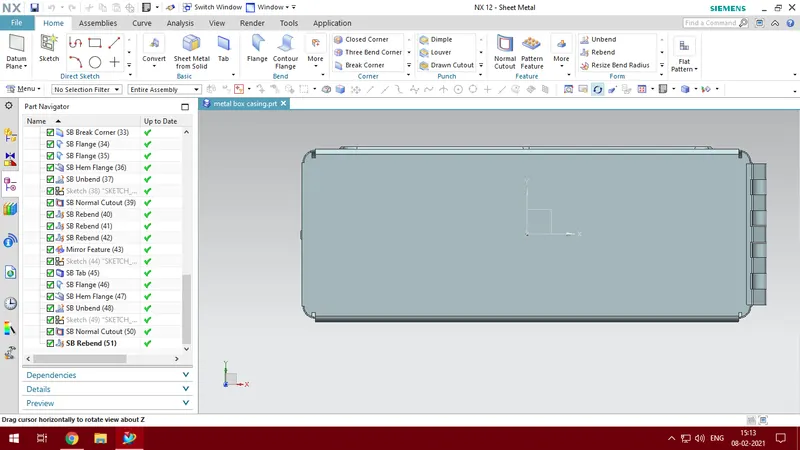

Images
Conclusion
Sheet metal box assembly is created as per requirement using NX CAD.
