Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly

1. TITLE : BOX ASSEMBLY

2. OBJECTIVE:

To design a box as per given details.

3. INTRODUCTION:

A dumping box designed with a hinged door attached to it on top.

4. DESIGN FLOW CHART:

5. DESCRIPTION:

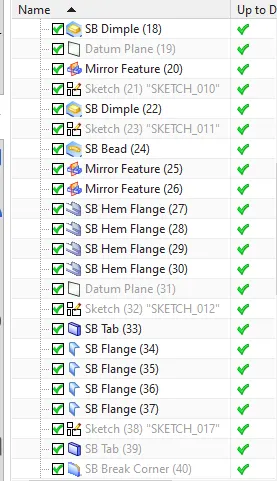

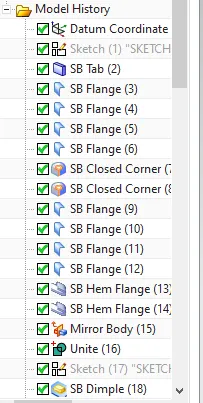

• On top face a base tab is drawn with given dimentions.
• edge flanges on four side.
• the corners has been closed
• edge flanges upto the center portion at left and right sides.
• hemming given on that edge flanges.
• the body is mirrored and united.
• dimple and beads made on the box model.

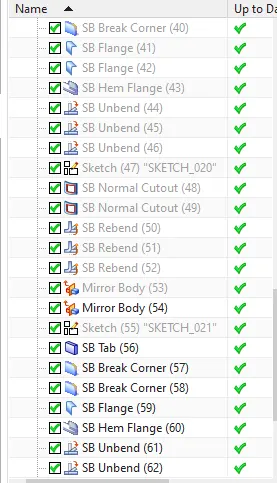

• designed a top cover with hinges.
• designed hinges on one side of the box.

6. VIEWS:

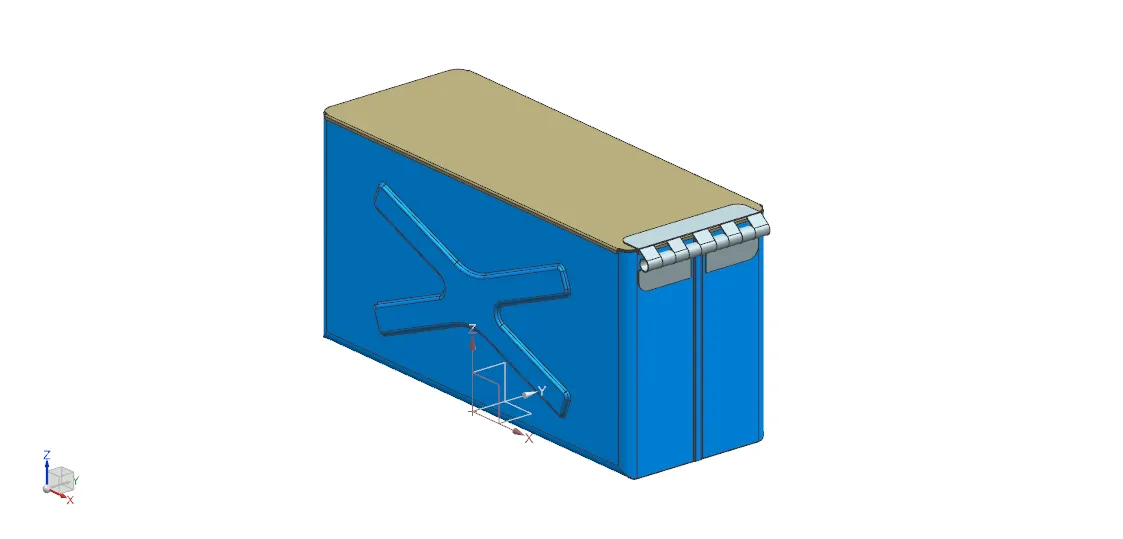

ISOMETRIC VIEW:

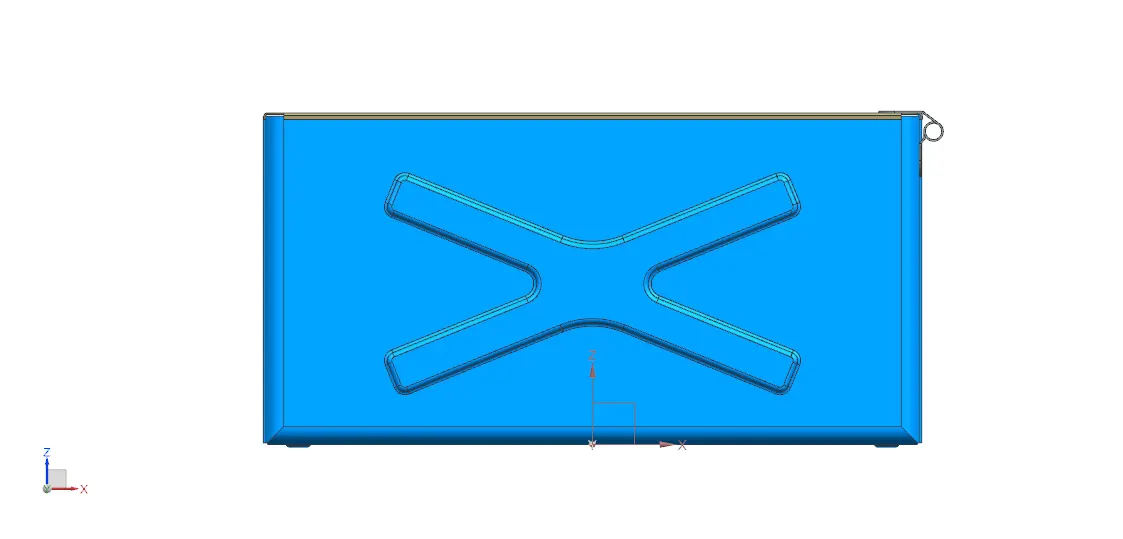

FRONT VIEW:

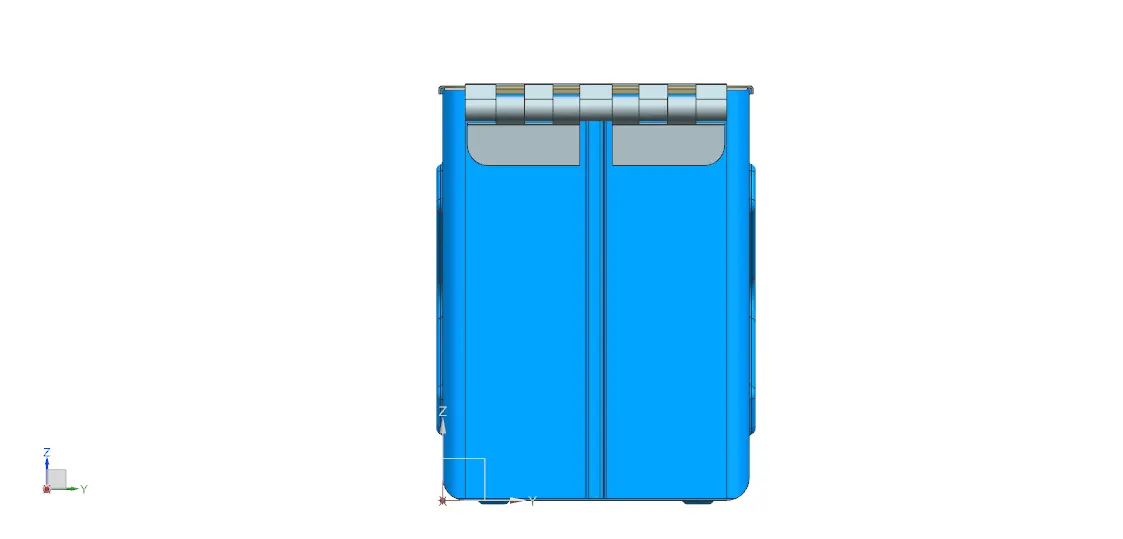

SIDE VIEW:

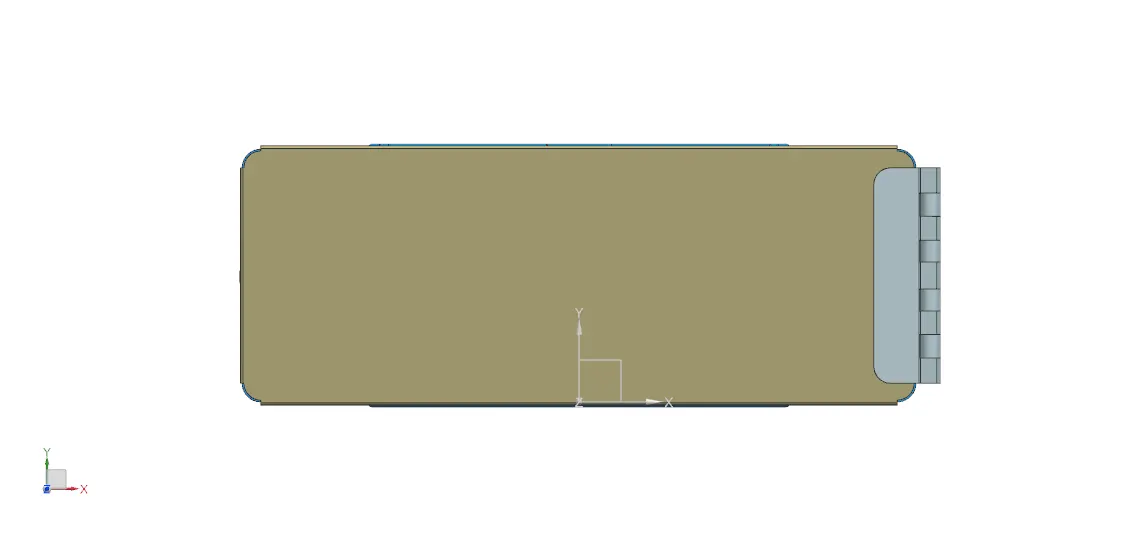

TOP VIEW:

7. CONCLUSION:

The dumping box designed as the given data.
