Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly
1. Title : Advance Sheet metal design with NX CAD -2_Box Assembly
2. Objective:
To design the sheet metal Box Assembly as per dimensions provided in the master sketch with the help of Seimens NX CAD software
3. Introduction :
- The material which posses properties to get formed into thin sheet are called as sheet metals.
- Sheet metal have uniform thickness and Thickness ranges from 0.15mm to 6mm, below 0.15mm is called as foil and above 6mm is called as plates.
Box assembly consists of the following parts
- Box
- Tap Lid
- Circular pin

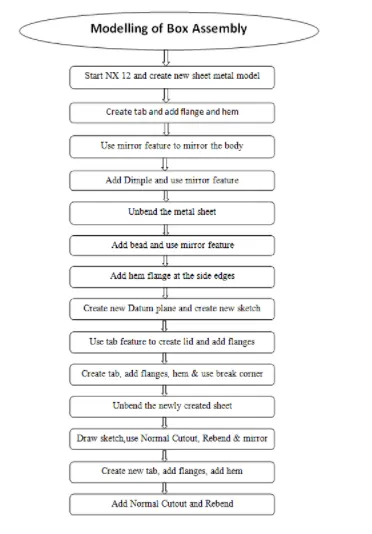

4. Design methodology / approach
5. Description

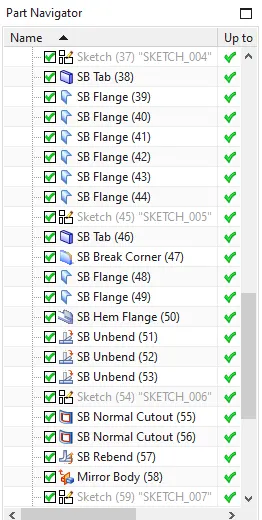

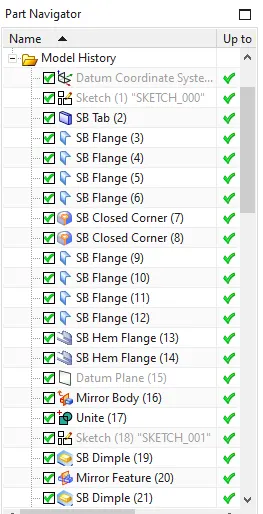

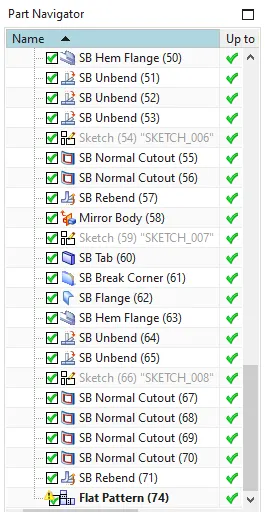

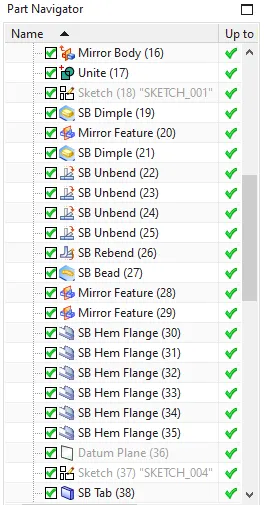

Features used:
- Set Design parameters
- Sketch
- Tab
- Flanges
- Close corners
- Hemming Flange
- Mirror body
- Unite
- Unbend
- Add Dimple
- Add Dimple
- Add Beads
- Add Holes
- Mirror Features
- Rebend
- Flattening and forming
- Drafting
6. Design Views

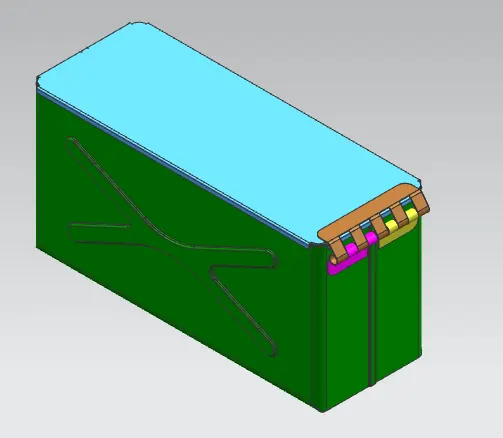

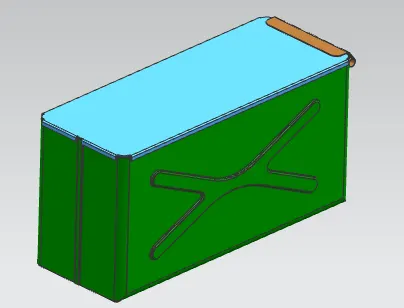

Isometric View

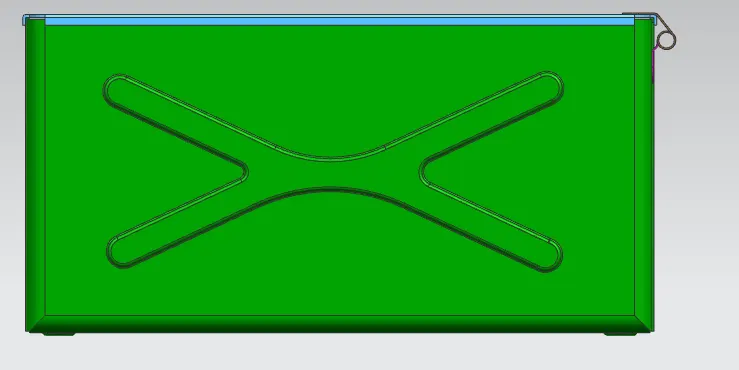

Front View

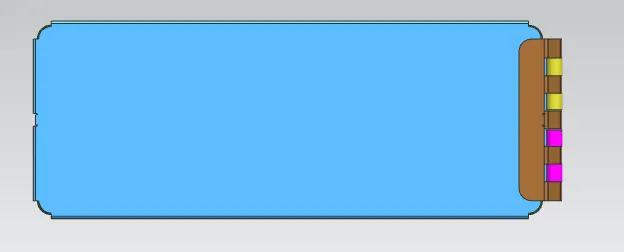

Top view

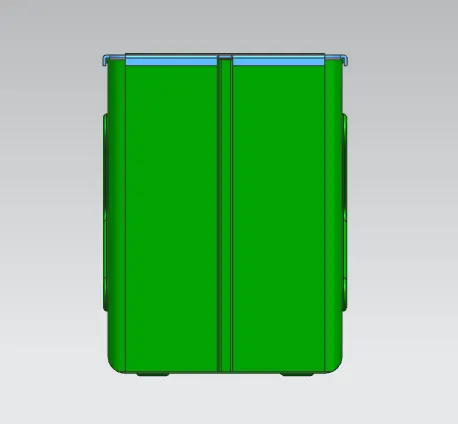

Side View

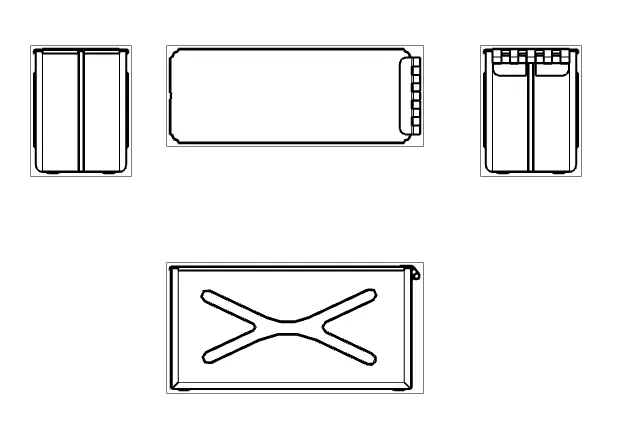

7. Drafting View

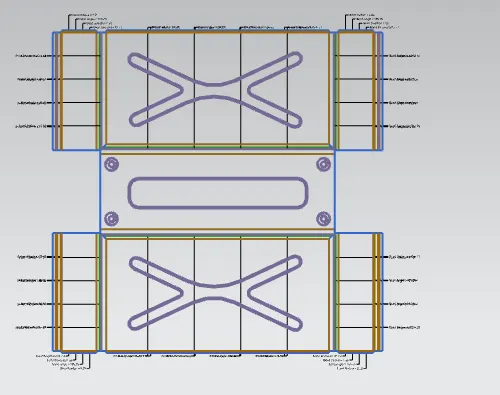

Flattern View
8. Conclusion:
As per standards of sheet metal design is made and detailed drawings are made.
