Advanced Sheet Metal Design Using NX Cad Challenge_2_Box Assembly
Title of the project:
Box Assembly
Objective
Siemens NX formerly known as Unigraphics was used to design the casing.
Introduction
Sheet metal forming is the process in which a flat sheet is converted to desired shape by (bending, cutout, embossing, etc.) without causing any rupture to the sheet metal.
Sheet metal thickness varies from 0.4mm to 6mm, thin sheet metal is called leaf or foil and thicker ones are called as plate.
few examples of the industries which are reliant on sheet metal are aerospace, automobile, oil and gas, electronics, food service etc.

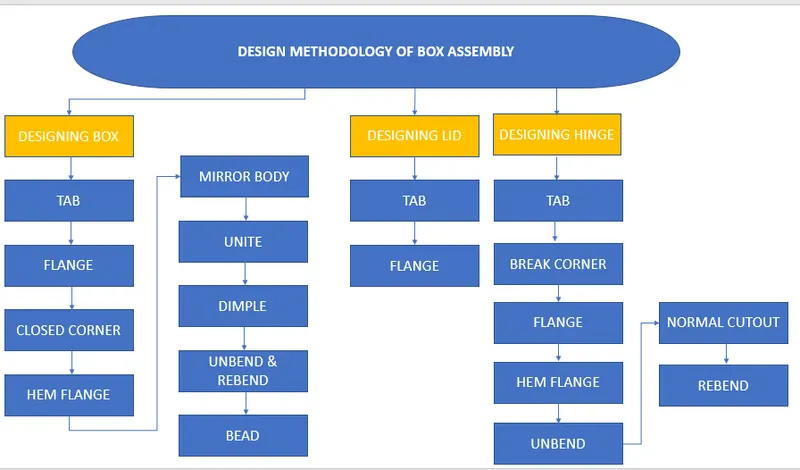

Design methodology
Description
Tab- it is used create the base
Flange-feature consisting of a face and bend connected to the existing face along straight edge
Closed corners-to modify the corners of the adjacent flange
Hem flange-the edge of one metal sheet is bent such that it can be bonded with another metal sheet.
Mirror-To copy the sam feature to the opposite side
Unite- It is used to combine to bodies
Normal cutout- to create a cut in desired position
Bend-to bend the sheet metal at the desired position
Unbend/ Re bend- done to ease the next operation
Break corners- done to remove the sharp edges
Bead-it is created by punching in the sheet metal which adds stiffness to the sheet metal.
Dimple-it is a fuctional requirement and can also add stiffness to the sheet metal.
Screenshots

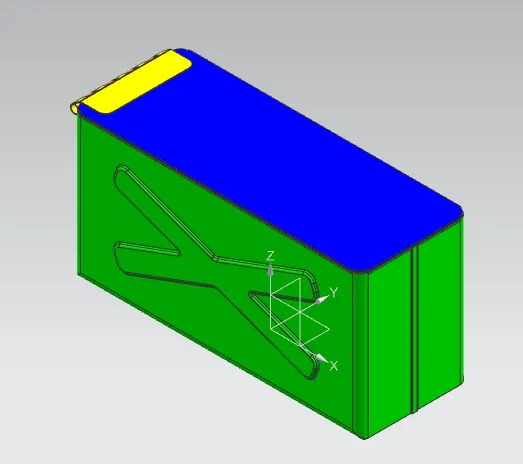

Isometric view

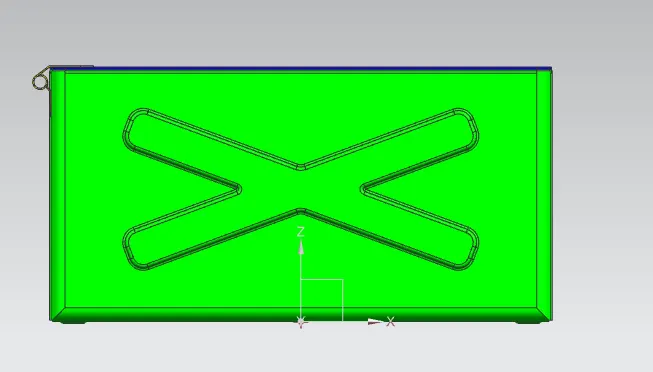

Front View

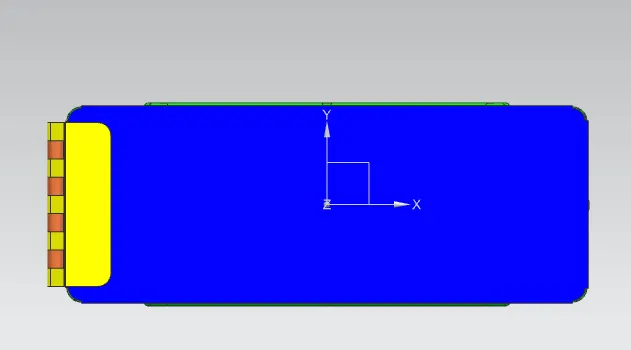

Top view

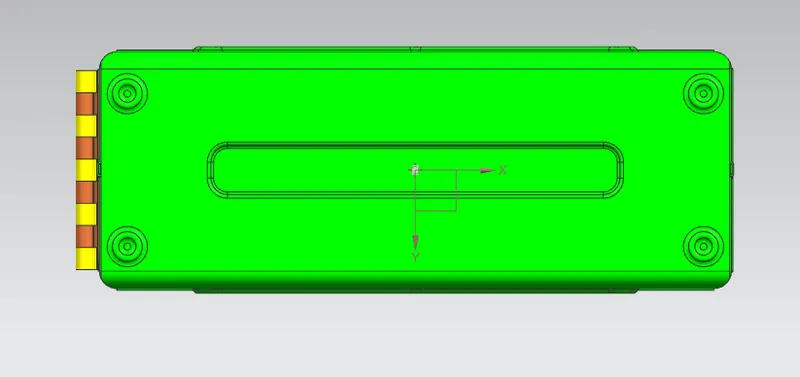

Bottom view

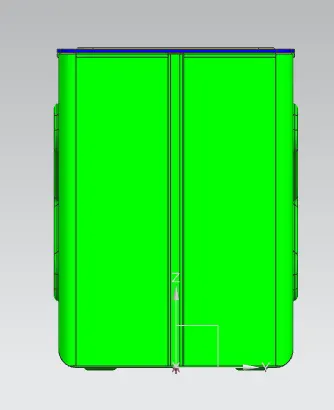

Left view

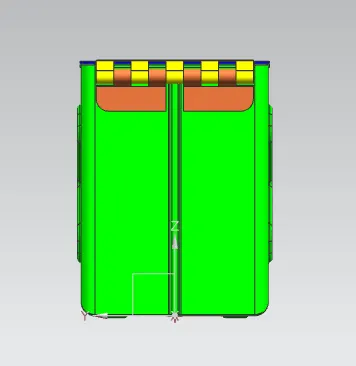

Right view

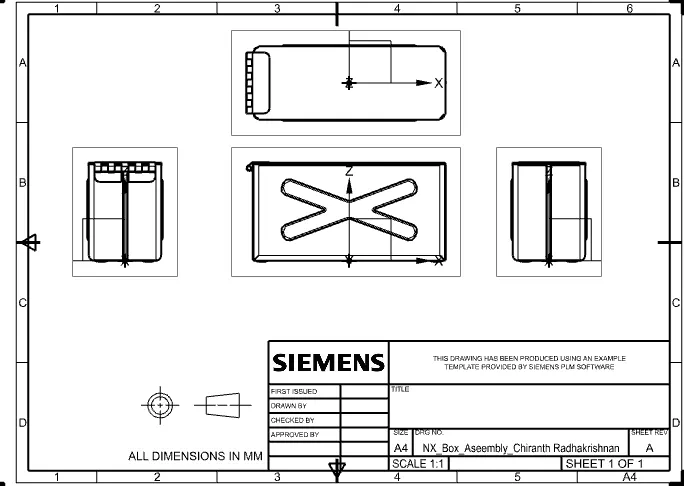

Drawing sheet
conclusion
Using the above mentioned commands the box assembly was successfully completed.
