Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Title of the Project : Casing Design Using NX Cad
Objective : Casing Desing using advance sheet metal tools in NX cad.Main objective of this project is to gain knowleadge about the sheet metal tools which we can use in complex geometry and parts.
Introduction: NX sheet metal design includes material and process information in sheet metal-specific modeling features: bends, flanges, tabs, cutouts, beads, dimples, louvers, corner and edge treatments, patterns and other formable features. In this project, CASING created by using different sheet metal features, changing feature perameters. It help us to understand sheet metal features criteria as weel as how we can use it in different ways.

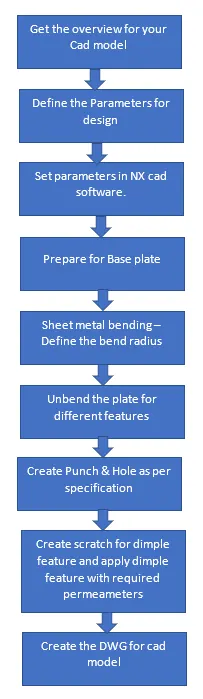

Design methodology:
Description :

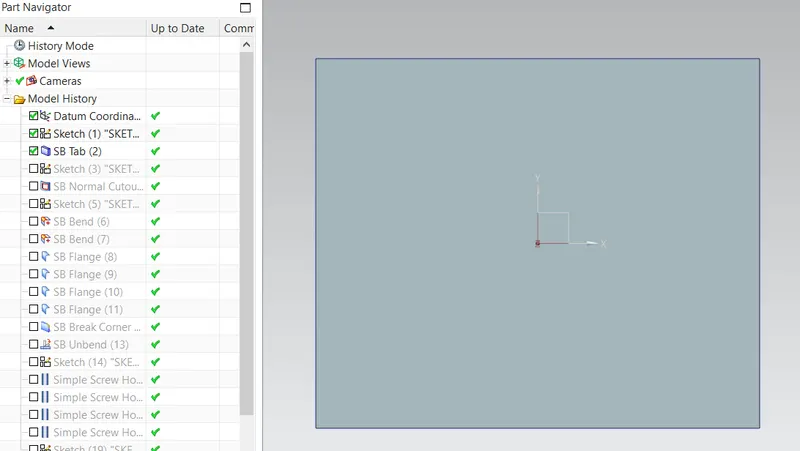

- Create the base plate by using Tab feature.

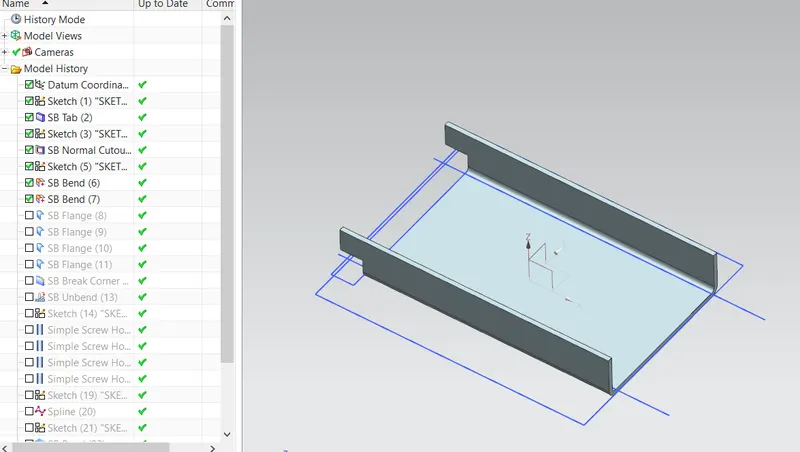

2. Bend the plate by Bend features with respect to sketch.

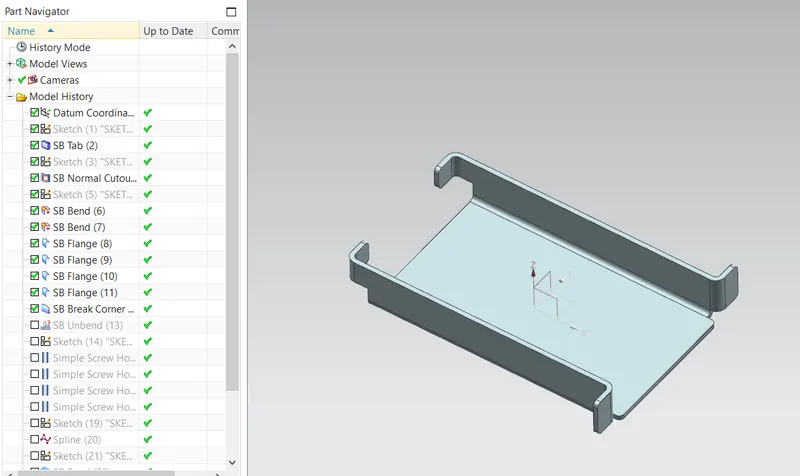

3. Add the flanges by using the Flange features and break the corners with Break corner feature.

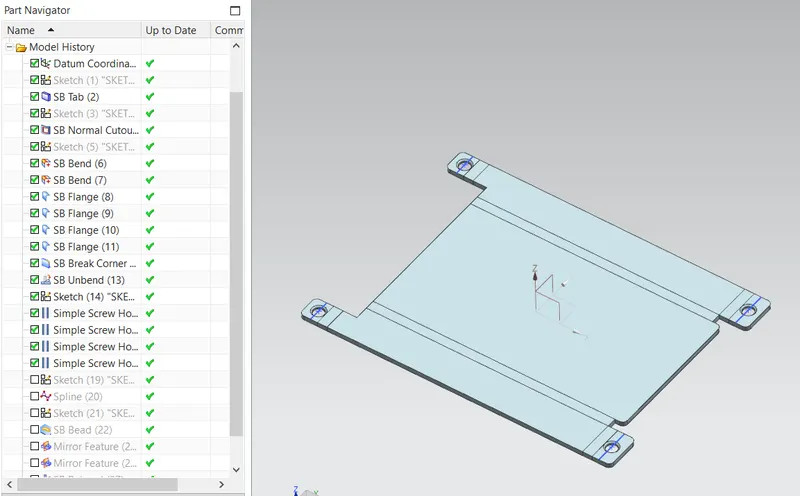

4. Unbend the plate with Unbend feature and draw the sketch for hole. Creat the M2 screw size and H13 fit holes by using the Hole tool.

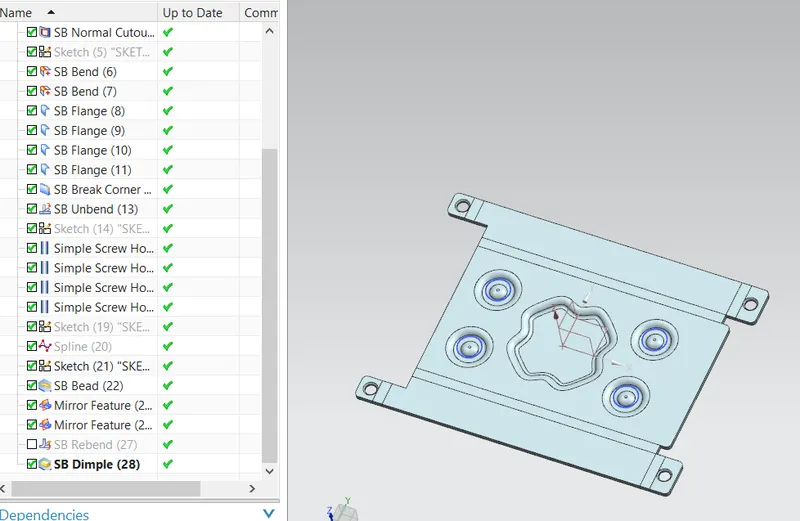

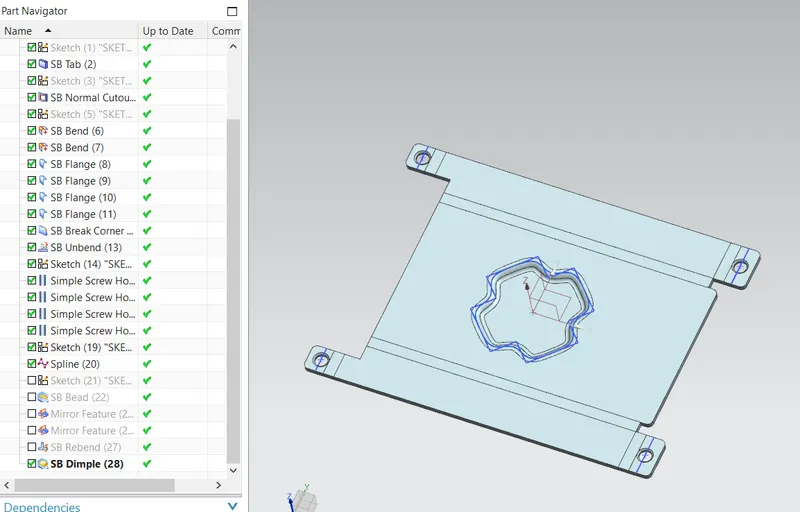

5. Create the Spline by using the Spline feature and apply the Dimple tool.

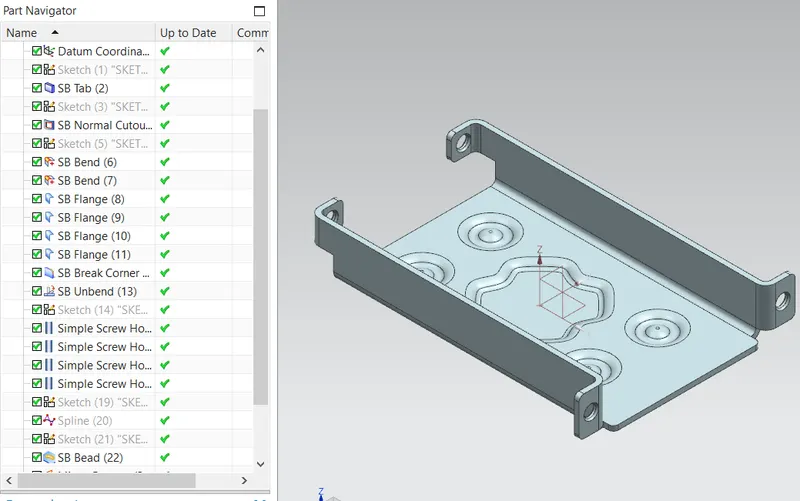

6. using the Bead with Bead tools and do mirror bead and corresponding sketch.
7. bend the base plate with re-bend the tool.

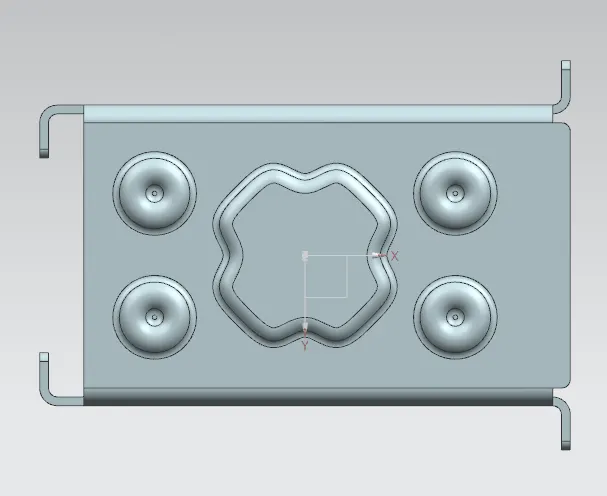

Top View:

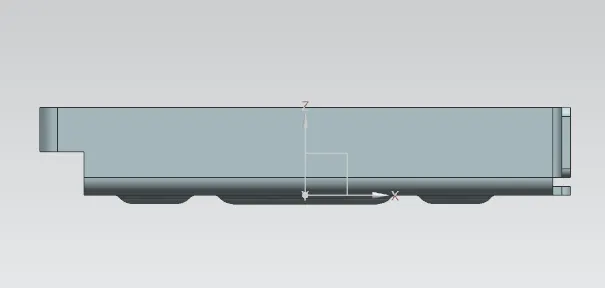

Front View

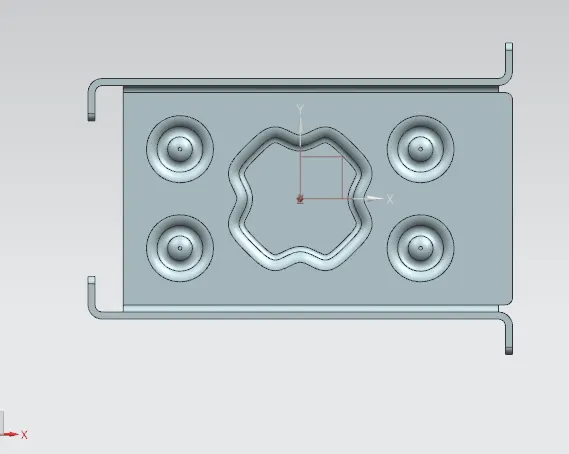

Bottom View

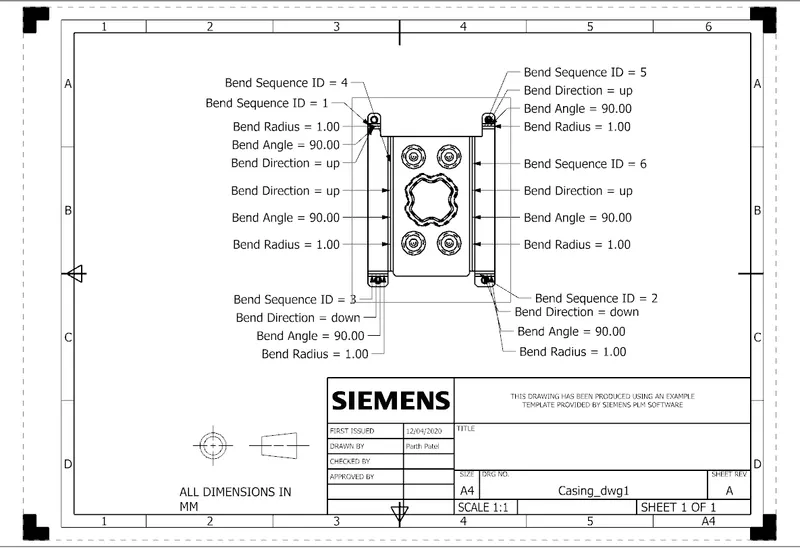

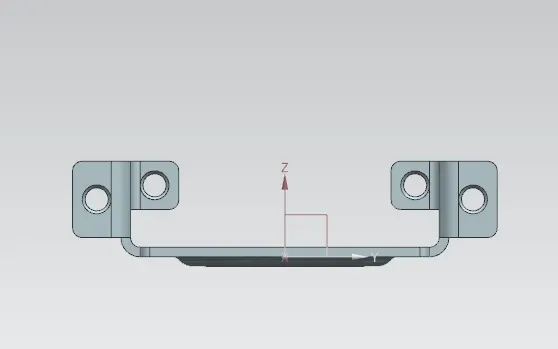

Side view
Isometric view
