Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design

1. TITLE: CASING DESIGN

2. OBJECTIVE:

To design a casing as per the instructions.

3. INTRODUCTION:

• designed a casing of sheet thickness 1.00 mm
• also bend radius provided euqal to sheet thickness.
• a dimple and beads are also given in the part.

4. DESCRIPTION:

• A sheet metal body of thickness 1.00 mm designed. The bend edges has been given as per the model given.
• The radius of the bend edges is same as the sheet thickness.
• Unbend the sheet by selecting bend edges one by one.
• Then four numbers of holes given at each bend edges by using a command simple screw hole.
• A square dimple is made at the center with a depth of 1.00 mm.
• at the end four numbers of bead made .
• Rebend the sheet to form a original sheet metal model.

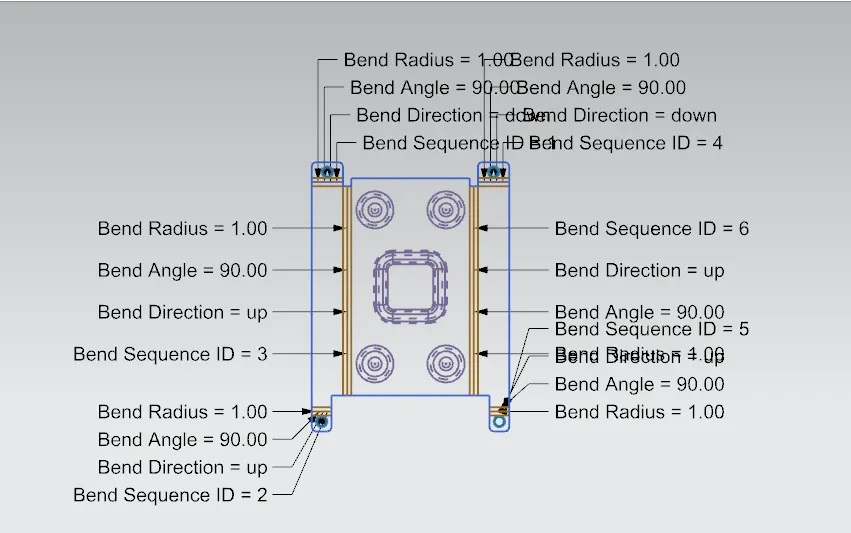

• Eventually make a flat pattern of the designed sheet.

5. IMAGES:

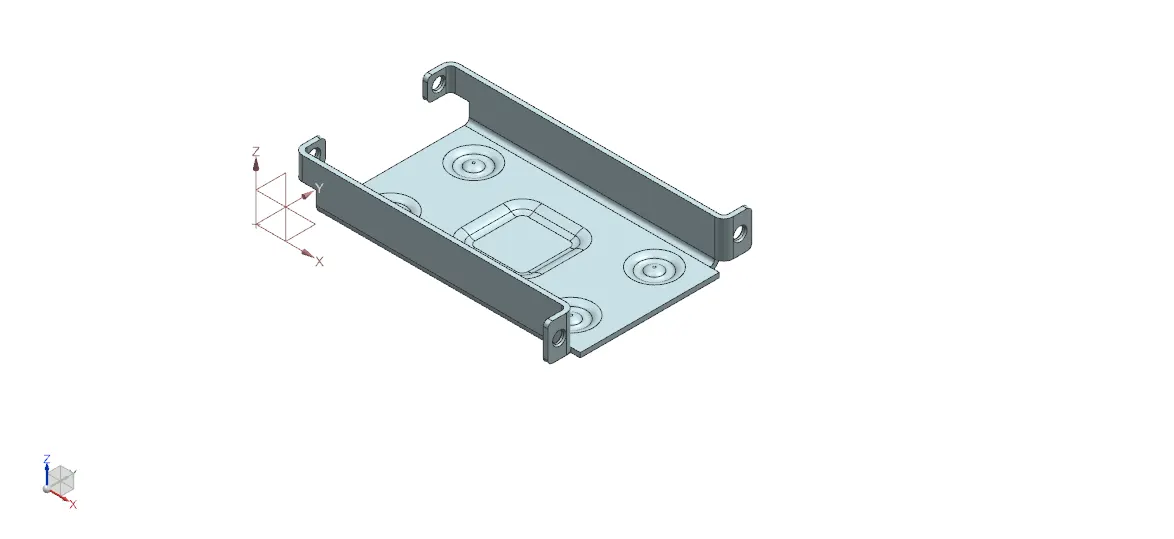

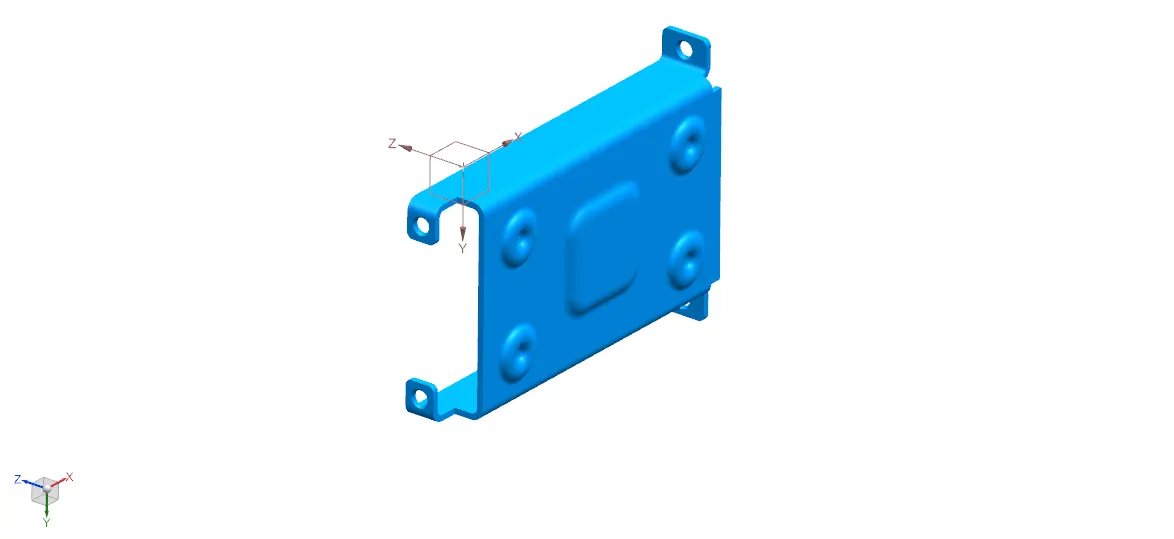

ISOMETRIC VIEW:

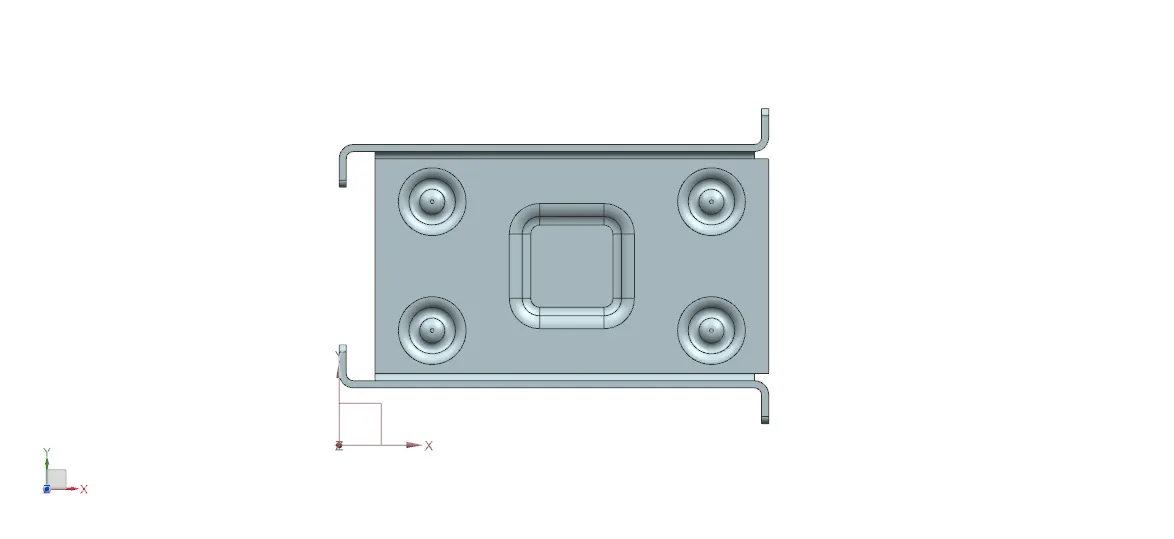

TOP VIEW:

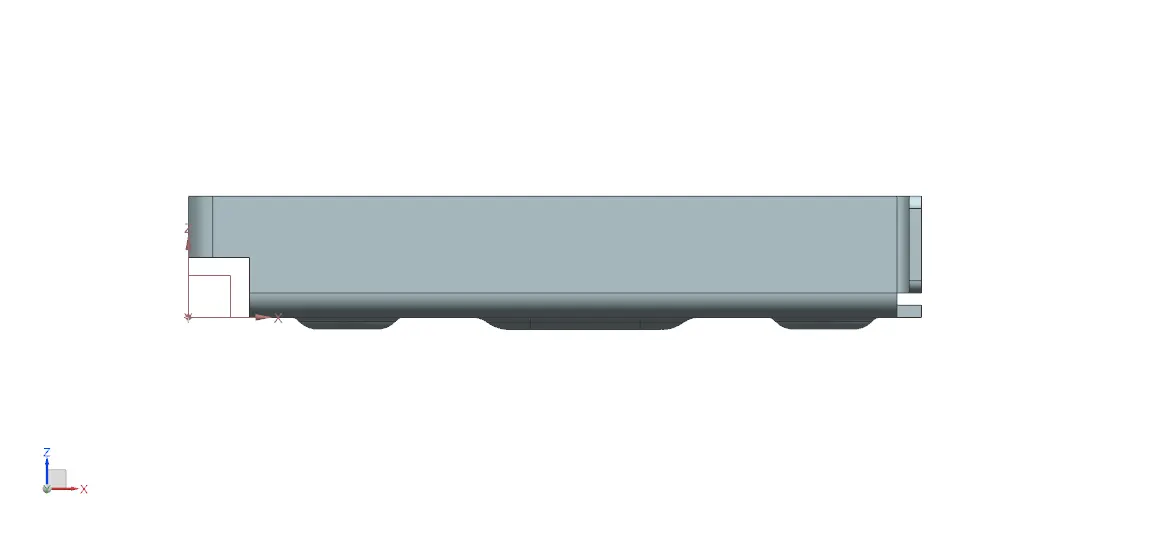

FRONT VIEW:

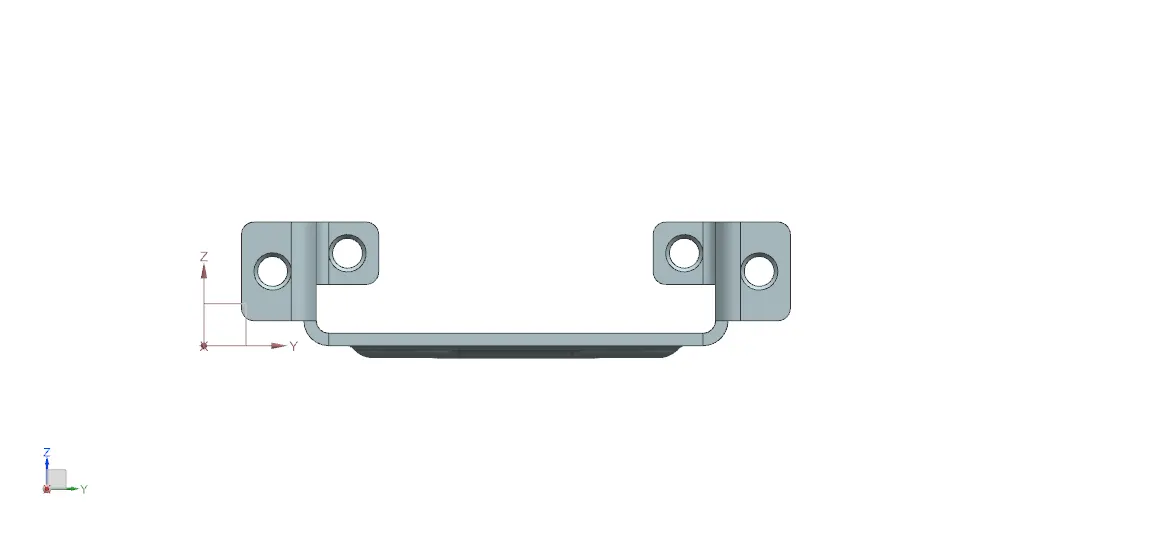

SIDE VIEW:

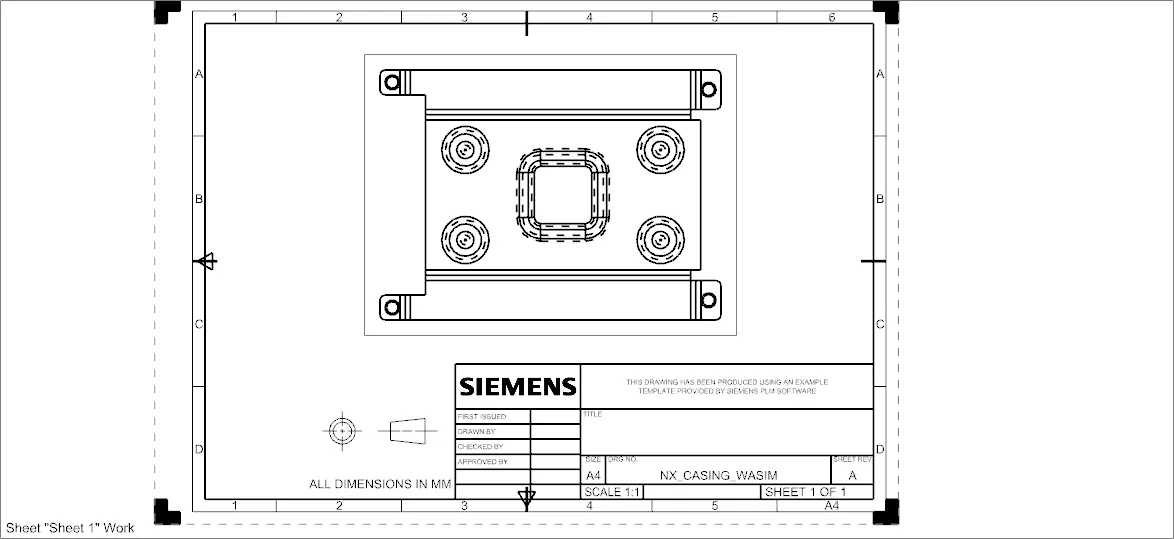

6. SHEET:

7. CONCLUSION:

The final sheet metal model is attached in the drop box.
