Advanced Sheet Metal Design Using NX Cad Challenge_1_Casing Design
Write a detailed report on the Sheet Metal Component with a good explanation of Sheet Metal modeling tools applied throughout the modeling. Also, attach the Final model Images (Min. 4 images) of the Sheet Metal Casing.
Sheet Metal CASING Design Using NX Cad
OBJECTIVE :-
To design a sheet metal casting using NX Cad software with suitable commands to achieve the final product as per the inputs.
INTRODUCTION :
Sheet Metal is a type of material that is flattened into thin sheets. Sheet metal is made by taking a large cast in and rolling it into a long ribbon of the thickness it wants. This flat metal is rolled into a coil and sent directly or cut the metal into sheets before being sent to a machine shop.
The sheets are made from metals such as aluminum, brass, copper, steel, tin, nickel, and titanium. The sheet’s thickness depends on the material needed for a project. Thicknesses can vary from 0.15 -6.00 mm significantly; extremely thin sheets are considered foil or leaf, and pieces thicker than 6 mm (0.25 in) are considered plate steel or “structural steel.”
Cutting: –
Sheet steel is cut by a shearing method that was used a lot before being replaced by faster and precise methods. A punch press is used to punch and die sets to cut the metal. It is effective for cutting simple parts which is then cut with a laser or a water jet.
It operates at hundreds of strokes per minute; a punch press makes suitable parts quickly. Punching is used to make holes or other cutouts in parts. The creation of a complex flat pattern with size-limited stamped features is done through laser cutting and combining punch.
Bending: –
Some metals can be bent along a straight axis using a variety of presses. Bends shape can be varied from gentle curves to vertical axis of steel used to sharpen the corners at an angle above, below, or right at 90 degrees. Press brakes are used to create these sharp bends. Open or closed single-axis curves can be produced by the rolling and forming method in a bending operation.
Hemming: –
It is the rolling edge of a metal shape that provides a smoother, stronger edge that is open, leaving an air space with a bend or closing the folded metal that is pressed tightly against itself.
Barrel hem is the curling that produces a rounded edge to a piece of metal. It is used to eliminate the sharp edges or serve an operational function in the case of a door hinge that holds the pin around the hinge rotates.
Design methodology IN Flowcharts
Select the XY Plane to draw the Sketch
The tab is created with Reference Sketch
Advanced flanges on the edges of bends create in the previous step
Bending operation is done on side of the tab behind the cut-out
on the tab created as a sketch to perform normal cut-out operation
Unbend the Sheetmetal by using unbend command
Added the holes were ever required by using the Hole command
Sketch is created on the Surface of tab to perform dimple operation
Studio Spline option is selected to create a spline curve
Rebend the Sheetmetal By using Rebend command
Beads also created with reference to holes where placed at required points Dimple operation with reference to Spline curve
Rotated Spline curve to 45 degree
final product was achieved as per the inputs
Final Touch up was given in Drafting Sheet with a suitable Scale
DESCRIPTION:
Sketch:- It’s a basic command to draw 2d models.
Tab:-
A command to add parameters of a Sketch
Bend:-
It’s an operation to bend the tab at a particular position with reference
Flange:- It’s an operation to extend of a sheet metal with to one of the edge of an tab
UNBEND:- It’s a command used to flatten the created 3d model taking one face as a stationary face.
HOLE:- It’s a command used to create a different type of holes like tapping and normal drilling, on the Surface of an Sheet metal.
DIMPLE:- It is a projection command of a particular shape with reference to a sketch with a certain depth.
BEAD :- It is also the type of projection to deform the shape at a certain point with reference to sketch and also give strength to the material.
REBEND:- This command is used to re-bend the already flattened sheet metal.

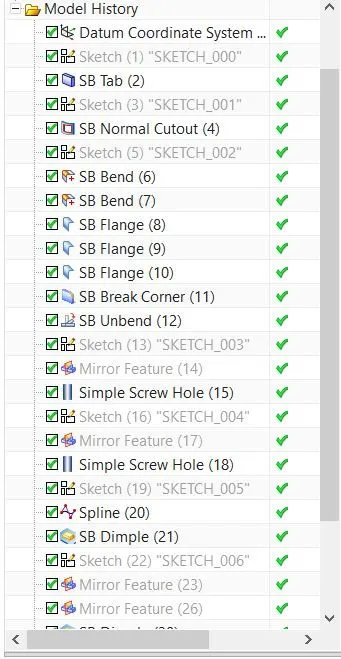

part navigator
unbend view

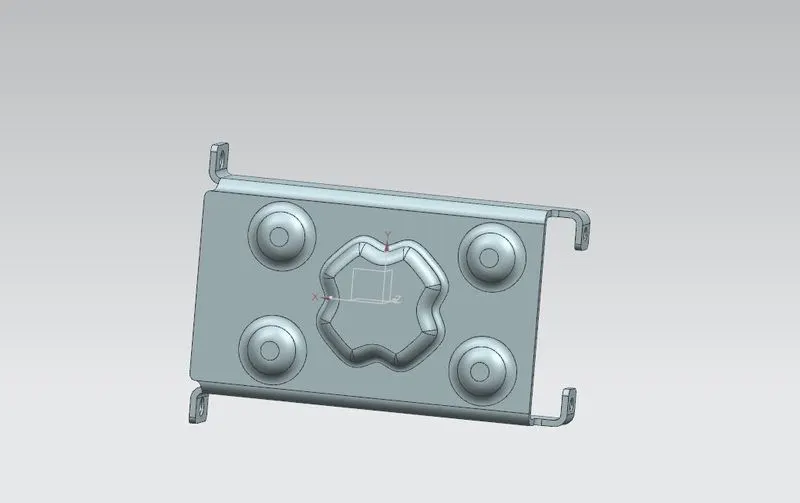

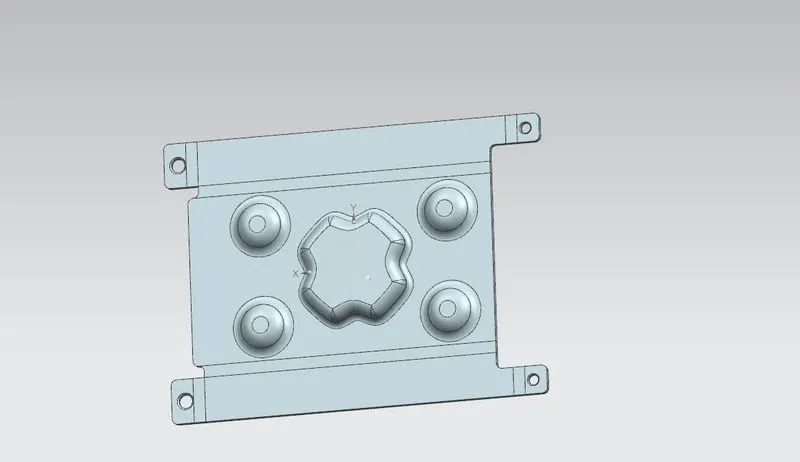

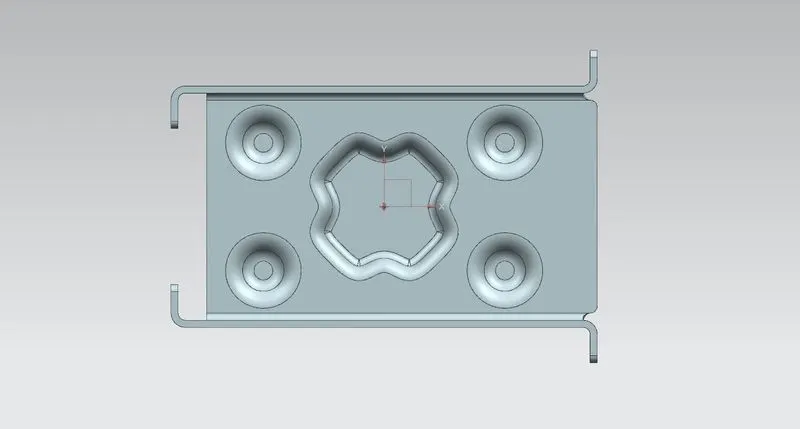

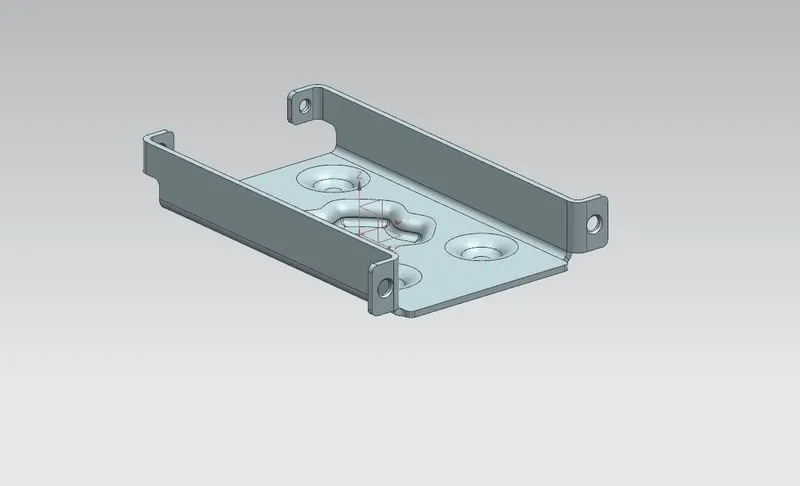

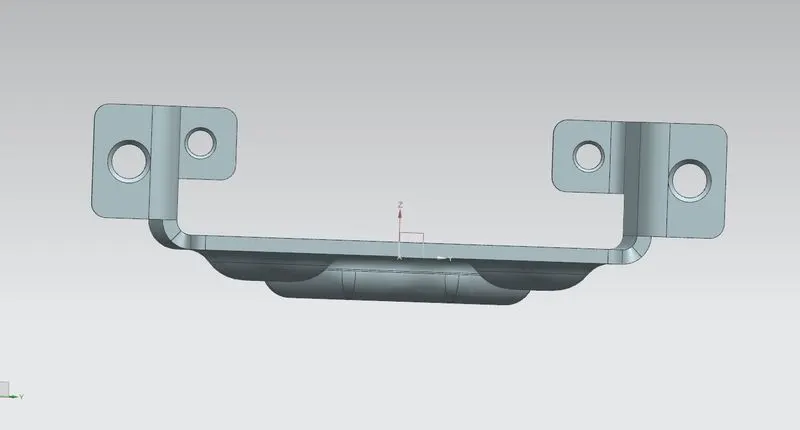

Front View, Side View, Isometric View and the Top View

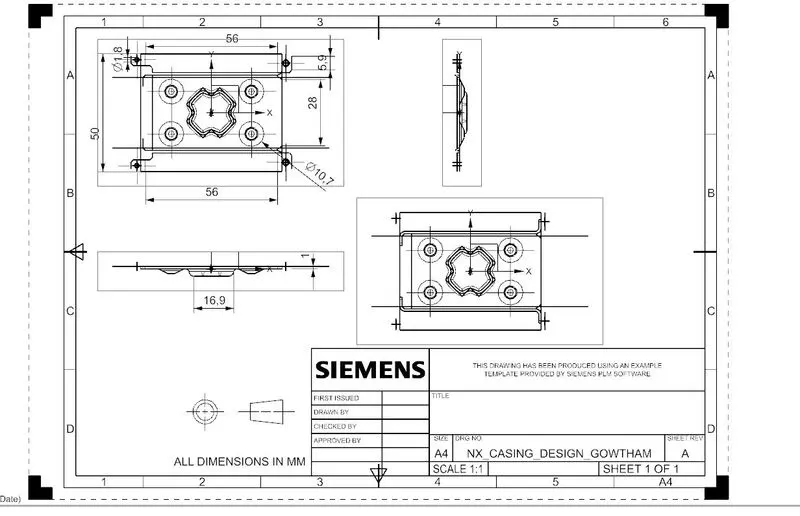

Drawing Sheet Image :-
CONCLUSION:-
Through this challenge, I came to know about the application of various commands and using given inputs finally achieving the final product.
