3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Q.1

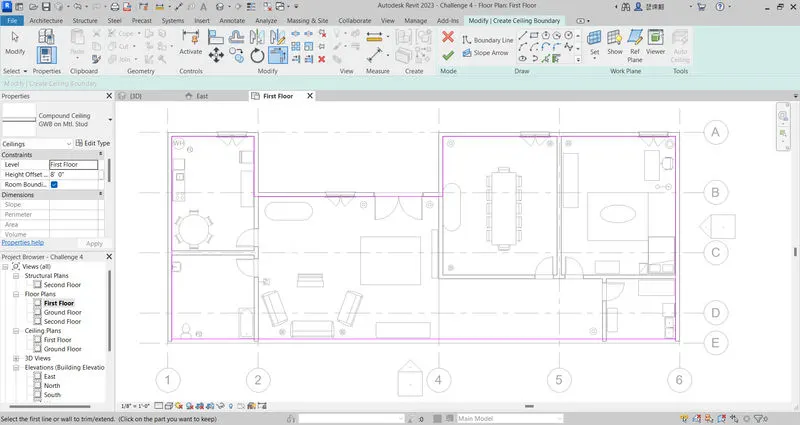

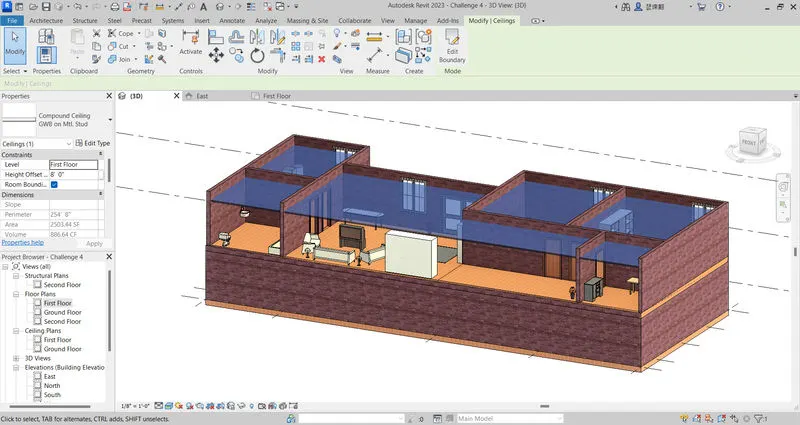

For the ceiling: Architectural ribbon --> Ceiling --> Pick lines

Q.2

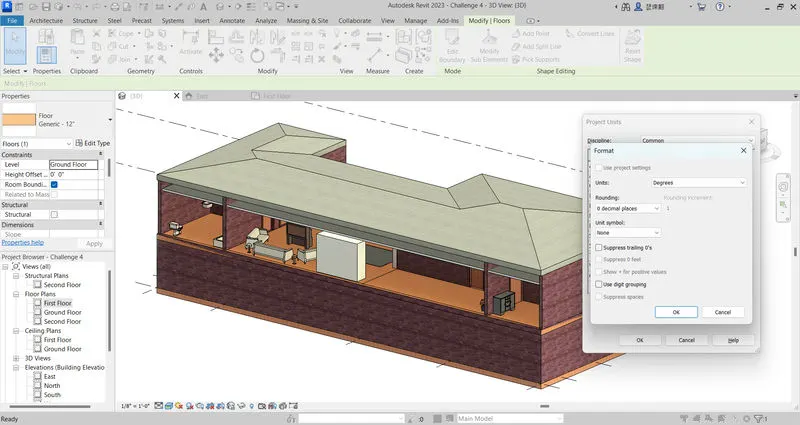

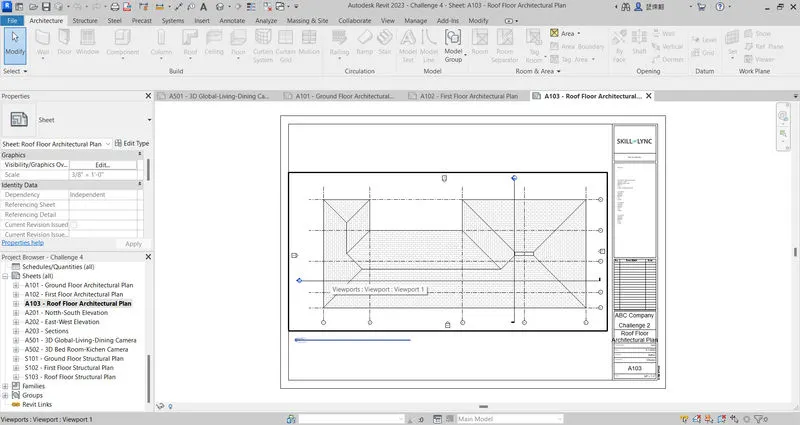

For the roof: Architectural ribbon --> Roof --> Roof by Footprint

Adjusting the slope to 10 degrees from the project units window

Q.3

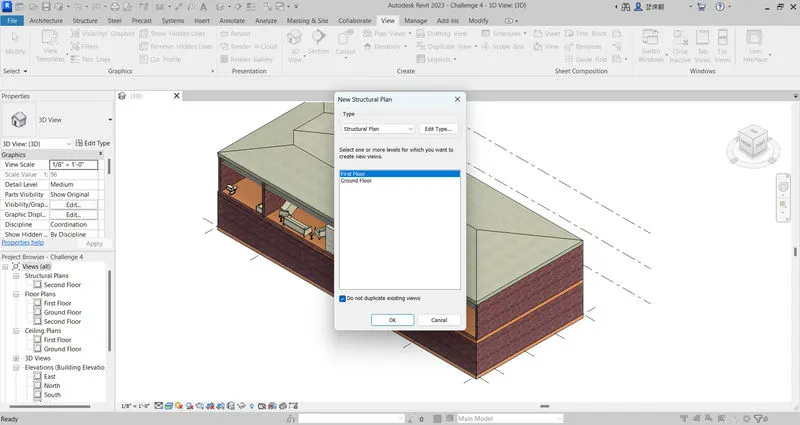

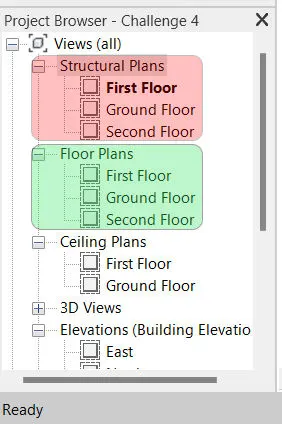

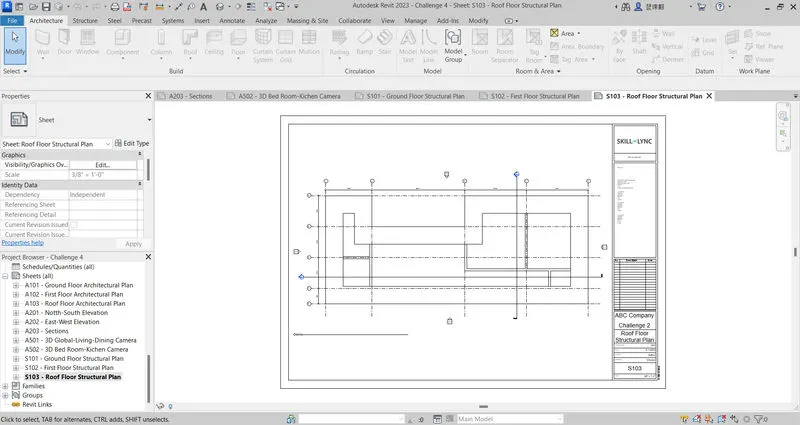

For the structural plan view: View ribbon --> Plan Views --> Structural Plan

Q.4

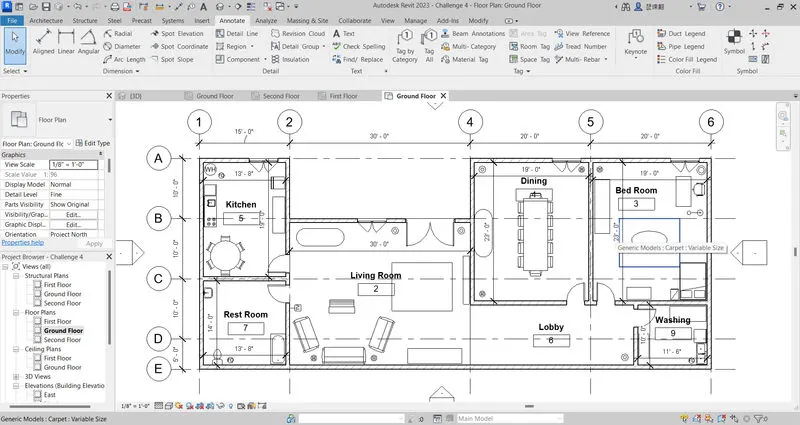

For dimensions: Annotate ribbon --> Aligned & Linear

Q.5

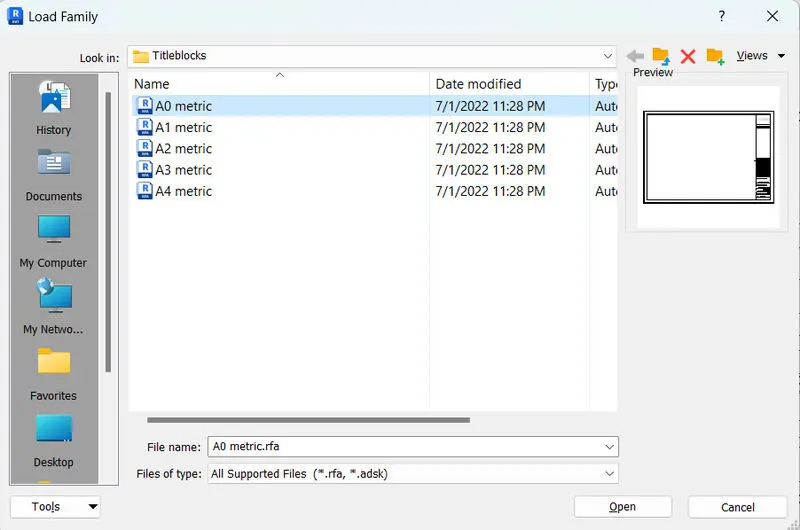

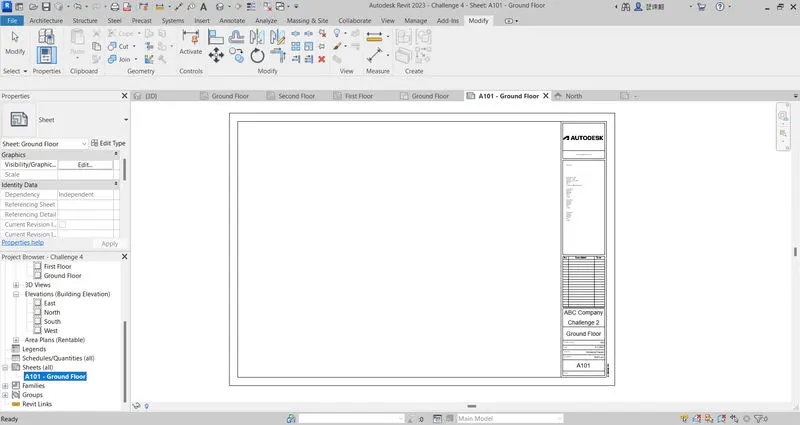

For Sheets: View ribbon --> Sheet --> Load... --> Titleblock --> A0 metric

To adjust the parameters, just click any text to modify it.

Q.6

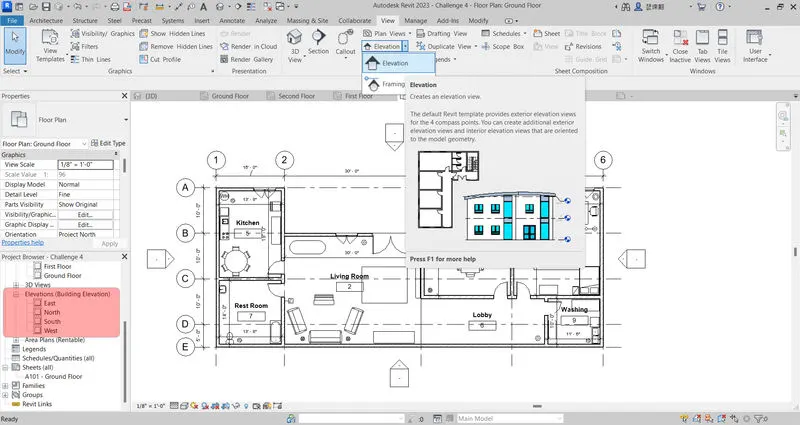

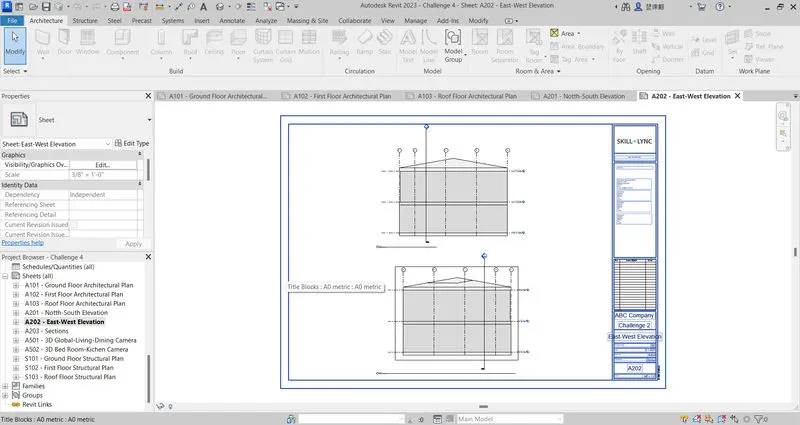

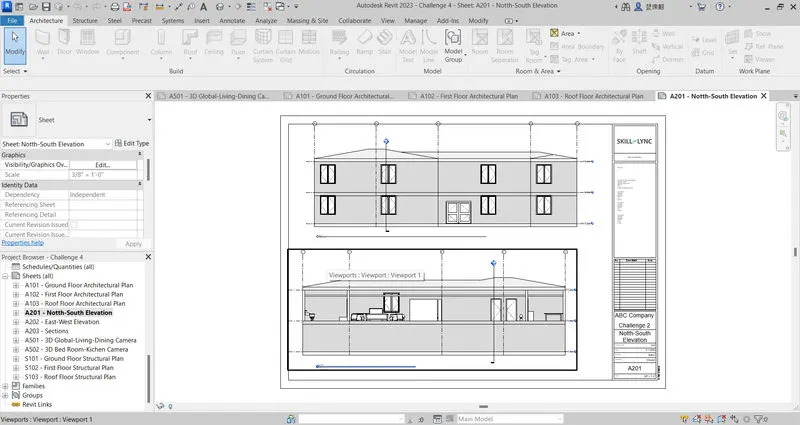

For elevation views: View ribbon --> Elevation --> Elevation

Q.7

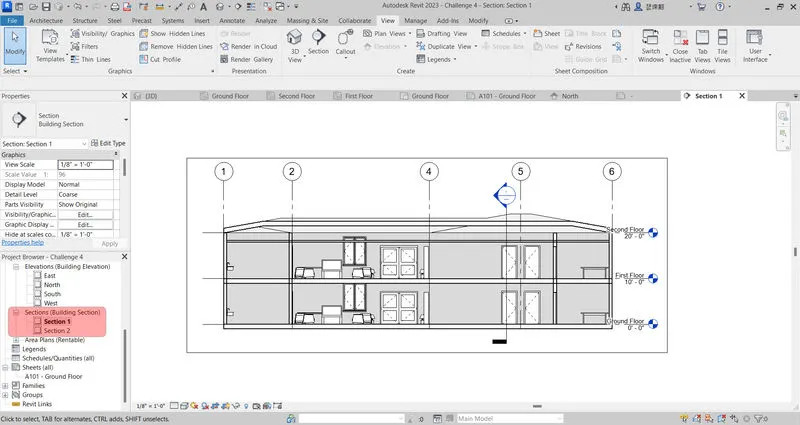

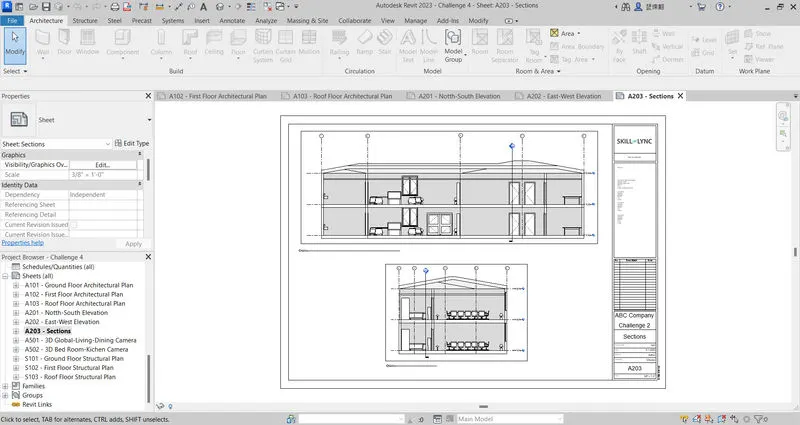

For section cuts: View ribbon --> Section

Q.8

Q.9

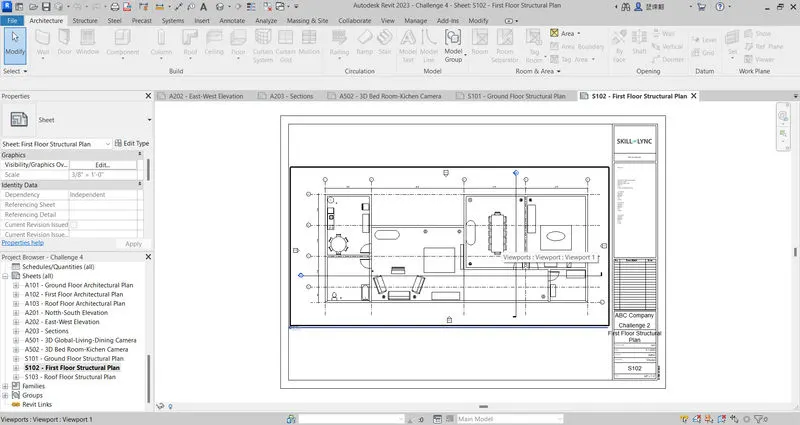

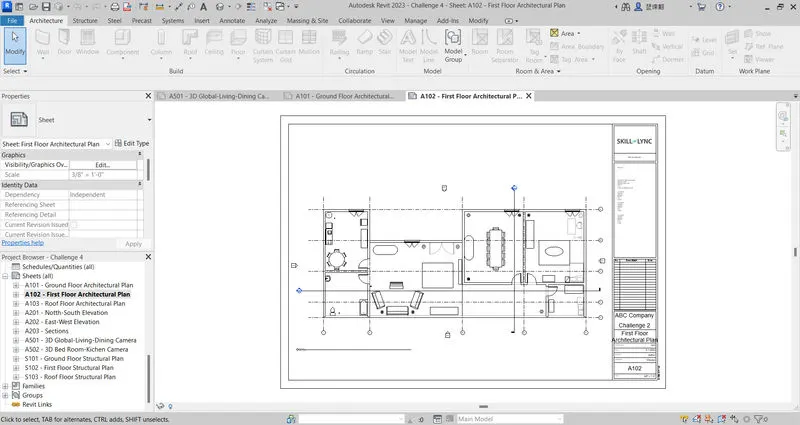

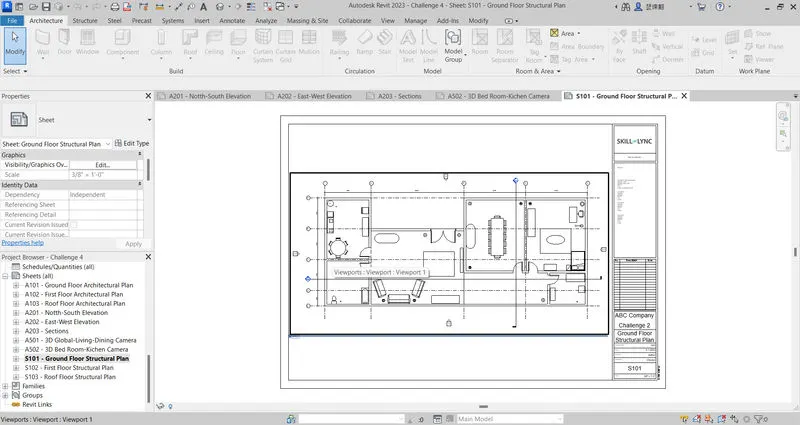

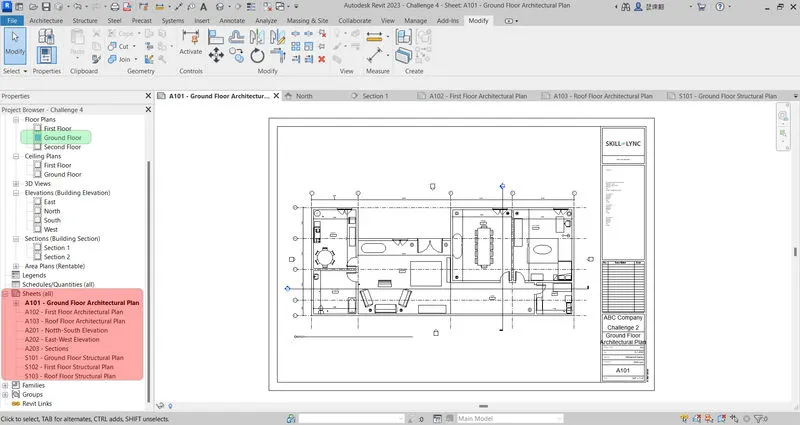

Sheets have been created as required in the attached model file

Q.10

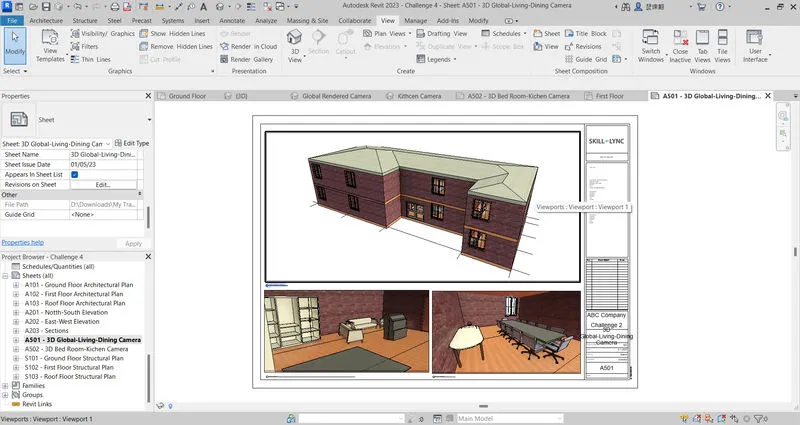

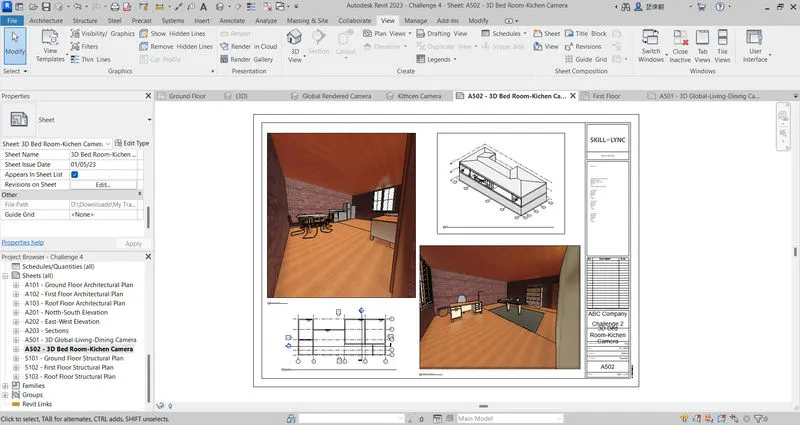

Camera views have been created as required in the attached model file

============================================================================
