3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Ans 1

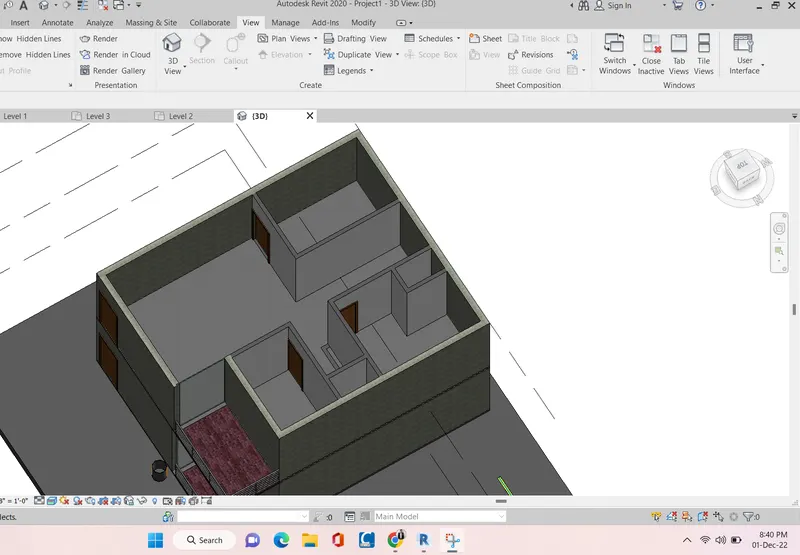

Model a Ceiling from the architecture tab above the walls at the first-floor level



Ans 2

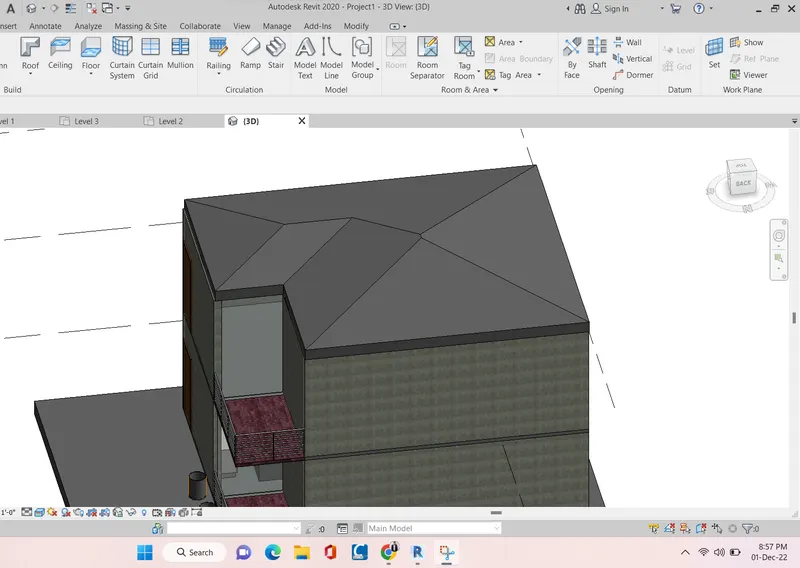

Model a roof above the ceiling by selecting the footprints of the ceiling.

Ans 3

 create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

Ans 4

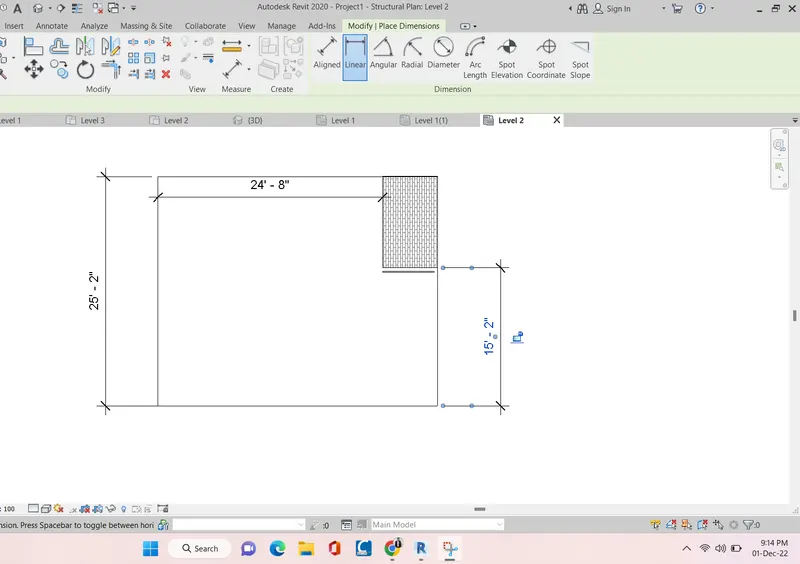

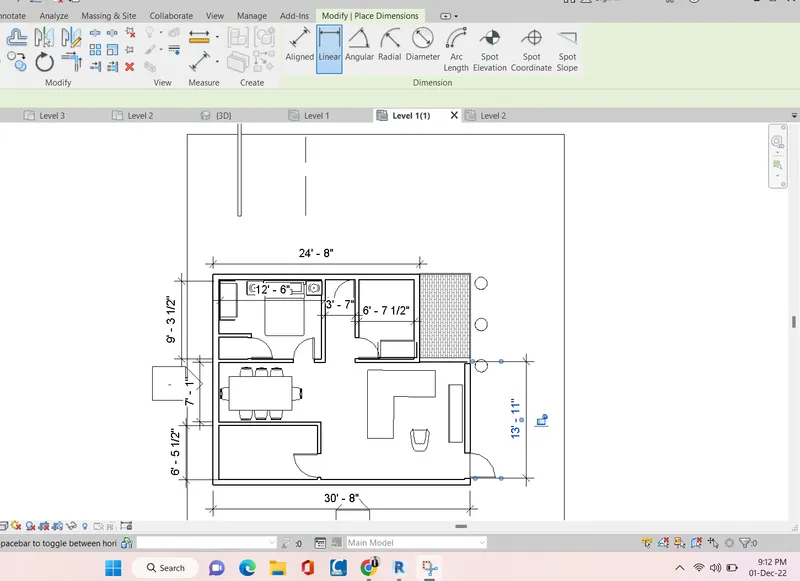

 Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

Ans 5

Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Ans 6

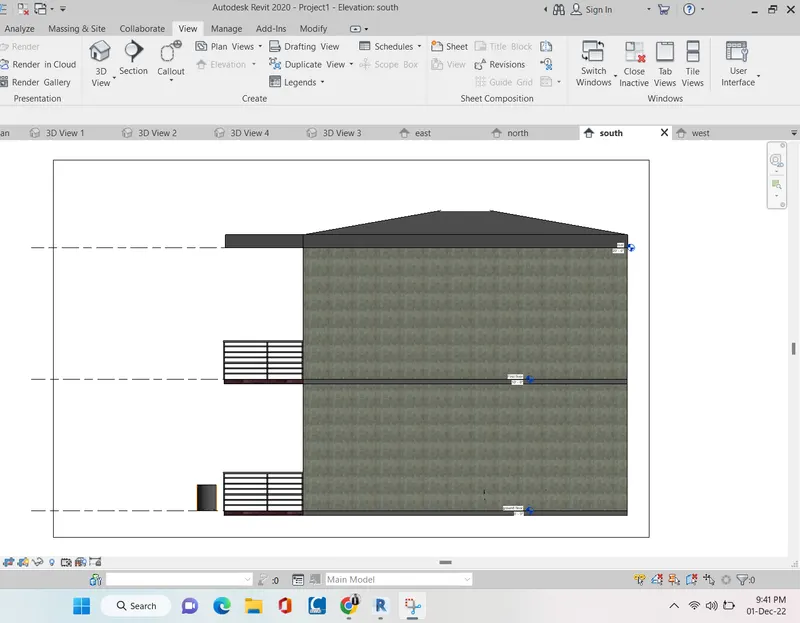

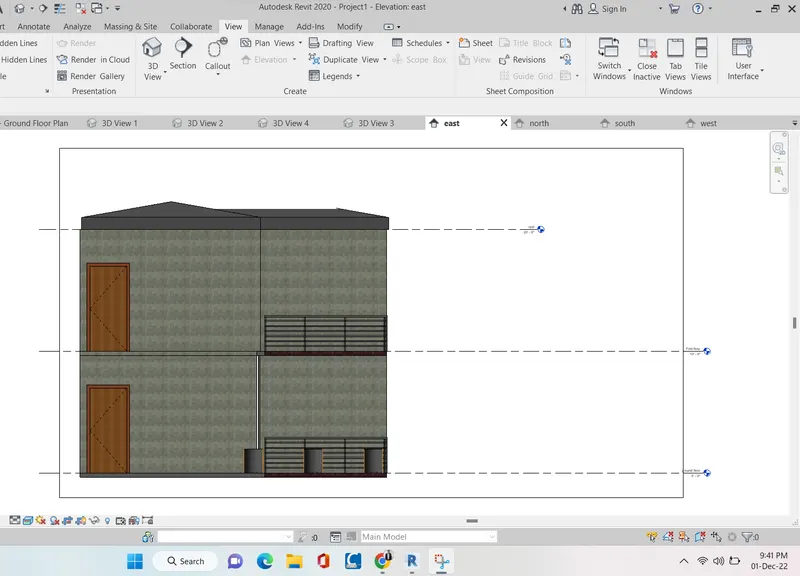

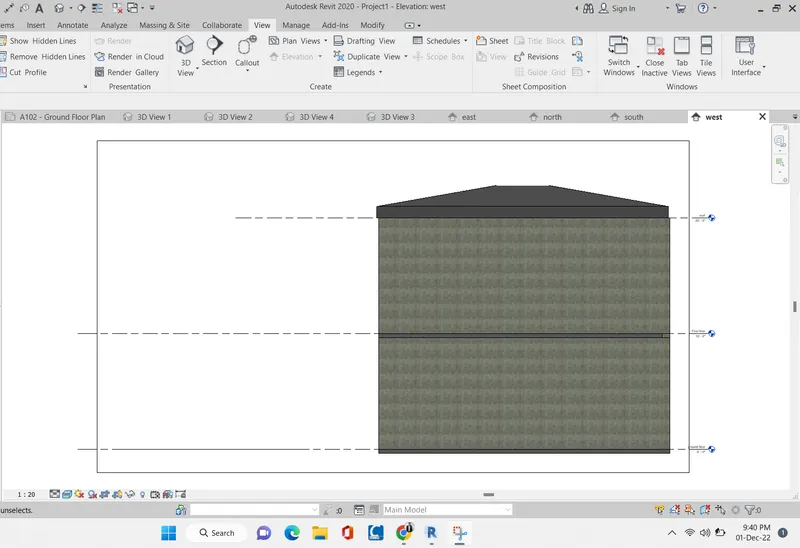

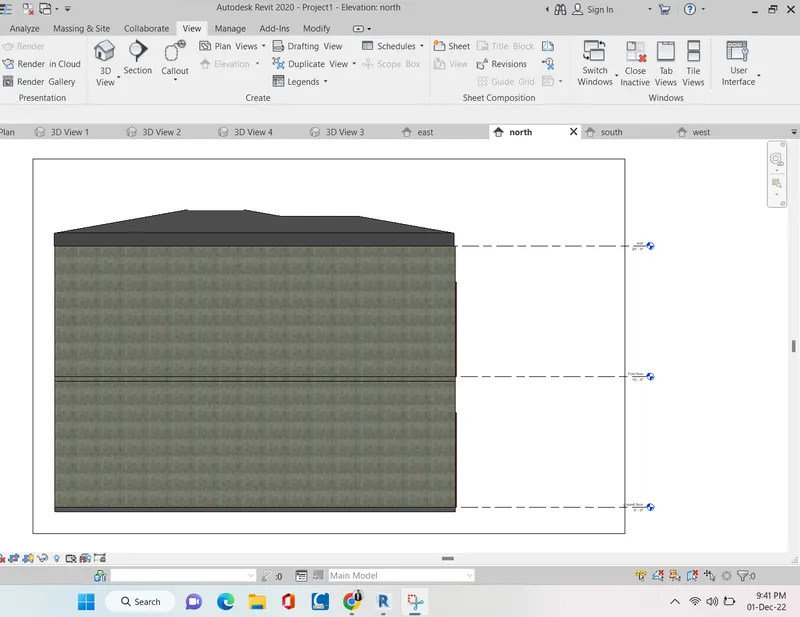

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Ans 7

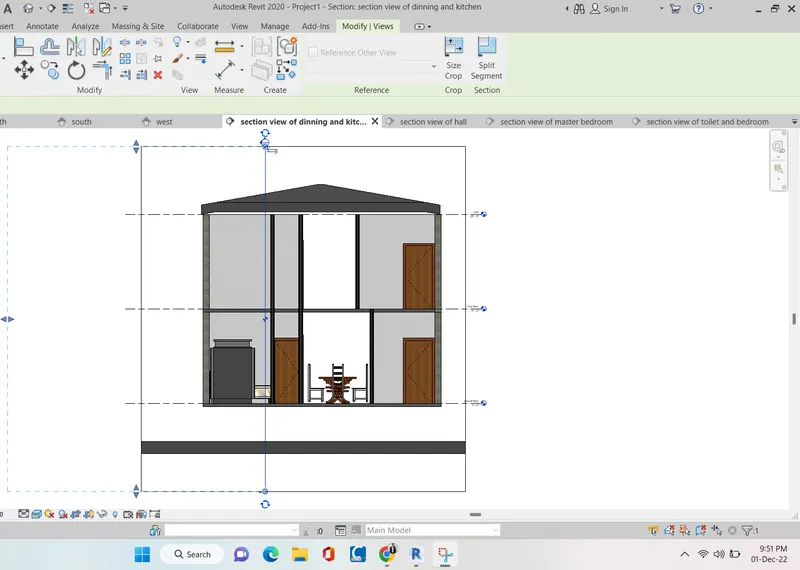

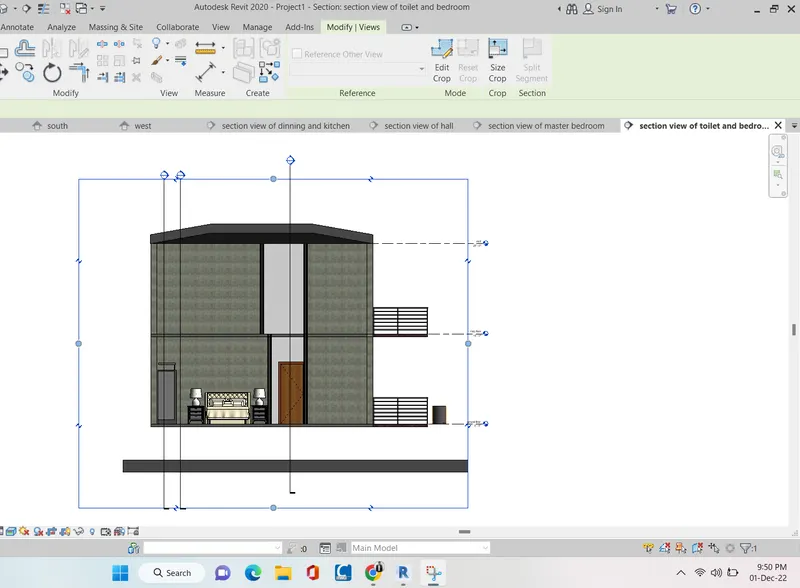

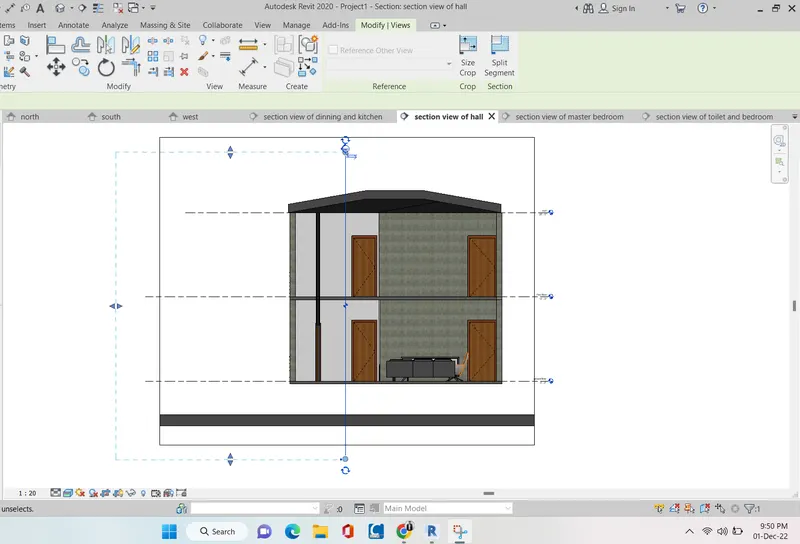

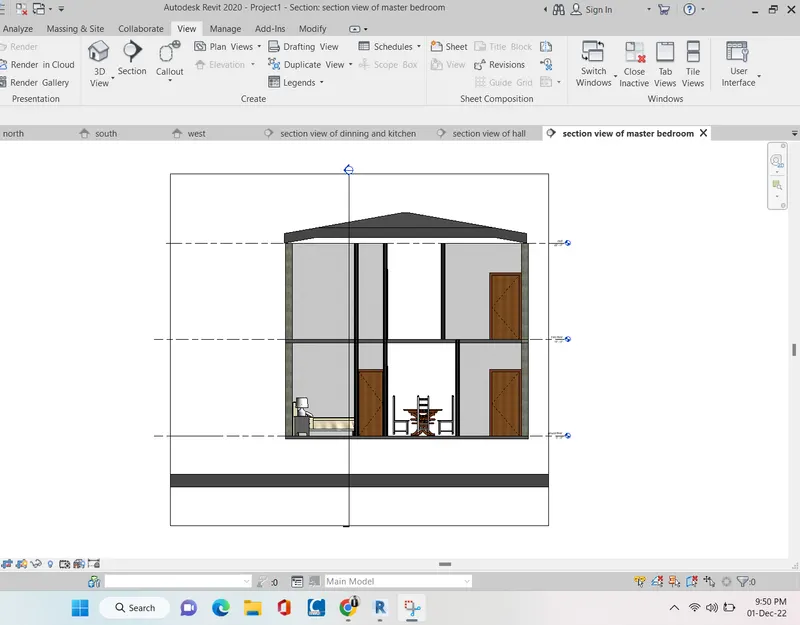

Produce section cut through each room either cutting across longitudinally or in a transverse direction

Ans 8-

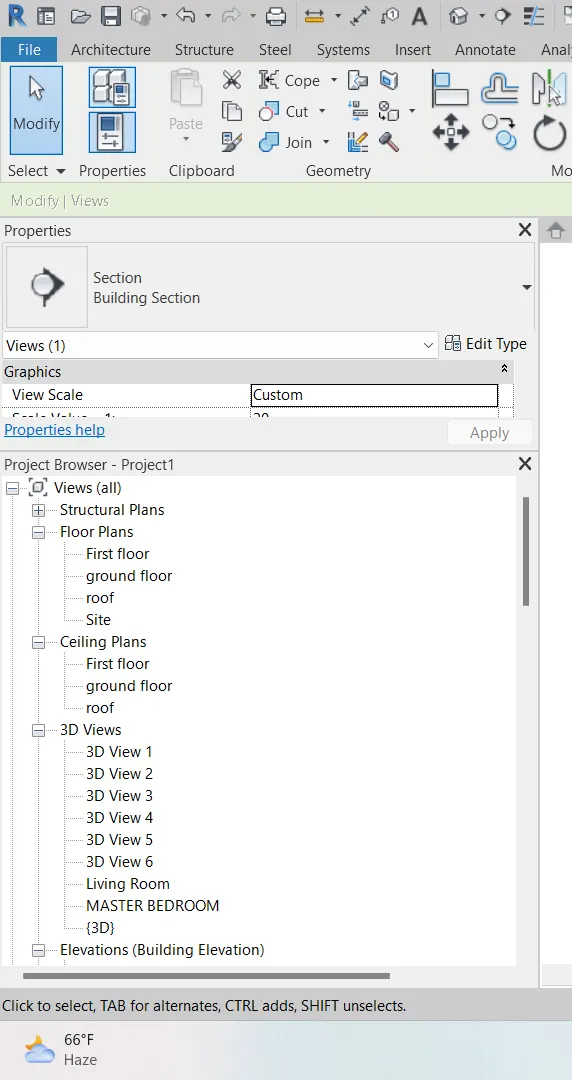

 Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Ans 9

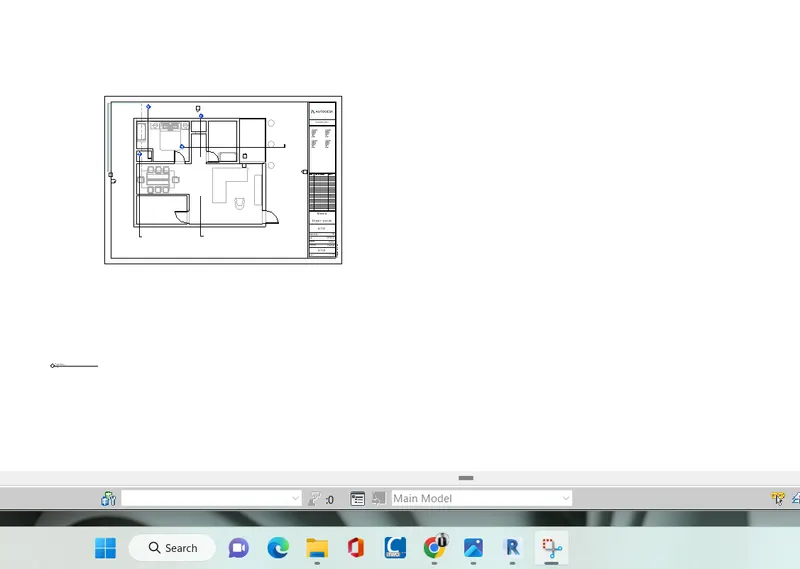

  Using the sheet template produced create multiple sheets as follows

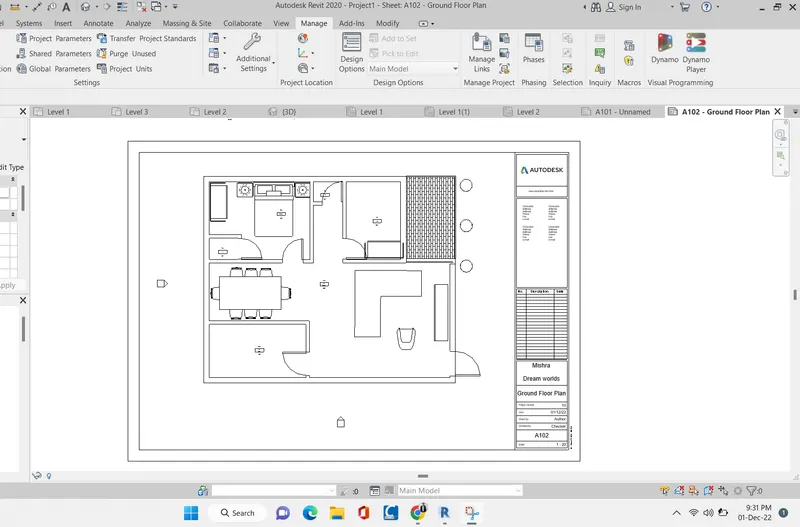

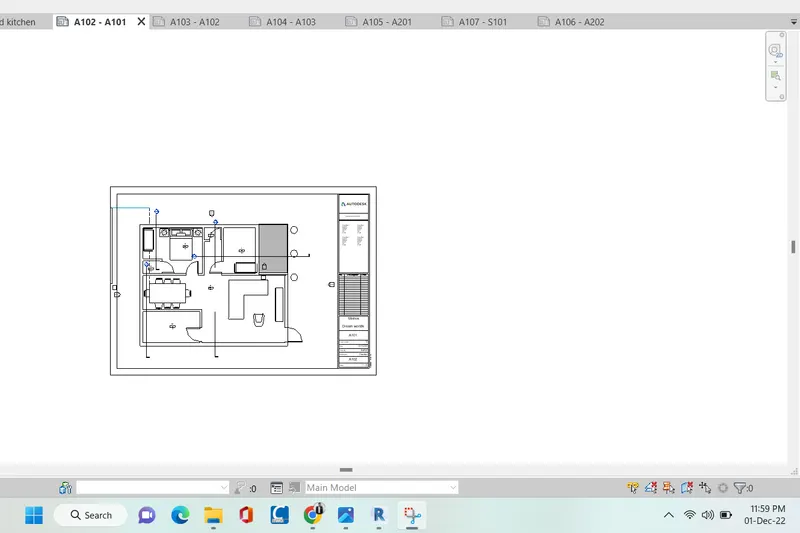

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan

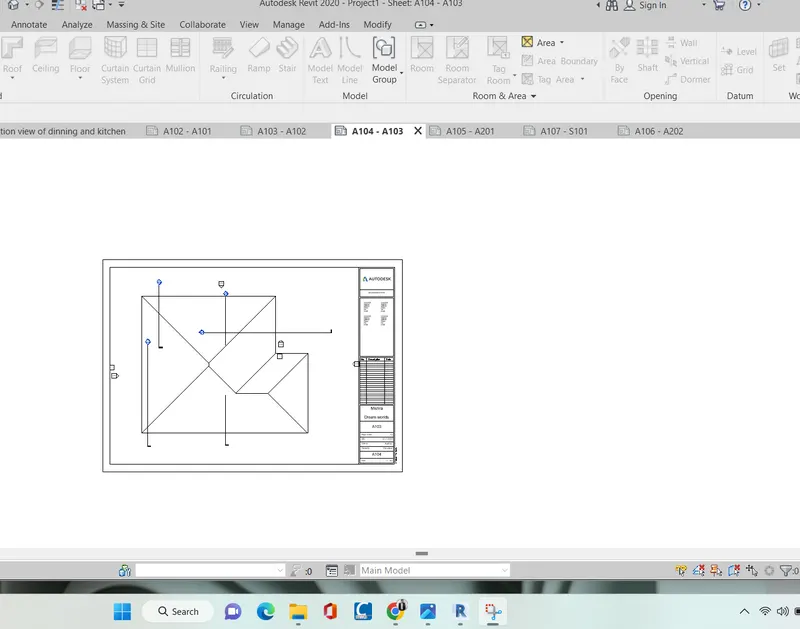

c. A 103- Roof Plan

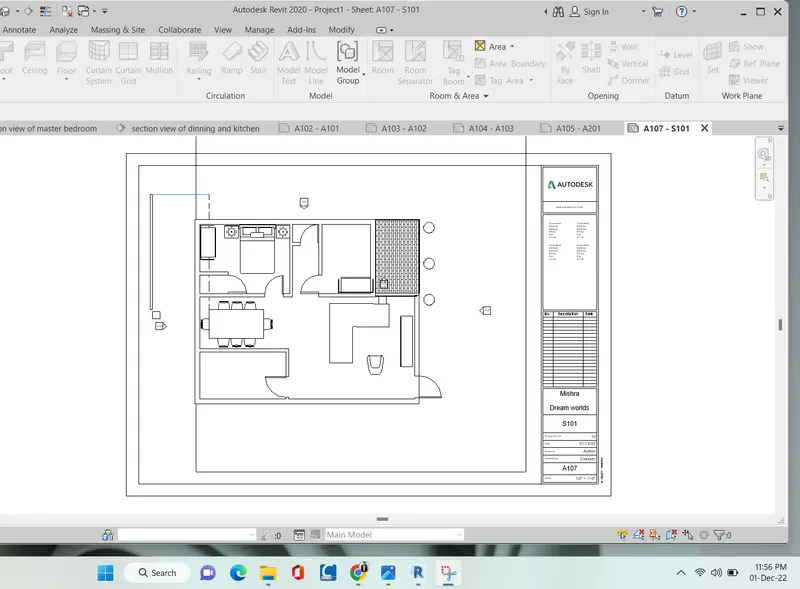

d. S 101- Ground Floor Structural Plan

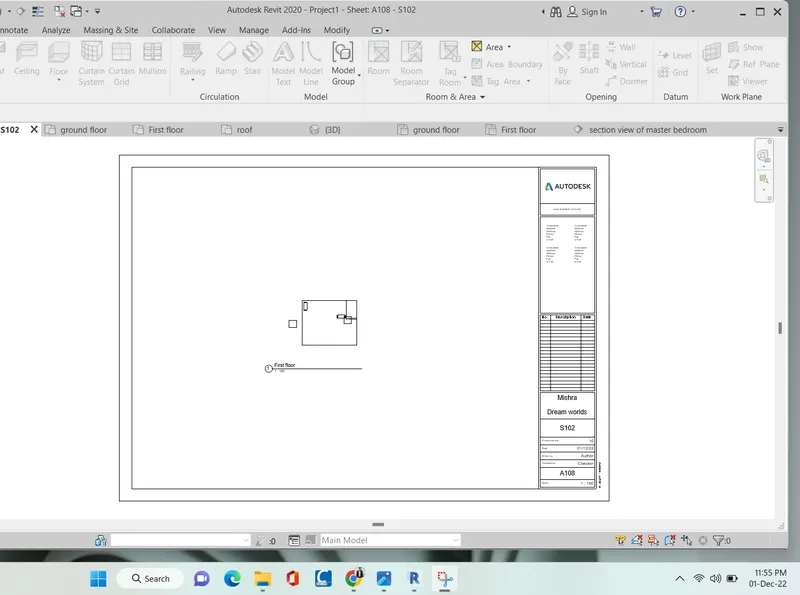

e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

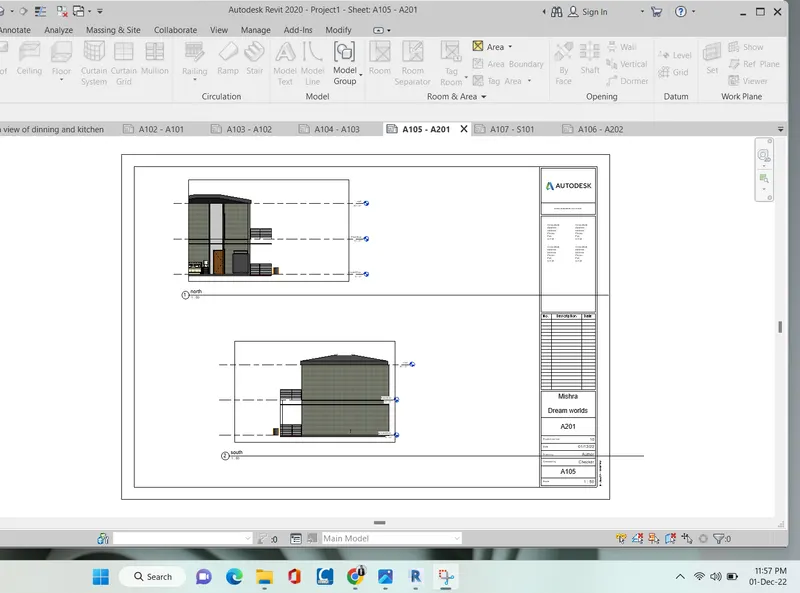

g. A-201- North-South Elevations

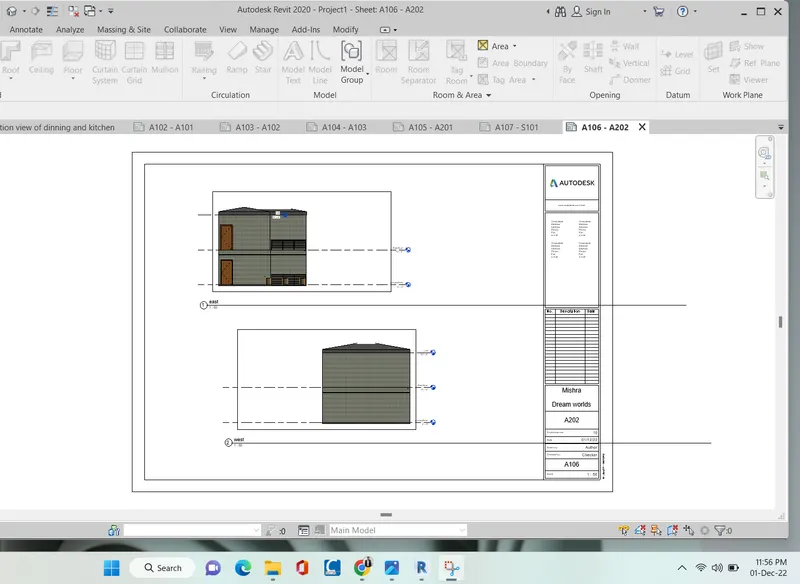

h. A-202- East-West Elevations

Ans 10

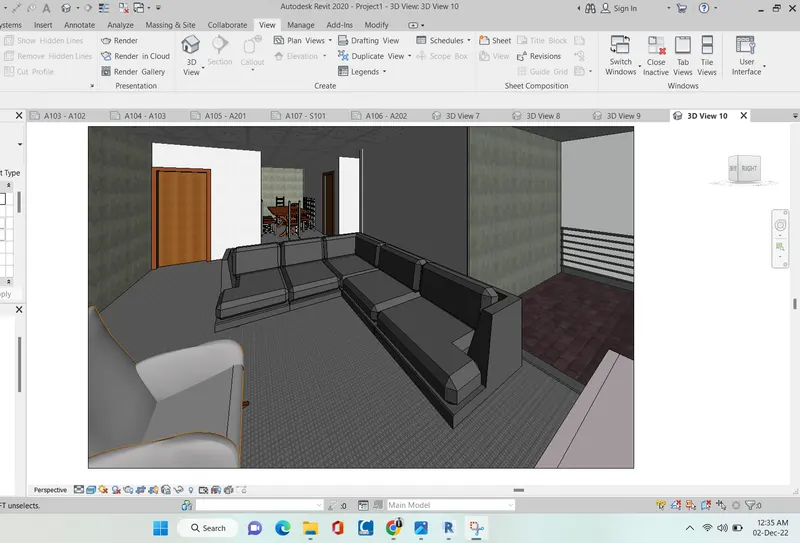

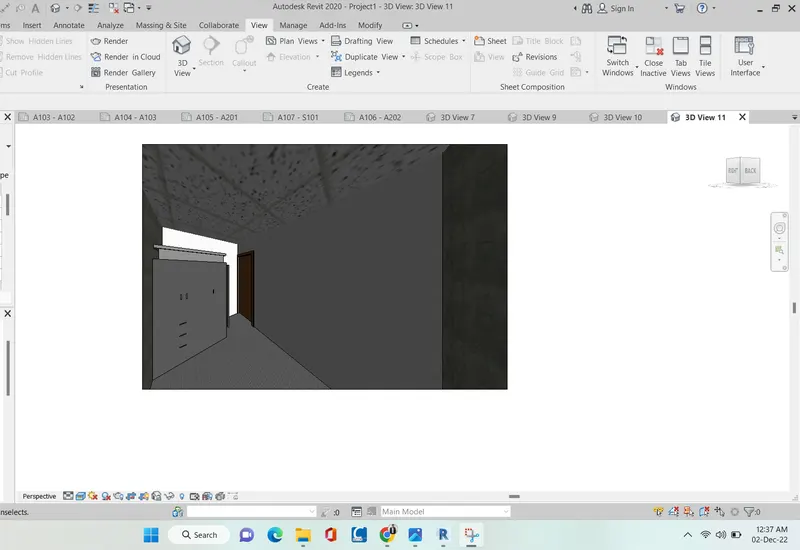

Create a camera-specific view or a 3D view in each room
