3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1. Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.
A.) AIM:
To model a ceiling from the architecture tab above the walls at the first-floor level.
PROCEDURE:
- Open the revit file.
- Click architecture tab from in the dialog box.
- Select the ceiling option from the architecture tab.
- Select Skecth ceiling > pick lines.
- After picking the lines, choose the finish edit mode.
RESULT:

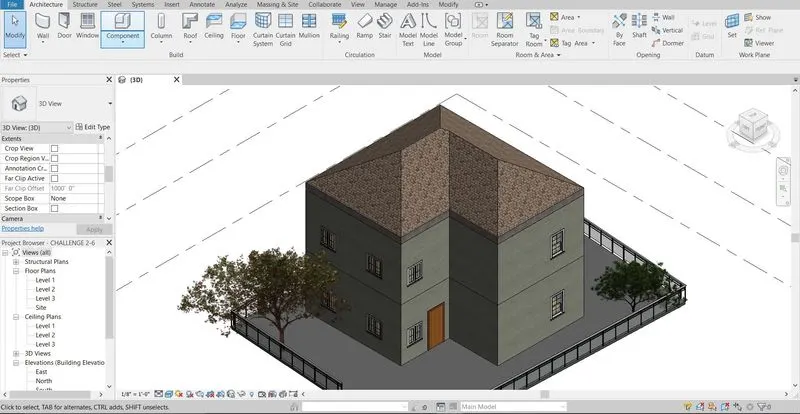

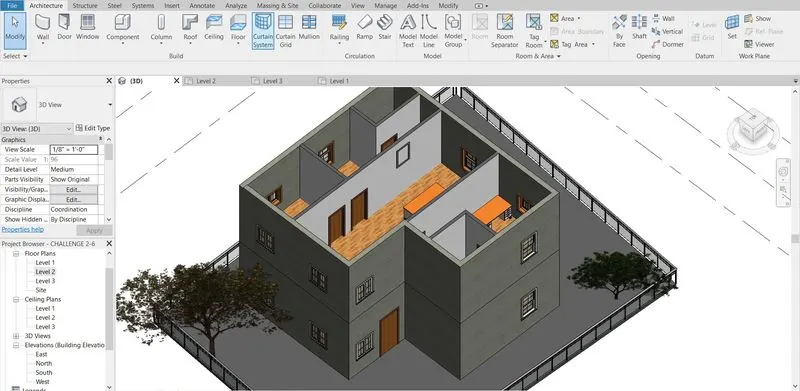

2. Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
A.) AIM:
To model a roof above the ceiling by selecting the footprints of the ceiling.
PROCEDURE:
- Open the revit file.
- Click architecture tab from in the dialog box.
- Select the roof from the architecture tab.
- Under the roof option choose roof by foot print.
- Choose the walls.
- Finally the roof will be added.
- To adjust the roof slope to 10 degrees, select the roof and go to the properties bar and change the slope value to 10 degrees.
RESULT:

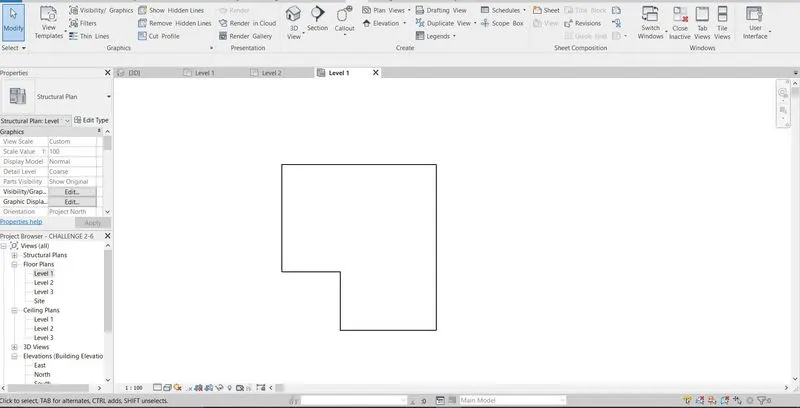

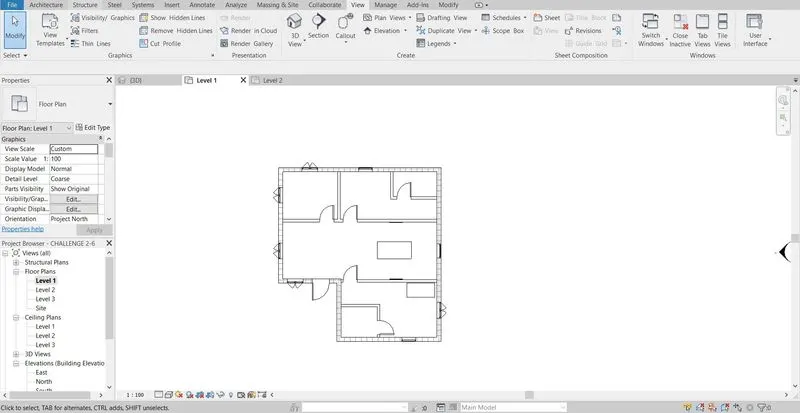

3. Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
A.) AIM:
To create plan views for ground floor level and first-floor level including all the walls, floors, and components.
PROCEDURE:
- Open your revit file.
- Go to the view command and choose plan views.
- Then select floor plan. Thos will be the architectural plan.
- For structural plan, from plan views, choose structural plan.
RESULT:

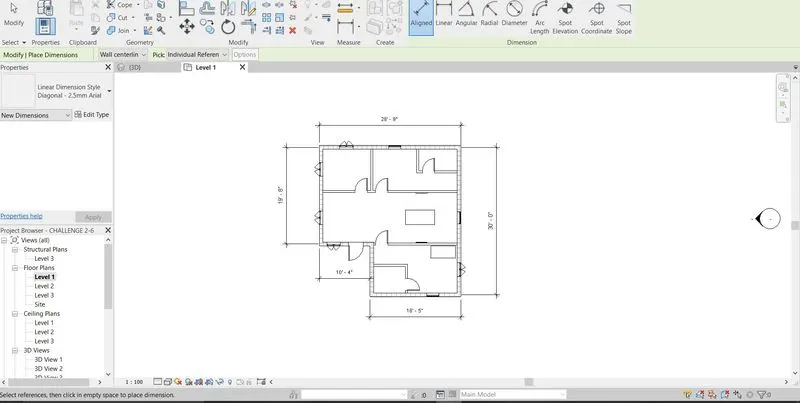

4. Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
A.) AIM:
To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
PROCEDURE:
- Open the revit file and choose the floor plan to annotate.
- Now select the annotate tab.
- Finally choose alligned or linear options.
- Select the walls to be annotated.
RESULT:

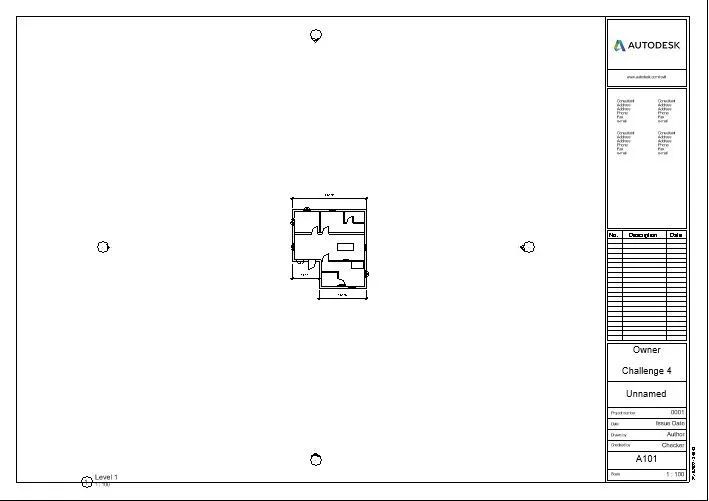

5. Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
A.) AIM:
To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
PROCEDURE:
- Open the revit file and select the view tab.
- Choose the sheet option.
- After the sheet opens go to the properties pannel.
- From the properties pannel choose any plan and drag it to the sheet.
RESULT:

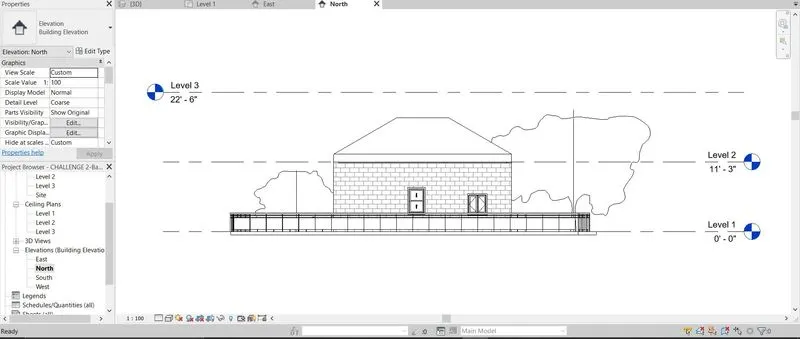

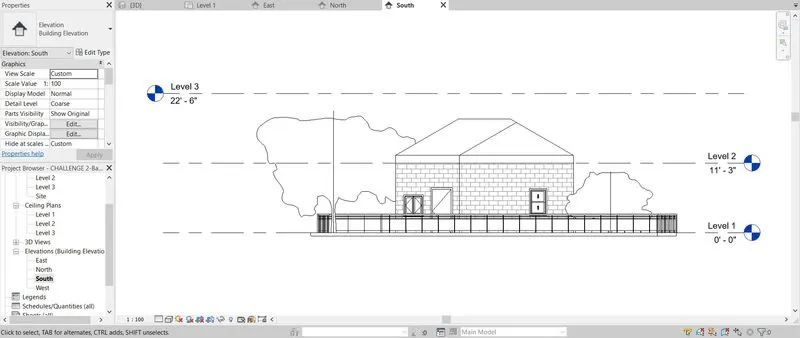

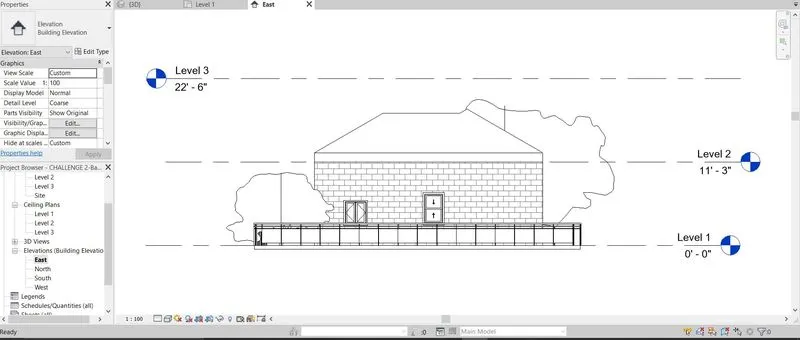

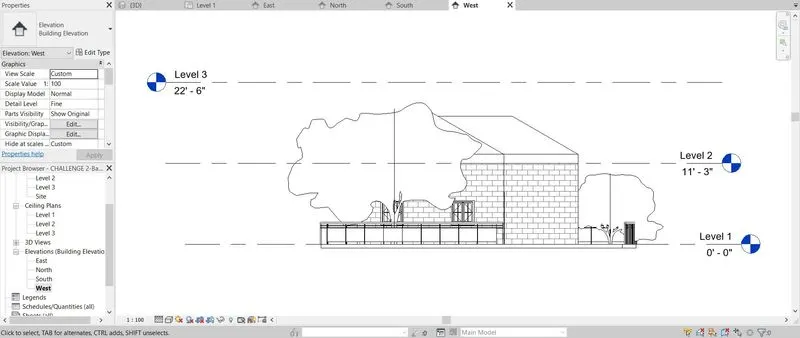

6. Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.
A.) Aim:
To create the elevation views, looking at your building from East, North, South, and West.
PROCEDURE:
- Open the revit file which has also been created.
- From the view tab choose elevation option.
- After selecting the elevation option place the cursor in various directions from East, North, South, and West.
- Now view it from the properties bar.
RESULT:

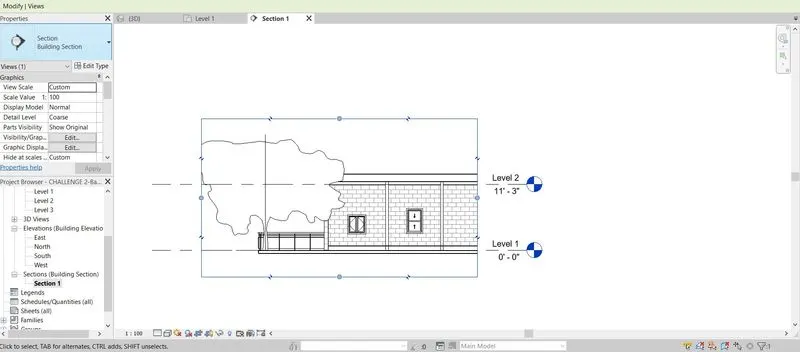

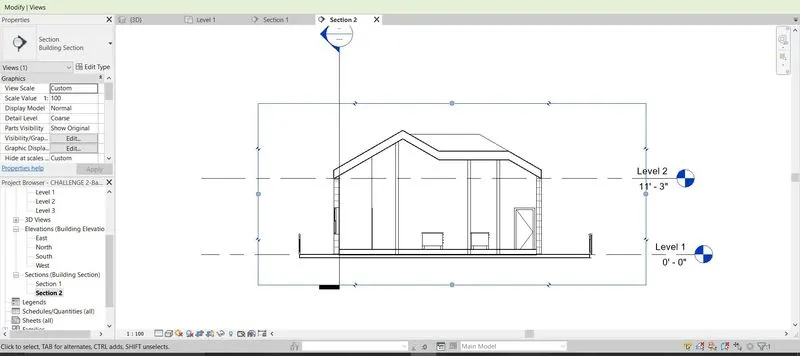

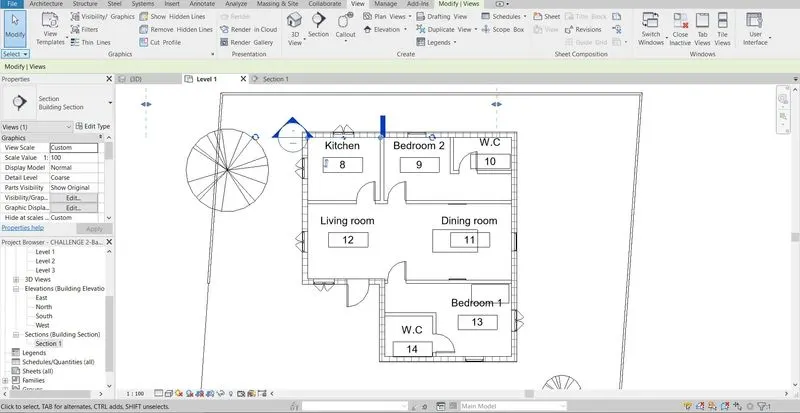

7. Produce section cut through each room either cutting across longitudinally or in a transverse direction.
A.) AIM:
To Produce section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE:
- Open the revit file and select the view option.
- From the view tab choose section.
- Cut the section through each room either cutting across longitudinally or in a transverse direction.
- View the same from the properties tab.
RESULT:

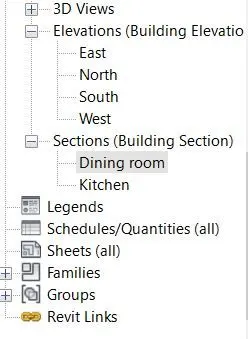

8. Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
A.) AIM:
To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
PROCEDURE:
- Open the revit file which was used for this challenge.
- Go to the properties bar and take the screenshot of all the work done in this challenge.
RESULT:
